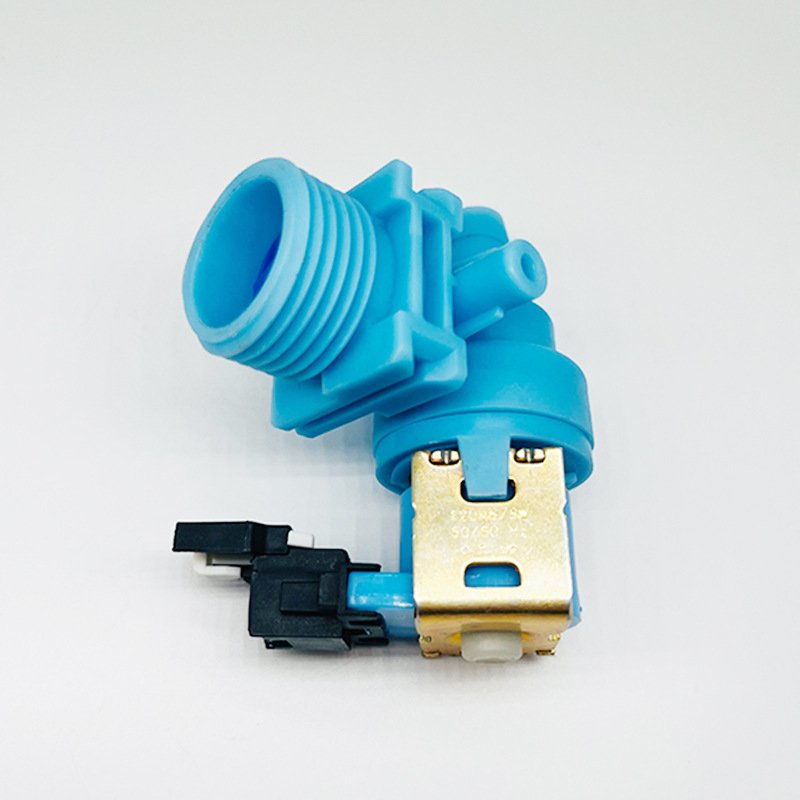

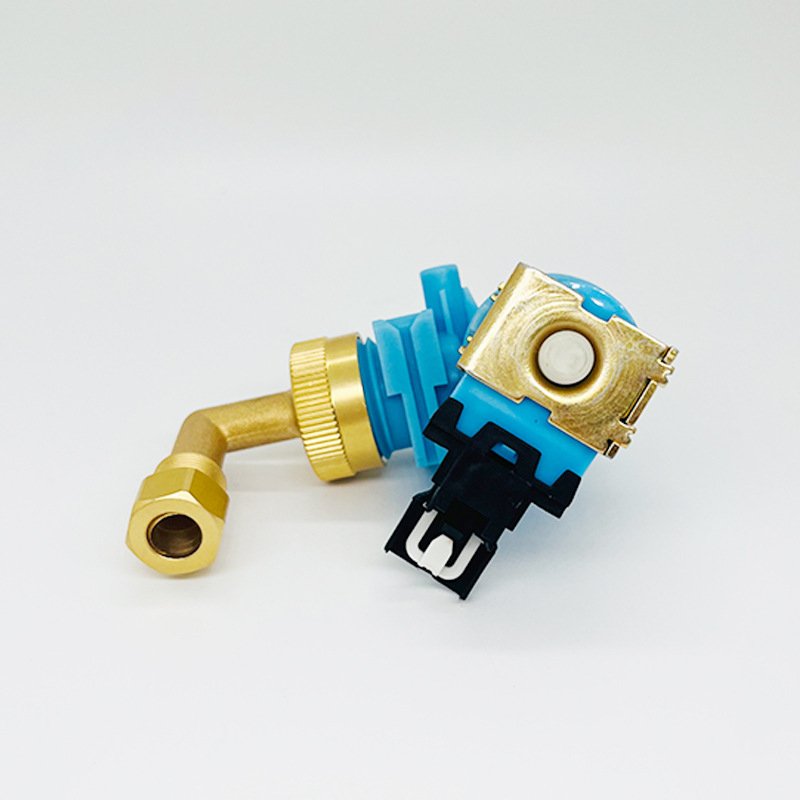

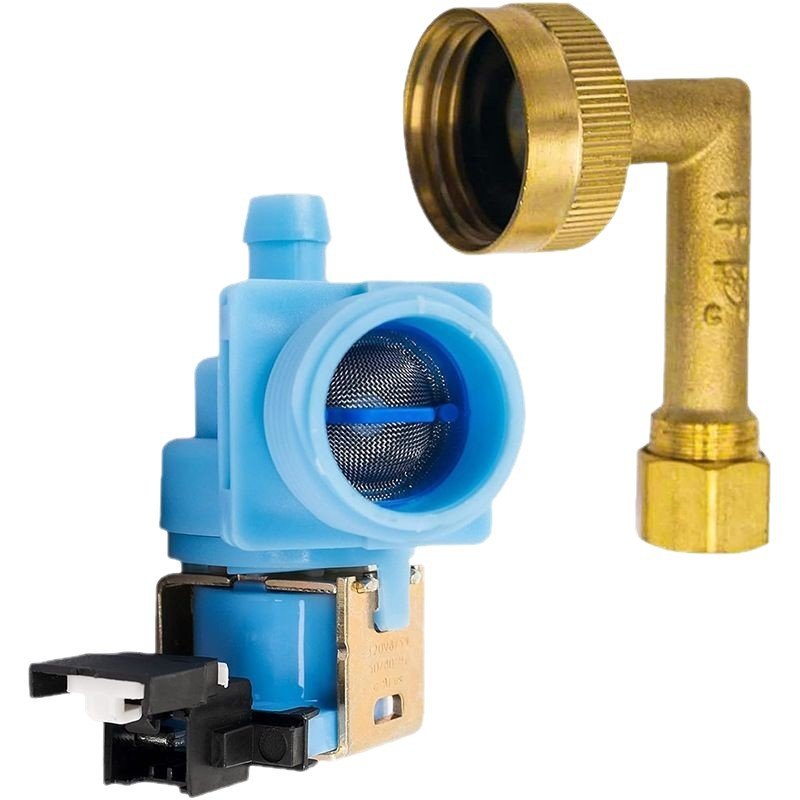

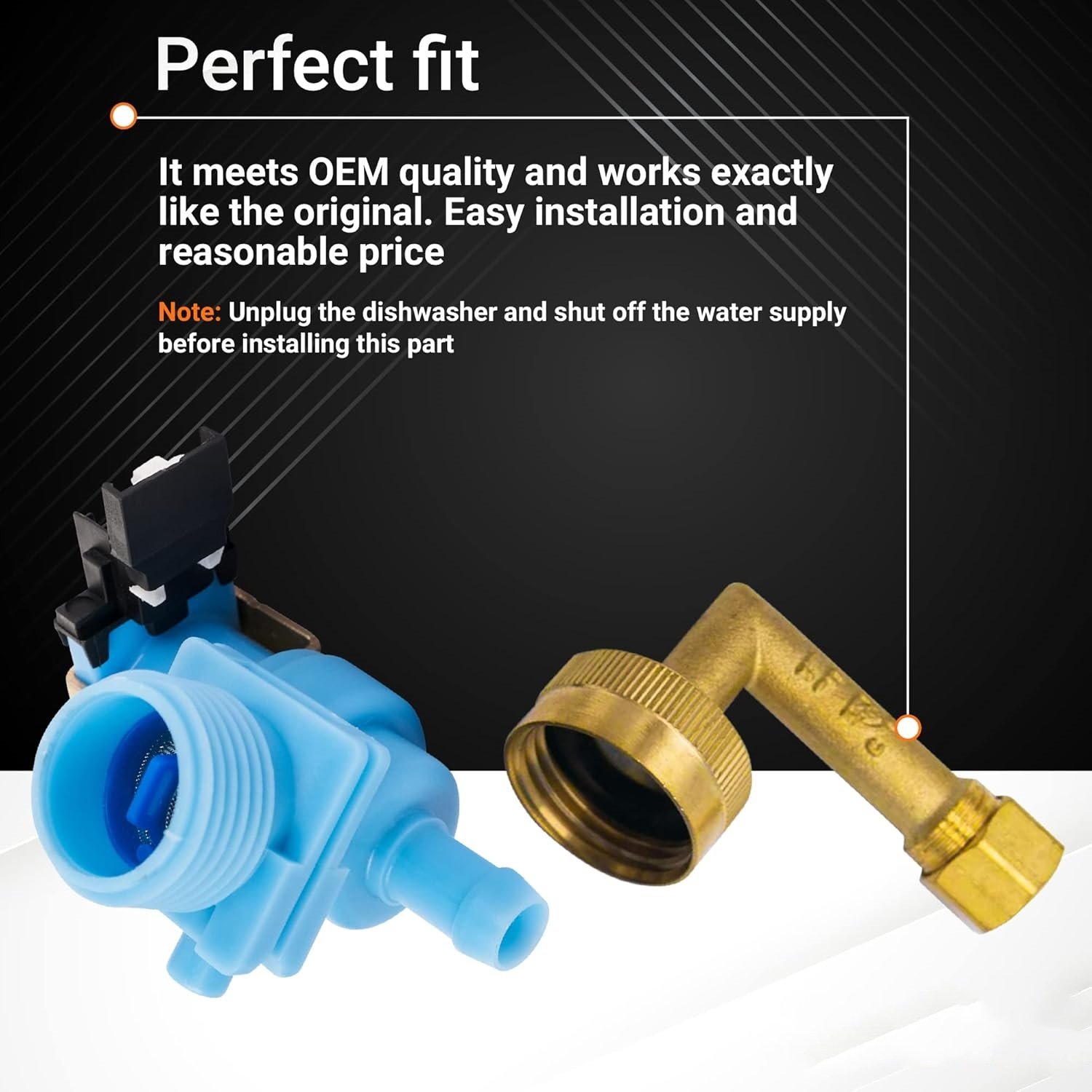

IMPORTANT NOTE: Package includes: 1 x W10648041 Dishwasher Water Inlet Valve and 1 x Elbow Fitting. Please check the model number carefully before ordering.
RELIABLE WATER SUPPLY: W10648041 Water Inlet Valve is typically located in the left/ right corner of the dishwasher behind the lower kickplate panel. This valve will ensure a consistent and reliable flow of water into the dishwasher at the appropriate times with no leakage. If your valve is cracked, clogged, rusted, or worn out, replace it to fix the following symptoms: Leaking | Will not fill with water or Not enough water supply | Overflowed water supply | Not cleaning dishes properly.

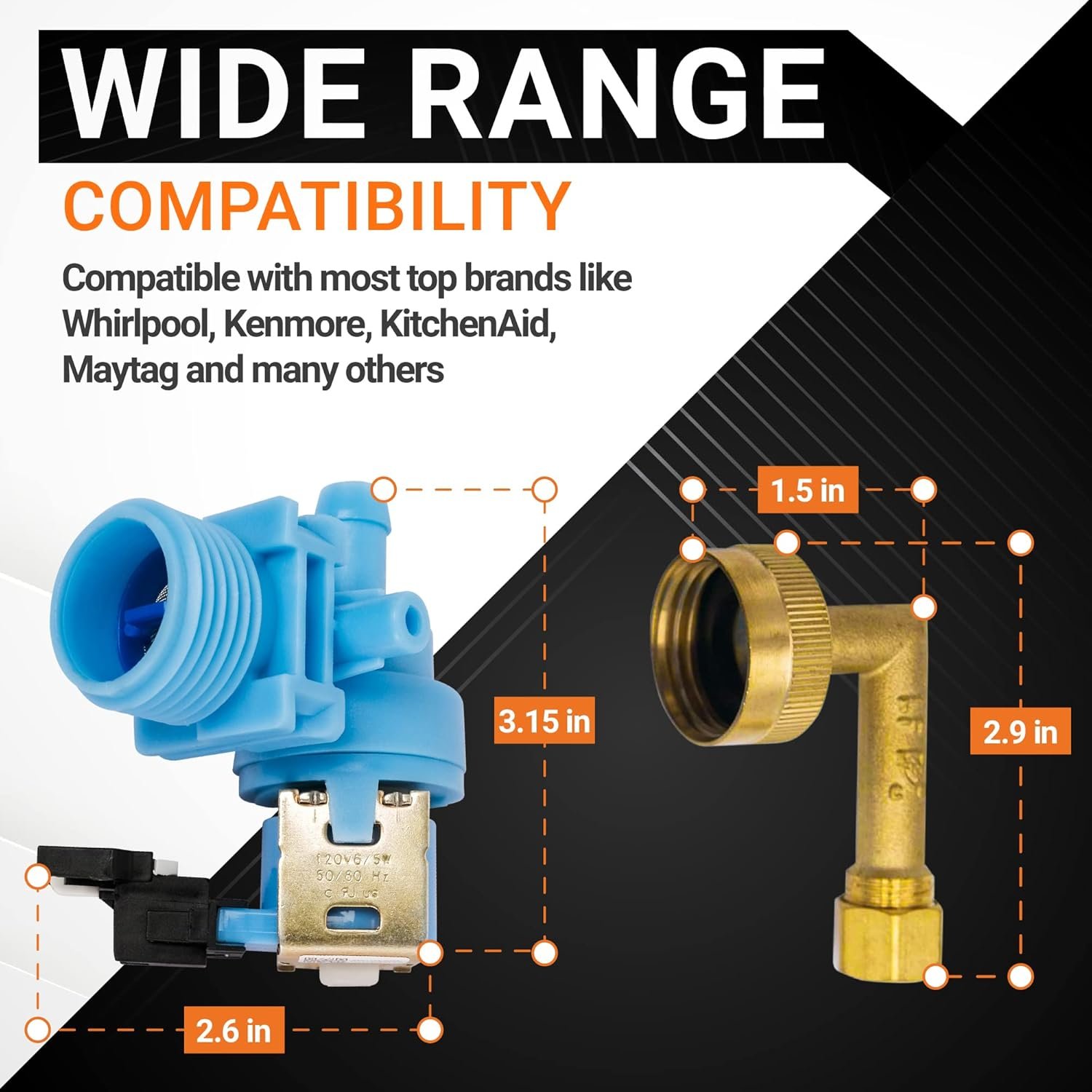

PERFECT MATCH: The electrical specification of the W10648041 Water Inlet Valve is 120V, 50/60Hz, 6/5W. It replaces part numbers: #AP5802887, W10195048, W10195049, W10219505, W10219506, W10648041VP, W10865472, WPW10195049, PS8760080, W10195047. It is made exactly fit for several models of top-name brands (Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Magic Chef, Crosley, Jenn-Air, Estate).
FIT MODELS: [Kenmore] – 66512772K311, 66512773K311, 66512776K311, 66512833K311, 66513104K900, 66513114K702, etc. [KitchenAid] – KUDL03IVWH2, KUDL03IVWH3, KUDL40CVWH0, KUDS30IVBS2, KUDS30IVSS2, KUDS40CVBL0, etc. [Whirlpool] – DU1014XTXT0, DU1014XTXT1, DU1014XTXT2, DU1015XTXS1, DU1055XTVB3, DU1055XTVS0, etc. (detailed list below)

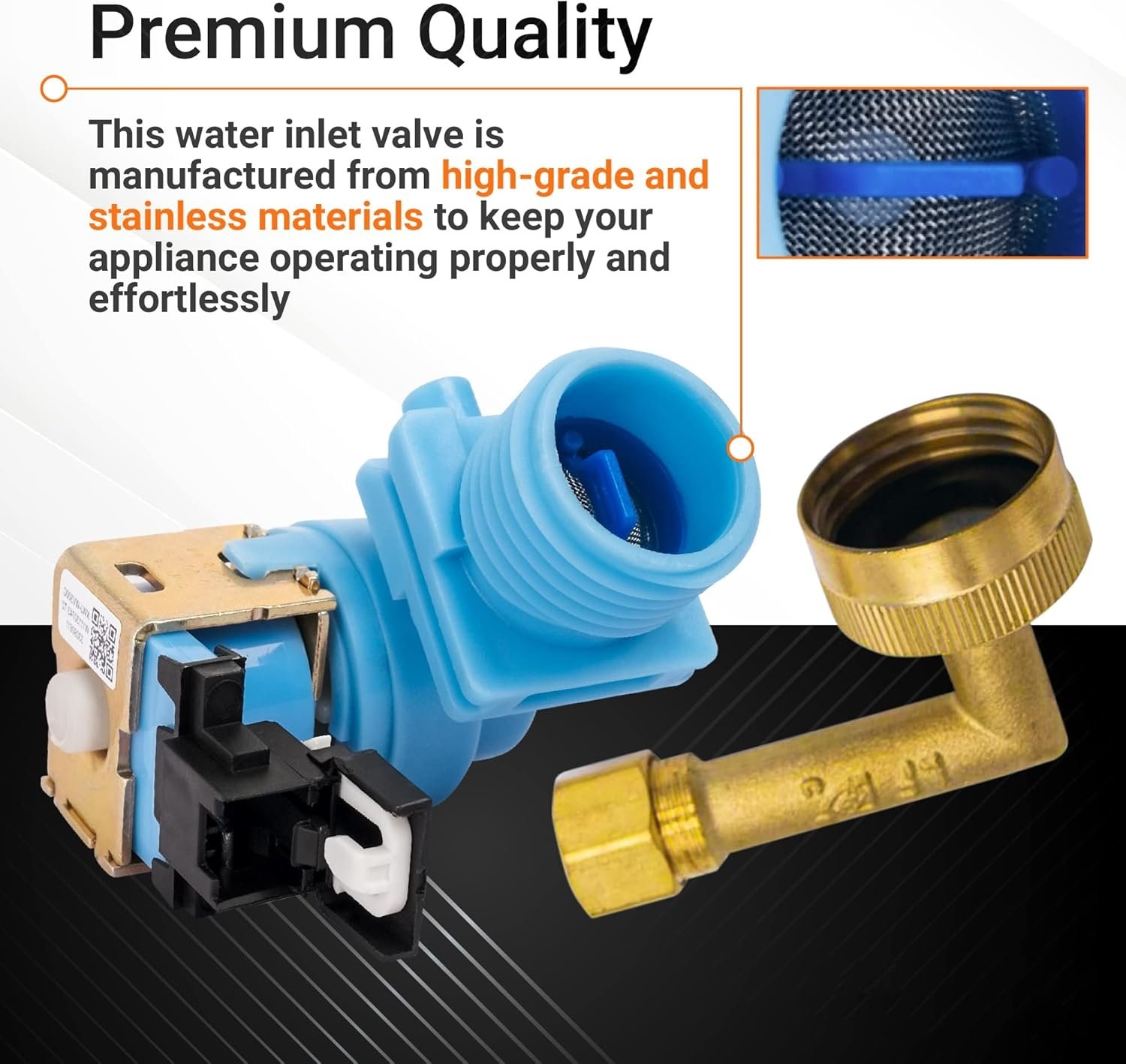

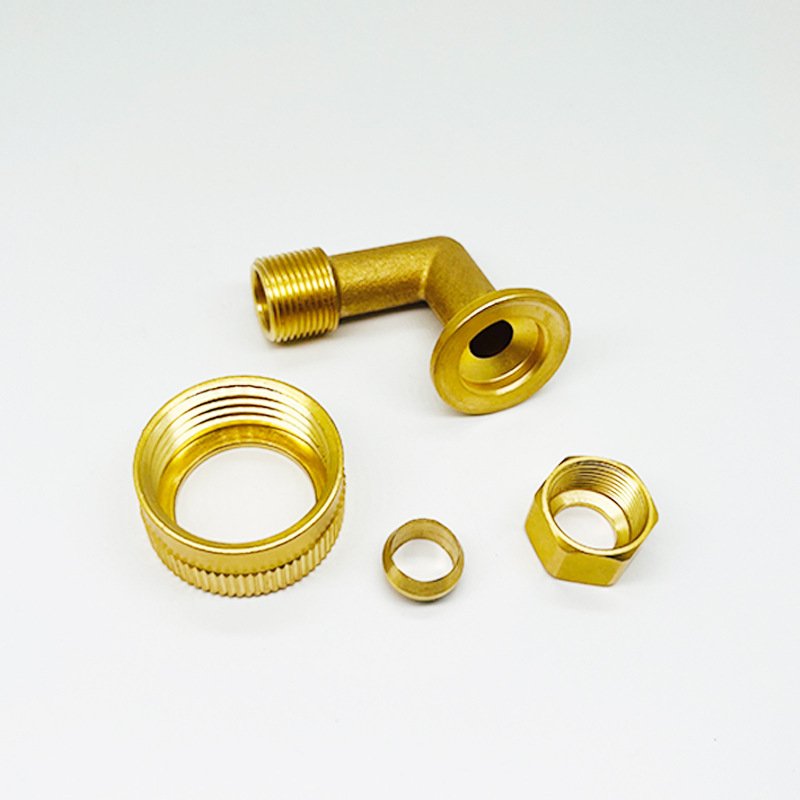

SUPERIOR QUALITY: W10648041 Water Inlet Valve & Elbow Fitting have a solid and reliable design with high-grade wear-resistant materials – Ensure long-lasting and effective performance – Meet OEM standards. The metal parts are well-crafted and stainless to resist rust caused by water and air. The sturdy ABS plastic parts have better coating and contain no BPA material to ensure safe & leakproof sealing under high pressure and high temperature of the water supply. The hose fitting also features a silicon grease to ensure a tight fit in connecting water supply to the water inlet valve.
EFFORTLESS INSTALLATION: Please disconnect the power & water supply and wear work gloves before repair. Remove the lower kickplate panel. Reach in and disconnect the electrical wire from the valve solenoid. Use a 1/4in nut driver to remove the screws holding the valve onto the frame. Use the plier to move the clamp up then pull the hose off the valve. Use a pair of channel locks to loosen and release the water line. Also, remove the old elbow fitting from the water line. Then reinstall with the our part.
The W10648041 Dishwasher Water Inlet Valve should be located behind the lower kickplate panel in either the right or left corner. The attaching solenoids on the valve open and close according to the desired amount of water needed.
Fixes the following symptoms:
Leaking
Will not fill with water
Not cleaning dishes
Easy to install
Made of high quality materials
Wide compatibility with OEM specifications
No harmful chemicals and safe to use
Long-lasting
