Stop Waiting on Your Vacuum Pump: The Secret to Faster AC Evacuations

Picture this: It’s 4:00 PM on a Friday. You are baking on a 100-degree commercial rooftop, staring at your digital micron gauge. Your vacuum pump has been running for an hour, but the numbers are crawling. It’s stuck at 1,500 microns and refuses to drop.

You start questioning everything. Is the pump oil contaminated? Is there a micro-leak in your manifold hoses? Or is there moisture boiling off in the lines?

While any of those could be true, the most common reason for agonizingly slow evacuation and recovery times is right in front of you: the Schrader valve core.

If you are pulling a vacuum or recovering refrigerant through a standard valve core, you are essentially trying to drain a swimming pool through a drinking straw. Here is why the industry’s best technicians use a Premium Valve Core Removal Tool on every single job, and why you are losing money if you don’t.

The Physics of the Bottleneck

A 6 CFM or 8 CFM vacuum pump is incredibly powerful, but its true CFM rating means absolutely nothing if the air cannot physically get to the pump.

When you connect a standard 1/4-inch hose directly to a service port, the air must squeeze past the tiny, spring-loaded pin of the Schrader valve core. This tiny restriction reduces your vacuum flow rate by up to 90%.

By simply removing the valve core, you open up the full internal diameter of the access port. The result?

• Recovery times are slashed in half because liquid and vapor refrigerant can flow freely.
• Evacuation times drop drastically. You can pull a deep, 500-micron vacuum in minutes rather than hours.

Why You Can’t Just Use Any Removal Tool

“Okay,” you might say, “I’ll just buy a $15 removal tool.”

This is where many technicians learn an expensive lesson. Removing a valve core while the system is under 200 PSI of pressure requires precision. Cheap tools have three fatal flaws:

1. Brass Pull Rods Bend: Cheap extractors use soft brass for the internal grabber rod. When you encounter a seized, factory-over-tightened valve core, a brass rod will flex, strip, or snap off entirely inside the valve. Now you have a massive problem.
2. Standard O-Rings Melt: Modern R410A and R32 systems use synthetic POE (Polyolester) oils. POE oil is highly solvent. It eats through cheap neoprene rubber O-rings, causing them to swell and tear.
3. Vacuum Leaks: A cheap ball valve will hold positive pressure but fail under negative pressure (vacuum). It will slowly suck ambient air into the system, making your micron gauge jump and ruining your dehydration process.

The Professional Standard: What to Look For

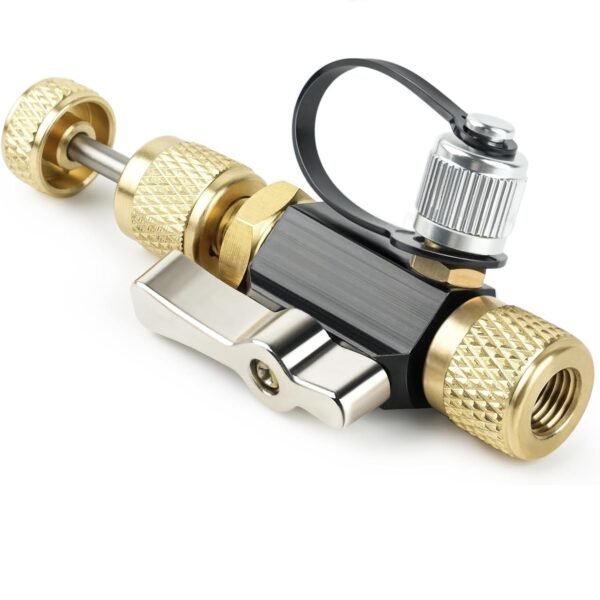

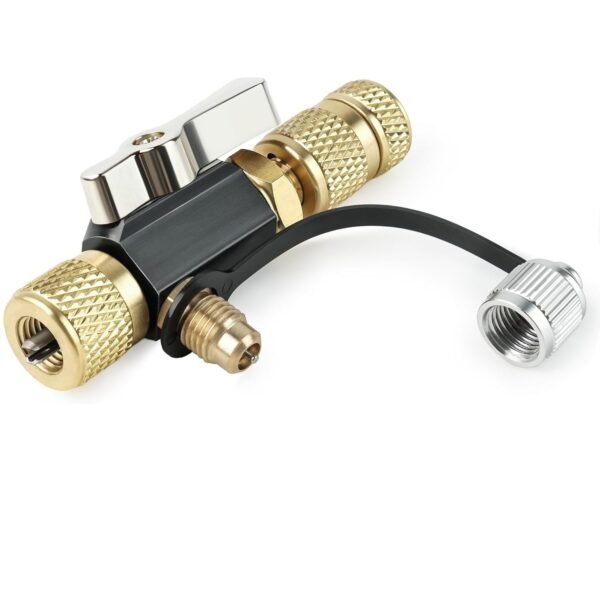

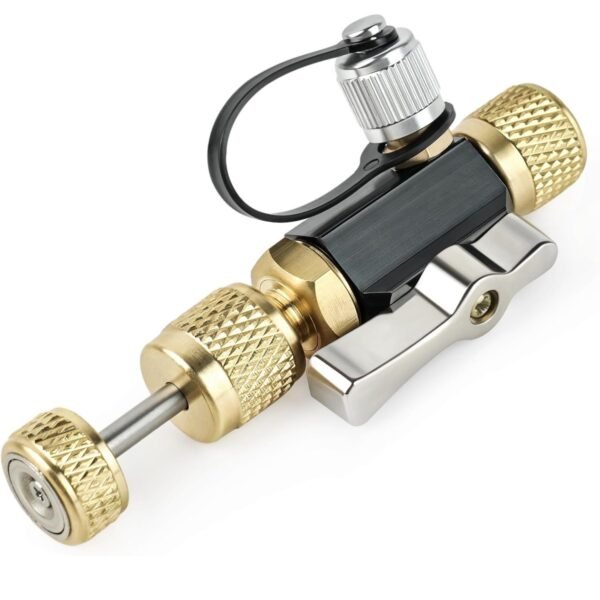

If you want to do the job right, you need a tool engineered for the harsh realities of modern HVAC/R systems. The [Premium HVAC Valve Core Removal Tool (1/4″ & 5/16″)] is the benchmark for professional use.

Here is why it outperforms the rest of the bag:

• Stainless Steel Pull Rod: The internal extractor rod is forged from hardened stainless steel. You can apply heavy torque to stubborn, rusted cores without it ever bending or snapping.
• Fluorine Rubber (FKM) Seals: It utilizes advanced FKM O-rings (similar to Viton). These seals are highly resistant to POE oils and aggressive chemical refrigerants.
• 20-Micron Vacuum Rated: The machining on the solid brass body and the aluminum alloy center is so precise that the tool is officially rated to hold a 20-micron deep vacuum without leaking. You can isolate your micron gauge with complete confidence.
• Dual Compatibility: It comes equipped to handle both standard 1/4″ SAE ports and the 5/16″ ports found on R410A ductless mini-split systems.

---

💡 Frequently Asked Questions (FAQ) About Valve Core Removal

Q: Can I remove a Schrader valve core while the AC system is fully pressurized? A: Yes, absolutely. That is the primary purpose of an Under-Pressure Valve Core Removal Tool. The tool attaches to the port, you use the internal rod to unscrew the core, pull the rod back into the chamber, and shut the tool’s ball valve. You have now removed the core without losing a single drop of refrigerant.

Q: Why do ductless mini-splits use a 5/16″ port instead of the standard 1/4″? A: When R410A was introduced, manufacturers created the 5/16″ port specifically to prevent technicians from accidentally hooking up older, lower-pressure R22 manifold gauges to a high-pressure R410A system. A dual-size removal tool ensures you are ready for both.

Q: Where should I place my digital micron gauge during a vacuum pull? A: Never place your micron gauge directly on the vacuum pump. You want to read the vacuum level of the system, not the pump. The best practice is to attach your micron gauge to the side port of your Valve Core Removal Tool (which is attached directly to the system service valve).

Final Thoughts: Invest in Your Efficiency

In the HVAC trade, time is literally money. An extra 45 minutes spent waiting for a vacuum to pull down is 45 minutes you could have spent driving to your next paying service call.

Stop fighting the Schrader valve bottleneck. By upgrading to a high-quality, vacuum-rated [Premium HVAC Valve Core Removal Tool], you protect your micron gauge, eliminate vacuum leaks, and drastically speed up your workflow.

Work smarter, not harder. Get the core out.
