You just spent 40 hours under the hood fabricating manifolds, welding intercooler piping, and bolting up a massive GT42R or a custom T3/T4 hybrid. You prime the oil system, fire up the engine, and wait for it to reach operating temperature.
Then, your heart sinks. A thick cloud of bluish-white smoke starts billowing out of your exhaust pipe. You check under the car and see a drop of oil weeping from the turbine housing flange.
Your immediate thought? “I got sold a bad turbo with blown internal seals.” Stop right there. In 95% of custom turbo builds, a smoking turbo has absolutely nothing to do with damaged internal seals. The culprit is almost always improper oil management—specifically, a restricted drain line or a pressurized feed line that is overpowering the center cartridge.
Here is the exact mechanical breakdown of why your turbo is choking on its own oil, and how to bulletproof your lubrication system using a High-Flow Stainless Steel Turbo Plumbing Set.
The “Blown Seal” Myth
First, you need to understand how turbocharger “seals” actually work. A turbo does not have soft rubber lip seals like a crankshaft. Because the turbine side routinely reaches 1,500°F (815°C), rubber would melt instantly.
Instead, turbos use dynamic piston rings (made of high-temp steel) seated in grooves on the turbine and compressor shafts. These rings do not block pressurized oil; they rely on exhaust and intake gas pressure to push inward, keeping the oil inside the center housing rotating assembly (CHRA).
If oil is pushing past these metal rings into your exhaust or intercooler, it means the oil pressure inside the CHRA has overcome the gas pressure outside it. Why does that happen?
1. The Gravity Problem: Restricted Oil Returns
Your turbo’s oil drain relies 100% on gravity. Once the high-pressure oil lubricates the bearings, it turns into a frothy, aerated foam. This foam expands rapidly and needs to fall freely back into the engine’s oil pan.
If your oil drain line is too narrow (smaller than -10AN), has a kink in it, or hits the oil pan below the oil level, the frothy oil backs up into the turbo cartridge. The center housing fills up with oil like a clogged sink, and the oil is violently forced past the metal piston rings and into your red-hot exhaust housing. Result: Massive smoke.
2. The Heat Soak Problem: Melting Rubber Feed Lines
Many budget builders try to run standard high-pressure rubber hoses for their oil feed. Rubber acts as an insulator, trapping heat. When routed inches away from a glowing exhaust manifold, the rubber “heat soaks,” becomes brittle, and eventually cracks. Worse, the inner lining of cheap rubber hose can delaminate under high oil pressure, sending small chunks of rubber directly into your turbo bearings, causing instantaneous catastrophic failure.
The Professional Plumbing Solution
If you want your T-series or GT-series turbo to survive the dyno and the track, you cannot compromise on fluid plumbing. You must run a high-flow, heat-resistant setup.
Our Universal Turbo Oil Feed & Drain Repair Kit is engineered specifically to solve both the supply and drainage bottlenecks:
- T304 Stainless Steel Braided Feed Line: The high-tensile stainless braid acts as a physical heat shield, preventing radiant exhaust heat from degrading the inner Teflon/PTFE core. This ensures a consistent, high-pressure flow to the bearings without the risk of line swelling or bursting.

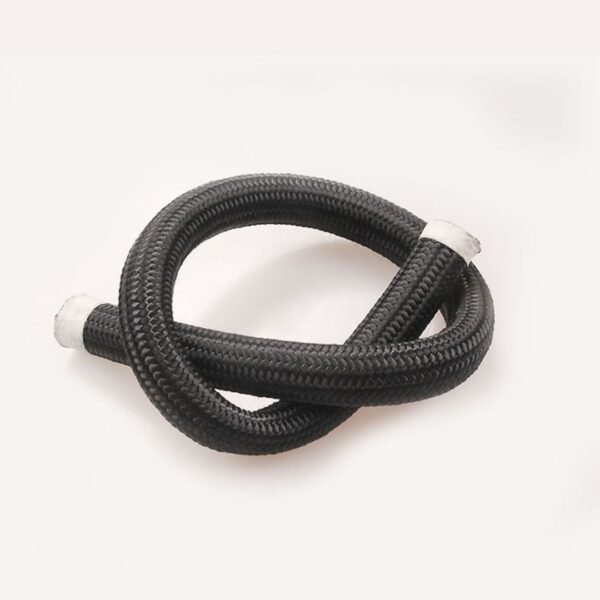

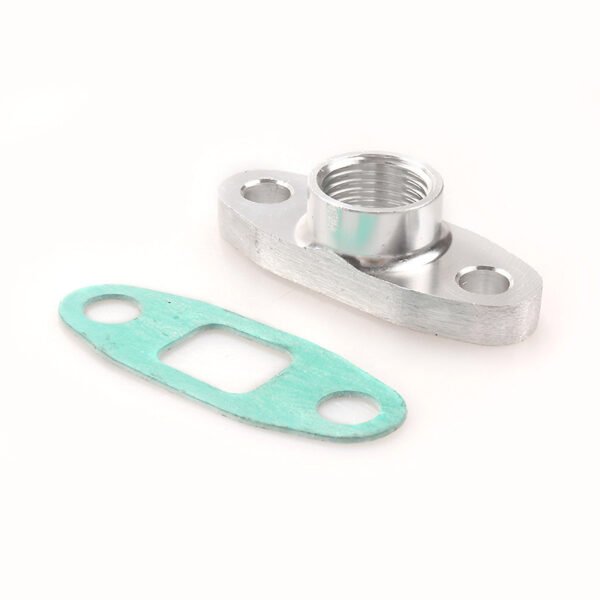

- Maximum Flow Drain Hardware: The kit includes a massive, billet aluminum drain flange and a wide-diameter return line. This guarantees that the aerated oil can evacuate the CHRA instantly, preventing the backup that causes idle smoking.

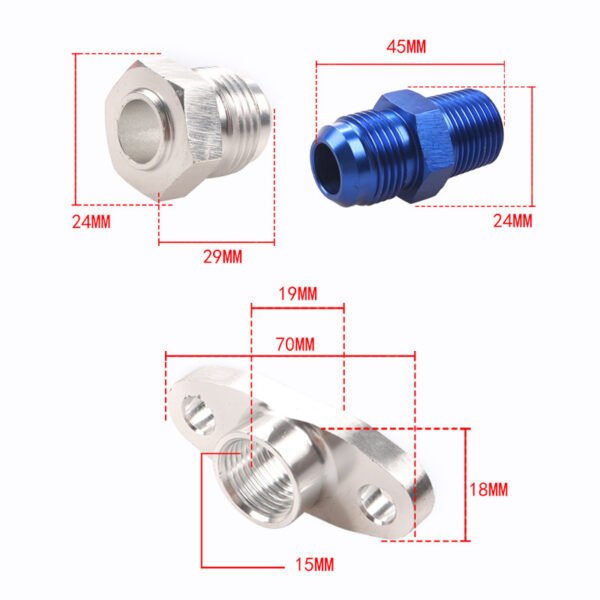

- Universal Flange Compatibility: CNC-machined to fit the tight tolerances of T3, T4, T70, T66, and the entire GT series (GT32 up to GT4202R). The billet aluminum ensures a perfectly flat mating surface, eliminating annoying flange weepage.
🛑 Critical Tech Note: Do You Need an Oil Restrictor?
- Journal Bearing Turbos (Standard T3/T4, T70): These require high oil volume. Generally, you do not use a restrictor, allowing full engine oil pressure to feed the hydrodynamic bearing.
- Ball Bearing Turbos (GT4088R, GT42R): These require very little oil volume. Feeding them 80psi of unrestricted cold oil will blow oil past the seals immediately. You must run an inline oil restrictor (usually 0.035″ or 0.040″) on the feed line to drop the pressure entering the CHRA. Always check your turbo manufacturer’s specifications.
Plumb It Right the First Time
Don’t let a $10 hardware store fitting or a kinked rubber hose destroy a $1,000 turbocharger. If your custom build is smoking, check your drain angle, ditch the rubber, and upgrade to proper stainless hardware.
🛒 Bulletproof Your Build: Order the T3/T4 & GT Series Stainless Turbo Plumbing Kit Here!

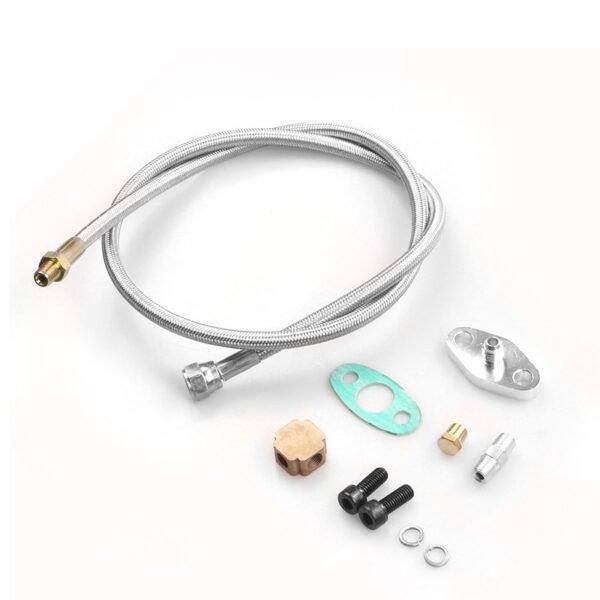

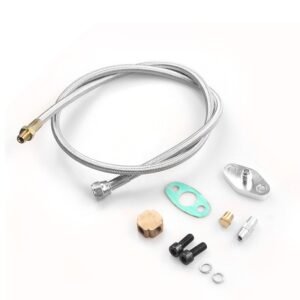

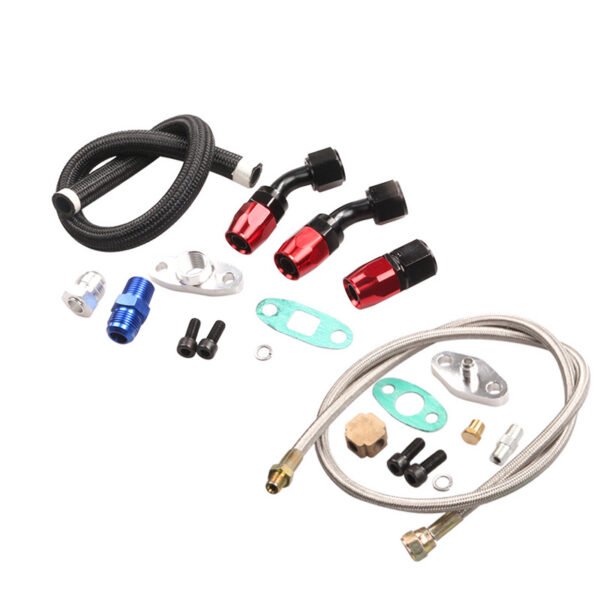

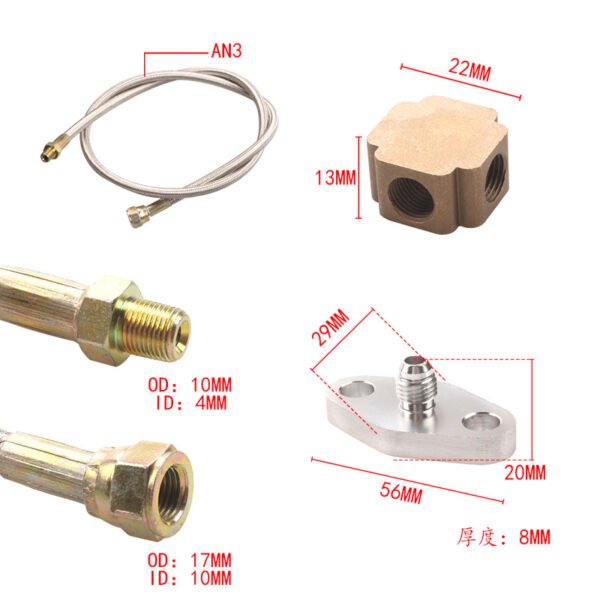

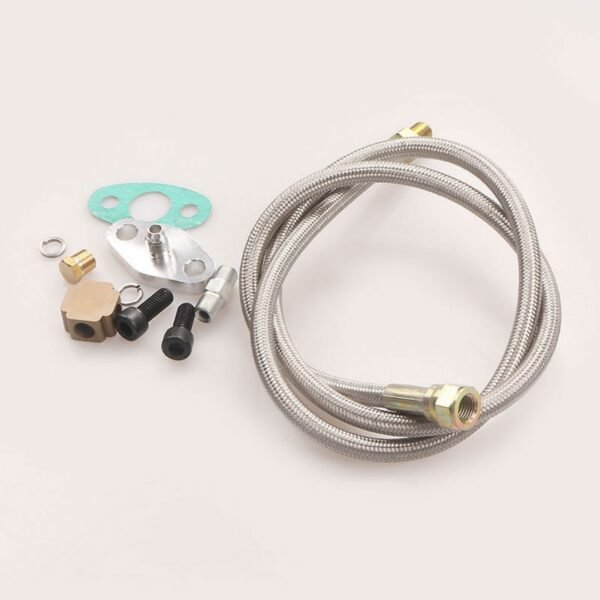

Universal Turbo Oil Feed & Drain Return Line Kit for T3 T4 T70 T66 GT32 GT40 GT42 | Heavy-Duty Stainless Steel Braided Plumbing Set
Don’t let a $10 leaking oil line destroy your $1,000 turbocharger. The Universal Turbo Oil Supply & Drain Repair Kit is the professional’s choice for custom turbo conversions (T3, T4, GT Series). Engineered to handle extreme oil pressures and high-heat environments, this kit replaces restrictive factory lines with high-flow, stainless steel braided hoses and CNC-machined aluminum fittings.
-

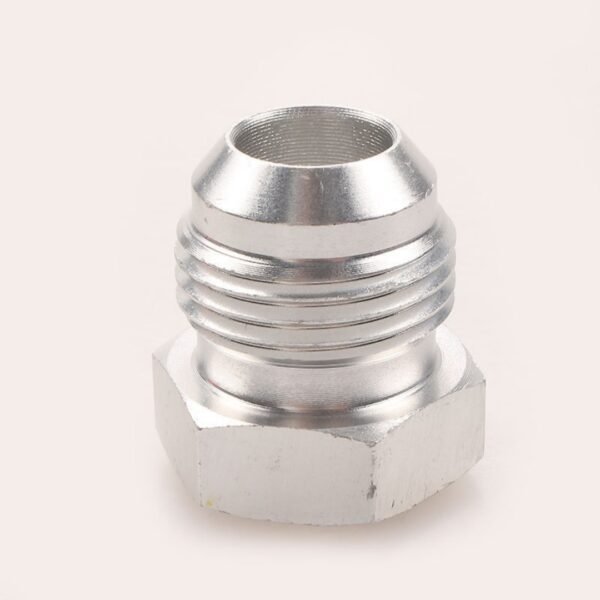

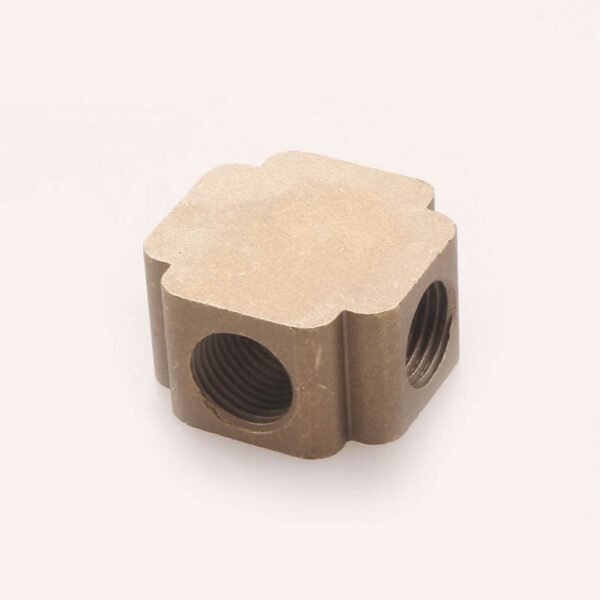

Precision Fluid Control: Optimized 1/8NPT and AN fittings ensure consistent oil lubrication to the bearings.
-
Extreme Heat Durability: Braided stainless steel lines resist heat soak and abrasion, preventing premature line failure.
-
Universal Platform Compatibility: Perfect for T3/T4 hybrids, T70, T66, and GT-series (GT32 to GT42R) performance builds.
-
Leak-Proof Engineering: Includes high-grade gaskets and precision-threaded adapters to eliminate common oil weepage at the flanges.
