Cutting mortises for door hardware by hand is a massive liability, even for seasoned carpenters. Grain direction changes, chisels dull quickly, and one heavy hammer strike ruins an expensive door slab. To achieve a factory-perfect, flush latch plate installation, you need to completely remove the manual guesswork. You need to rely on the mechanical guidance of a dedicated Door Latch Mortise Tool paired with a standard compact router.
Chisels vs. Templates: The Mechanical Evaluation
Let’s look at the mechanical realities of why freehanding your door hardware is costing you time and compromising your finish work.
| Method | Speed | Precision | Tear-Out Risk |
|---|---|---|---|
| Freehand Chiseling | Slow. Requires constant depth checking. | Low. Depth fluctuates with grain density. | Extremely High. |
| Freehand Compact Router | Fast. | Poor. Router bit easily drifts past pencil layout lines. | Medium. |
| Door Mortise Tool + Router | Under 30 seconds per latch. | Flawless. The template strictly locks the cutting boundaries. | Zero. |
Scenario Selection: Adapting to the Material
Different doors demand different handling. A professional mortise jig adapts securely to the material you are milling without causing damage to the surface.
🚪 Hollow Core Doors
The outer veneer on cheap hollow core doors is paper-thin and splinters violently. The mortise tool clamps tightly to the face, providing a zero-clearance edge that physically prevents the veneer from chipping upward when the router bit cuts through.
🌳 Solid Hardwood Doors
Oak, maple, and mahogany feature aggressive, interlocking grain that tries to deflect standard chisels. Using the mortise tool with a carbide-tipped pattern bit simply shears through the hard grain uniformly, ignoring the wood’s natural path of least resistance.
🏗️ Jamb Strike Plates
Cutting a strike plate mortise vertically on an installed door jamb is awkward. The jig locks onto the vertical casing, supporting the baseplate of your compact router so it doesn’t tip and ruin the trimwork during the plunge cut.
Post-Purchase Maintenance: Keeping Your Jig Dialed
A precision jig is only as good as the care it receives in the shop environment. Maintain your mortise tool to ensure it continues to deliver exact templates.
- Clean the Clamp Pads: Sawdust stuck to the rubberized clamping feet will compress under pressure, throwing off the squareness of the jig and potentially scratching pre-painted doors. Wipe them down with denatured alcohol.
- Check the Router Bearing: Ensure the top-bearing on your pattern router bit spins freely. If the bearing seizes from dust buildup, it will burn the plastic or aluminum template edges of your mortise tool.
- Store Flat: Do not throw the jig into the bottom of a heavy toolbox where framing hammers can bend the side alignment rails. Store it hung on a pegboard or in its original padded case.
No. Most high-quality mortise jigs are designed to work with any standard compact router (trim router). The jig acts as an outer guide for the router’s baseplate or relies on a top-bearing pattern bit, making it universally compatible with major tool platforms.
Because spinning router bits leave rounded corners, you have two options. You can either purchase door hardware with pre-rounded 1/4-inch radius latch plates that drop right in, or use a corner chisel (or a sharp standard hand chisel) to quickly square up the four corners of your routed pocket.
Yes. Professional mortise jigs feature adjustable sliding plates. You can quickly dial in the template dimensions to match everything from standard 1×2-1/4 inch latch plates up to oversized heavy-duty deadbolt strike plates.

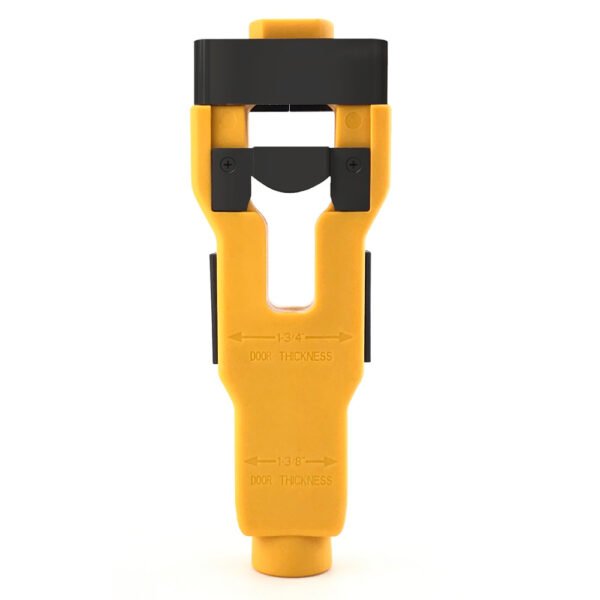

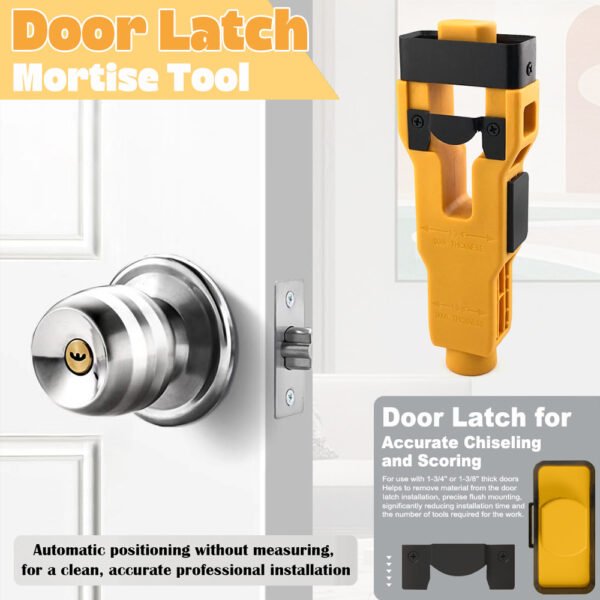

Door Latch Mortise Tool – Professional Door Latch Installation Kit for 1-3/8″ & 1-3/4″ Doors, Pre-Set Depth Blades for Clean Mortising, No Measuring Required | FixPartHub
- ✅ ⚡ INSTALL DOOR LATCHES IN 2 MINUTES – Eliminates the need for chisels and measuring tools. Pre-set depth blades cut the exact mortise contour in one motion. Perfect for DIYers and professionals.

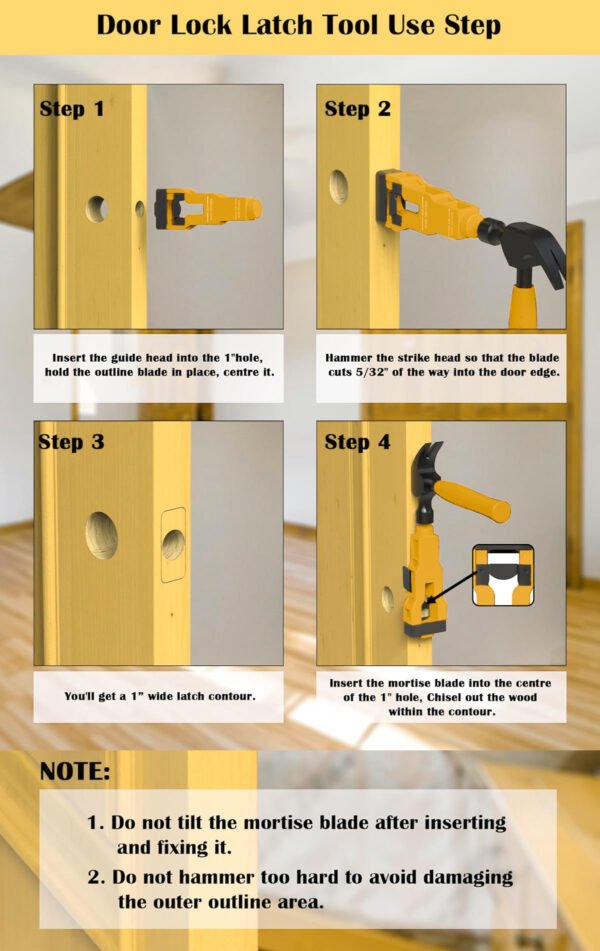

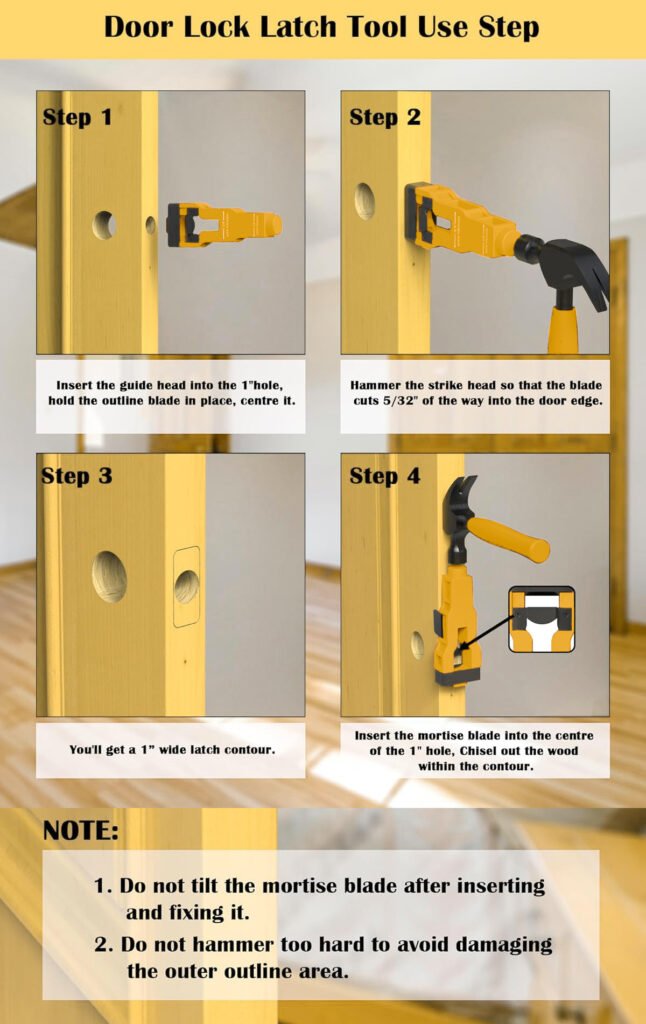

- ✅ 🔧 SELF-ALIGNING GUIDE HEAD – Inserts into the standard 1″ door edge bore hole. The outline blade automatically positions itself to cut the latch contour – no measuring, no marking, no guesswork.

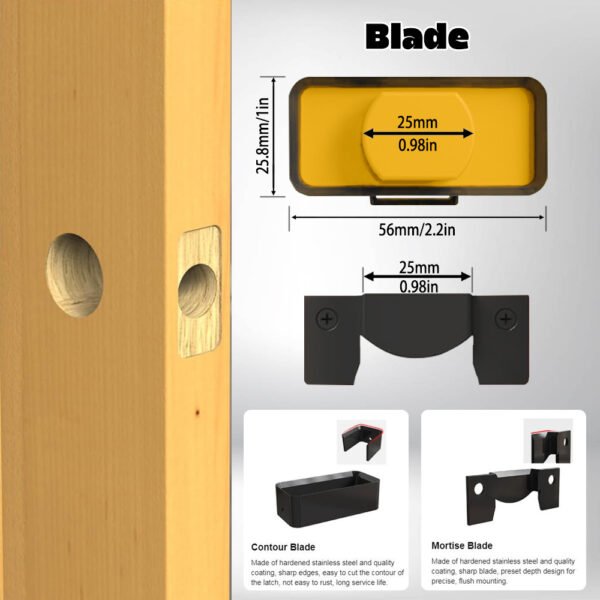

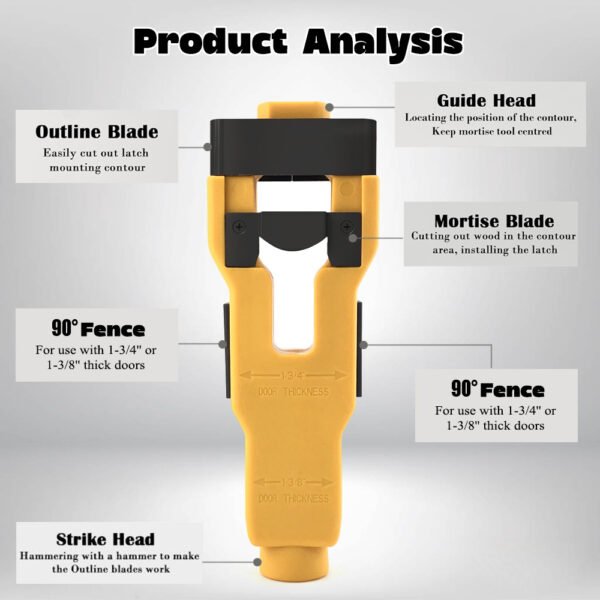

- ✅ 🪚 DUAL-BLADE DESIGN FOR COMPLETE MORTISING – The outline blade cuts the exact contour of the latch faceplate, while the mortise blade removes material inside the contour with pre-set depth for a perfectly flush fit.

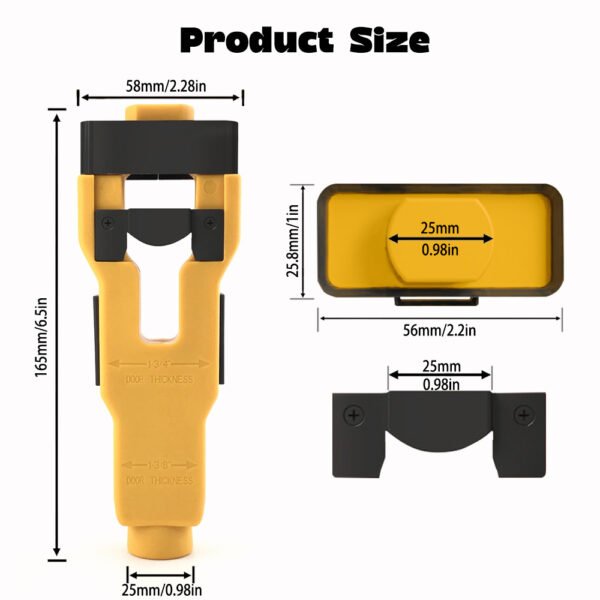

- ✅ 🚪 FITS ALL STANDARD DOORS – Works on door thicknesses from 1-3/8″ to 1-3/4″ (35mm to 45mm), covering both residential and commercial applications. Compatible with wood, composite, and MDF doors.
- ✅ 🔨 HEAVY-DUTY CONSTRUCTION – Thick, impact-resistant ABS body with hardened stainless steel blades that stay sharp for dozens of installations. Ergonomic non-slip handle for comfort and control.
