If you’ve opened your Bosch dishwasher only to find a pool of dirty water at the bottom, or you’re staring at an E24 or E25 error code on the display, you’re dealing with a drainage issue.
As a global exporter of high-quality replacement parts at FixPartHub, we see this issue daily. The good news? You don’t necessarily need to call an expensive repair technician. In most cases, this is a straightforward DIY fix that takes less than 30 minutes.
In this guide, we’ll walk you through how to diagnose the problem, when it’s time to replace the drain pump, and exactly how to do it.
H2: Step 1: Diagnose the Symptoms (Is the Pump Actually Broken?)
Before you buy a replacement part, let’s make sure you actually need one. A Bosch dishwasher failing to drain usually exhibits one of these classic symptoms:
- Error Code E24 or E25: These specifically indicate a drain error or a blocked drain pump.
- Standing Water: Water remains in the tub after the cycle finishes.
- Grinding Noises: A harsh humming or grinding sound during the drain cycle usually means the pump impeller is struggling against a hard object or the motor bearings are shot.
H2: Step 2: The 5-Minute Free Fix (Check for Blockages)
Here is an industry secret: As parts suppliers, we know that 30% of “broken” drain pumps are just jammed. We’d rather you fix it for free than buy a part you don’t need.
Before ordering a replacement, check the impeller:
- Remove the bottom dish rack and twist off the cylindrical mesh filter.
- Bail out the standing water with a sponge.
- Pry off the white plastic pump cover (you might need a spoon to pop it loose).
- Inspect the white impeller blade. You will often find a piece of broken glass, a popcorn kernel, or a toothpick jamming the blade.
- Remove the debris and spin the impeller. It should offer slight magnetic resistance (bumping from pole to pole).
If the impeller is clear but the machine still won’t drain, or if the impeller is wobbly and broken, the pump motor has failed. It’s time for a replacement.
H2: Step 3: Finding the Right Replacement Pump (OEM vs. Premium Aftermarket)

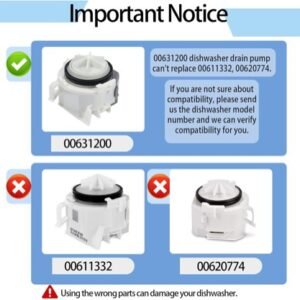

When sourcing a replacement drain pump, the most critical step is matching it to your specific machine. Never guess based on how the pump looks.
How to find your E-Nr Number: Open your dishwasher door and look at the top or side edge of the stainless steel inner door. You will find a laser-etched model number starting with “S” (e.g., SHEM63W55N/01). This is your E-Nr.
At FixPartHub, we provide premium aftermarket drain pumps that match OEM specifications without the massive dealership markup. Our Bosch Dishwasher Drain Pump Replacements are strictly tested for continuous duty, ensuring a long lifespan and quiet operation.
H2: Step 4: Step-by-Step Replacement Guide
Replacing the pump is easier than you think. You’ll need a Torx T20 screwdriver, a towel, and your new drain pump.
1. Safety First: Unplug the dishwasher or flip the circuit breaker. Turn off the water supply valve. 2. Access the Pump: Depending on your model, it’s often easiest to access the pump by removing the bottom front kickplate (toe panel). In some cases, pulling the unit out and leaning it back provides better access. 3. Remove the Old Pump: Locate the drain pump (it’s connected to the corrugated drain hose). Disconnect the wire harness. Push the locking tab and twist the pump a 1/4 turn clockwise (or counter-clockwise, depending on the model) to pull it straight out. Have a towel ready, as residual water will spill. 4. Install the New Part: Lubricate the O-ring on the new pump with a tiny drop of dish soap. Push it firmly into the housing and twist it until it locks into place. 5. Reconnect and Test: Reattach the wire harness, turn the power and water back on, and run a quick rinse cycle to check for leaks.
H2: Why Source Your Appliance Parts from FixPartHub?
When you’re fixing a complex appliance like a Bosch dishwasher, the last thing you want is a cheap, unreliable component that fails after a month.
As an established B2B and B2C parts exporter, FixPartHub bridges the gap between global manufacturing and your front door.
- Tested Reliability: Every pump we ship meets strict global component standards.
- Exact Fit Guarantee: If you’re unsure about compatibility, Contact Us with your E-Nr number, and our technical team will verify the fit.
- Global Shipping: Ready for shipment, wherever you are.
Ready to get your dishwasher draining again? 👉 Shop the Bosch Dishwasher Drain Pump Replacement Here

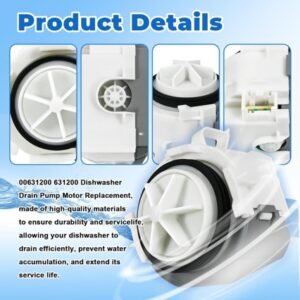

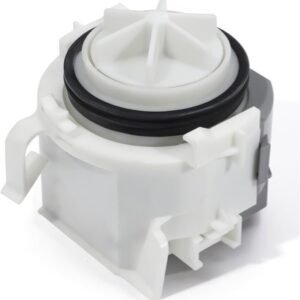

Premium Bosch Dishwasher Drain Pump Replacement | Fix E24 Error | FixPartHub
- Cure the Dreaded E24 Error Code: Is your Bosch dishwasher cycle halting prematurely, leaving you with a flashing “E24” on the display and a tub full of dirty water? This replacement drain pump is the direct solution to restore full draining capability.
- Eliminate Stagnant Standing Water: If you’ve already cleaned the bottom filter and checked the drain hose for kinks, but the water still won’t evacuate, your original pump motor has likely failed. This high-torque pump vigorously flushes out wastewater to prevent foul kitchen odors.
- OEM-Grade Fitment & Seal: Engineered to match the exact specifications of the original Bosch pump assembly. It features a precision-molded locking mechanism and high-quality O-rings to ensure a watertight seal, preventing under-cabinet leaks.
- Accessible DIY Repair: Save hundreds of dollars on appliance repair technician fees. This pump is designed for a straightforward twist-and-lock installation, easily accessible by removing the bottom front kick panel of your dishwasher.
- FixPartHub Professional Standard: We supply heavy-duty, long-lasting replacement parts for major home appliances. Need a related circulation pump, water inlet valve, or heating element? Check our massive unlisted appliance parts catalog!
