Diagnostic Data: Why the 5140011-48 Adapter Fails
Thickness planers generate an immense volume of waste material at high velocity. The dust port adapter acts as the critical bridge between the internal blower fan and your shop dust collection system. Over time, operators overtighten steel hose clamps, crushing the external collar. Additionally, the constant bombardment of heavy oak or maple knots against the inner walls of the plastic chute leads to micro-fractures. Once the housing cracks, static vacuum pressure drops to zero, and the blower fan forcefully ejects chips back into the spinning cutterhead, ruining your lumber with deep surface indentations.
1️⃣ Crushed Collar Flange
Over-torquing heavy-duty worm gear clamps crushes the plastic neck, preventing a proper seal with standard 4-inch dust hoses.
2️⃣ Sheared Locking Tabs
Vibration and hose snagging shear off the retaining clips. The adapter falls off mid-cut, covering your shop in a massive cloud of fine dust.
3️⃣ Cutterhead Blowback
A cracked adapter bleeds off vacuum pressure. Chips fall back onto the rollers, causing severe snipe and mechanical drag on the drive belt.
Component Evaluation: OEM Spec vs. Compromised Parts
| Component Parameter | Brittle 3D Prints / Worn Originals | OEM-Spec 5140011-48 Replacement |
|---|---|---|
| Structural Integrity | Delaminates or shatters upon high-velocity knot impact. | ✅ Injection-molded high-density ABS polymer. |
| Chassis Lock Fitment | Loose tolerances allow vibration rattling and air leaks. | ✅ Zero-tolerance locking tabs snap rigidly into place. |
| Hose Clamping | Thin walls crush immediately under steel band pressure. | ✅ Reinforced collar flange withstands heavy clamp torque. |
Teardown & Replacement Workflow
Hose Disconnect
Loosen the worm gear clamp and slide your 4-inch dust collection hose off the damaged adapter collar.
Tab Depression
Locate the retention tabs on the top and bottom of the adapter base. Depress them firmly inward while pulling the unit straight back from the planer chassis.
Manifold Clearing
Use a shop vacuum or compressed air to clear any packed sawdust from the locking channels on the machine housing.
Hardware Seating

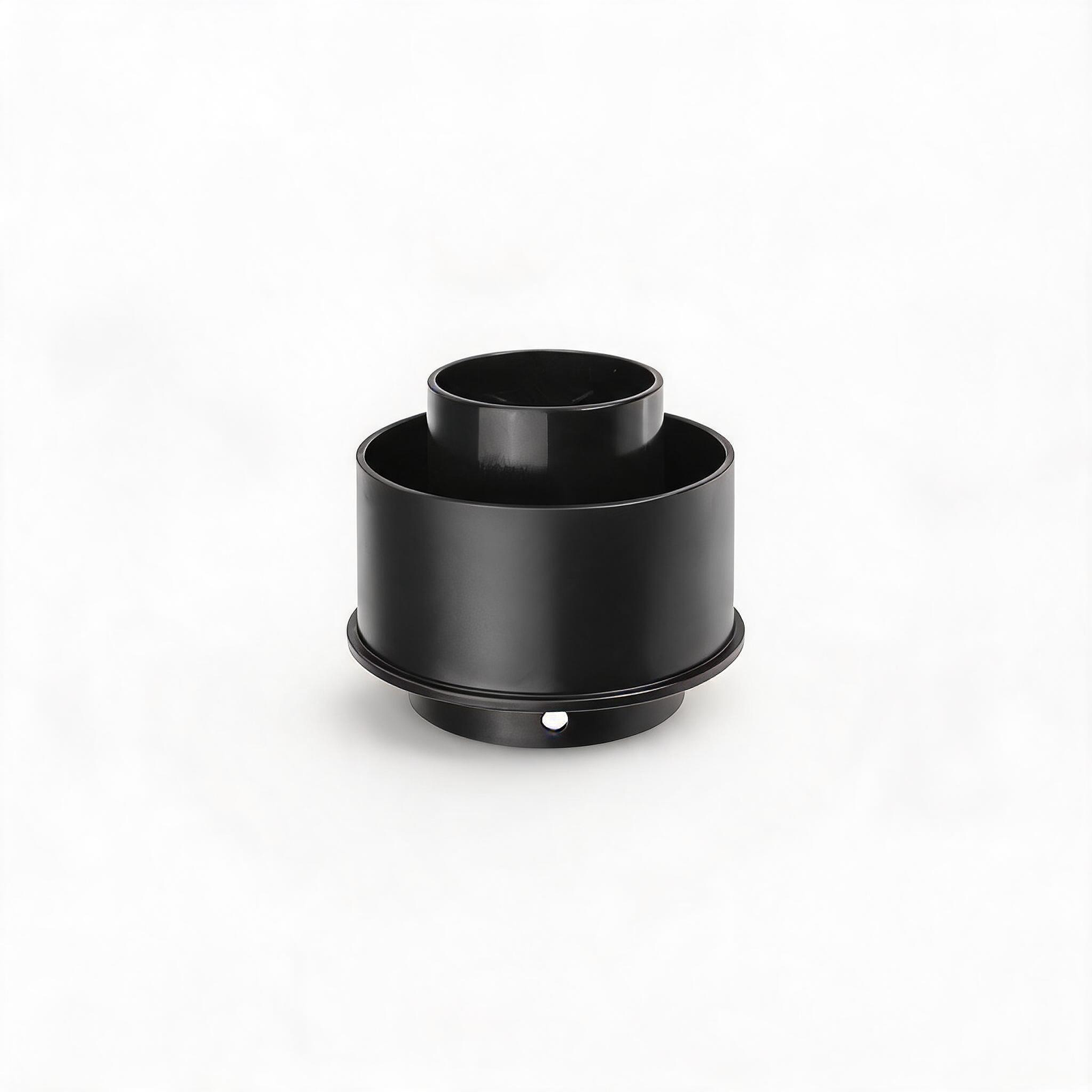

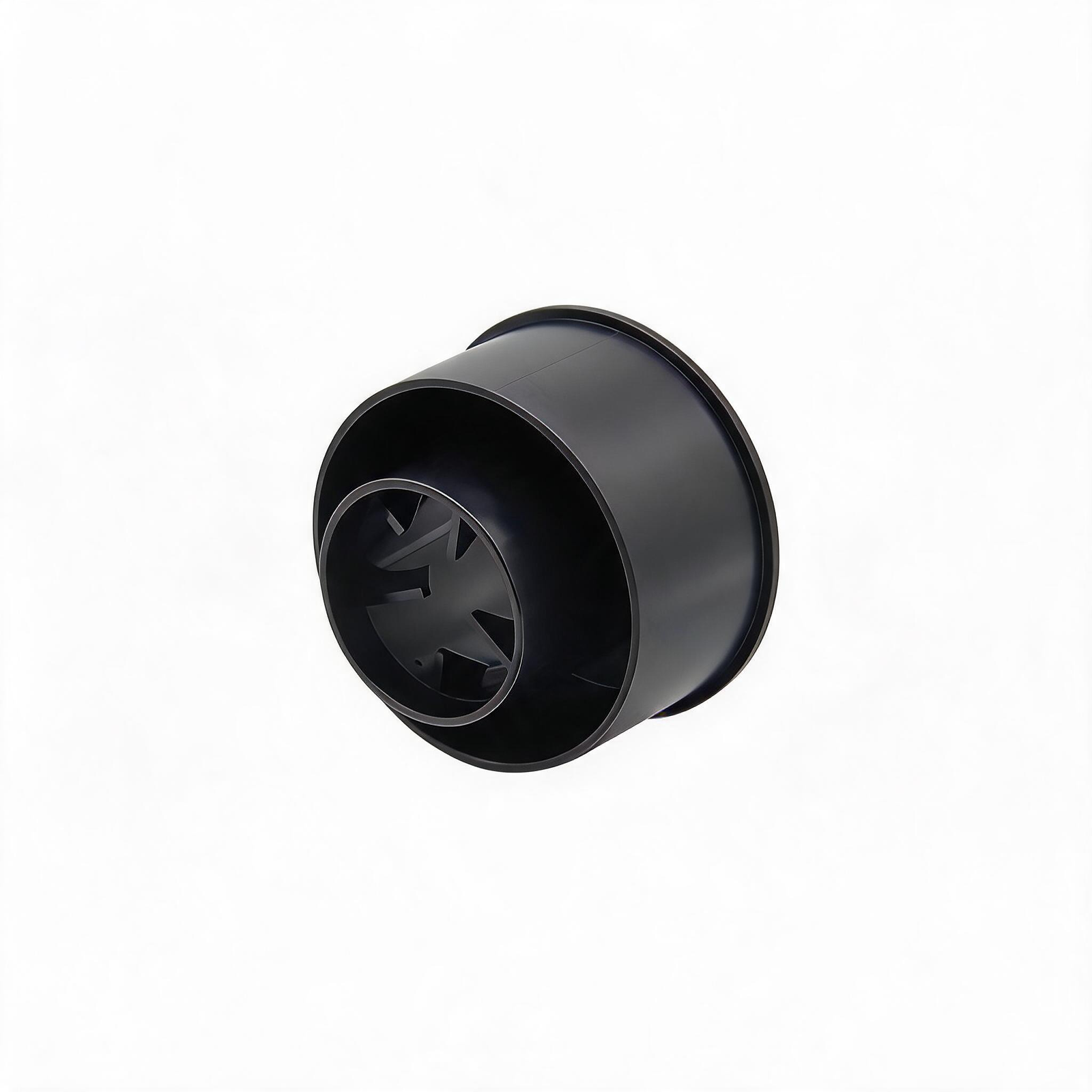

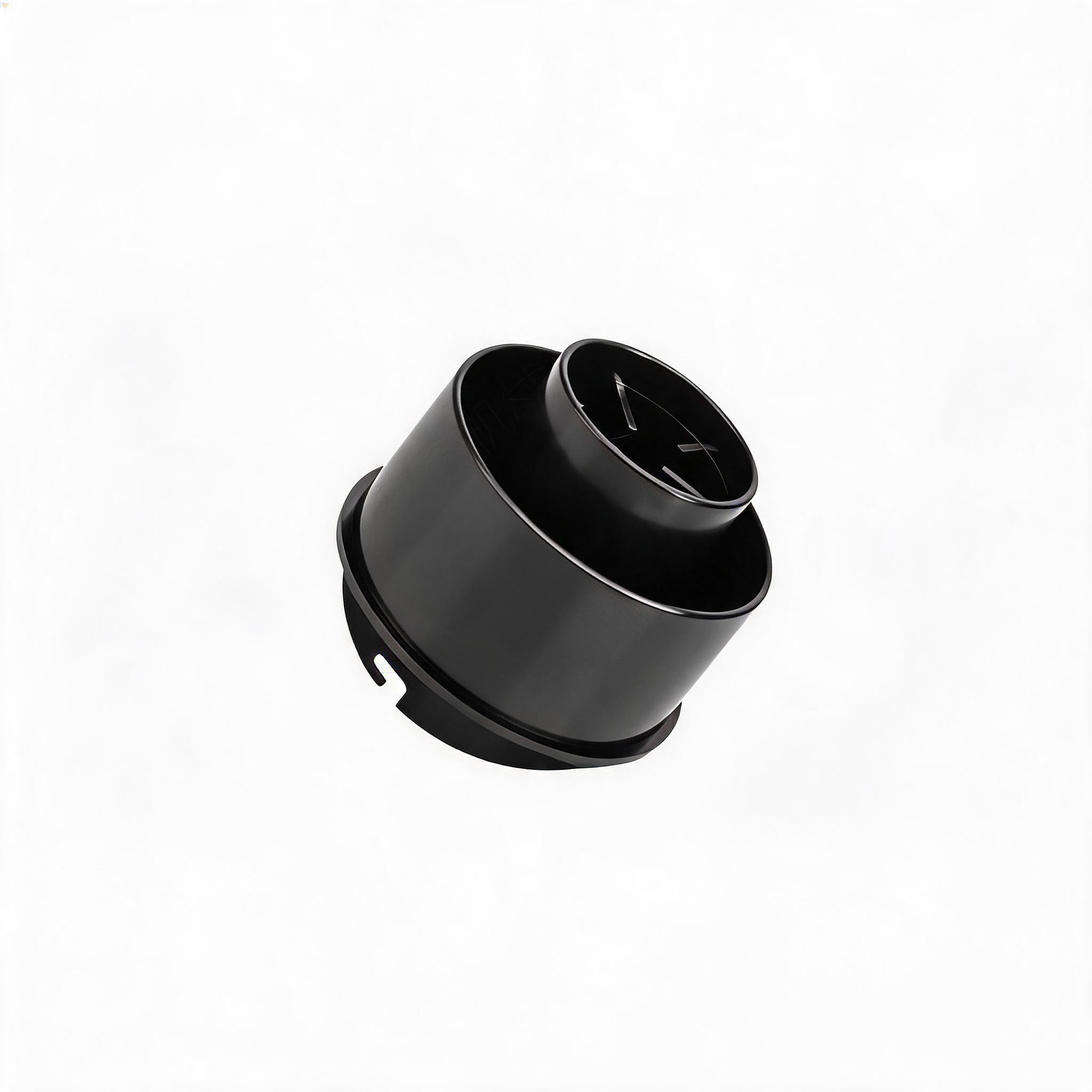

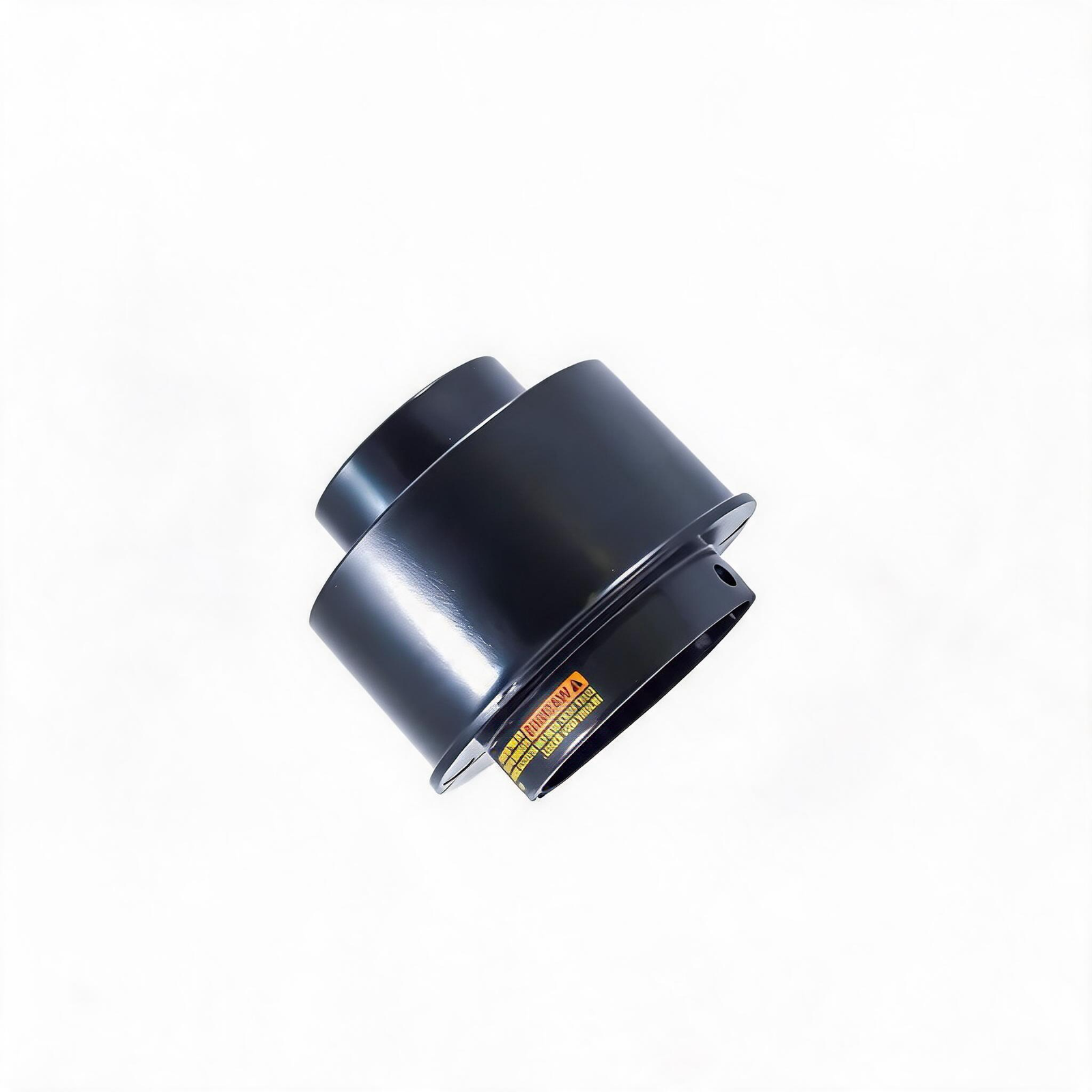

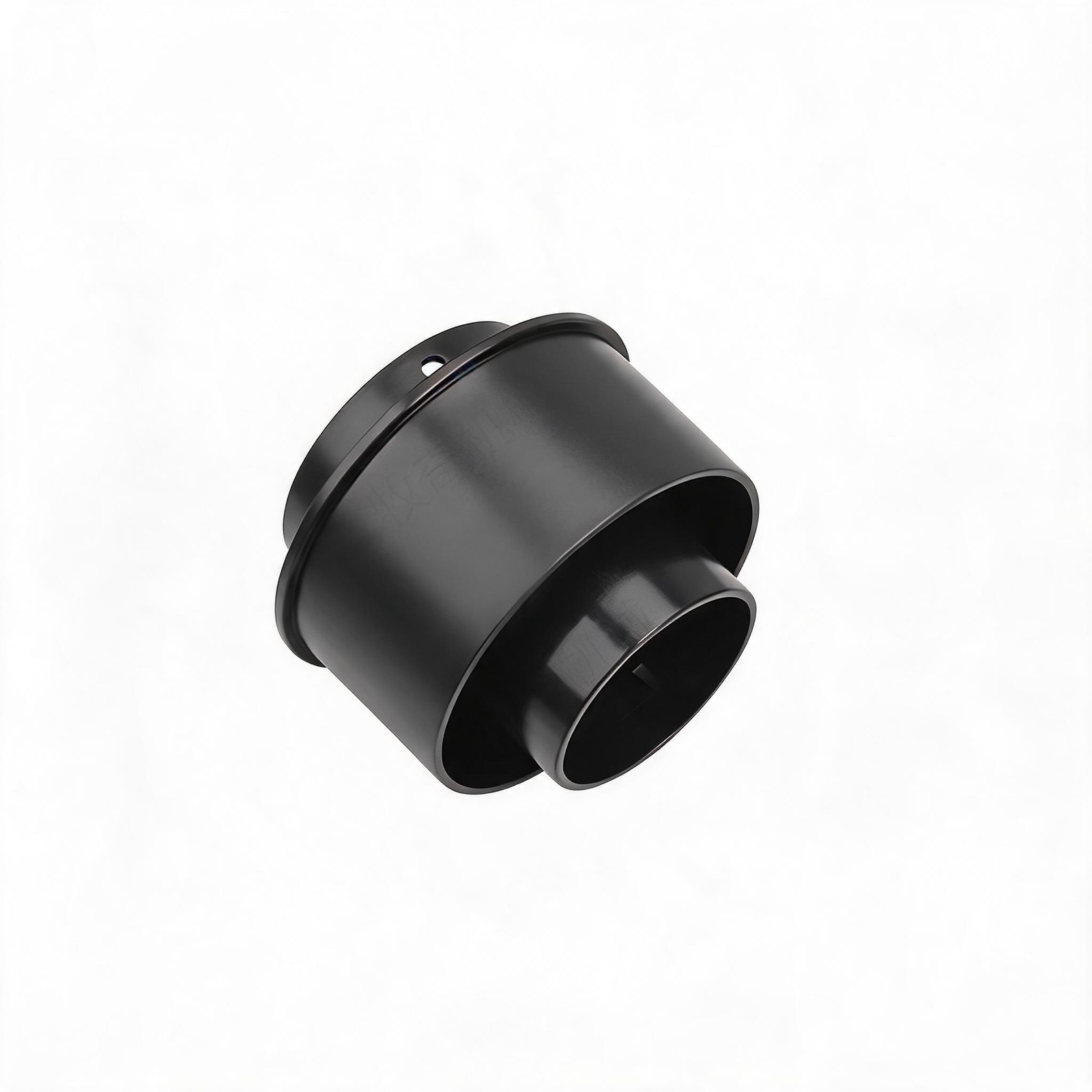

Align the new 5140011-48 adapter and press forward until both retention tabs click audibly into the locked position. Reattach the dust hose.
Fitment & Cross-Reference Data
Diagnostic Q&A
Safety Notes
- Power Isolation: Always unplug the thickness planer before attempting to clear a clogged dust chute or replace the adapter. A spinning cutterhead holds massive kinetic energy.
- Blind Reach Warning: Never reach your fingers past the dust port flange and into the internal blower manifold. If the blade lock fails, severe lacerations will occur.
- Static Grounding: Ensure your external dust collection hose is properly grounded with copper wire to prevent massive static electricity discharge caused by high-velocity wood chips.
Check for visual stress fractures along the hose clamping collar or sheared locking tabs on the base. The most obvious performance symptom is your planer suddenly ejecting wood chips out the front infeed table, indicating a massive loss of vacuum seal at the port.
Yes. The 5140011-48 is precisely modeled to OEM specifications to lock directly into the blower housing of standard 735 series thickness planers without any modifications.
Absolutely. The outer diameter of the adapter flange is calibrated to accept standard 4-inch flexible dust hoses and PVC fittings. Use a standard worm-gear hose clamp to secure the connection.
