Product Overview

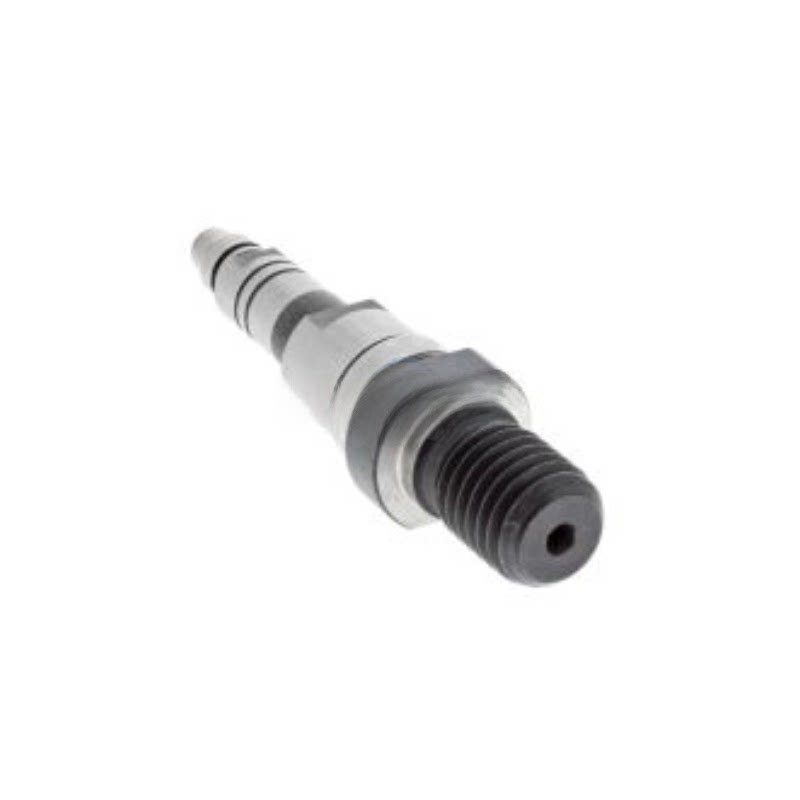

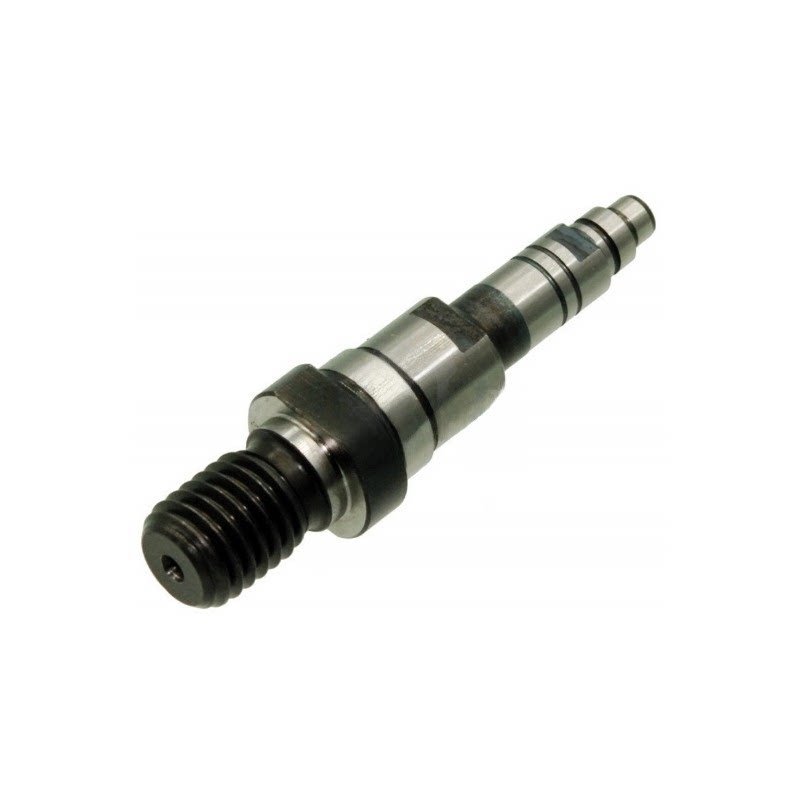

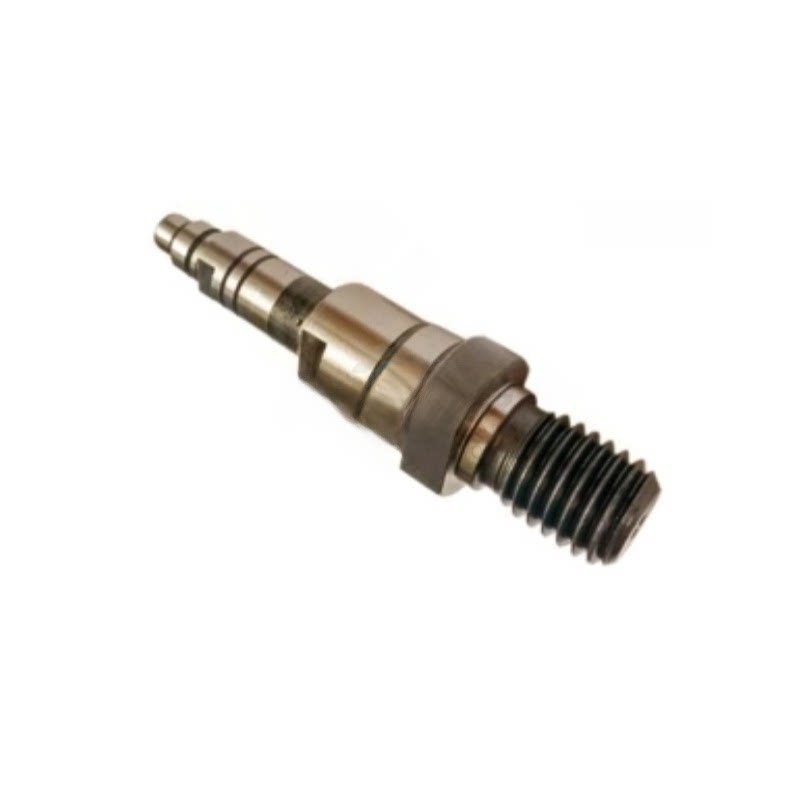

The 324789-9 Spindle Assembly is a precision-engineered direct-fit replacement for the output spindle used in 125mm and 150mm angle grinders built on the GA5020 / GA6020 platform. This spindle is the critical rotating shaft that transmits motor torque to the grinding wheel, cut-off disc, or wire brush – the interface between the gearbox and the accessory.
Designed for professional repair technicians and equipment maintenance specialists, this spindle restores factory-spec rotational accuracy to tools exhibiting excessive vibration, disc wobble, or rough bearing surfaces. The precision-ground steel construction is engineered to withstand the high radial and axial loads of continuous grinding, cutting, and surface conditioning operations in demanding workshop and jobsite environments.
The spindle features M14 thread (with 5/8″ in country-specific variants)[reference:5] and a maximum spindle length of 23mm[reference:6], ensuring secure wheel retention and proper fitment with standard grinding accessories. This genuine OEM-spec replacement is crafted to meet the highest standards of quality and durability[reference:7].
💡 Pro Tip – Pre-Installation Diagnostic: Before replacing the spindle, perform a simple test. With the battery removed (cordless) or unplugged from mains (corded), rotate the spindle by hand with a grinding wheel mounted. A smooth rotation with no wobble indicates the spindle and bearings are intact. Any grinding, binding, or visible runout indicates spindle damage or bearing wear. Also inspect the lock spring that joins the spindle and spiral bevel gear – if damaged, it can cause premature spindle failure[reference:8]. Always disconnect power before beginning any disassembly.
Diagnostic & Fitment – When to Replace
Specification Comparison
| Specification | Worn / Generic Aftermarket | FixPartHub Precision Replacement ✅ |
|---|---|---|
| Material Grade | Low-grade steel – prone to bending and wear | Precision-ground high-grade steel |
| Thread Specification | Inconsistent or incorrect thread pitch | M14 / 5/8″ – OEM-spec |
| Bearing Surface Finish | Rough – accelerated bearing wear | Precision-ground – smooth bearing interface |
| Runout Tolerance | Excessive – vibration and wobble | OEM-spec – true rotation |
| Compatibility | Vague or incorrect fitment claims | GA5020 / GA5021 / GA6020 / GA6021 – direct-fit |
Teardown & Replacement Workflow
Compatibility – Cross-Reference & OEM Part Numbers
Compatible with all GA5020, GA5021, GA6020, and GA6021 series angle grinders. The spindle thread is M14 (or 5/8″ in country-specific variants).[reference:9][reference:10]
Diagnostic Q&A
❓ Q: My angle grinder vibrates excessively – is this definitely a spindle problem?
A: Not always. First, check the grinding disc for balance and ensure it is properly mounted. If the disc is balanced and the problem persists, inspect the spindle. Rotate it by hand – any wobble or roughness indicates spindle or bearing wear. A bent spindle from impact damage will also cause vibration. The 324789-9 replacement restores true rotation.
❓ Q: What models are compatible with the 324789-9 spindle?
A: This spindle is compatible with GA5020, GA5020Y, GA5021, GA5021C, GA5021V, GA6020, GA6021, GA6021C, and related 125mm and 150mm angle grinder variants[reference:11]. It is the OEM spindle for these platforms[reference:12][reference:13].
❓ Q: What is the thread specification for the 324789-9 spindle?
A: The spindle features M14 thread, with 5/8″ in country-specific variants[reference:14]. The maximum spindle length is 23mm[reference:15]. Always verify your grinder’s thread specification before ordering.
❓ Q: What other components should I inspect when replacing the spindle?
A: While the gear case is open, inspect the bearings and the lock spring that joins the spindle and spiral bevel gear[reference:16]. If damaged, these components should be replaced simultaneously to ensure proper spindle alignment and protection against shock loads from accidental wheel lock during operation.
Safety Notes
- 🔴 Always disconnect the tool from power – remove the battery pack (cordless) or unplug from mains (corded) before beginning any disassembly or spindle replacement procedure.
- ⚡ Allow the tool to cool completely – gear cases can reach high temperatures during grinding operations.
- 🔧 Use correct torque values – gear case screws typically require 2.0-2.5 Nm (18-22 in-lbs). Over-torquing can strip housing threads or distort the gear case alignment.
- 🧤 Wear cut-resistant gloves when handling the spindle – machined surfaces can have sharp edges.
- 📐 Verify spindle rotation before final assembly – the spindle should rotate smoothly with no binding or grinding.
- ✅ Perform a no-load test before reinstalling the disc and guard – verify smooth operation with no vibration or unusual noise.
A: Remove the grinding disc. With the tool disconnected from power, rotate the spindle by hand. A smooth rotation indicates the spindle is intact. Any grinding, binding, wobble, or visible runout indicates spindle wear or damage. Also inspect the threads for stripping or cross-threading. If any of these symptoms are present, replacement with a 324789-9 spindle is required.
