Dead Drill? How to Diagnose and Wire a Replacement 2607200623 Trigger Switch

You are halfway through driving masonry anchors when your drill suddenly cuts out. You shake it, squeeze the trigger a few more times, and maybe it sputters back to life—only to die completely three holes later. Or worse, it only runs at absolute maximum RPM, stripping your screws instantly.

Before you toss a perfectly good heavy-duty drill into the dumpster, take five minutes to look at the real culprit. In 90% of cases involving intermittent power, loss of variable speed, or a dead reverse function on GSB 13 RE or GBM 6 RE style drills, the motor is fine. The trigger switch is dead.

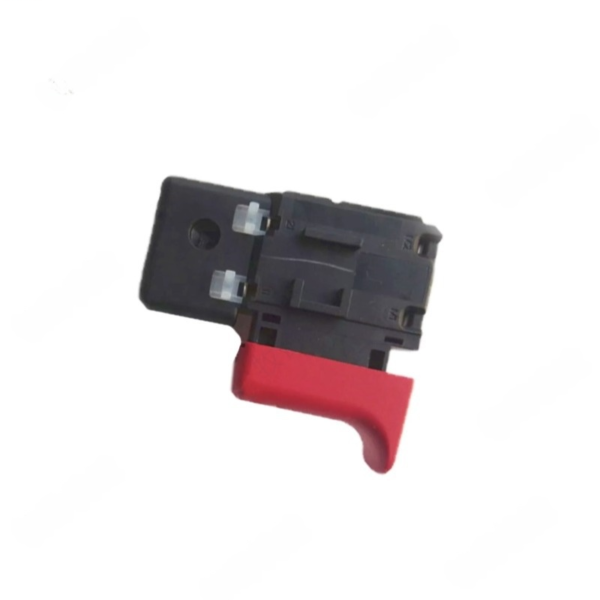

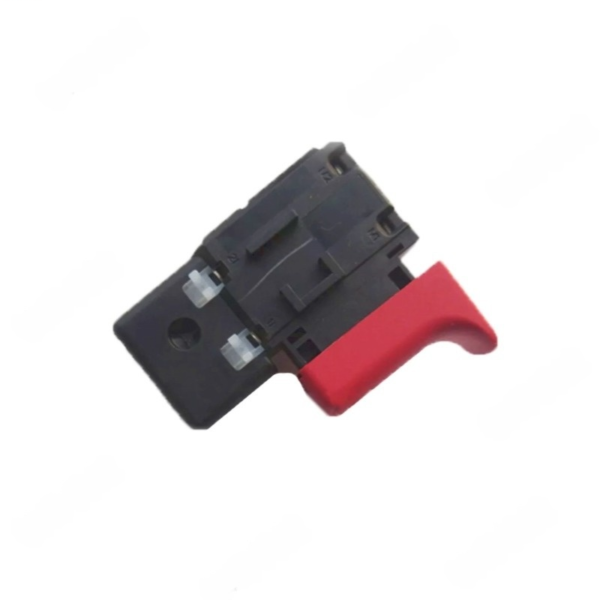

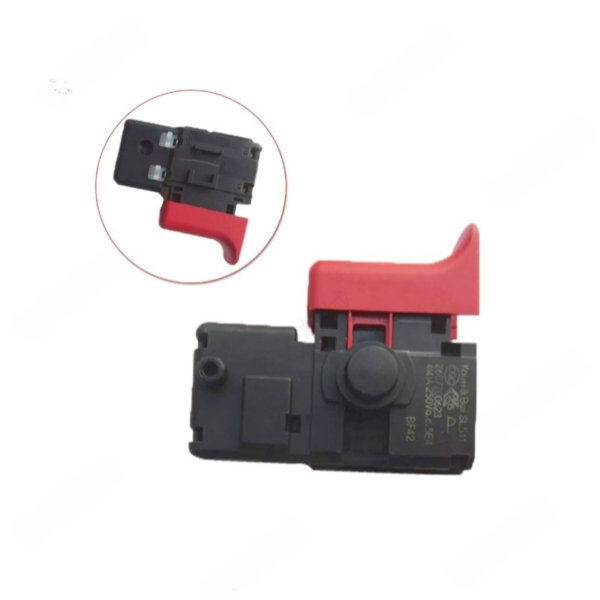

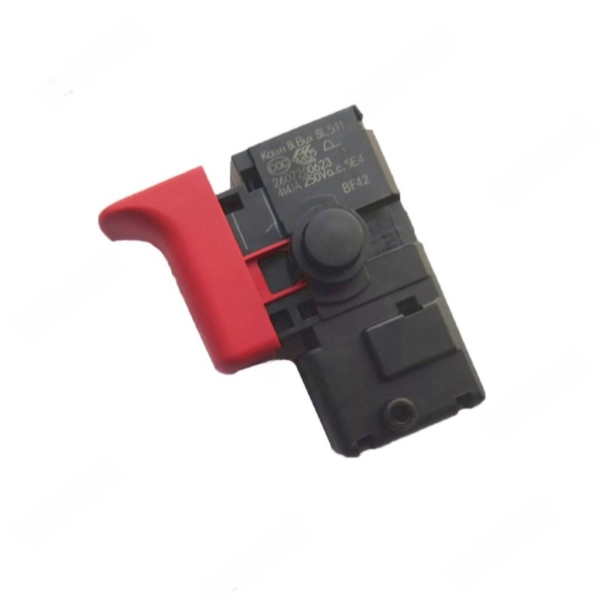

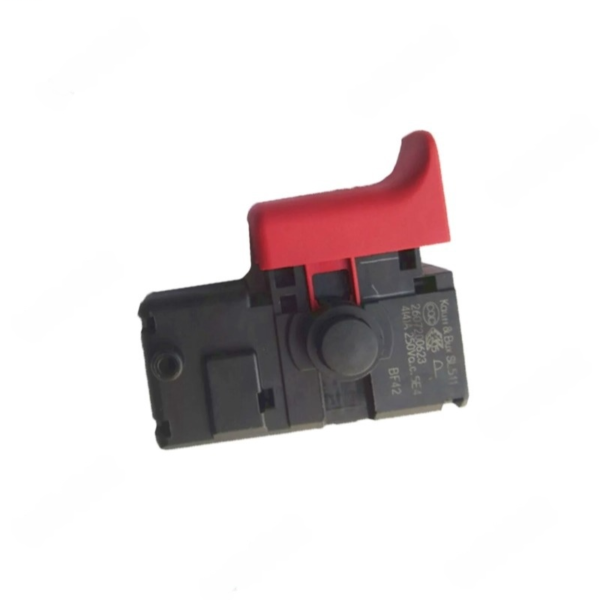

Today, we are tearing down the mechanics of the 2607200623 variable speed trigger switch. We will cover why it fails, how to evaluate a replacement, and the exact wiring protocol to get your machine back on the job site.

---

1. The Anatomy of a Switch Failure

Power tool triggers are not simple mechanical levers. The 2607200623 switch is a complex electromechanical module containing a potentiometer (for variable speed), a reversing bridge, and heavy-duty copper contact points holding back 220V/110V of raw AC current.

They fail due to three primary workshop hazards:

• Micro-Dust Ingress: Drilling into masonry or drywall creates fine silica dust. This dust bypasses the drill casing, coats the internal copper contacts, and creates electrical arcing. Arcing causes extreme heat, welding the contacts together (resulting in a drill that won’t turn off) or burning them out entirely.
• Potentiometer Wear: The small dial that sets your maximum RPM uses a carbon track. Years of vibration and aggressive trigger pulls wear this track down, causing “dead zones” in your trigger pull.
• Mechanical Reversing Lever Snap: The forward/reverse toggle is a thin piece of molded plastic. Forcing this lever while the motor is still spinning will shear the internal mechanism.

2. Evaluating a Replacement: What Matters?

When sourcing a replacement 2607200623-style switch, you are evaluating durability under load. The market is flooded with visually identical switches that melt under sustained amperage.

A premium compatible replacement must feature:

• Sealed Dust Protection: Look for tight housing seams around the trigger block to prevent rapid dust accumulation.
• High-Amp Rating: The switch must comfortably handle the 600W+ draw of an impact drill. Inferior internal wiring will bottleneck the current, causing the switch shell to physically melt during long boring operations.
• Crisp Variable Control: The transition from 0 to 2800 RPM should be linear. Cheap switches act like an “on/off” button, offering no low-speed torque control for starting drill bits on slick surfaces.

3. The 5-Minute Bench Swap (Wiring Guide)

Replacing this switch requires zero soldering. You only need a precision Phillips-head screwdriver and needle-nose pliers. (Disconnect the tool from mains power before opening the casing.)

1. Crack the Case: Remove the casing screws and gently lift the top half of the drill clam-shell. Take a clear photo of the existing wiring layout before touching anything.
2. Extract the Stator Wires: The switch will have wires routing to the motor stator and the carbon brush holders. Use your pliers to gently pull the spade connectors off the old switch. Do not pull by the wire insulation.
3. Release the Power Cord: Locate the two main power leads (Live and Neutral) entering the bottom of the switch. Loosen the terminal clamping screws and pull the wires free.
4. Drop in the New 2607200623: Seat your Premium Replacement Switch into the housing slot. Reconnect the motor leads to the side terminals (they are non-polarized, but match your photo for wire routing).
5. Secure Mains Power: Insert the Live and Neutral power cord wires into the bottom screw terminals and tighten them firmly. Loose connections here will cause immediate arcing and destroy the new switch.
6. Route and Close: Ensure no wires are pinched over screw holes, align the forward/reverse lever with the housing slot, and screw the casing back together.

Bench Tech Pro-Tip: While the case is open, use an air compressor to blow out the motor housing. 90% of future switch failures can be prevented by keeping the internal cavity free of packed masonry dust.

4. The “Right to Repair” Verdict

Buying a brand new impact drill because a single internal contact burned out is a massive waste of capital. Your motor armature and gearbox are likely rated for years of continued abuse. By swapping in a heavy-duty compatible switch, you reset the lifespan of your machine for the cost of a fast-food lunch.

If your drill is showing symptoms of a dying trigger, grab a precise-fit 2607200623 replacement switch from the FixPartHub bins, spend five minutes on the bench, and get back to making holes.

---
