A failed turbocharger rarely dies from manufacturer defects. Based on global aftermarket warranty data, over 70% of premature turbo failures—specifically blown seals and destroyed journal bearings—can be traced back to a single, preventable issue: improper oil plumbing.
Whether you are running a high-volume tuning shop or assembling a custom build, mating an aftermarket T3/T4 or GT-series turbo to an engine block requires precise fluid dynamics. Let’s examine the engineering requirements for oil feed and return lines, and how to source the correct components to guarantee long-term reliability.
The Core Problem: Volume vs. Drainage
The fundamental challenge in turbo plumbing is balancing extreme high-pressure oil feed with gravity-dependent drainage.
When upgrading to a larger turbo (like a T70 or GT42), factory hard lines are rendered obsolete. Mechanics often attempt to fabricate local solutions using standard rubber hosing or incorrect diameter pipes. If the feed line is too restrictive, the bearing starves and overheats instantly. If the drain line is too narrow or improperly routed, oil backs up into the center housing rotating assembly (CHRA), forcing fluid past the seals and directly into the exhaust housing.
The solution requires a standardized, high-tolerance plumbing system designed to handle specific pressures and extreme exhaust temperatures.
Material Evaluation: Why PTFE and Stainless Steel?
When evaluating replacement parts for global distribution, material integrity is our primary benchmark. Standard rubber hoses will degrade, expand, and eventually rupture when exposed to 200°F+ engine oil and radiant heat from the turbine housing.
A professional-grade kit utilizes a PTFE (Teflon) inner core. PTFE is chemically inert to synthetic oils and fuels. When wrapped in a braided stainless steel outer layer, it provides exceptional burst strength and abrasion resistance, ensuring the line survives the harsh environment of a crammed engine bay.

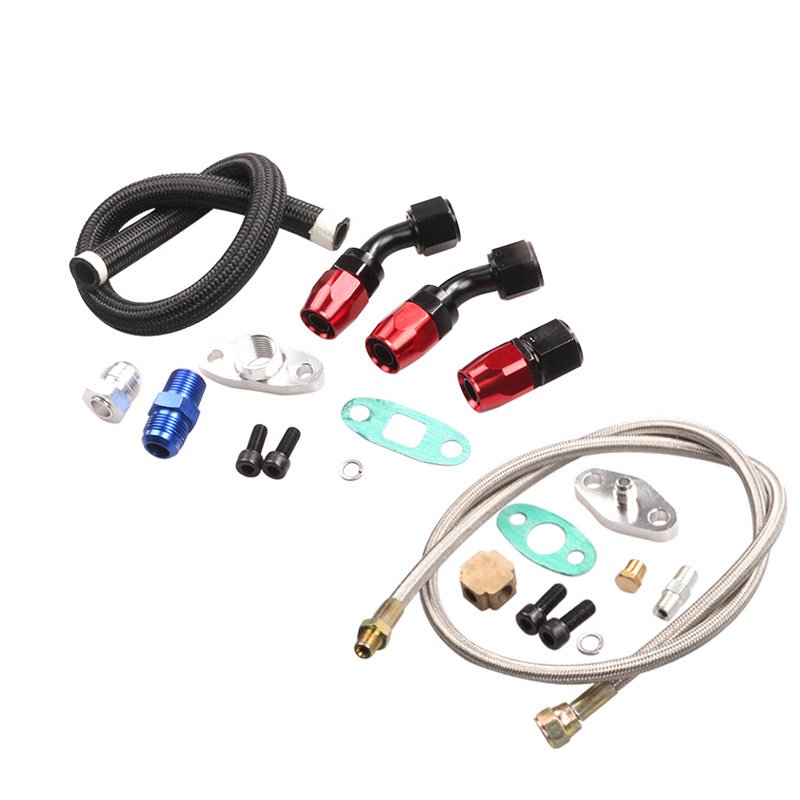

Selecting the Right Kit: Specifications and Fitment
Compatibility is the largest hurdle when sourcing aftermarket turbo components. A “universal” kit is only effective if it includes the correct CNC-machined adapters to bridge different manufacturing standards. When specifying a kit for a build, ensure it meets these parameters:

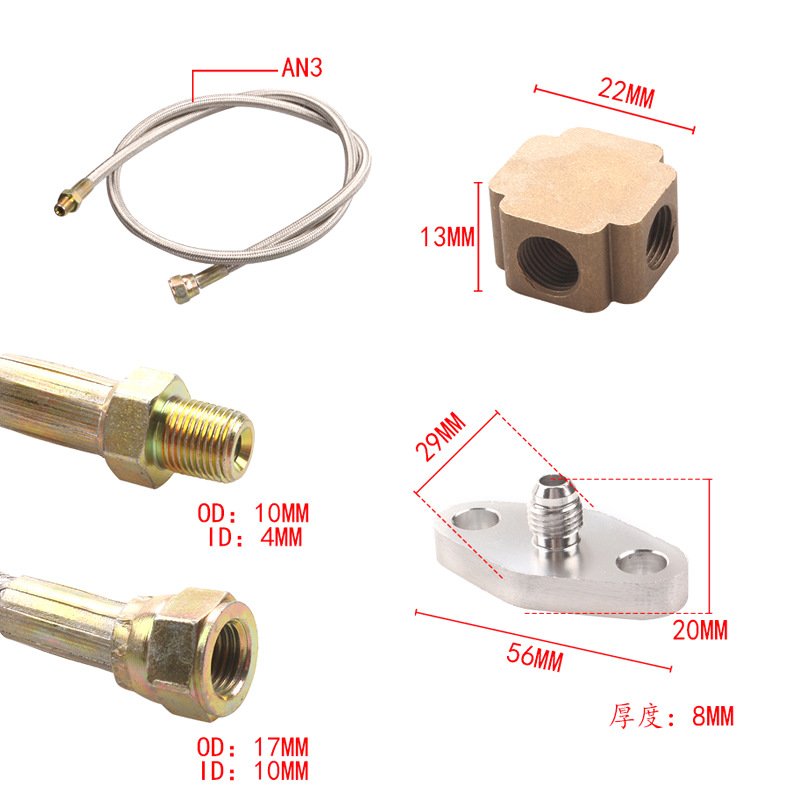

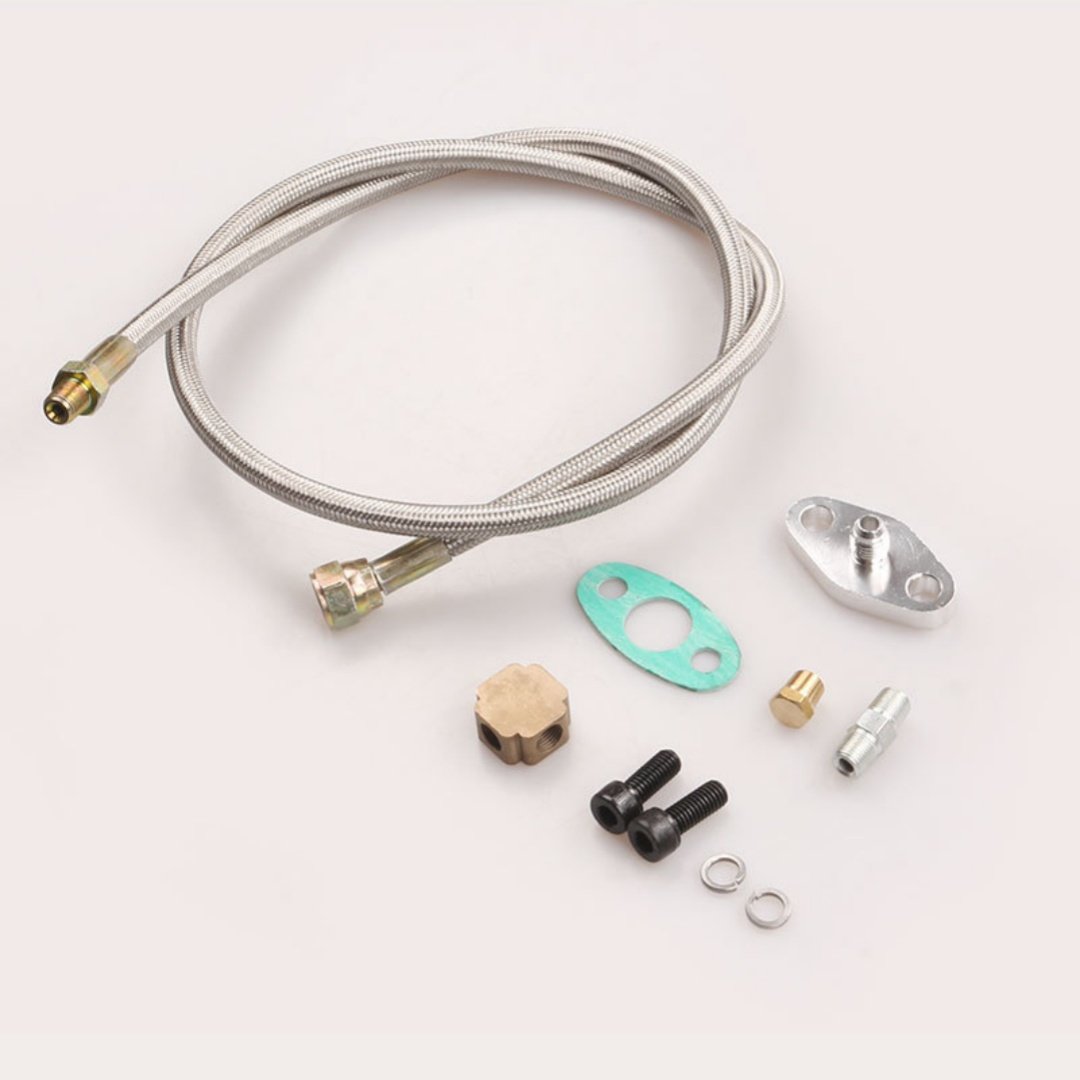

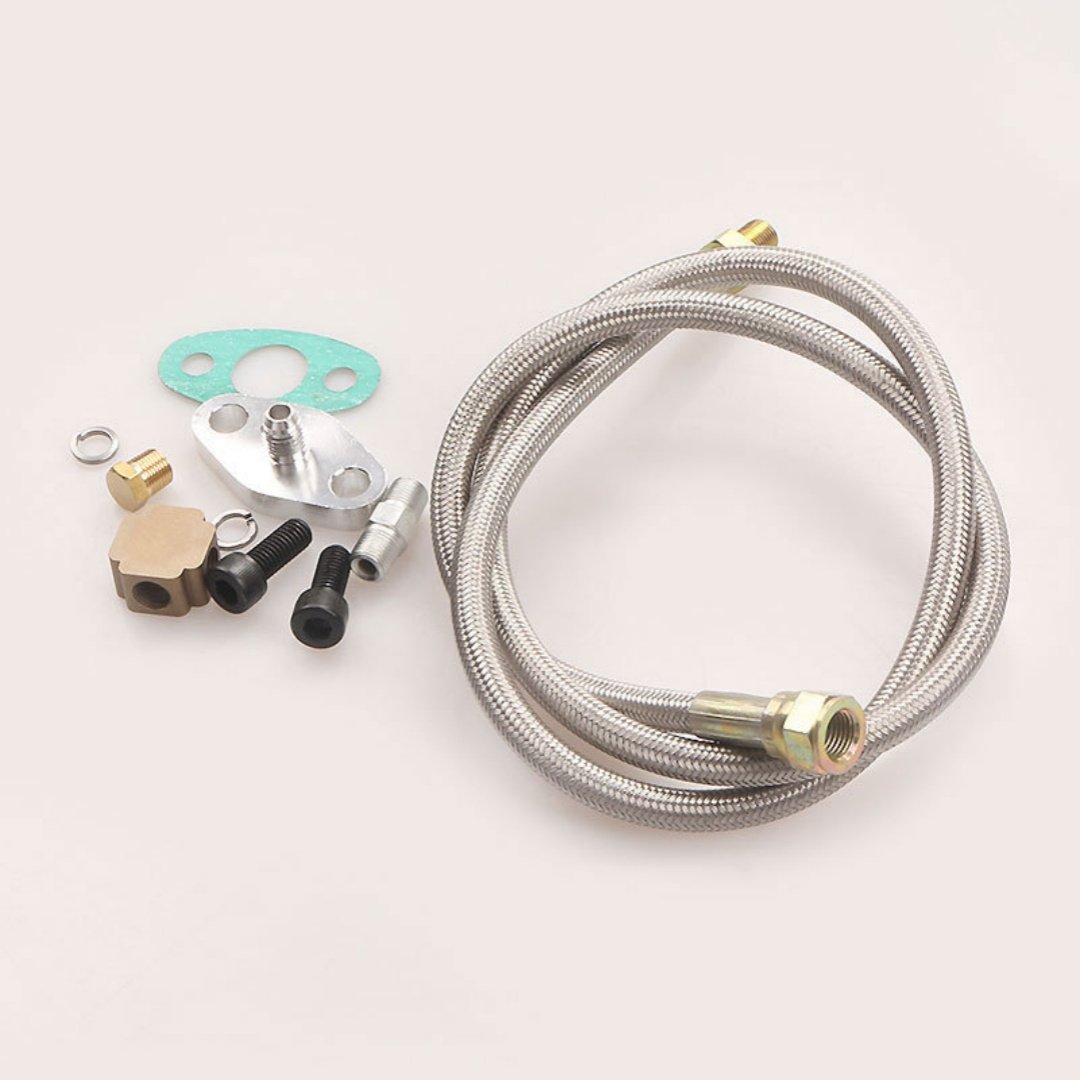

- Feed Line Sizing: An AN4 braided line is the global industry standard for oil feed. It provides adequate volume for traditional journal bearings without overwhelming the seals.

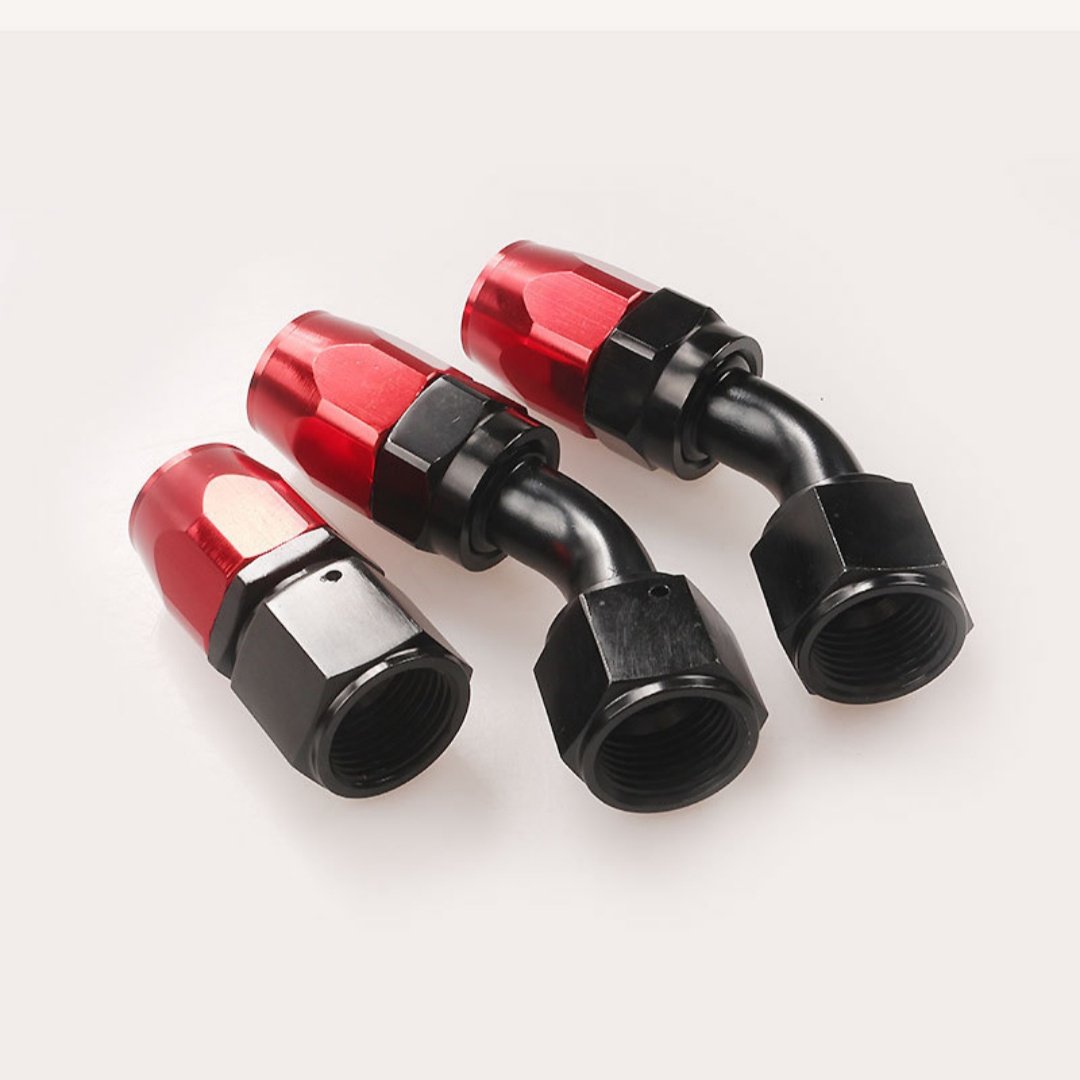

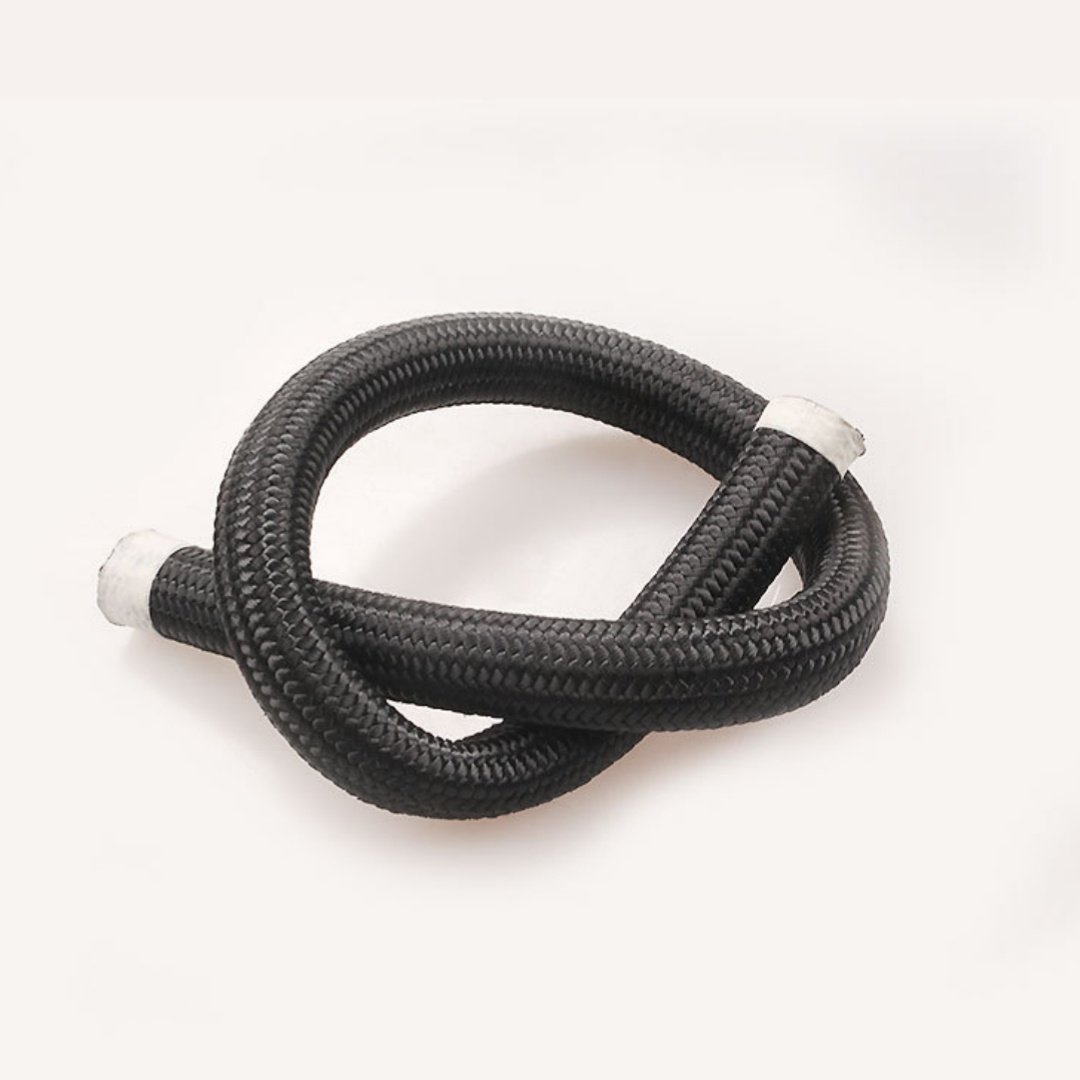

- Drain Line Sizing: The return line must be massive. An AN10 line is mandatory. Because the oil leaving the turbo is frothed and aerated, it requires a large diameter to drain freely back to the oil pan.

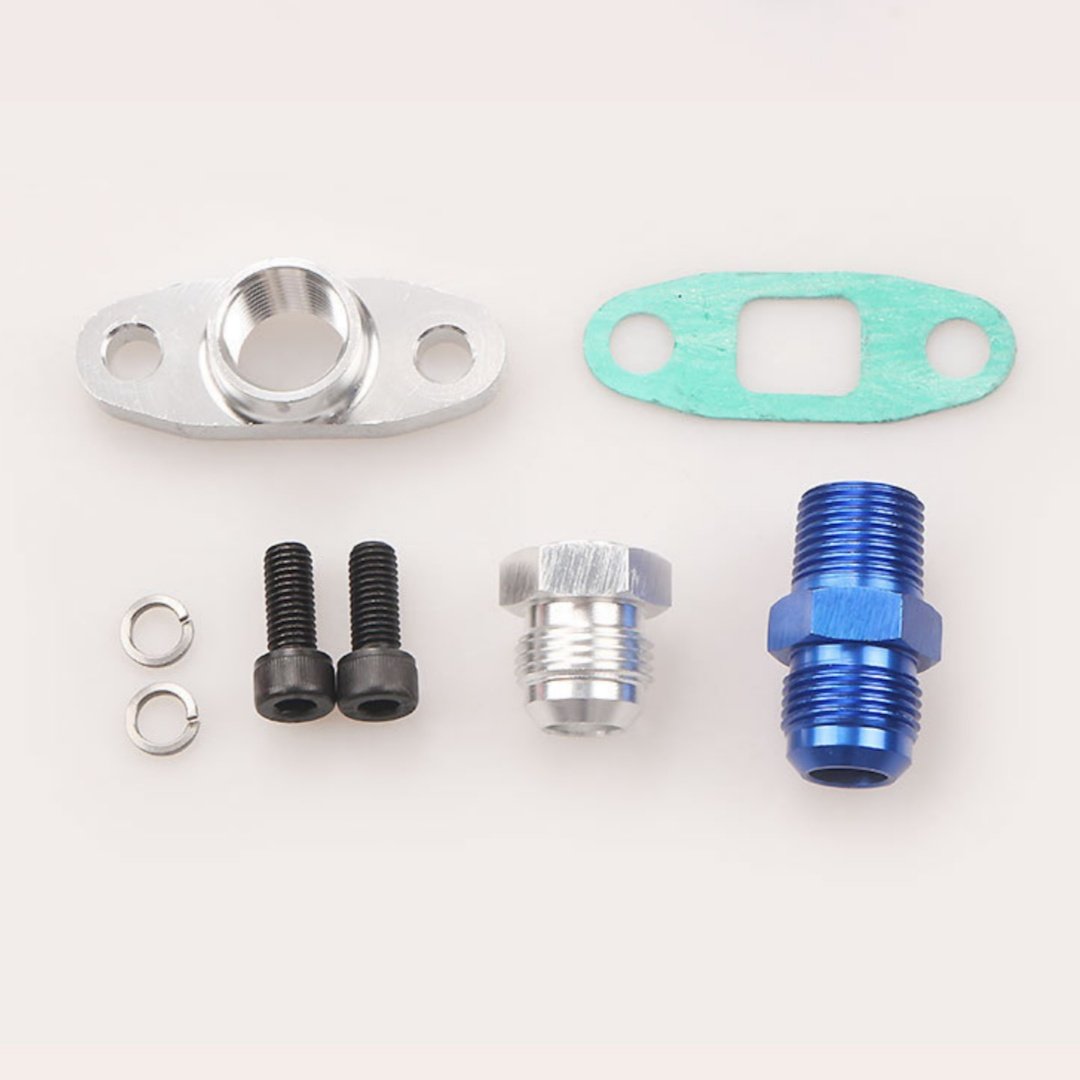

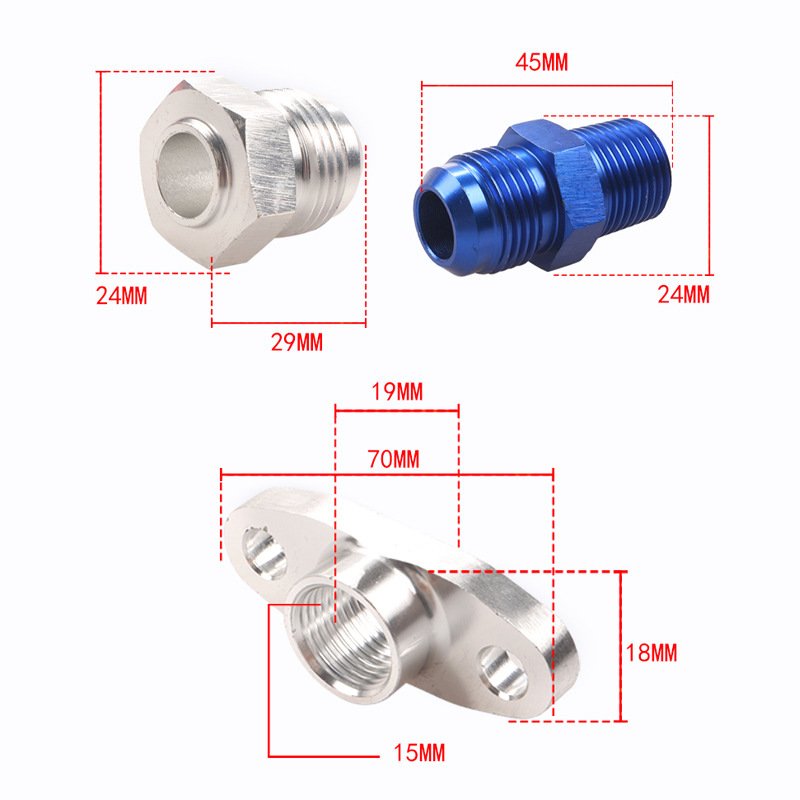

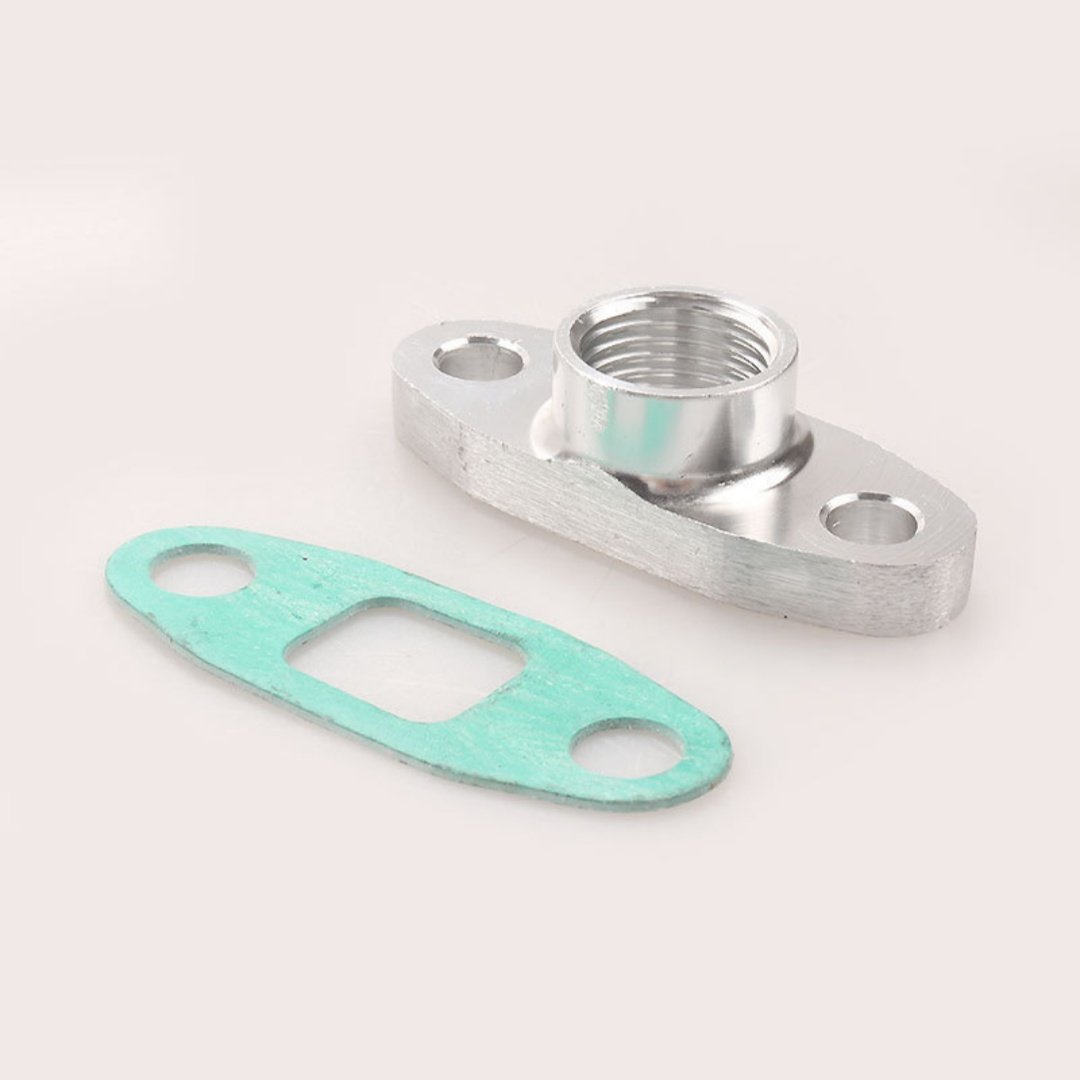

- Flange Adaptability: A proper kit includes variable bolt-spacing flanges. T3/T4 housings have different mounting dimensions than GT32 or GT40 units. Supplying universal, slotted CNC adapter plates ensures cross-compatibility across various turbo brands.
(Note on Ball Bearing Turbos: If you are installing a ball-bearing unit like a GT-series, volume must be restricted. Ensure you install the appropriate oil restrictor fitting at the feed inlet to prevent seal blowout).
Post-Installation Reliability Checks
Even the highest quality components will fail if installed incorrectly. We advise all our B2B clients and end-users to follow a strict post-assembly protocol:
- Verify the Gravity Drop: The AN10 return line must maintain a continuous downward trajectory. Any horizontal routing or “dips” will create a fluid trap, causing immediate oil backup.
- Prime the System: Before the first ignition, disable the fuel system and crank the engine to build oil pressure. Verify fluid is reaching the CHRA before the turbine shaft sees exhaust velocity.
Global Sourcing for Professional Results
Sourcing individual AN fittings, braided hoses, and CNC flanges locally is highly inefficient and cost-prohibitive. As a global supplier of replacement components, we consolidate these exact specifications into a single, ready-to-deploy package.
Do not compromise a high-performance engine build with inferior plumbing. Equip your garage with the right components to do the job once.
