You’re halfway through breaking up a concrete slab, and suddenly, your demolition hammer starts sputtering. The RPMs drop, there’s an aggressive burning smell, and a fireworks display of sparks shoots out of the motor vents. Then, dead silence.
Before you start pricing out a brand-new $1,000 pavement breaker, take a breath. In 90% of these heavy-duty tool failures, the culprit is a wear-and-tear item that costs less than lunch: the carbon brushes.
Specifically, if you are running heavy-duty 20lb to 60lb demolition hammers, you are likely looking for the 1005550-03 carbon brush. Let’s dive into how to diagnose the issue, why choosing the right aftermarket brush matters, and how to get your tool back on the job site in under 15 minutes.
Diagnostic Stage: Is It Really the Brushes?
When a heavy-duty breaker hammer fails under load, it’s rarely a catastrophic motor blowout. Here are the three telltale signs that your 1005550-03 brushes have reached the end of their lifespan:
- The “Auto-Stop” Click: Premium demolition hammers are designed to shut down automatically when the brush wears down to a critical level. This prevents the bare metal spring from scoring the expensive motor commutator. If the tool refuses to turn on despite a good power cord, the auto-stop pin has likely deployed.
- Excessive Arcing: While minor sparking is normal for brushed motors, bright blue or yellow flames trailing around the commutator mean the carbon is no longer making solid contact.
- Intermittent Power: If the tool only works when you tap the side of the housing with a mallet, your brushes are sticking in their holders or are worn too short to maintain spring tension.
Evaluation: OEM vs. Premium Aftermarket 1005550-03 Brushes
A common question from contractors is: “Do I absolutely need the original branded parts to fix my hammer?”
The short answer is no. However, you cannot settle for cheap, generic graphite either. Demolition hammers endure brutal vibration and extreme thermal loads. When selecting an aftermarket 1005550-03 replacement, you must look for high-density copper-graphite compounds.
At FixPartHub, our premium aftermarket 1005550-03 brushes are engineered specifically for continuous concrete breaking. They feature:
- Heavy-Duty Braided Shunts: To handle high-amperage spikes without burning out.
- Built-in Auto-Stop Pop-outs: Crucial for protecting your armature from total destruction.
- Exact Dimensional Fit: Ensuring they slide smoothly into the brass brush holders without hanging up under heavy vibration.
Post-Purchase: How to Install the 1005550-03 Carbon Brushes
Replacing these brushes is a straightforward maintenance task. You don’t need a degree in electrical engineering—just a screwdriver and a clean workspace.
Step-by-Step Replacement:
- Safety First: Unplug the demolition hammer. Never crack open a tool housing while it’s connected to power.
- Access the Brush Caps: Remove the rear handle cover or the side inspection caps (depending on your specific tool model).
- Release the Tension: Carefully unhook the coil spring holding the old brush down. Slide the worn brush out of the brass sleeve.
- Inspect the Commutator (Expert Step): Look down into the motor. The copper bars (commutator) should be a clean, dark copper color. If they are blackened with carbon buildup, use a fiberglass scratch brush or 400-grit sandpaper to gently clean them. Never install new brushes on a dirty commutator.
- Seat the New Brushes: Slide the new aftermarket 1005550-03 brushes into the holders. Ensure the braided wire isn’t pinched. Reapply the spring tension.
- Bedding-In Process: Once reassembled, run the tool under no load (freely in the air) for about 3 to 5 minutes. This allows the new flat carbon surface to arc and conform perfectly to the curved shape of the motor commutator.
The Verdict
Downtime on a job site kills profitability. Keeping a spare set of premium aftermarket 1005550-03 carbon brushes in your toolbox is the ultimate insurance policy against dead tools.
Don’t wait for your demolition hammer to start smoking. If you’ve been running your breaker hard for the last six months, it’s time for a maintenance check.
Ready to restore your tool’s peak hitting power?
👉 Grab your set of Premium Aftermarket 1005550-03 Carbon Brushes here. Fast shipping ensures you get back to breaking concrete, not the bank.
*Disclaimer: FixPartHub provides premium aftermarket replacement parts. All brand names and models are used strictly for compatibility identification purposes.

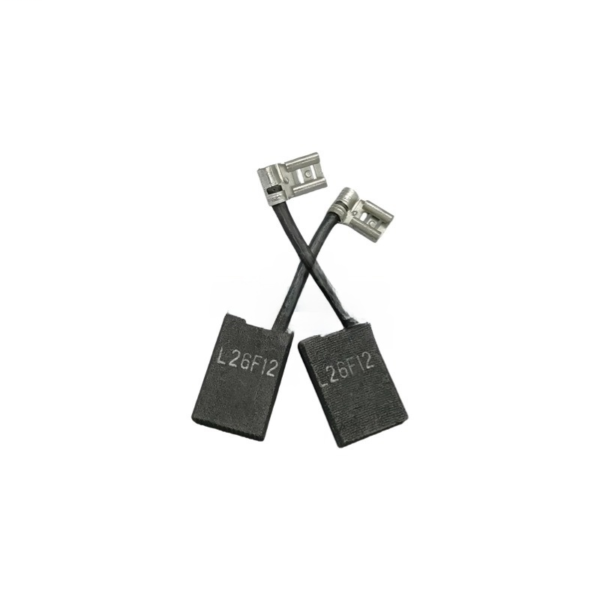

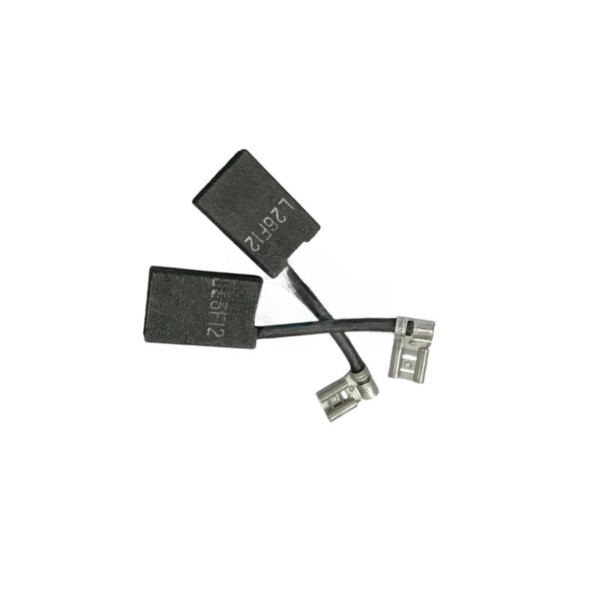

Premium Aftermarket 1005550-03 Carbon Brushes Compatible with D25899K D25981 Demolition Hammers | FixPartHub
- ✔ Exact Heavy-Duty Fit: Premium aftermarket replacement engineered specifically for heavy demolition hammers and pavement breakers. Directly replaces OEM part numbers 1005550-03 and 1005550-02.
- ✔ Tool Compatibility: Fully compatible with massive 20lb to 60lb breaker models, including the widely used D25899K and D25981 demolition hammer platforms.
- ✔ Vibration-Resistant Shunt: Features a heavy-gauge braided copper wire lead designed to withstand the extreme mechanical shock and violent vibrations generated during concrete breaking, preventing wire fatigue and snapping.
- ✔ Auto-Stop Motor Protection: Equipped with a built-in safety pop-off pin. Once the carbon wears to its operational limit, the pin ejects, instantly cutting the electrical circuit to save your expensive motor armature from catastrophic damage.
- ✔ Restore Impact Energy: The ultimate fix for a breaker that randomly stalls, suffers from intermittent power loss during heavy chipping, or emits aggressive sparks and electrical odors under load.
