You are right in the middle of polishing a metal cast or carving a delicate piece of wood. You push the blue variable-speed slider forward on your trusted 3000 series rotary tool to bump up the RPM, and suddenly… the slider goes completely limp. The motor dies, and the switch feels like it is disconnected from the inside.
Before you toss your favorite high-speed rotary tool into the trash and buy a new one, stop. The copper stator is fine. The armature is perfectly balanced. The carbon brushes probably still have miles of life left. The real culprit is an internal piece of engineered plastic that has finally succumbed to heat and vibration: the Switch Flange Support Assembly (Part Number: 2610009844).
This internal scaffold holds the electrical switch contacts and aligns them with your external sliding thumb control. When the microscopic plastic retention clips snap, the electrical connection is lost. Today, we are going to open up that chassis and perform a seamless 10-minute bench repair to get your rotary tool spinning again.
Diagnosis: Carbon Brushes or a Broken Flange?
Don’t just throw parts at a broken tool. Let’s isolate the failure. Here is how bench technicians confirm a shattered 2610009844 switch support:
- The “Limp Noodle” Slider: Push the external speed slider back and forth. If it moves effortlessly with absolutely zero clicking resistance, the internal tabs on the switch flange that grip the slider have snapped off.
- The Squeeze Test: If the tool randomly cuts out while running, but kicks back on when you squeeze the plastic body of the tool tightly in your fist, the internal support flange has cracked. The physical pressure of your hand is temporarily forcing the broken electrical contacts back together.
- Visual Inspection: Open the tool casing. If you see tiny blue or black plastic fragments rattling around near the stator assembly, the flange has disintegrated.
The 10-Minute Workbench Tear-Down
Replacing this internal chassis requires a Torx T15 screwdriver and a little bit of patience. Follow this professional teardown sequence:
Remove the Carbon Brushes: Before splitting the casing, unscrew the two side caps and pull out the carbon brush springs. Failing to do this will snap the brush wires when you pry the motor out later.
Extract the Core: Unscrew the Torx screws holding the clamshell together. Lift the top half off. Carefully lift the entire motor assembly (stator, armature, and the broken switch flange) out of the bottom casing as one single unit.
Swap the Flange: Pull the old, broken switch flange housing off the rear of the stator. Transfer the metal wire terminals from the old flange directly into the exact same slots on your new 2610009844 support. Push the new flange firmly onto the back of the motor block until it clicks into place.
⚠️ Critical Reassembly Warning:
When laying the motor back into the casing, ensure the blue external thumb slider physically engages with the notch on the new internal switch flange. If they do not link up perfectly before you tighten the Torx screws, you will not be able to turn the tool on.
Restore Your Precision Tool Today
A broken piece of plastic should never dictate the lifespan of a premium power tool. Rebuild your hardware, bypass the expensive factory service centers, and get right back to your carving and polishing projects.
Grab the heavy-duty aftermarket 2610009844 Switch Flange Support directly at FixPartHub. We source precise, thermal-resistant internal electronics and scaffolds to keep your bench tools running strong for years to come.
The external plastic slider connects to a small notch on the internal switch flange support. Under high vibration and heat, the plastic tabs on the internal flange eventually snap off. Once broken, the external slider moves freely but cannot mechanically push the electrical contacts inside, leaving the tool dead.
Yes, the 2610009844 flange support is the exact direct-fit replacement part designed to house the switch mechanism and interface with the motor stator on standard 3000 series high-speed rotary tools.
No soldering is required. The electrical connections leading into the switch flange utilize standard push-on metal spade terminals. You can gently pull them out of the old broken housing with needle-nose pliers and push them directly into the slots of the new replacement flange.

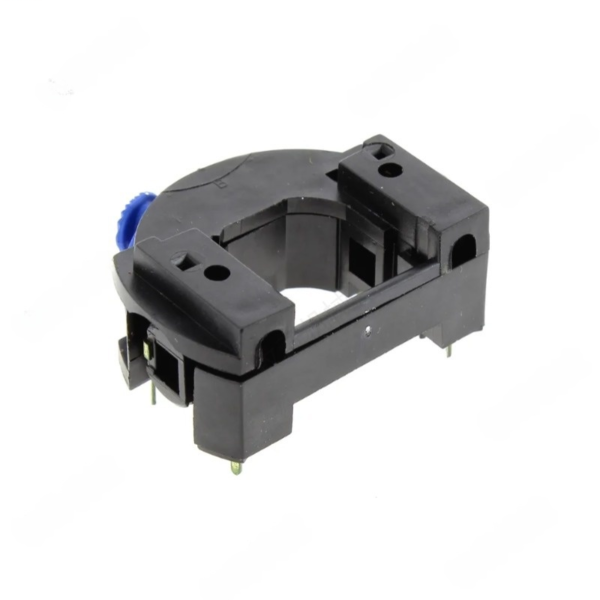

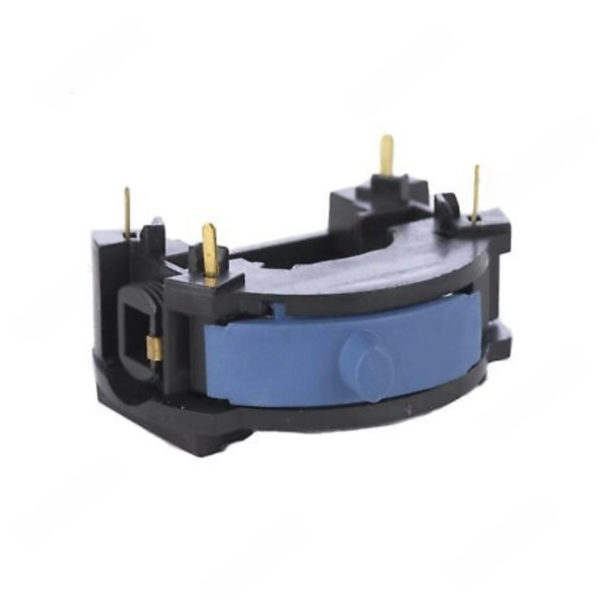

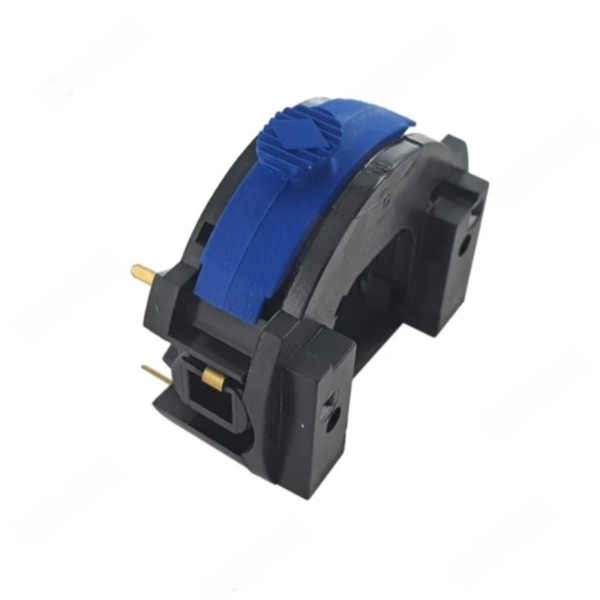

Aftermarket Flange Support & Switch Assembly Compatible with Dremel 3000 (Replaces 2610009844) | FixPartHub
- Restore Rotary Power: Is your rotary tool completely dead or struggling with an unresponsive sliding switch? This aftermarket flange support and switch assembly restores the reliable, click-into-place power control of your tool.
- Exact Drop-In Fitment: Precision-molded to act as a direct, compatible replacement for OEM part number 2610009844. Fits perfectly inside the clamshell housing with zero modifications required.
- Built for 35,000 RPM: Dremel tools generate extreme high-frequency vibrations. This heavy-duty polymer flange support is engineered to secure the internal components tightly, preventing the dreaded “wobble” that ruins delicate engraving or cutting tasks.
- Dust & Debris Resistant: Designed to properly seal the internal electrical contacts from fine metal shavings, sawdust, and polishing compounds that typically cause the original factory switch to short out.
- Save Your Bare Tool: Don’t throw away a perfectly good rotary tool just because the switch slider broke. This 10-minute drop-in repair gets your essential detailing tool back on the workbench instantly.
| Buy More, Save More | Quantity | Discount |
|---|---|---|
| Bulk Discount | 2 | 5% |
| Bulk Discount | 3 – 5 | 10% |
| Bulk Discount | 6 – 19 | 15% |
