You slap a fully charged 18V battery pack into your go-to cordless impact driver, align the bit with a heavy-duty timber screw, and squeeze the trigger. Nothing. The motor refuses to budge. Or maybe the tool suddenly runs only at maximum speed, completely stripping your fastener heads because the gradual throttle control is gone.
Before throwing your reliable 18V driving tool into the scrap pile or spending over $120 on a bare-tool factory replacement, take a breath. The copper armature winding and carbon brushes are likely pristine. In nearly 85% of sudden power cuts on these sub-compact driving platforms, the true point of failure is a burnt-out variable speed reversing (VSR) trigger switch (Part Number: 632F26-6).
Trigger assemblies endure severe electrical arcing and physical vibration on every single contract job. Over time, metal-on-metal micro-contacts inside the housing carbonize and fail. This professional technician-level guide will help you isolate a bad switch from a dead motor and execute a clean drop-in replacement on your workbench in under 10 minutes.
Workshop Troubleshooting: Is It Actually a Bad Switch?
Do not throw money at unneeded parts. Run through this quick multi-point test sequence to isolate the exact component failure inside the housing:
- The “On/Off” Throttle Defect: Pull the trigger back gradually. If the tool skips the low-RPM power band entirely and violently leaps to full speed at the very bottom of the stroke, the internal variable carbon resistor track is worn out. You need a fresh 632F26-6 switch block.
- Directional Paralysis: If the impact driver spins flawlessly in Forward but acts completely dead when you flick the selector lever into Reverse, the mechanical contacts within the top slider of the switch assembly have melted.
- The Multimeter Verification: Unclip the housing clamshell. Connect your multimeter probes to the incoming wires from the battery terminal block. If 18V DC enters the bottom of the switch but zero voltage flows out to the motor leads when the trigger is completely compressed, the switch is internal garbage.
Why Quality Contacts Matter for 18V High-Torque Tools
Impact drivers generate high-frequency micro-shocks back into the operator’s hand and the internal electronic housing. Cheap generic switches use thin, paper-like tin plating that burns up the moment the motor draws maximum current under a heavy load.
| Feature | Standard Budget Clones | Our Premium Aftermarket |
|---|---|---|
| Contact Substrate | Thin tin plating (oxidizes rapidly) | ✅ High-conductivity thickened copper alloy |
| Throttle Consistency | Jerky, unstable voltage delivery | ✅ Linear variable speed curve for precision driving |
| Dust Protection | Open seams allow drywall dust ingress | ✅ Sealed main casing resists job site particulate fouling |
Step-by-Step Bench Replacement Sequence
Swapping this modular switch requires only a standard Torx T10 screwdriver and a set of pliers. No complicated soldering irons or electrical tape are needed:
Split the Clamshell: Disconnect the 18V battery. Back out all exterior casing screws. Carefully lift off the top half of the plastic housing to expose the tool wiring layout.
One-by-One Terminal Swap: Lift the old switch block slightly. Pull off a single wire lead spade connector from the faulty switch, and immediately push it onto the corresponding terminal tab of the new switch. Do this wire-by-wire to completely avoid wire crossing.
Route and Close: Nest the new switch firmly back into its plastic retention ribs. Ensure all wires sit flat inside their designated routing channels. A pinched wire during assembly will cause an immediate short circuit.
⚠️ Critical Assembly Warning:
Before clamping the two plastic housing shells back together, ensure the directional forward/reverse slide lever sits perfectly aligned with the micro-pin on top of the switch body. Forcing the shell closed while this plastic pin is misaligned will bend or snap the internal directional gate.
Keep Your Gear Running
A dead trigger switch shouldn’t force you into purchasing a brand-new tool carcass. Take control of your equipment lifecycle, bypass retail service delays, and restore a fluid, factory-crisp throttle control response to your favorite impact driver.
Pick up your high-durability 632F26-6 VSR Trigger Switch Module directly from the warehouse catalog at FixPartHub. We focus on delivering field-tested replacement electronics so you can rebuild your hardware assets and get back to work fast.
When carbon brushes wear down, the impact driver usually cuts in and out intermittently when shaken, smells like burning ozone, or emits heavy sparks through the rear motor cooling vents. If the tool is completely non-responsive, or the variable speed function operates like a harsh on/off switch, the trigger switch module is the true broken component.
Yes. This specific factory-spec variable speed reversing switch is designed to precisely fit the interior molded retention cavities, terminal connections, and current draws of both the global DTD152 series and the North American XDT11 sub-compact 18V cordless impact driver lineups.
No soldering is required for this fix. The 632F26-6 replacement switch utilizes premium integrated quick-connect spring terminals and slide-on spade blocks. You simply use a pair of long needle-nose pliers to pull the existing tool leads off the old switch module and push them firmly into place on the replacement block.

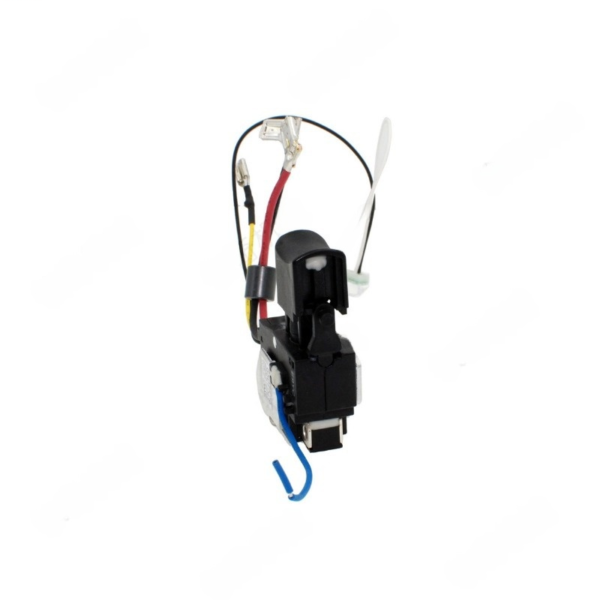

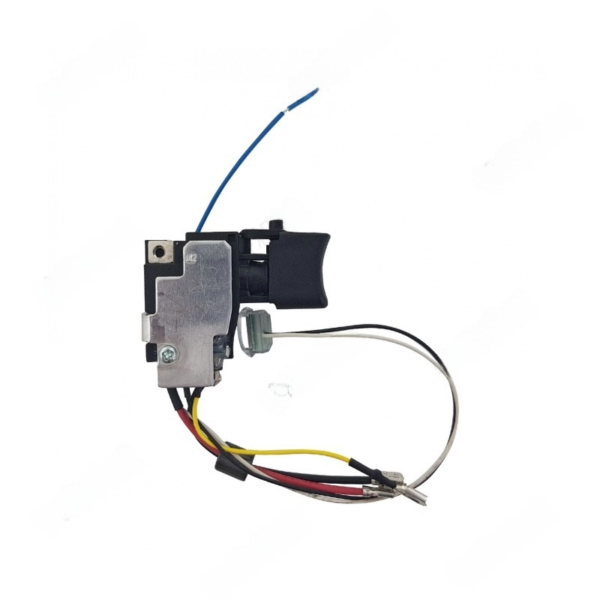

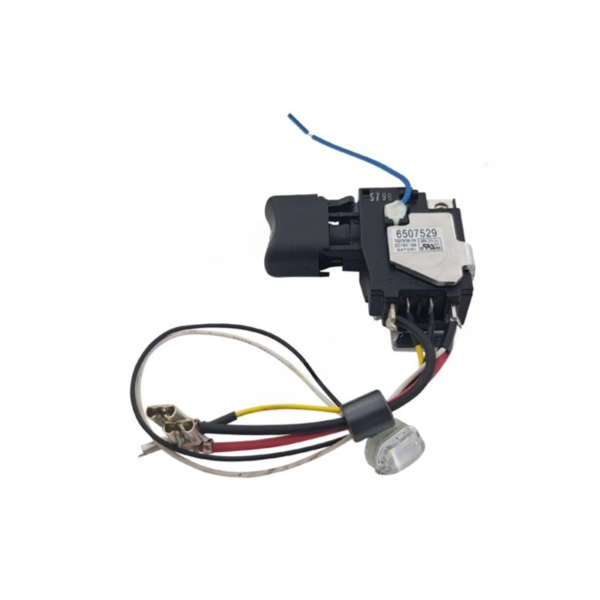

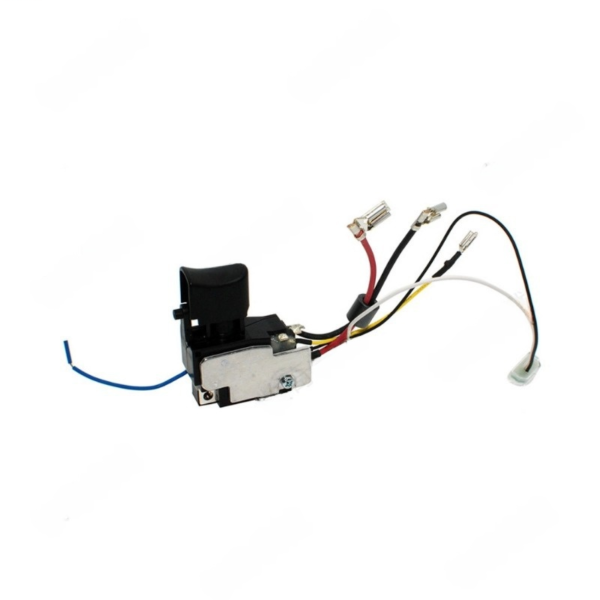

Aftermarket VSR Trigger Switch Assembly Compatible with DTD152 & XDT11 (Replaces 632F26-6, 650751-1) | FixPartHub
- Restore Precision Fastening: Is your impact driver only firing at full RPMs or completely dead? This aftermarket VSR (Variable Speed Reversible) switch restores the sensitive, feather-touch throttle control your Makita was built for.
- Exact OEM Cross-Reference: Precision-engineered as a direct drop-in replacement for original part numbers 632F26-6 and 650751-1. Guaranteed to fit perfectly inside the clamshell housing with zero modifications.
- Broad 18V Compatibility: Designed specifically for the legendary 18V LXT Impact Driver series, making it the perfect rebuild component for popular models like the DTD152, DTD152Z, and XDT11R.
- Integrated Assembly: This is not just a bare trigger. The assembly comes pre-wired with the heavy-duty switch mechanism, the forward/reverse shuttle interface, and the factory-spec battery terminal block for a complete electrical pathway replacement.
- Job Site Durability: Built with upgraded, heat-resistant internal copper contacts designed to handle the massive amp-draw of driving structural lag screws, preventing the common “burnt trigger” failure.
