Fix Your Stuttering Impact Driver: The 15-Minute Switch Rebuild
The DTD152 and XDT11 are absolute workhorses on the job site, but their triggers absorb a massive amount of abuse. Fine drywall dust, metallic shavings, and the sheer heat generated from driving heavy lag bolts eventually degrade the internal wiper resistor board. When this happens, you experience the classic “stuttering driver” syndrome—the tool cuts in and out, loses its low-speed sensitivity, or simply refuses to spin.

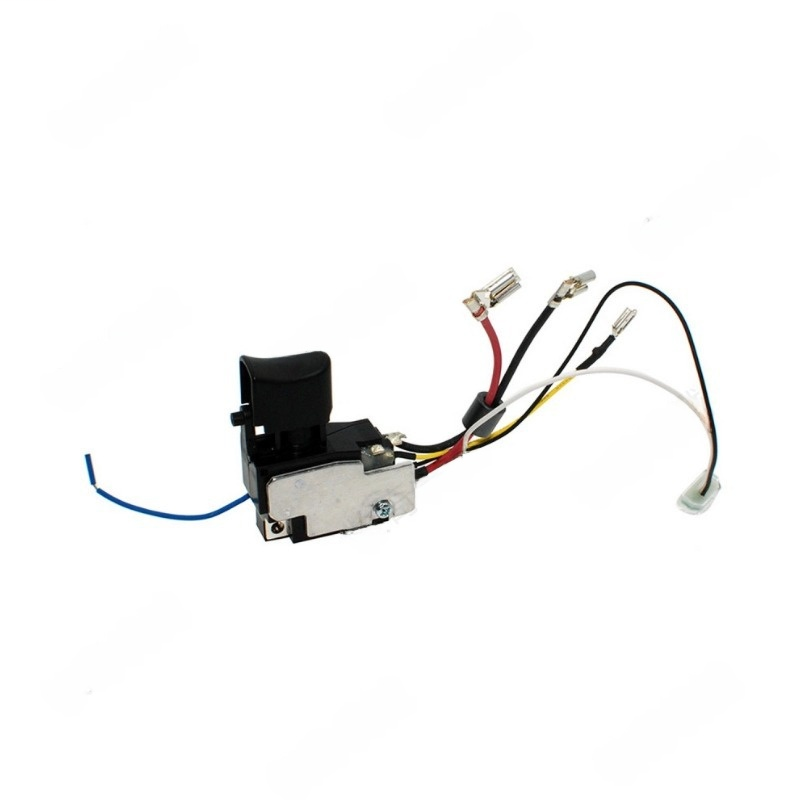

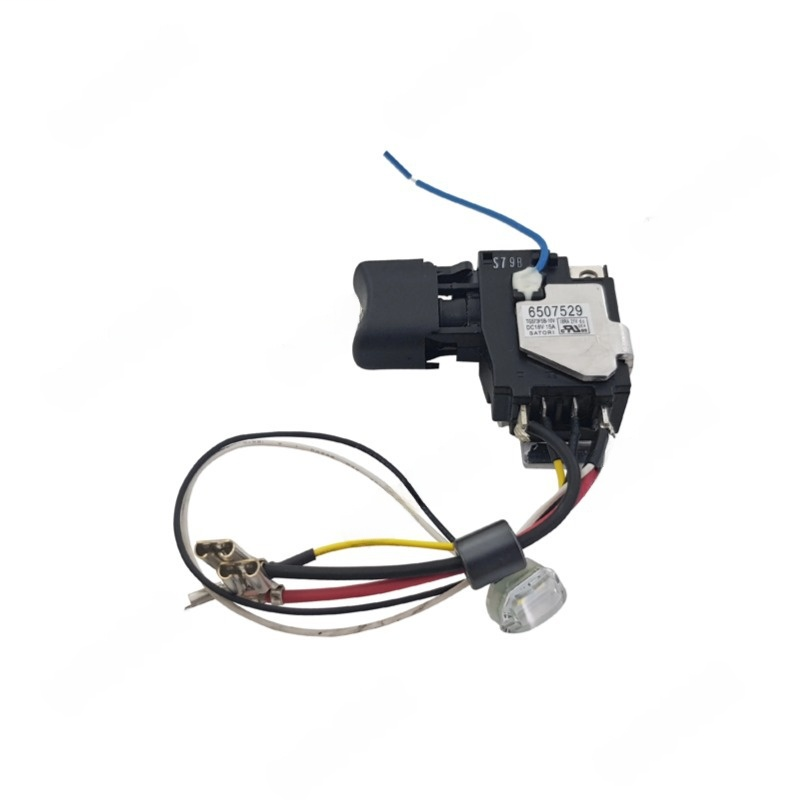

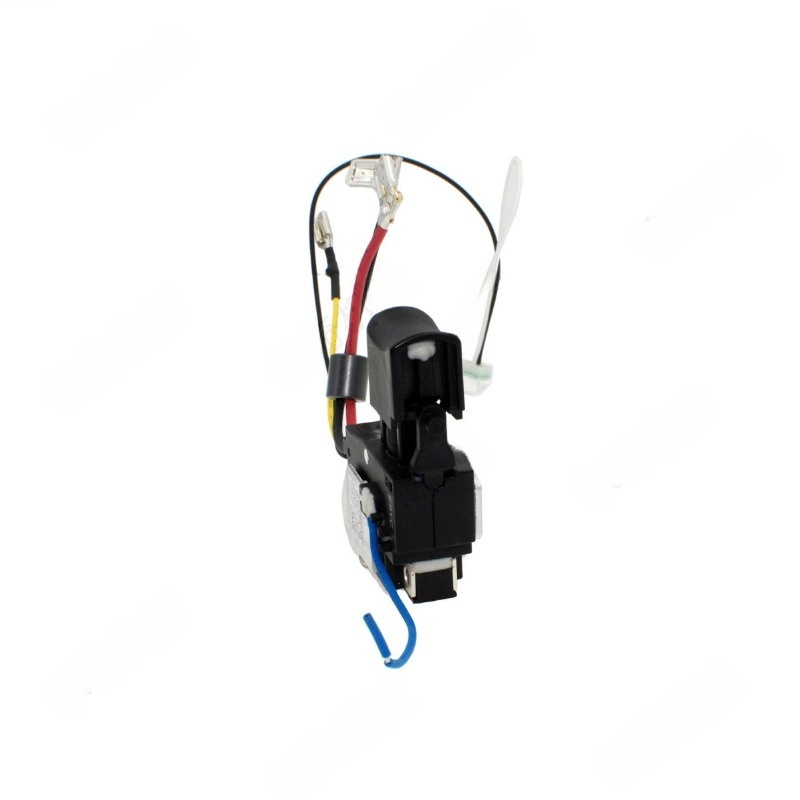

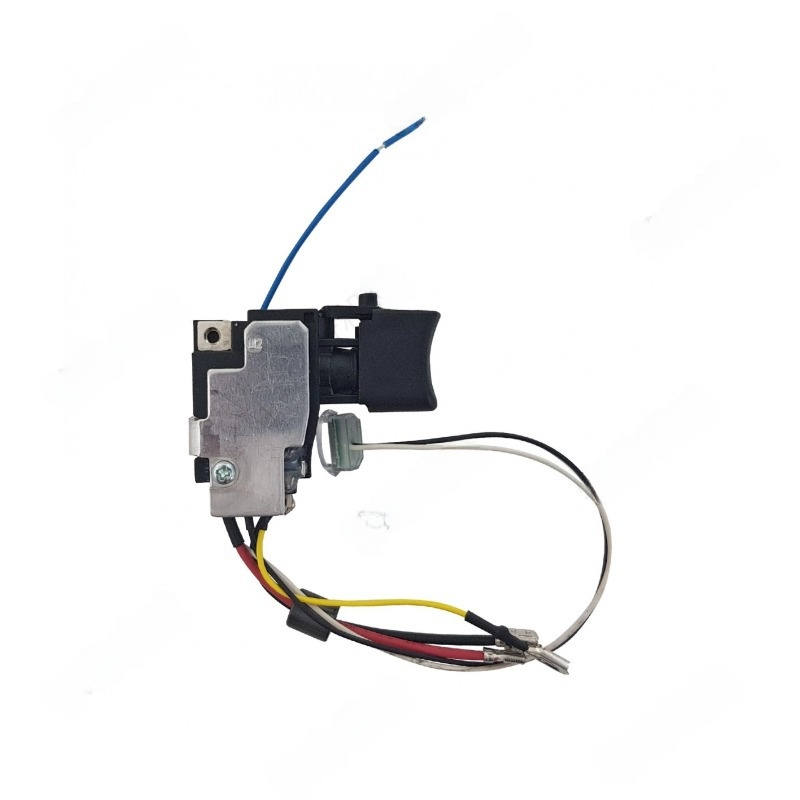

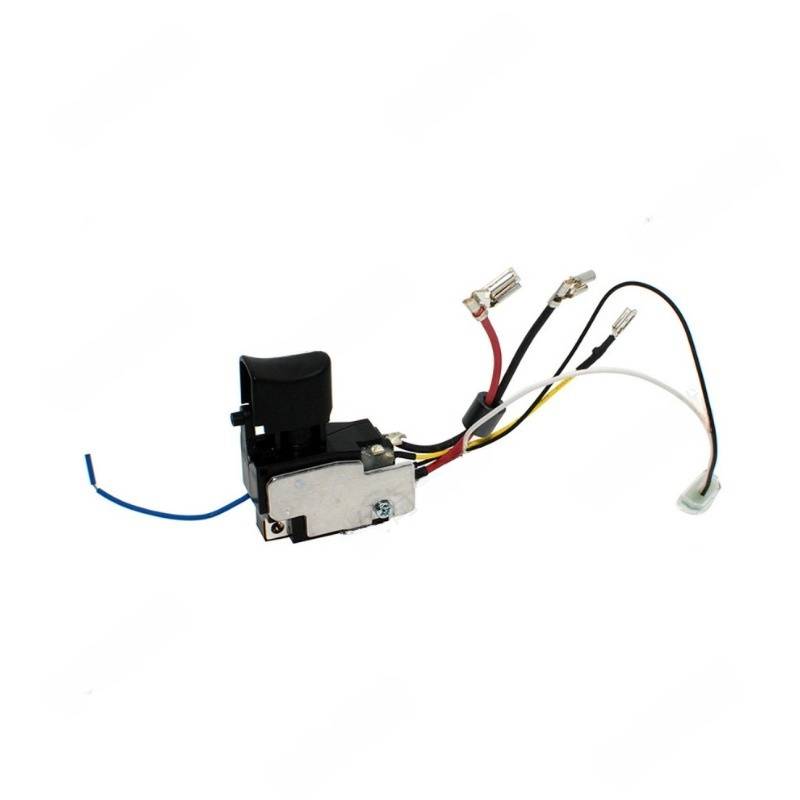

Don’t scrap a perfectly good $120 bare tool. This Premium Aftermarket VSR Trigger Switch Assembly is the exact replacement module you need. By swapping out the compromised factory switch (OEM part numbers: 632F26-6 / 650751-1), you instantly bring back the smooth, linear acceleration required for delicate cabinetry work and aggressive framing alike.
Tech Q&A: From the Mechanic’s Bench
My driver only runs at 100% speed. Is the switch the problem?
Absolutely. When an impact driver loses its variable speed control and acts like a basic On/Off switch, the internal MOSFET or the variable resistor board inside the trigger has failed. Replacing the entire switch assembly is the only safe and permanent fix.
Does this include the battery terminal?
Yes. The 632F26-6 architecture is a highly integrated unit. This aftermarket assembly includes the trigger, the pre-wired battery terminal block, and the LED work light lead, ensuring a clean transfer of power from your 18V battery directly to the motor brushes.
What if I install the new switch and the tool is still dead?
If you drop in this new switch and get zero response, your electrical issue lies further down the line. We highly recommend inspecting your carbon brushes (usually CB-440 on these models) and the motor armature. Worn-out brushes will break the electrical circuit, preventing the tool from running even with a brand-new switch.
Critical Installation Notes
- Take a Reference Photo: Before removing the old switch, take a clear photo of the wire routing. Makita tightly packs these wires. If they aren’t seated perfectly in their plastic channels, the clamshell housing will pinch and sever them when you tighten the screws.
- Mind the Reversing Lever: Make sure the mechanical forward/reverse shuttle on top of the switch aligns perfectly with the external plastic slider before closing the tool.
Yes, this aftermarket trigger switch assembly is fully compatible with both the DTD152 (and DTD152Z) as well as the XDT11 series impact drivers. It is a direct cross-reference for part numbers 632F26-6 and 650751-1.
Triggers usually get physically stuck due to fine job site debris (like drywall dust or metal shavings) packing tightly into the spring mechanism. Alternatively, severe internal electrical arcing can actually melt the plastic housing inside the switch, fusing the trigger in place.
Sí, este interruptor de repuesto (aftermarket) es una pieza de reemplazo directo y exacto para el atornillador de impacto de 18V DTD152 y XDT11. Reemplaza directamente los números de pieza originales 632F26-6 y 650751-1 para restaurar el control de velocidad.
