Bring Your Impact Driver Back to Life
The 18V LXT line of impact drivers and drills are built to survive jobsite drops and years of daily abuse. However, the Trigger Switch Assembly acts as the central electrical gateway. Every time you pull the trigger, high-amperage current flows through internal copper contacts.
Over time, heavy drywall dust, moisture, and electrical arcing will cause these contacts to pit, burn, or seize. The FixPartHub Premium 650523-4 Trigger Switch is the exact factory-grade cure needed to restore your tool’s responsiveness and save it from the scrap bin.
Diagnosing a Bad Trigger Switch
Before you blame the battery or the motor, look out for the three classic signs of a dying switch:
- The Dead Trigger: You pull the trigger, the LED work light might turn on, but the motor does absolutely nothing.
- Loss of Variable Speed: You gently pull the trigger, but the drill violently jumps to 100% max RPM immediately, stripping your screws and making delicate work impossible.
- Intermittent Cut-Outs: The drill randomly stops spinning while you are holding the trigger down, forcing you to release and pull it again.
Seamless Modular Repair

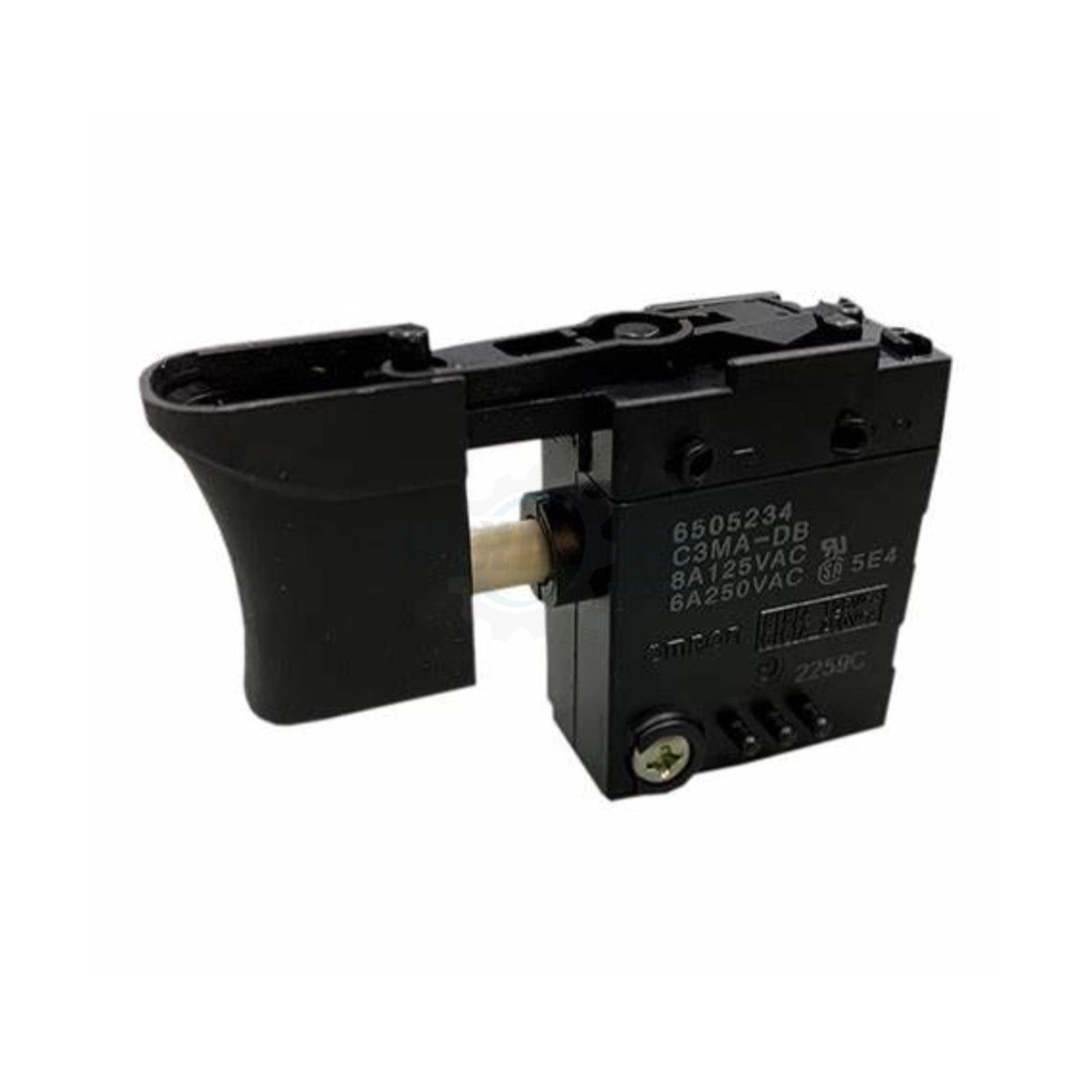

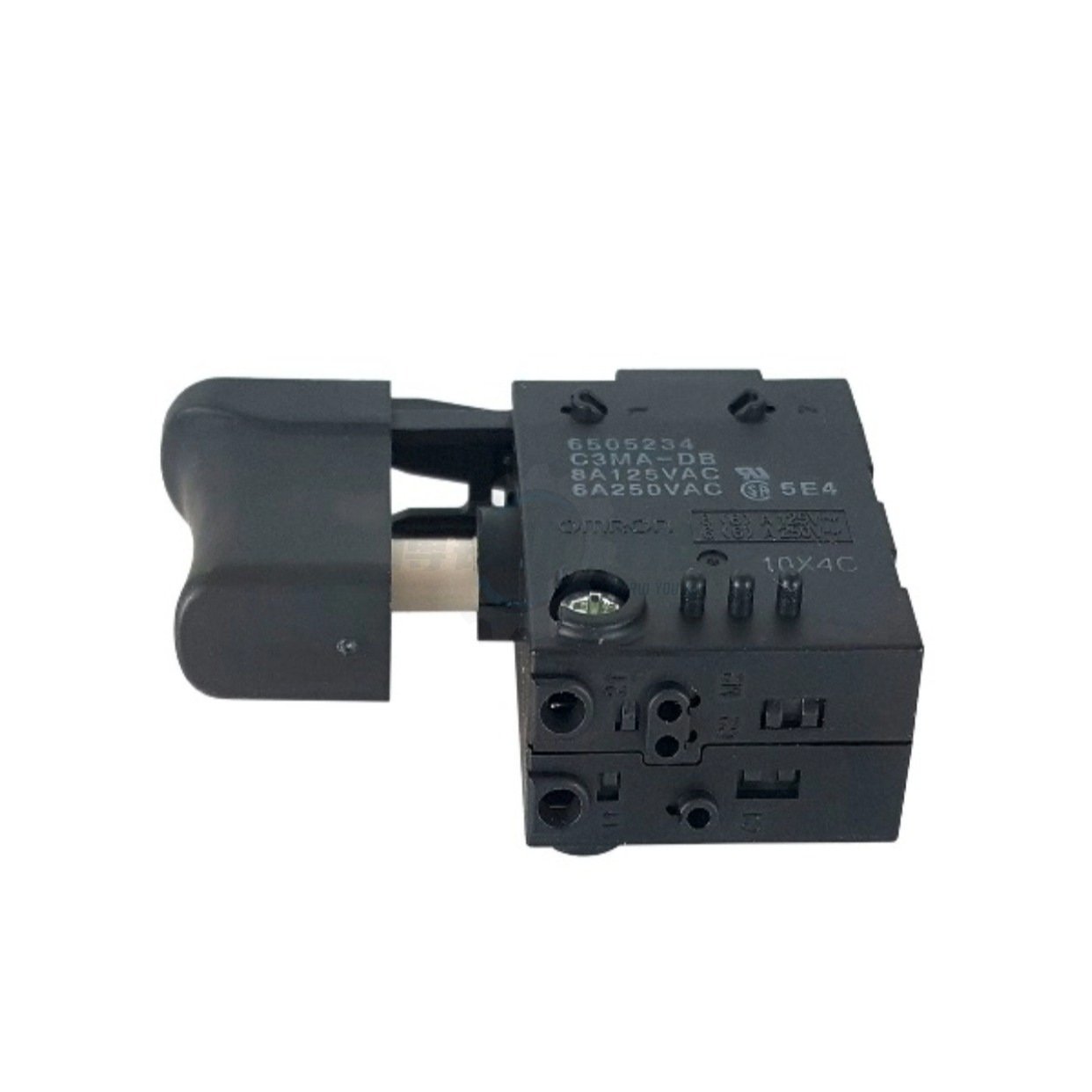

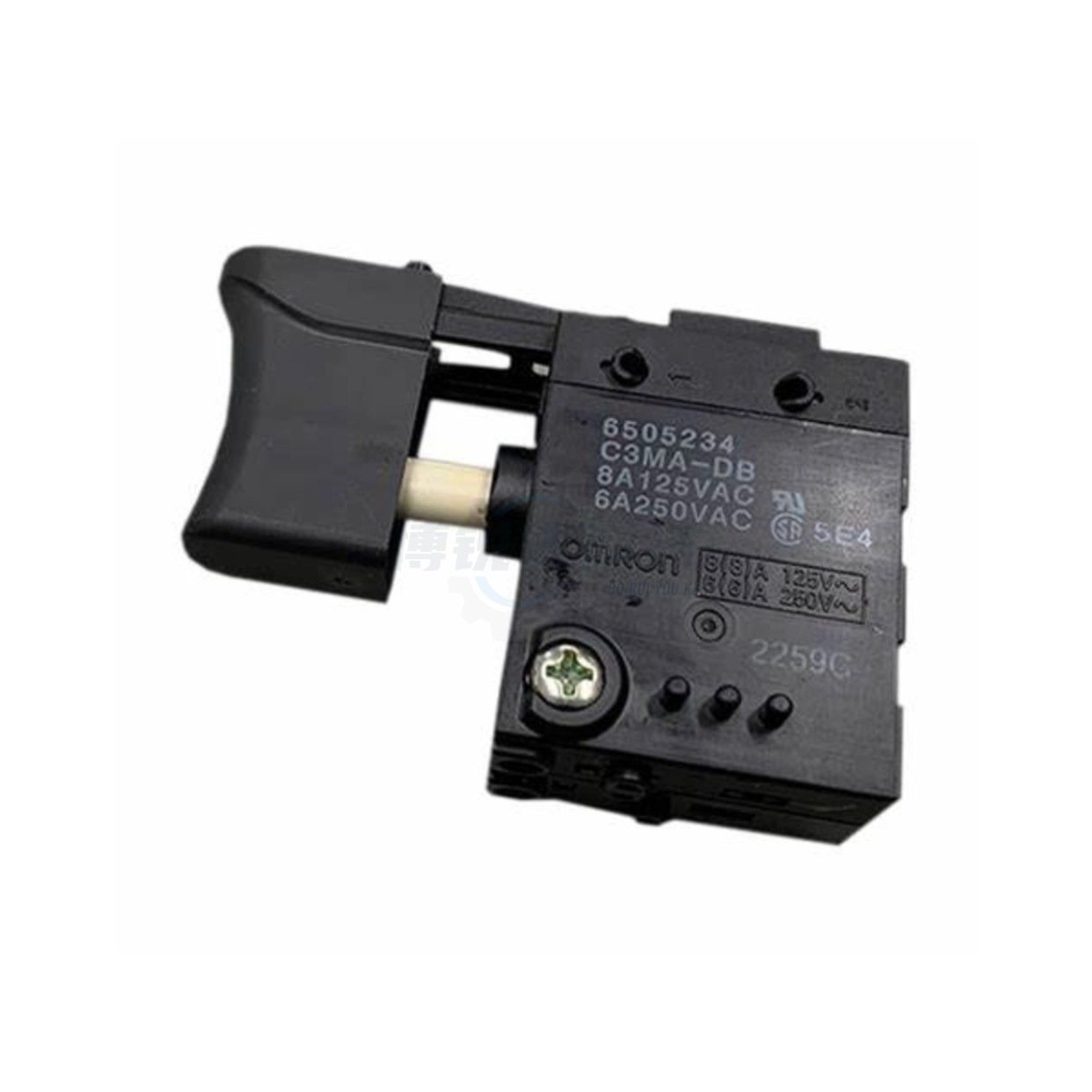

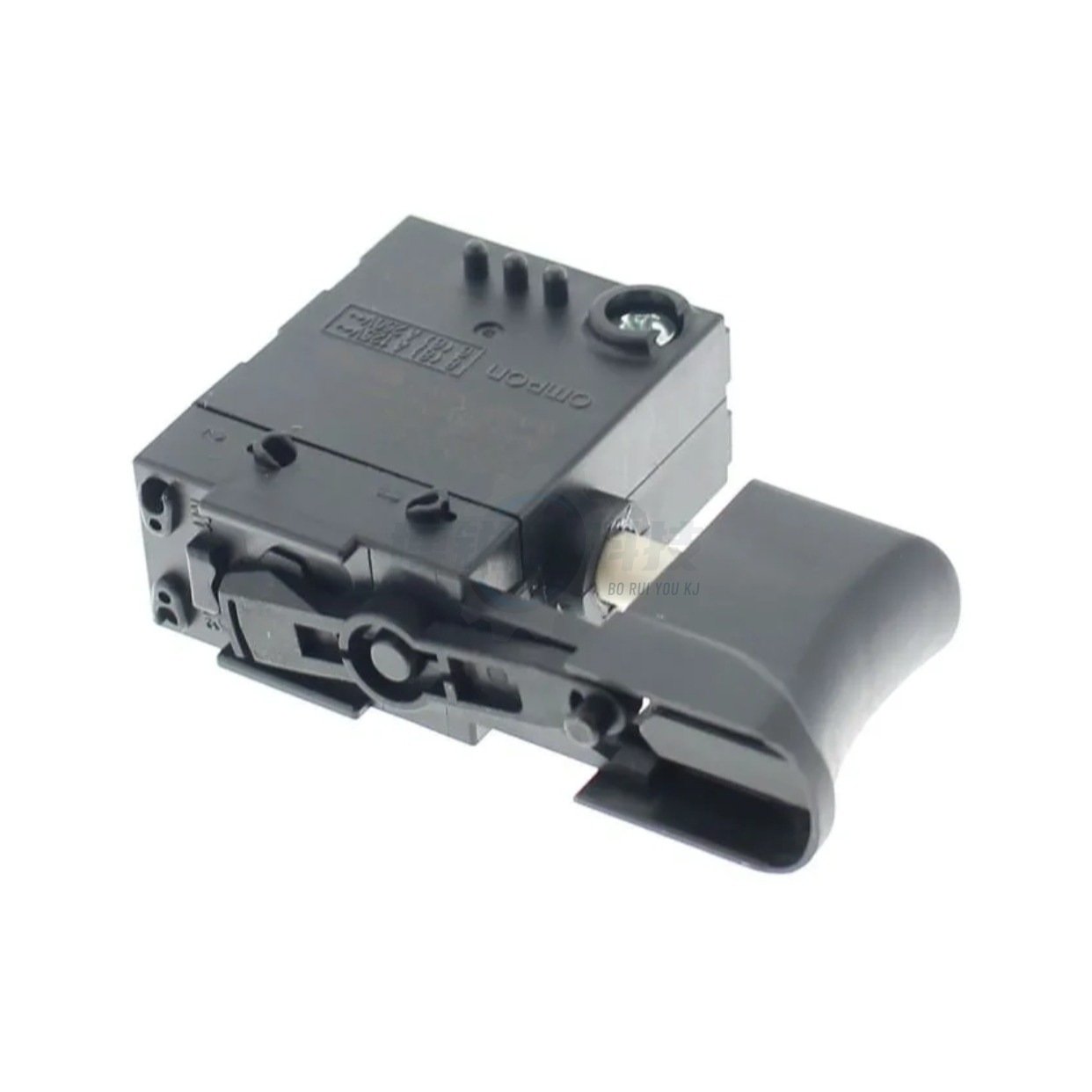

Repairing this issue is a highly satisfying DIY project. The 650523-4 is a complete module that includes the variable speed trigger, the integrated Forward/Reverse shuttle housing, and the pre-soldered wire leads with terminal connectors. By simply splitting the tool’s plastic clamshell, removing the old unit, and plugging this new module into the stator block, you instantly reset the lifespan of your favorite power tool.
Technical Specifications & Compatibility
| Part Type | Premium Aftermarket Variable Speed Trigger Switch Assembly |
|---|---|
| Replaces Part Number | 650523-4 |
| Primary Compatibility | Compatible with BTD140, BTD141, LXDT04, BDF452, BTW251, XDT04 Series |
| Key Features | Integrated Forward/Reverse selector, high-amp variable resistance |
| FixPartHub Service | Is your drill still sparking or running weak after a new switch? Your motor brushes are burnt out! Contact FixPartHub with your model number to source factory-grade CB-440 carbon brushes and armature assemblies to complete your rebuild! |
⚠️ DIY Repair Warning: Always remove the 18V battery pack before unscrewing the tool housing. Pay extreme attention to the wire routing around the new switch. If you pinch a wire between the plastic handle halves when reassembling the tool, you will cause an immediate short circuit that can destroy the new switch!
Disclaimer: FixPartHub is an independent supplier of high-quality aftermarket replacement tool parts. We are not affiliated with, authorized by, or endorsed by Makita Corporation. All brand names, model numbers (such as LXT, BTD141, XDT04), and trademarks are the property of their respective owners and are used within this listing solely for compatibility demonstration and informational purposes.
Yes, absolutely. This is a 100% genuine Makita OEM replacement switch assembly (part number 650523-4). Unlike cheap, unbranded aftermarket switches that often suffer from jerky speed control or premature failure, this authentic factory part restores the smooth, precise variable-speed trigger response your 18V LXT tool originally came with.
The most common signs of a dying switch include a “dead spot” when pulling the trigger, the tool only running at maximum speed with no variable control, or intermittent power loss during a cut. In older brushed Makita tools like the DTD146 or BTD141, fine sawdust combined with internal carbon brush dust can eventually pack into the switch housing, destroying the sensitive electrical contacts and requiring a full replacement.
The wiring inside compact Makita impact drivers is meticulously routed. Crucial Pro Tip: Take clear photos of how the original wires sit in the plastic channels before removing your old switch. Most importantly, do not accidentally throw away your original forward/reverse shuttle lever! You must unclip the small plastic forward/reverse actuator from your old switch and clip it onto this new 650523-4 assembly before closing the clamshell housing.
