Bring Your Dead Drill Back to Life: The Ultimate Switch Upgrade
A failing trigger switch is one of the most frustrating issues on a job site. It usually starts with a loss of variable speed—you pull the trigger slightly, nothing happens, and then suddenly the drill violently lurches into maximum RPM. Eventually, the internal copper contacts burn out completely, leaving you with a totally dead tool.

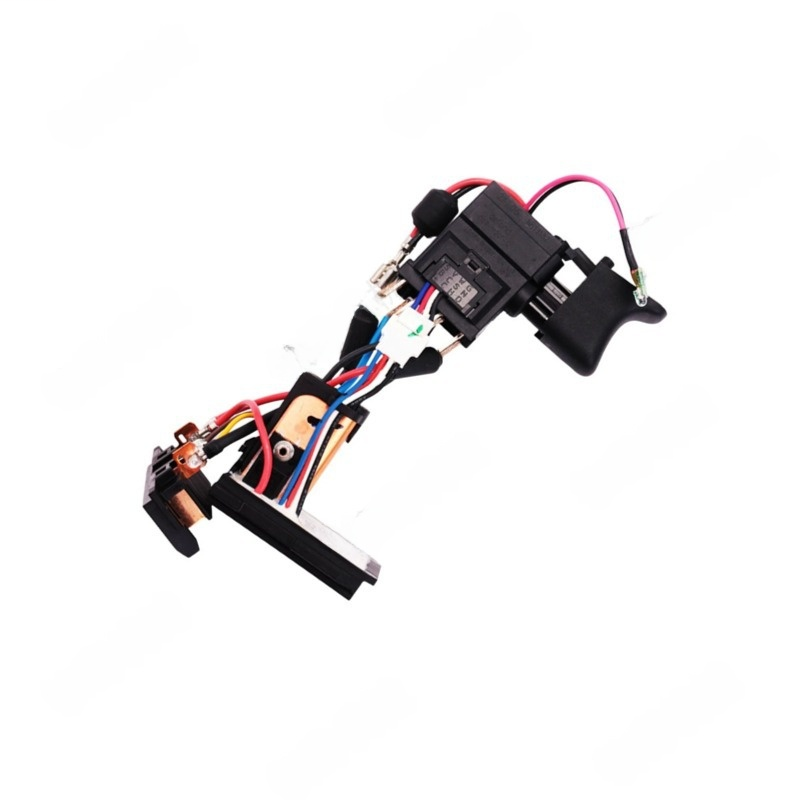

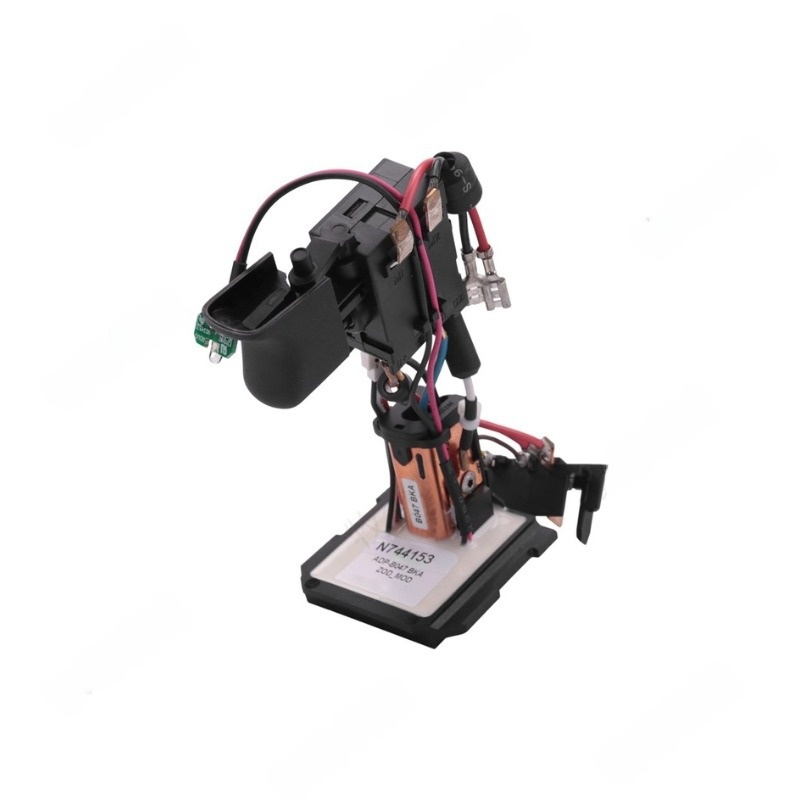

Instead of replacing the entire bare tool, this Premium Aftermarket VSR (Variable Speed Reversible) Trigger Switch is the exact replacement part you need to restore factory-level precision. Designed as a direct compatible replacement for part numbers N744153, N393552, and N268095, this switch brings back the smooth, controlled acceleration required for delicate screwdriving and heavy-duty drilling alike.
Tech Q&A: From the Mechanic’s Bench
How do I know my trigger switch is bad and not the motor?
A burnt motor usually produces a strong, acrid smell of melted plastic and shoots heavy sparks from the rear vents. A bad switch, on the other hand, usually results in a completely unresponsive tool (with a good battery), an intermittent connection where you have to wiggle the trigger, or the total loss of low-speed control (the drill only operates at 100% speed).
Does this switch include the battery terminal block?

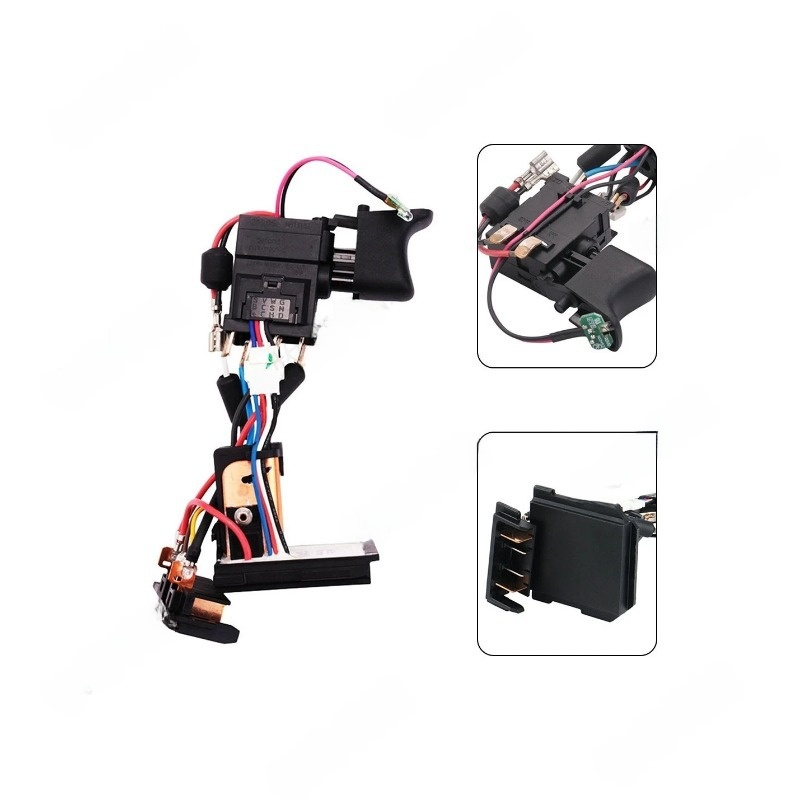

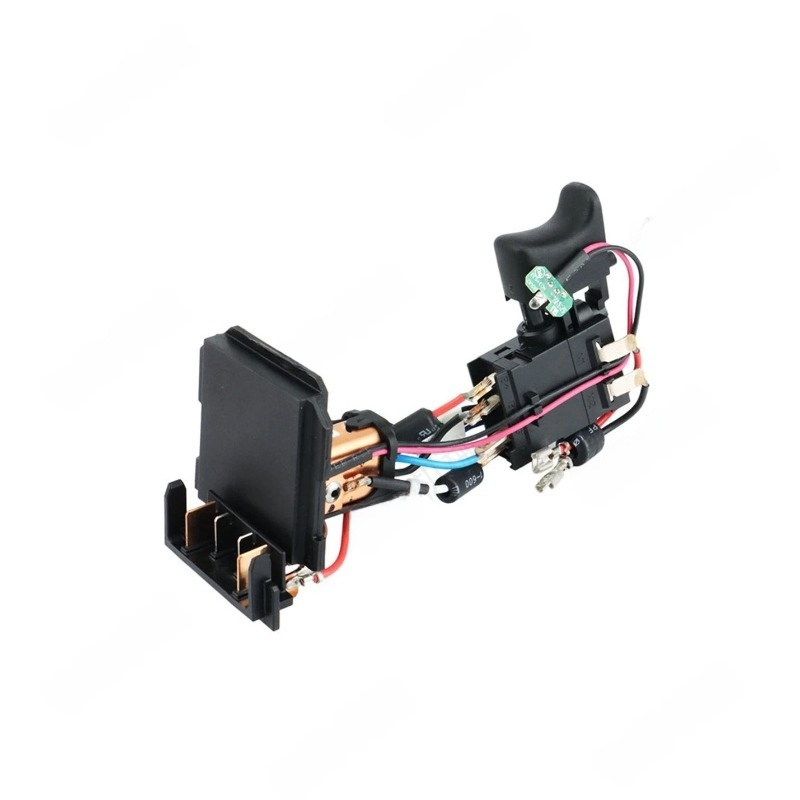

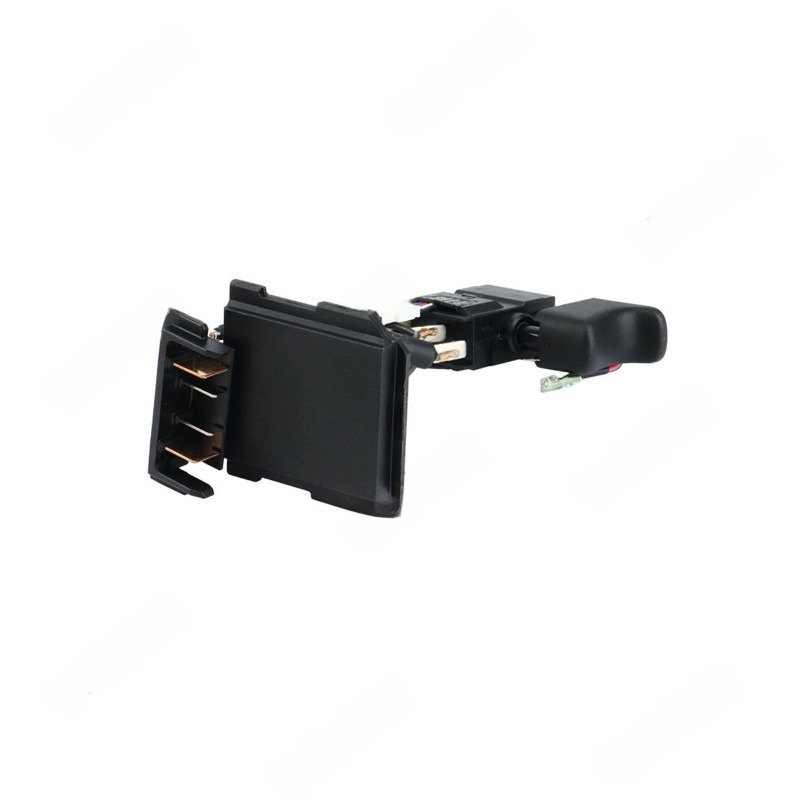

Yes. The N744153 switch architecture is an integrated unit. This aftermarket assembly includes the trigger mechanism, the reversing shuttle interface, and the wired battery terminal block, ensuring a complete electrical pathway replacement from the battery to the motor connections.
Is the installation difficult?
It is a straightforward repair for anyone familiar with basic hand tools. You will need a Torx screwdriver to open the clamshell housing. Crucial Tip: Before disconnecting anything, take a clear, high-resolution photo of how the factory wires are routed through the plastic channels. Incorrect wire routing will cause the wires to get pinched and severed when you screw the housing back together.
Diagnostic Warning
Always ensure your battery is fully charged and the contacts are clean before diagnosing a dead drill. If you install this new switch and the drill still fails to spin, use a multimeter to check the continuity of your motor’s carbon brushes and stator.
Yes, this aftermarket VSR switch is fully compatible with both the DCD780 Drill/Driver and the DCD785 Hammer Drill. It serves as a direct replacement for original part numbers N744153, N393552, and N268095.
The variable speed function relies on a delicate wiper mechanism moving across an internal resistor board. Over time, heavy use, fine drywall dust, and high electrical heat degrade this board, causing the switch to act like a simple “On/Off” button instead of a throttle.
When a drill only runs at maximum RPM and has no slow-speed control, the VSR (Variable Speed Reversible) module inside the trigger switch has failed. Replacing the entire switch assembly (like this N744153 compatible unit) is the only way to fix this issue.
