Bring Your Hard-Working Drill Back from the Dead
When your trusty drill starts shooting heavy sparks out of the rear vents, emitting a burnt ozone smell, or simply refuses to spin unless you tap it, the carbon brushes are likely gone. Worse, when brushes wear down past their safe limit, the intense heat often melts the plastic housing holding them, making a simple carbon swap impossible.

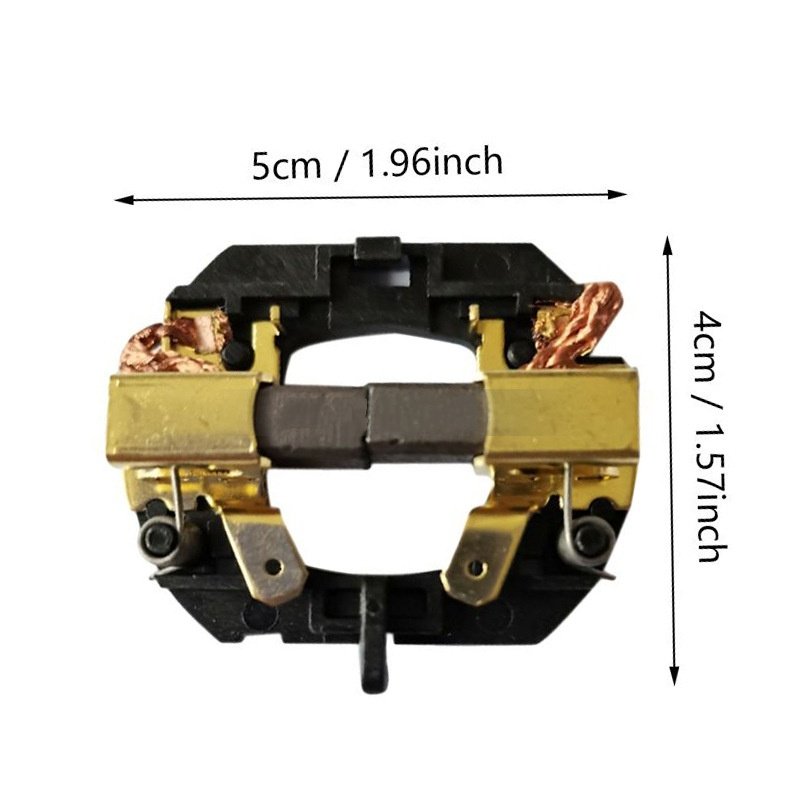

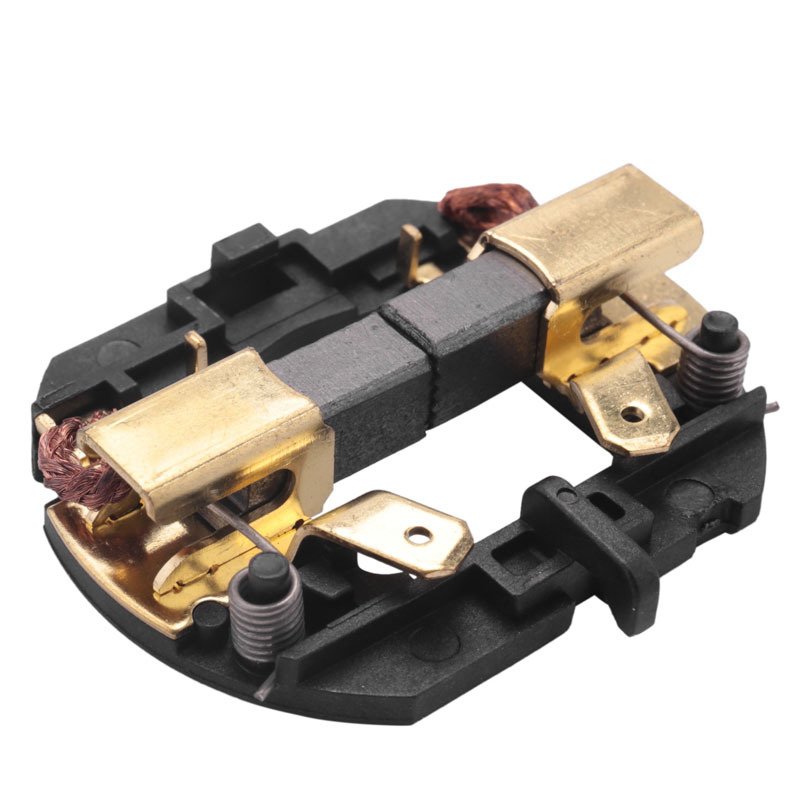

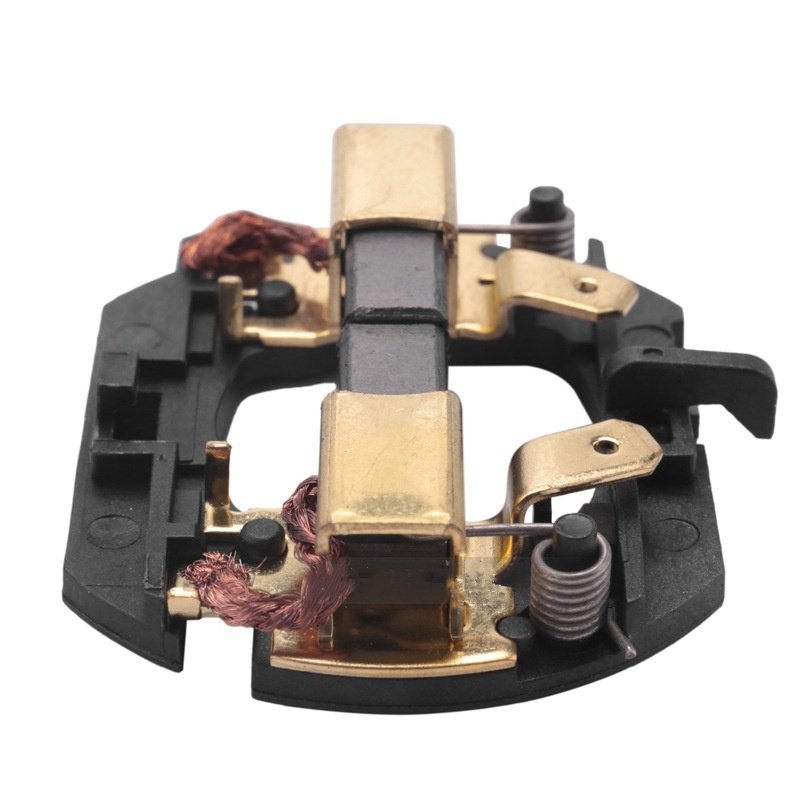

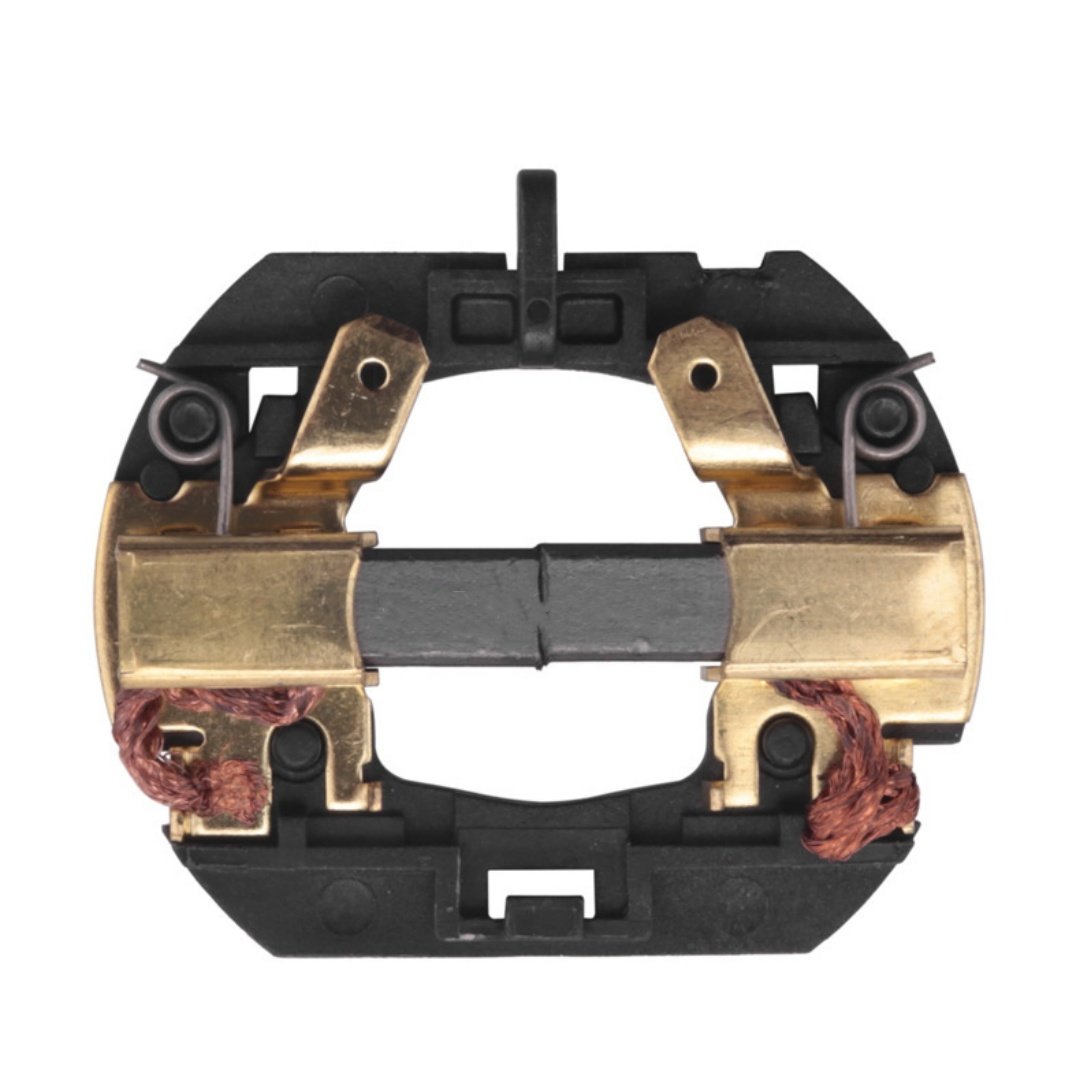

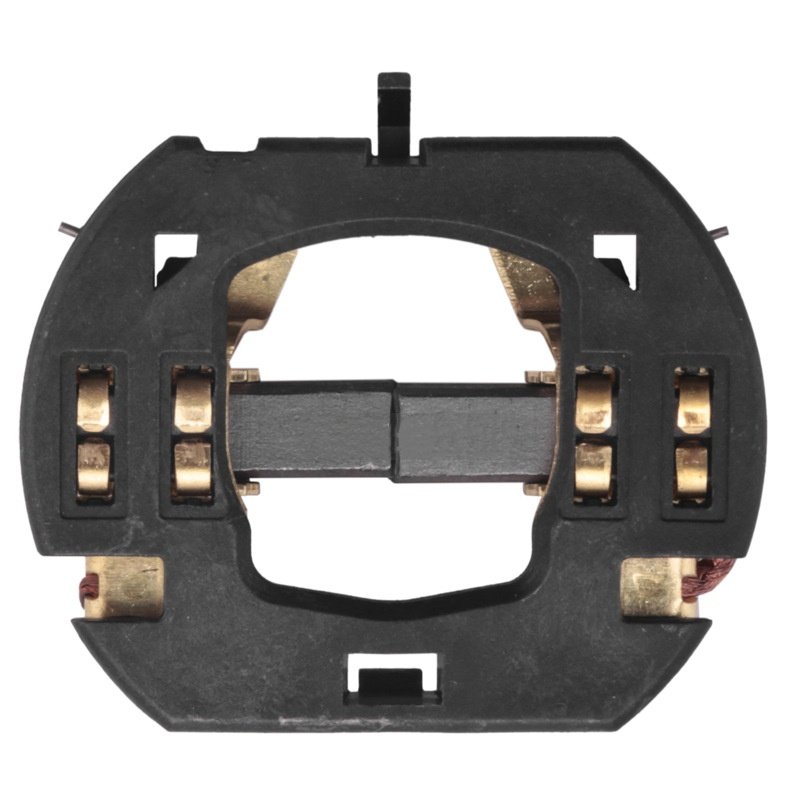

This Premium Aftermarket Carbon Brush Holder Assembly is the ultimate “drop-in” fix. It replaces the entire melted or damaged unit (Part numbers: N384037, N187232, 1007801-00), giving your motor a fresh set of contacts and restoring the smooth, high-torque performance you expect.
Tech Q&A: From the Mechanic’s Bench
Why replace the whole assembly instead of just the carbon brushes?
In high-draw tools like the DCD785 or DCH253, extreme heat from arcing usually warps the brass guides and melts the plastic housing of the brush box. If the housing is warped, new carbon brushes will get stuck and won’t make proper contact with the commutator. Replacing the entire assembly guarantees perfect brush alignment and spring tension.
Does this require soldering?
Yes. On most compatible models, the brush holder assembly connects to the tool’s wiring harness or stator via two lead wires. You will need a basic soldering iron to desolder the old connections and secure the new ones. It is a straightforward 5-minute job for anyone with basic DIY repair experience.
How do I know if my commutator is ruined?
Before installing this new brush holder, inspect the copper commutator on your motor’s armature. If the copper plates are heavily grooved, missing, or burnt pitch-black, a new brush holder will quickly get destroyed. We recommend cleaning the commutator lightly with fine grit emery cloth before installing this new assembly.
Installation Warnings & Best Practices
- Check Polarity: Always take a photo of the wiring before desoldering the old unit. Wiring the brush holder backward will run your drill in reverse.
- Seat the Brushes Properly: After installation, run the drill without a load (free-spinning) for about 3-5 minutes. This helps “seat” the new carbon brushes to the curve of your motor’s commutator, reducing initial sparking and extending lifespan.
- Safety First: ALWAYS remove the battery before opening the clamshell of your power tool.
Yes, this aftermarket brush holder assembly is fully compatible with the DCH253 Rotary Hammer, as well as the DCD785 and DCD735 series drills. It serves as a direct replacement for part numbers N384037 and N187232.
Heavy sparking and smoke usually indicate that the carbon brushes are completely worn out, causing the metal spring or wire to rub directly against the motor’s commutator. This generates extreme heat and can melt the brush holder housing. Replacing the brush holder assembly resolves this issue.
You will need a Torx screwdriver (typically T10 or T15) to open your drill’s outer casing, and a basic soldering iron to connect the two wire leads to the new brush holder assembly.
