Product Overview

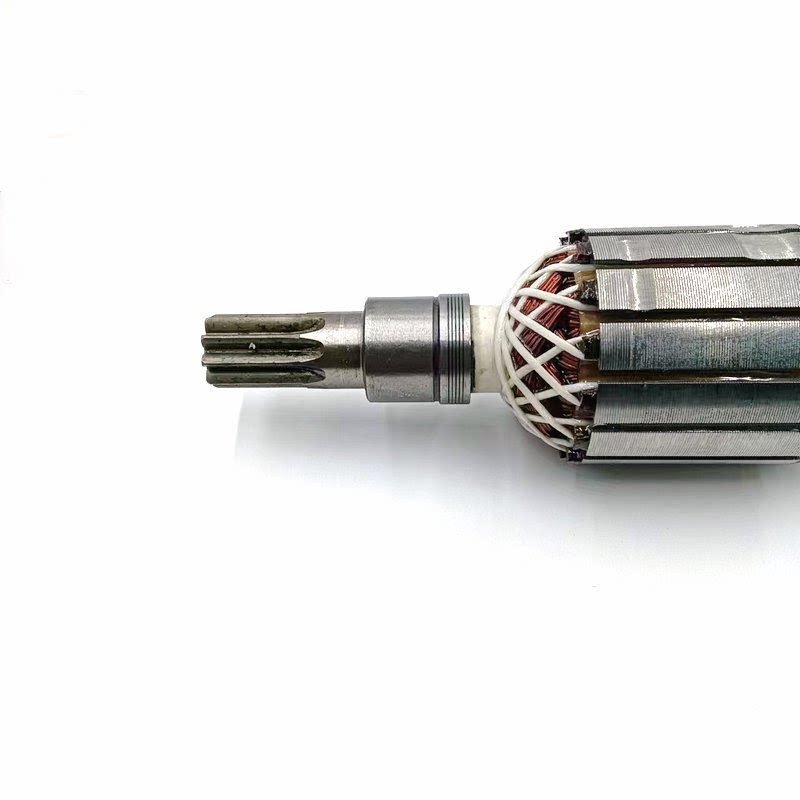

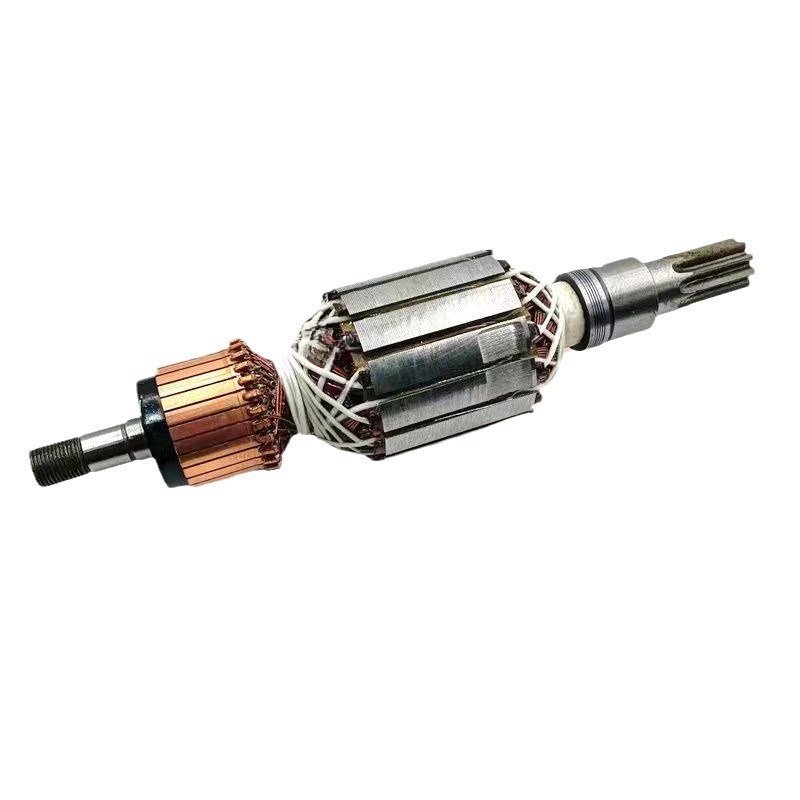

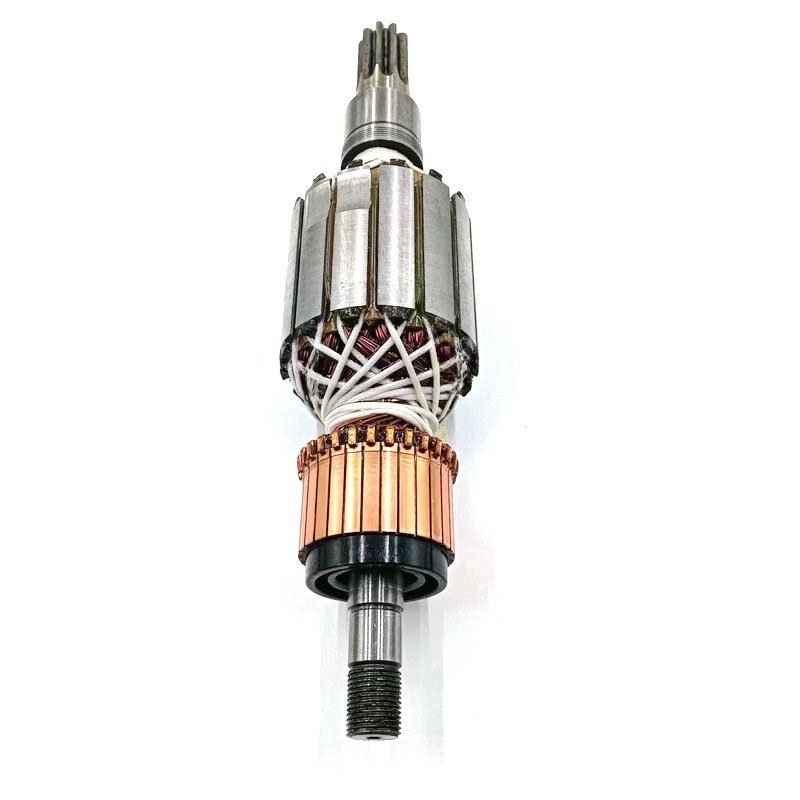

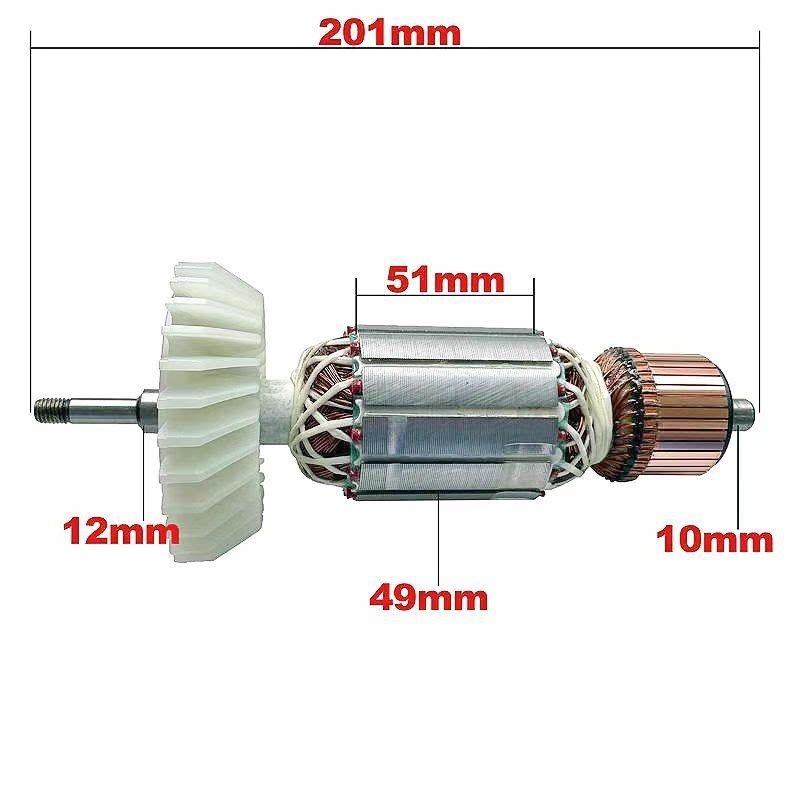

The GSH27 Armature Rotor is a precision-engineered direct-fit replacement for the 1,900W demolition hammers and concrete breakers built on this heavy-duty platform. This armature is the heart of the motor – converting electrical energy into the rotational force that drives the hammer mechanism through concrete, masonry, and other demolition materials[reference:0].
Designed for professional repair technicians and equipment maintenance specialists, this armature restores factory-spec performance to tools exhibiting sluggish operation, loss of impact power, or complete motor failure. The 1,900W motor delivers 62 J of impact energy at 1,000-1,030 blows per minute – the breaking power required for the most demanding demolition jobs[reference:1][reference:2].
The GSH27 series is known for its durability and low vibration (only 8.5 m/s²) thanks to decoupled handles and a vibration-reduced hammer mechanism[reference:3]. This armature is designed for AC220-240V models and is compatible with GSH27, GSH27VC, USH27, and USH27V demolition hammers[reference:4].
💡 Pro Tip – Pre-Installation Diagnostic: Before replacing the armature, perform a visual inspection and continuity test. Remove the armature from the motor housing and inspect the commutator surface – if it’s heavily grooved, scored, or shows signs of arcing, the armature has failed. Use a multimeter to test for shorts between commutator segments (all segments should show similar resistance, typically 0.5–2.0 ohms) and between any segment and the shaft (infinite resistance = no short to ground). Also inspect the field coil (stator) for continuity – if the field coil is damaged, armature replacement alone won’t resolve the issue. Always disconnect the tool from mains power before beginning any disassembly.
Diagnostic & Fitment – When to Replace
Specification Comparison
| Specification | Worn / Generic Aftermarket | FixPartHub Precision Replacement ✅ |
|---|---|---|
| Input Power | Inconsistent – below 1,900W | 1,900W – OEM-spec |
| Impact Energy | Reduced – poor breaking performance | 62 J – OEM-spec breaking power |
| Blows Per Minute | Inconsistent – below 1,000 BPM | 1,000-1,030 BPM – OEM-spec |
| Winding Quality | Substandard copper – high resistance | OEM-spec copper windings – optimal conductivity |
| Voltage Rating | Vague or incorrect specification | AC220-240V – OEM specification |
Teardown & Replacement Workflow
Compatibility – Cross-Reference & OEM Part Numbers
Diagnostic Q&A
❓ Q: My demolition hammer runs but lacks breaking power – is this definitely an armature problem?
A: Not always. First, check the carbon brushes – if they’re worn below 5mm or show signs of glazing, replace them. Check the field coil (stator) for continuity with a multimeter. If the brushes and field coil check out, the armature is the likely culprit. Worn armature windings or a damaged commutator will cause loss of impact power and reduced breaking efficiency – requiring replacement of the GSH27 armature.
❓ Q: What is the correct voltage specification for this armature?
A: This armature is designed for AC220-240V models of the GSH27 demolition hammer. The complete tool has an input power rating of 1,900W, delivering 62 J impact energy at 1,000-1,030 blows per minute[reference:5]. Always verify your tool’s voltage rating before ordering.
❓ Q: How do I test if the armature is faulty with a multimeter?
A: Use a multimeter in resistance mode. Test between adjacent commutator segments – they should all show similar resistance (typically 0.5–2.0 ohms). A short (0 ohms) between any two segments indicates a shorted winding. An open circuit (infinite resistance) indicates a broken winding. Also test between any commutator segment and the armature shaft – there should be infinite resistance (no short to ground). If the armature fails any of these tests, replacement is required[reference:6].
❓ Q: Will this armature fit my USH27V model?
A: Yes. The USH27 and USH27V are regional variants of the same demolition hammer platform[reference:7]. This armature is a direct-fit replacement for GSH27, GSH27VC, USH27, and USH27V models[reference:8]. Always verify your tool’s model number before ordering.
Safety Notes
- 🔴 Always disconnect the tool from mains power before beginning any disassembly or armature replacement procedure.
- ⚡ Allow the motor to cool completely before handling internal components – motors can reach high temperatures during demolition operations.
- 🔧 Use correct torque values – housing screws and bearing retainers typically require 1.5–2.0 Nm (13–18 in-lbs). Over-torquing can strip threads or damage the housing.
- 🧤 Wear ESD-safe gloves when handling the armature to prevent static discharge damage to sensitive components.
- 📐 Verify commutator alignment before final assembly – the armature should spin freely with no binding or grinding feel.
- ✅ Perform a no-load test before reinstalling the chuck and tool – verify smooth operation at full speed with minimal sparking.
A: Common symptoms include loss of breaking power under load, reduced impact energy, excessive sparking through the motor vents, a burning smell during operation, or complete failure to start. A multimeter test can confirm – check for shorts between commutator segments or shorts to ground (the armature shaft). If the armature fails any of these tests, replacement with a GSH27 armature is required
A: This armature is designed for AC220-240V models of the GSH27 demolition hammer, with an input power rating of 1,900W. The complete motor delivers 62 J impact energy at 1,000-1,030 blows per minute
A: Yes. The GSH27 and GSH27VC share the same motor platform. This armature is a direct-fit replacement for GSH27, GSH27VC, USH27, and USH27V demolition hammers
A: This armature is referenced under OEM numbers including 1614011100 and 1614011092. It is the direct replacement for the original equipment armature in GSH27 series demolition hammers.
