Product Overview

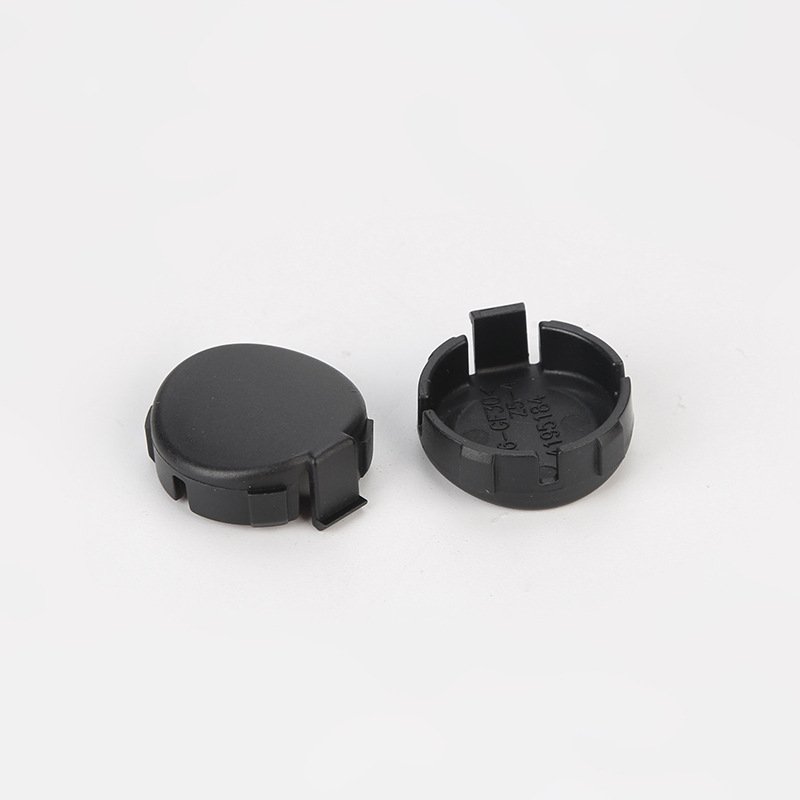

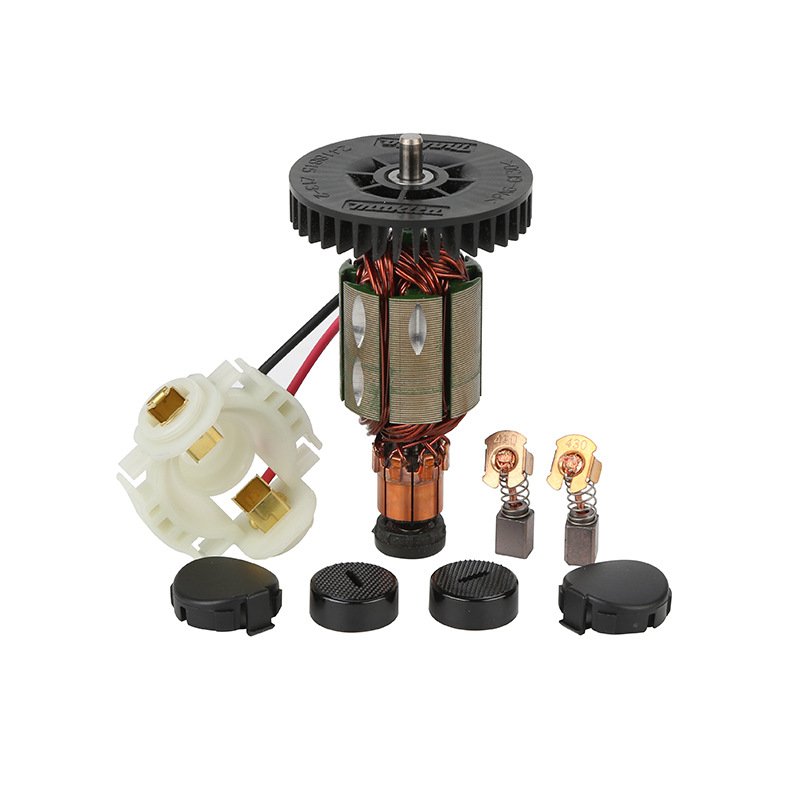

The 619218-8 Armature & Carbon Brush Holder Kit is a complete motor service solution for 18V cordless angle grinders built on this common platform. This 5-piece kit includes the armature (rotor), carbon brush holder, a pair of CB430-spec carbon brushes, and two brush holder caps – everything required to restore a failing motor to OEM-spec performance.[reference:8]

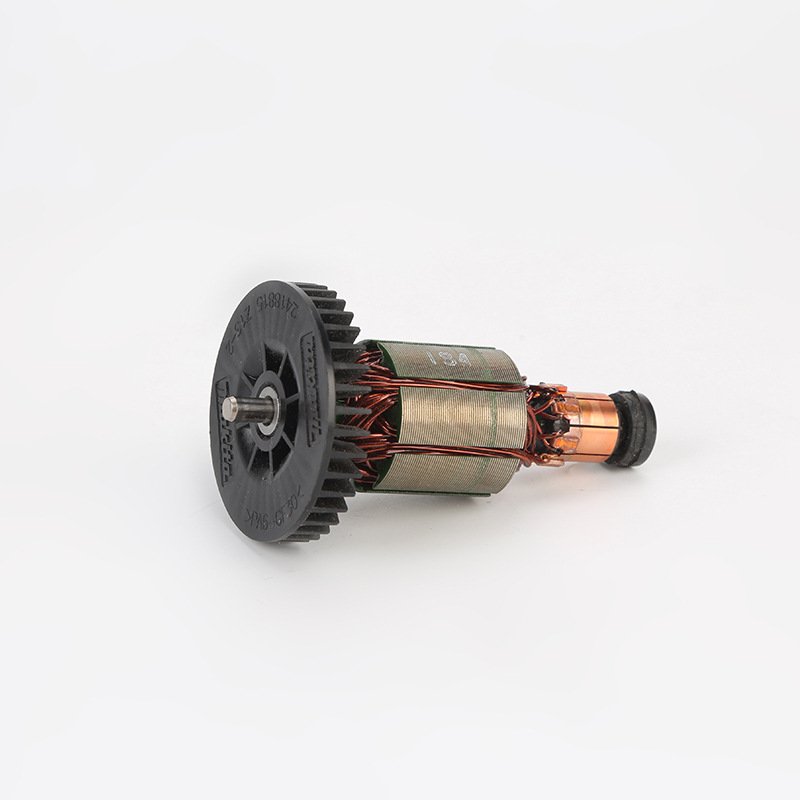

The armature (OEM part number 619218-8) is the rotating core of the motor, comprising precision copper windings, a commutator, and a machined steel shaft.[reference:9] It is designed to replace worn or damaged units that cause loss of power, overheating, sparking, or excessive noise.[reference:10] Factory-balanced to OEM tolerances, this rotor helps reduce vibration and wear on the tool’s bearings.[reference:11]

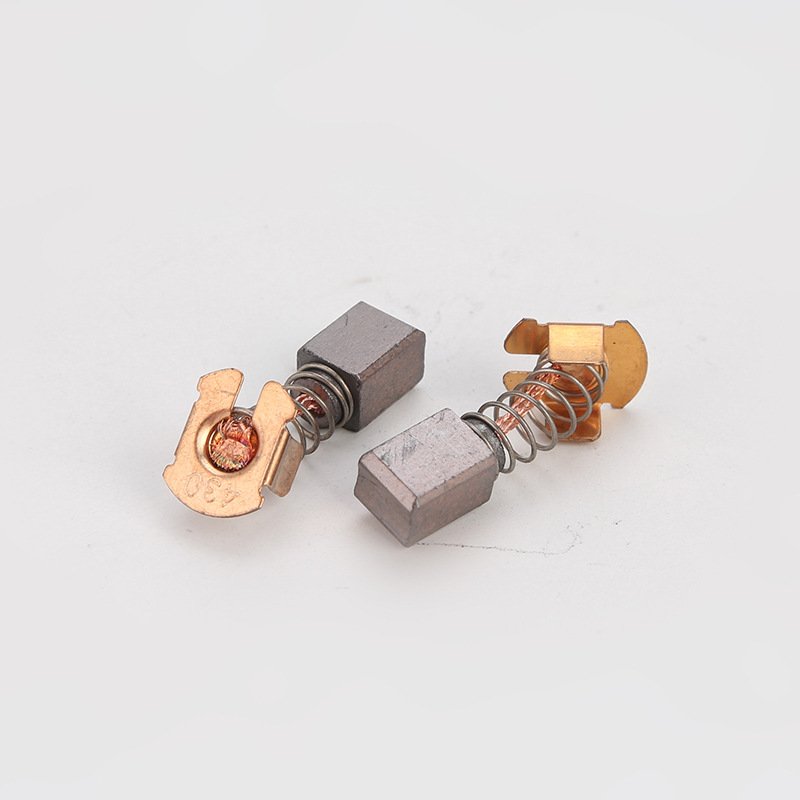

The included CB430 carbon brushes and holder assembly ensure proper electrical contact with the commutator, delivering consistent current transfer and reducing sparking during operation.[reference:12] This kit addresses the two most common failure points in angle grinder motors – a worn armature and depleted carbon brushes – in a single, convenient package.[reference:13]
💡 Pro Tip – Pre-Installation Diagnostic: Before replacing the armature, perform a visual inspection. Remove the brush holder caps and extract the carbon brushes – if they’re worn below 5mm or show signs of pitting or glazing, replacement is required.[reference:14] Inspect the commutator surface on the old armature – if it’s heavily grooved, scored, or shows signs of arcing, the armature has failed. Also check the field coil (stator) for continuity with a multimeter – if the field coil is shorted or open, the armature replacement alone won’t resolve the issue. Always disconnect the battery pack before beginning any disassembly.
Diagnostic & Fitment – When to Replace
Specification Comparison
| Specification | Worn / Generic Aftermarket | FixPartHub Precision Replacement ✅ |
|---|---|---|
| Armature Windings | Substandard copper – high resistance | Precision-wound copper – OEM-spec conductivity[reference:18] |
| Rotor Balance | Unbalanced – vibration & bearing wear | Factory-balanced – smooth operation[reference:19] |
| Commutator Quality | Soft copper – rapid grooving | Robust commutator – extended service life[reference:20] |
| Brush Holder Fitment | Poor fit – inconsistent brush contact | OEM-spec holder – optimal brush alignment |
| Kit Completeness | Individual components – separate orders | Complete 5-piece kit – one order, full service[reference:21] |
Teardown & Replacement Workflow
Compatibility – Cross-Reference & OEM Part Numbers
Diagnostic Q&A
❓ Q: My grinder sparks excessively through the vents – is this an armature problem or a brush problem?
A: Both can cause sparking. Start by inspecting the carbon brushes – if they’re worn below 5mm, pitted, or glazed, replace them first.[reference:22] If sparking persists with new brushes, the armature commutator is likely damaged (grooved, scored, or shorted) and requires replacement. This kit includes both components, addressing either failure mode.[reference:23]
❓ Q: What’s included in the 619218-8 kit – do I need to buy anything else?
A: This 5-piece kit includes: 1x armature (619218-8), 1x carbon brush holder, 2x CB430 carbon brushes, and 2x brush holder caps.[reference:24][reference:25] No additional components are required for a complete motor service – all consumables are included in one package.
❓ Q: How do I test if the armature is faulty with a multimeter?
A: Use a multimeter in resistance mode. Test between adjacent commutator segments – they should all show similar resistance (typically 0.5–2.0 ohms depending on the motor). A short (0 ohms) between any two segments indicates a shorted winding. An open circuit (infinite resistance) indicates a broken winding. Also test between any commutator segment and the armature shaft – there should be infinite resistance (no short to ground).
❓ Q: Will this armature fit my DGA452Z or BGA452Z model?
A: Yes. The 619218-8 armature is compatible with DGA452, DGA452Z, BGA452, and BGA452Z models, as well as the extensive list of variants including DGA452RFE, DGA452RMJ, BGA452RFE3, and BGA452SFE.[reference:26][reference:27]
Safety Notes
- 🔴 Always remove the battery pack before beginning any disassembly or motor service procedure.
- ⚡ Allow the tool to cool completely before handling internal components – motors can reach high temperatures during operation.
- 🔧 Use correct torque values – housing screws typically require 1.0–1.5 Nm (9–13 in-lbs). Over-torquing can strip housing threads or crack the plastic housing.
- 🧤 Wear ESD-safe gloves when handling the armature to prevent static discharge damage to sensitive electronic components.
- 📐 Note brush orientation before removal – brushes must be installed in the correct orientation for proper commutator contact.[reference:28]
- ✅ Perform a no-load test before full reassembly – insert battery and verify smooth operation with minimal sparking before reinstalling the disc and guard.
A: Common indicators include excessive sparking through the motor vents, a burning odor during operation, loss of power or torque, intermittent operation, or complete failure to start. A multimeter test can confirm – check for shorts between commutator segments or shorts to ground (the armature shaft). If the armature fails any of these tests, replacement is required.
A: 619218-8 is the OEM armature part number for 18V angle grinders in the BGA450/BGA452/DGA452 platform. It supersedes and replaces 510091-8 and 519184-8 in some regions. This kit includes the 619218-8 armature along with the complete brush holder assembly and CB430 carbon brushes – all in one package.
A: Yes. This kit is compatible with GA400, GA402D, and GA452D models, in addition to the extensive BGA and DGA platform compatibility. The 619218-8 armature and CB430 brush assembly are the correct service components for these models.
A: Replacement interval depends on usage. For professional workshop use with daily operation, inspect brushes every 3-6 months. Replace when the brush length falls below 5mm or when visible wear indicators (if present) show the replacement mark.
