Rescue Your Dead Rotary Hammer: The 650508-0 Trigger Switch Rebuild
Rotary hammers live in the most hostile environment on any job site: a constant cloud of micro-fine concrete dust. While the mechanical gearbox is sealed, the handle where the trigger switch resides is constantly exposed. Over time, silica dust bypasses the trigger seams, packing into the electrical contacts.

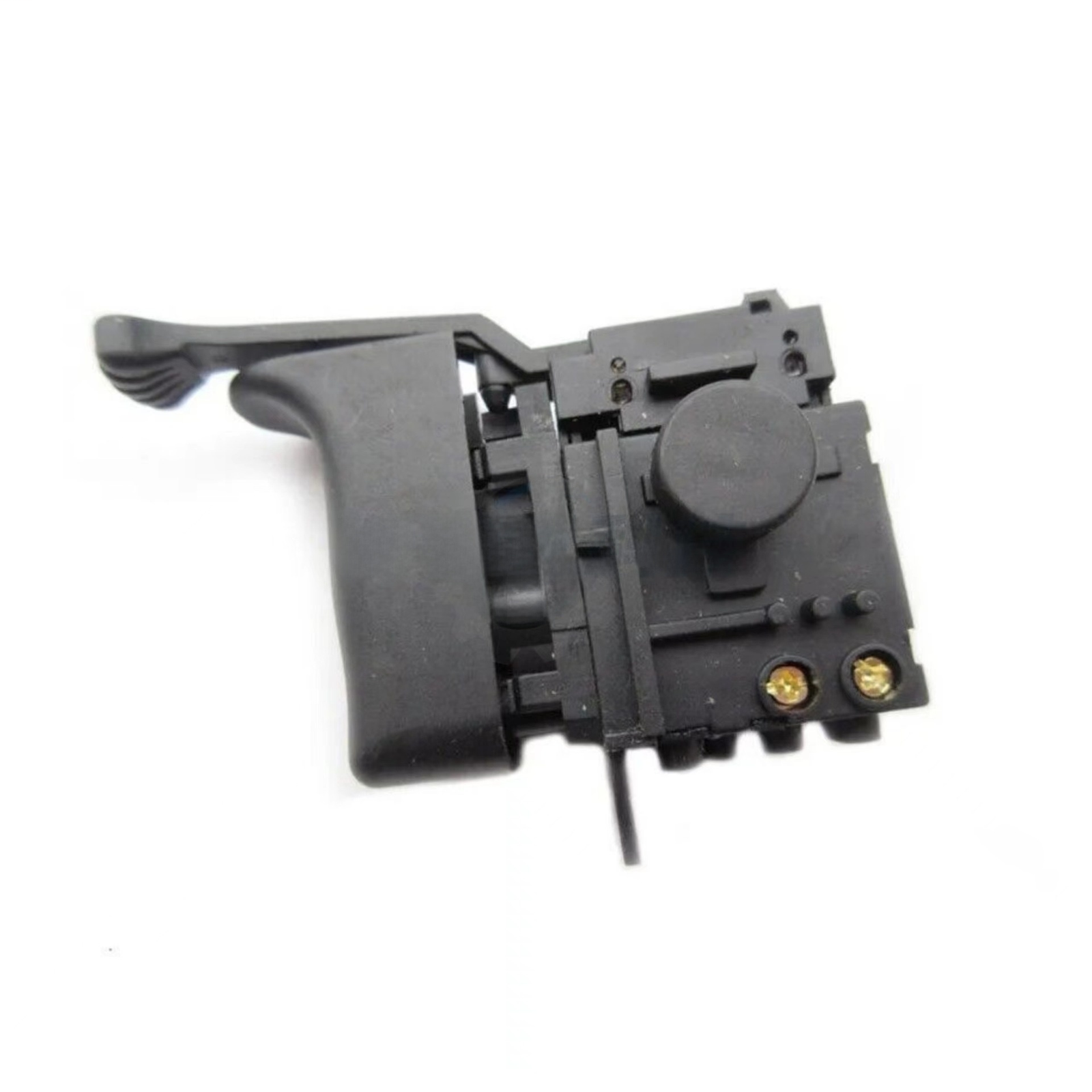

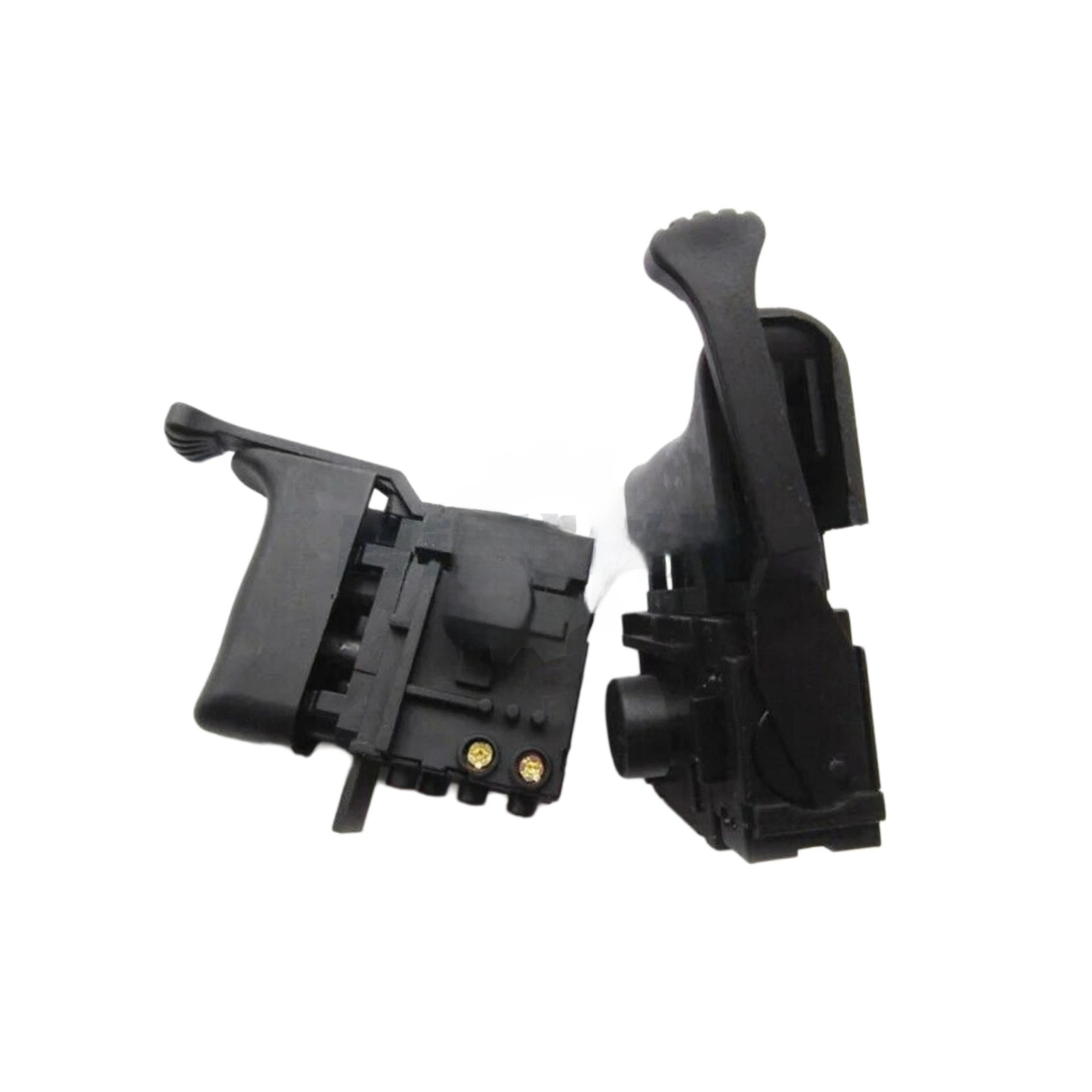

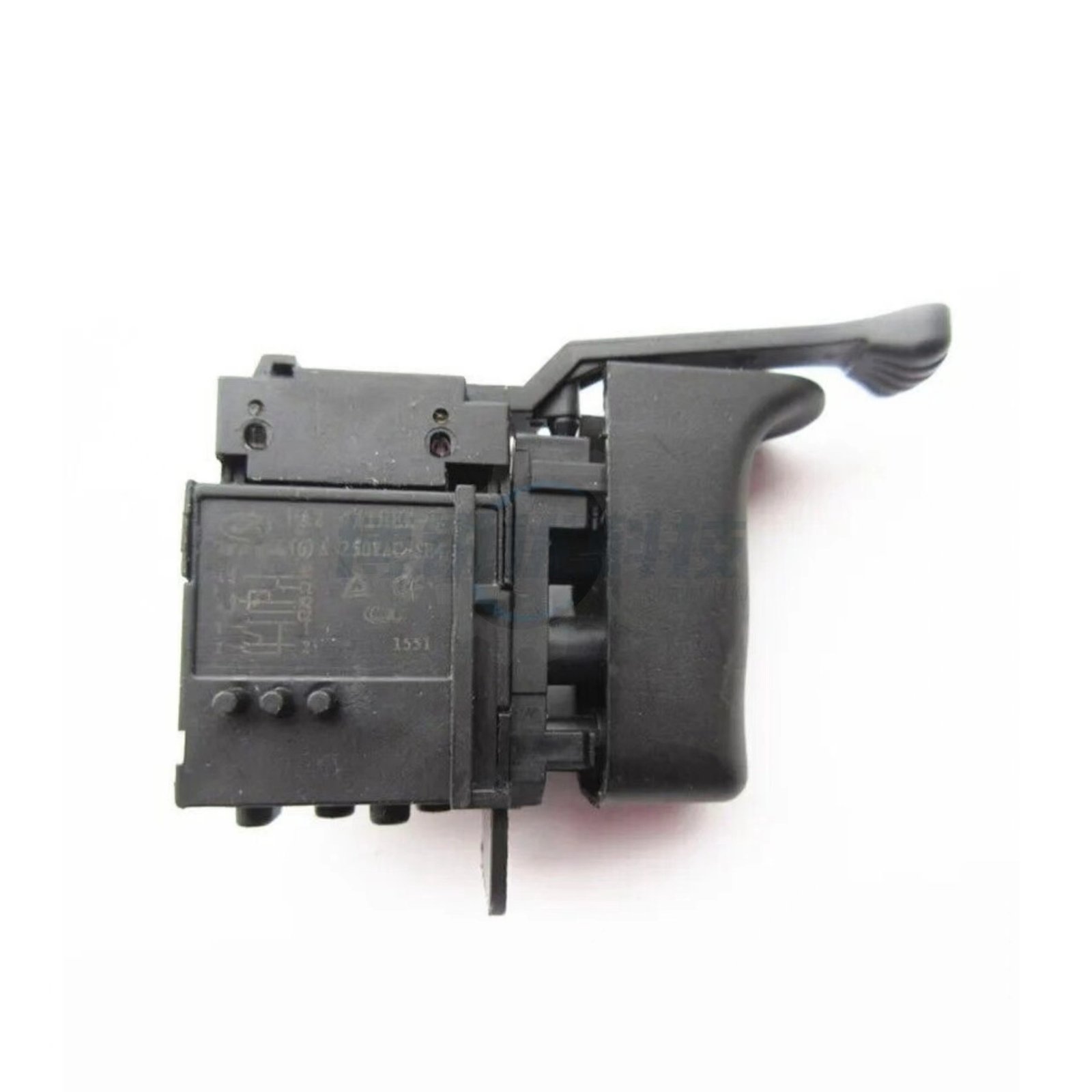

When this happens, your trigger starts to feel “crunchy.” Soon after, you experience intermittent power drops, or the tool simply refuses to turn on. The internal electrical contacts have been compromised by dust and arcing. Do not throw away a perfectly good demolition tool. This Premium Aftermarket 650508-0 Trigger Switch is the exact replacement component you need to restore full operational control and power to your compatible HR2020 or HR2450 series rotary hammer.
🛠️ Tech Q&A: Expert Diagnostics & Installation
Q: How do I know if the problem is my 650508-0 switch or my carbon brushes?
A: Don’t guess—test it. Unplug the tool and remove the handle cover. Use a digital multimeter set to “Continuity” (the setting that beeps). Place your probes on the input and output terminals of the switch and pull the trigger. If you hear a solid beep, your switch is passing current, and your carbon brushes or power cord are likely the issue. If you get silence, a flickering reading, or high resistance, the internal contacts of your switch are fried, and it must be replaced.
Q: Is this aftermarket switch difficult to wire into my HR2475?
A: No, the installation is straightforward, but cable management is critical. This aftermarket switch features the exact same terminal layout as the original part. Crucial Pro Tip: Before disconnecting any wires from your dead switch, take a clear, close-up photo with your smartphone. Use this photo as your wiring diagram to ensure the live, neutral, and motor leads are routed to the exact same terminals on the new switch.
Q: Why is the “Self-Resetting” feature so important?
A: A self-resetting (spring-returned) trigger is a non-negotiable safety mechanism for high-torque rotary hammers. When a heavy drill bit binds in rebar, the tool can violently twist out of your hands. The self-resetting action ensures that the moment your grip slips, the internal spring instantly breaks the electrical circuit, stopping the motor and preventing serious injury.
Maintain Your Investment: After installing this new switch, make it a habit to blow compressed air around the trigger mechanism at the end of every concrete drilling session. Keeping the silica dust out will double the lifespan of this component.

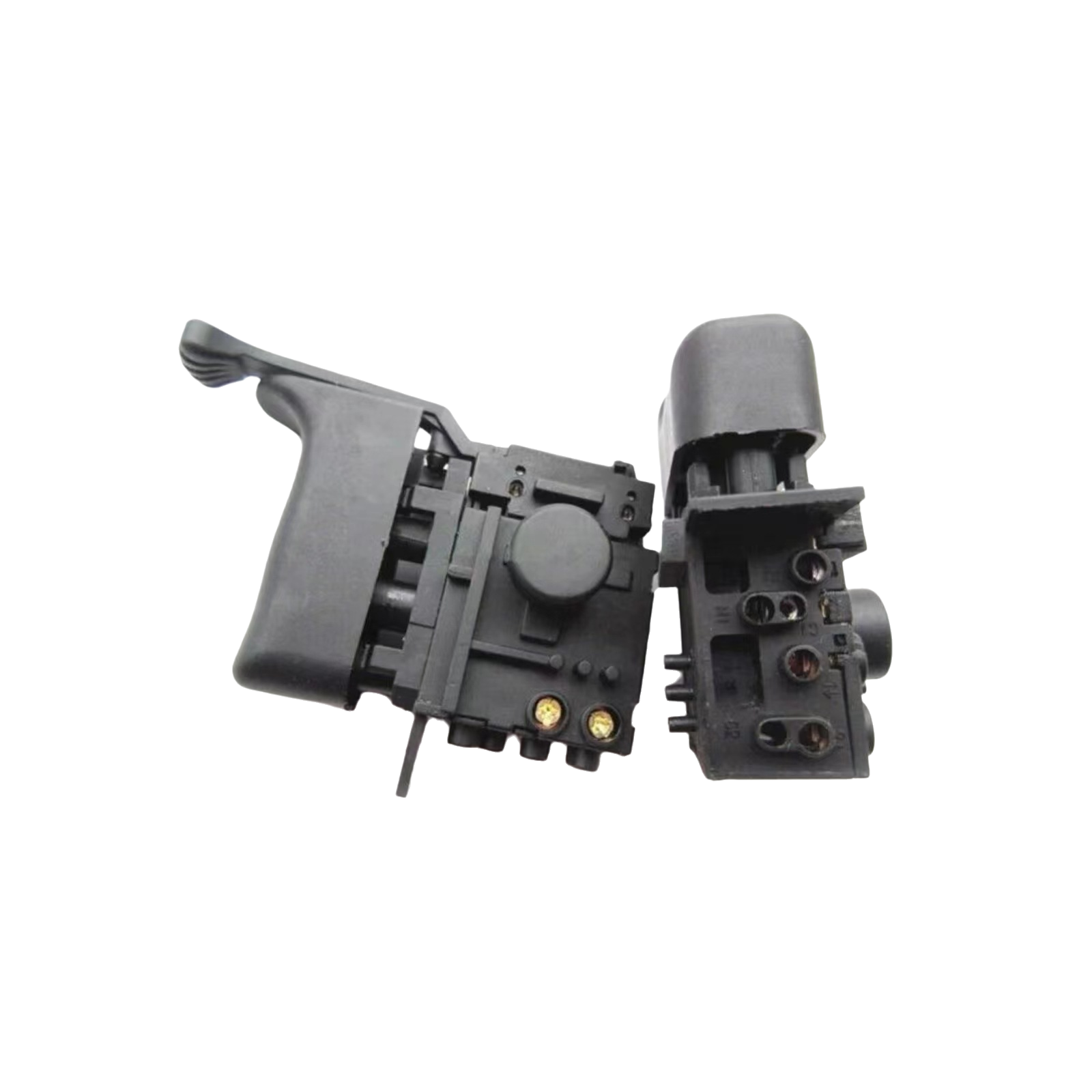

Yes. This premium aftermarket 650508-0 switch is engineered to the exact dimensional and electrical specifications required for a seamless drop-in fit for the HR2450, as well as the HR2020, HR2453, HR2475, and HR2432 models.
The 8-Amp (8A) rating indicates the maximum continuous electrical current the internal contacts of this switch can safely handle without overheating or melting. It is specifically designed to manage the high power draw of a rotary hammer motor under heavy drilling loads.
A stuck trigger is almost always caused by a heavy accumulation of concrete dust inside the switch housing, or a broken internal reset spring caused by material fatigue. When this happens, the switch becomes a severe safety hazard and must be replaced immediately with a new self-resetting component.
