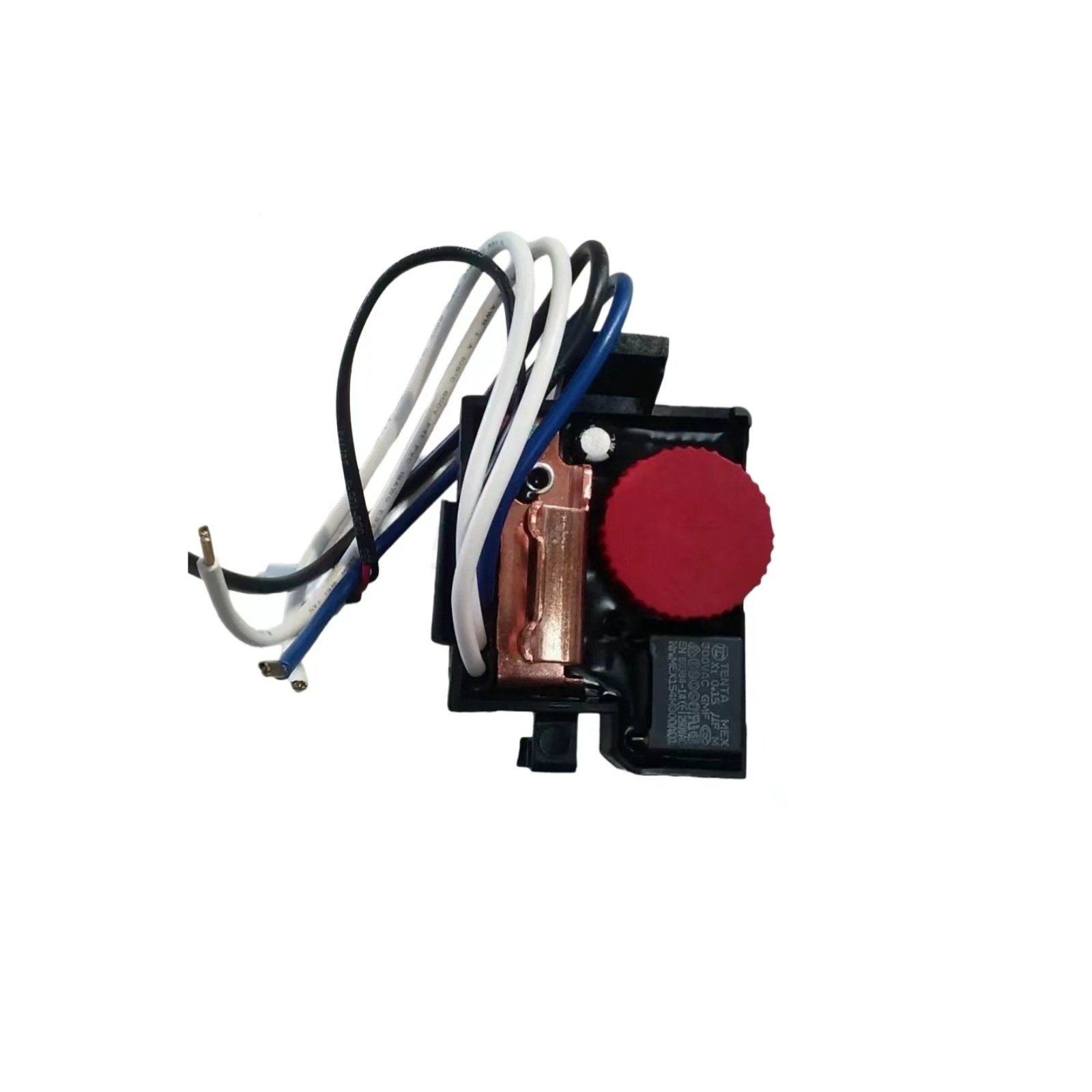

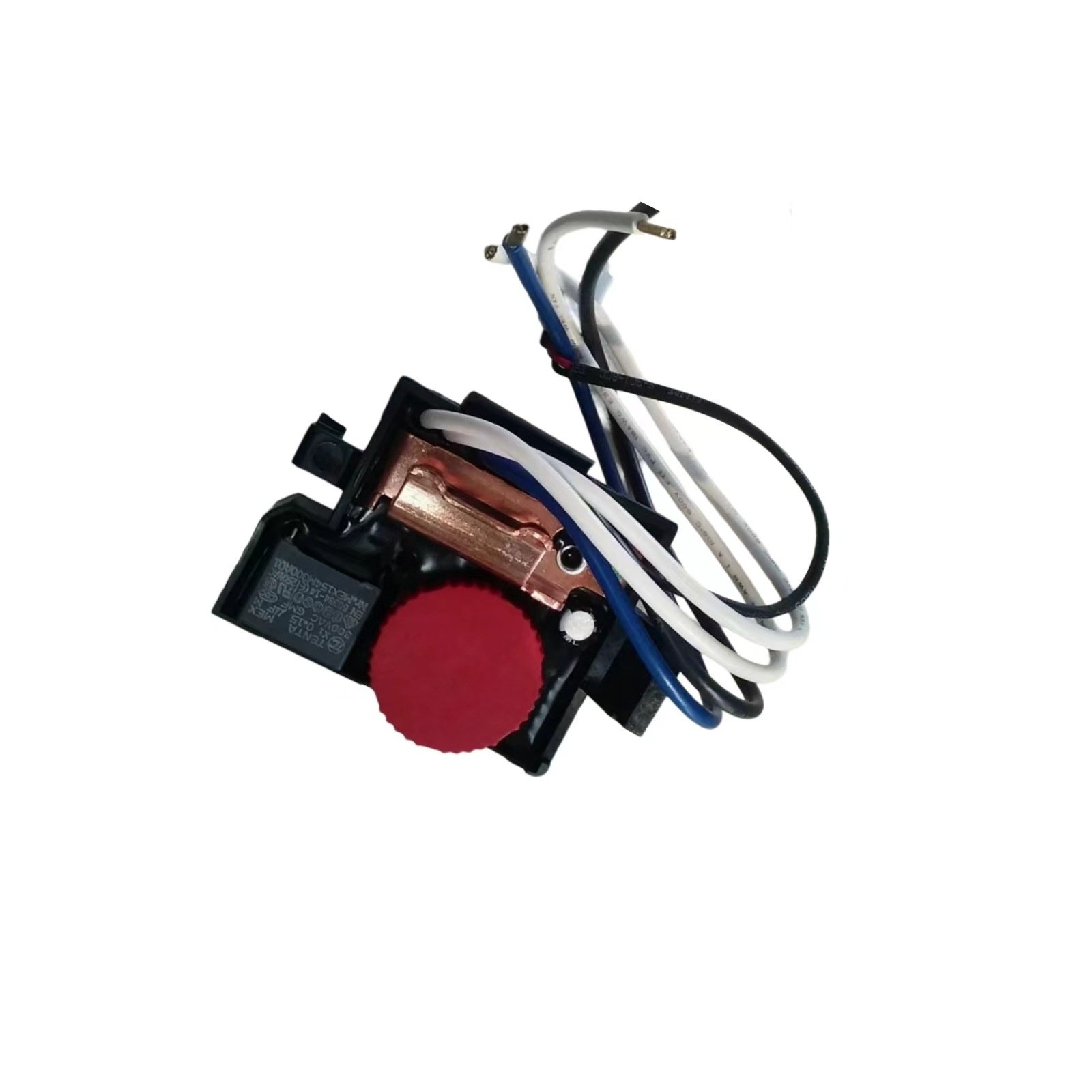

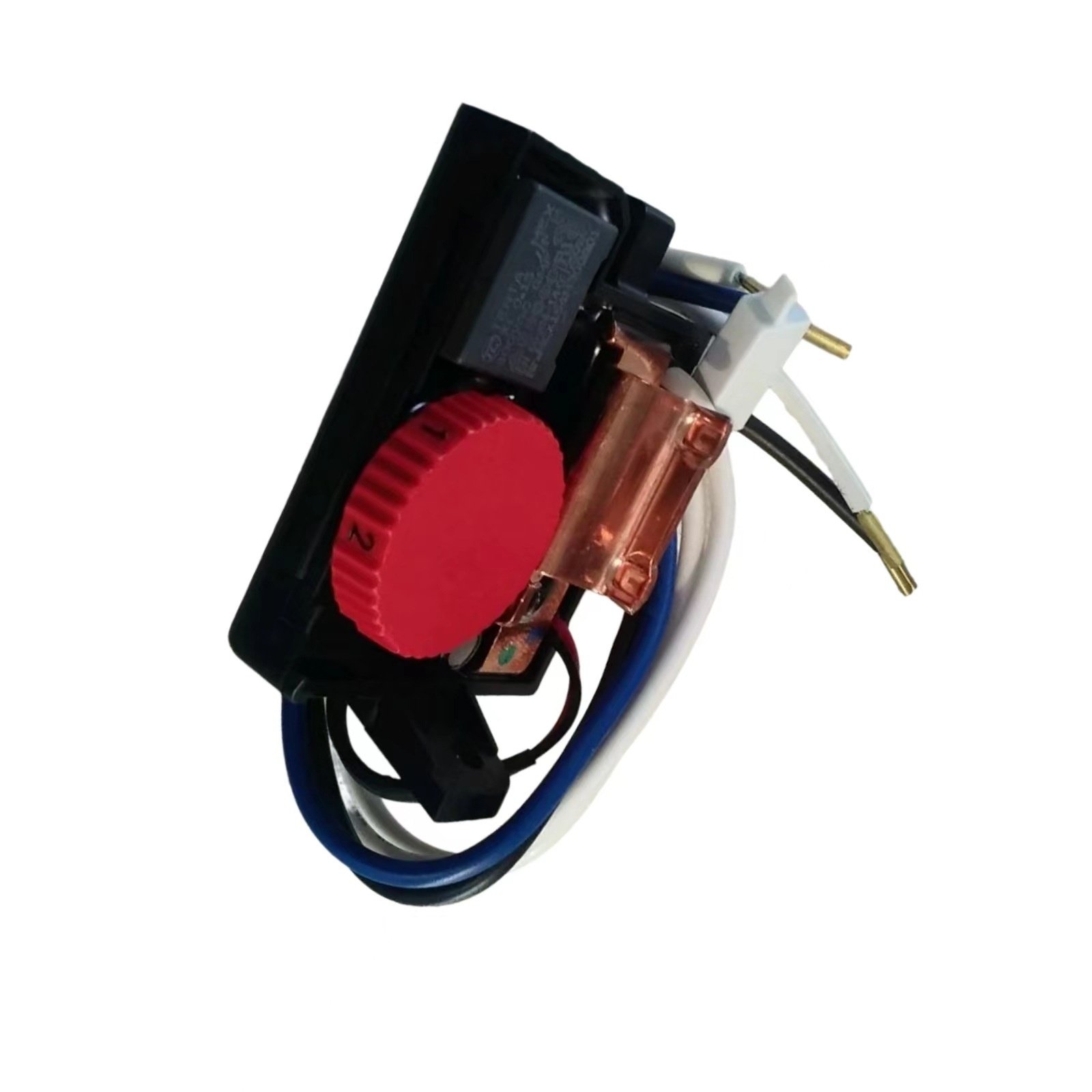

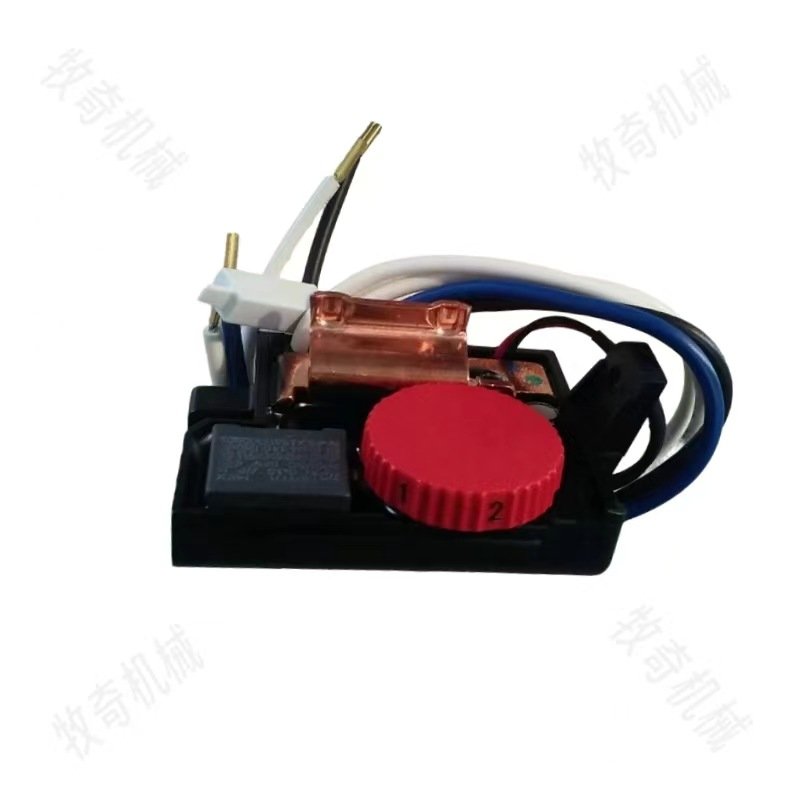

Silica Dust and Extreme Vibration: The Circuit Board Killers
The Bosch RH540M (SDS-max) and RH540S (Spline) are absolute workhorses designed to punch through dense reinforced concrete all day long. The mechanical gearbox and motor are practically bulletproof. However, the electronics sitting in the handle are highly vulnerable.
Over time, microscopic silica dust bypasses the tool’s rubber seals and coats the internal variable speed controller. Combined with the massive percussion vibration of the hammer mechanism, the solder joints crack, and the internal triac or potentiometer burns out.
When the speed controller fails, the tool usually defaults to running at 100% maximum RPM regardless of the dial setting, making precision chipping or starting a clean hole impossible. Eventually, it will short out completely, leaving you with a dead tool.
The Plug-and-Play Bench Repair
You do not need to send your hammer out to a service center and wait three weeks to get it back.
By removing the Torx screws from the lower handle assembly, you can access the main wiring harness. This replacement speed controller is a pre-potted, fully assembled module. Disconnect the spade terminals from your burnt board, plug them into the new module, and your RPM control is instantly restored.
⚠️ CRITICAL: Choose Your Exact Voltage Variant
Installing a 110V controller into a 220V mains supply will instantly detonate the board’s capacitors. Installing a 220V board on a 110V line will result in a tool that barely spins. Check the data plate on the side of your tool’s motor housing before ordering:
-
Variant A: 110V (Part Number: 1619P09590) – Standard for North American wall outlets (120V) or UK 110V yellow jobsite step-down transformers.
-
Variant B: 220V (Part Number: 1619P09589) – Standard for European, Asian, and Australian mains power (220V-240V).
Diagnostics: Brushes vs. Speed Controller
Before ordering, verify your symptoms to ensure you are fixing the right component:
-
If the tool is completely dead and sparks heavily when it occasionally turns on: Check your carbon brushes first.
-
If the tool runs perfectly, but only at one single speed (usually max), or surges up and down without touching the dial: Your carbon brushes and stator are fine. Your Speed Controller Board has failed and must be replaced.
Keep your heavy-duty Bosch hammer on the job site. Order the correct voltage module today and rebuild your handle electronics the right way.
