Product Overview

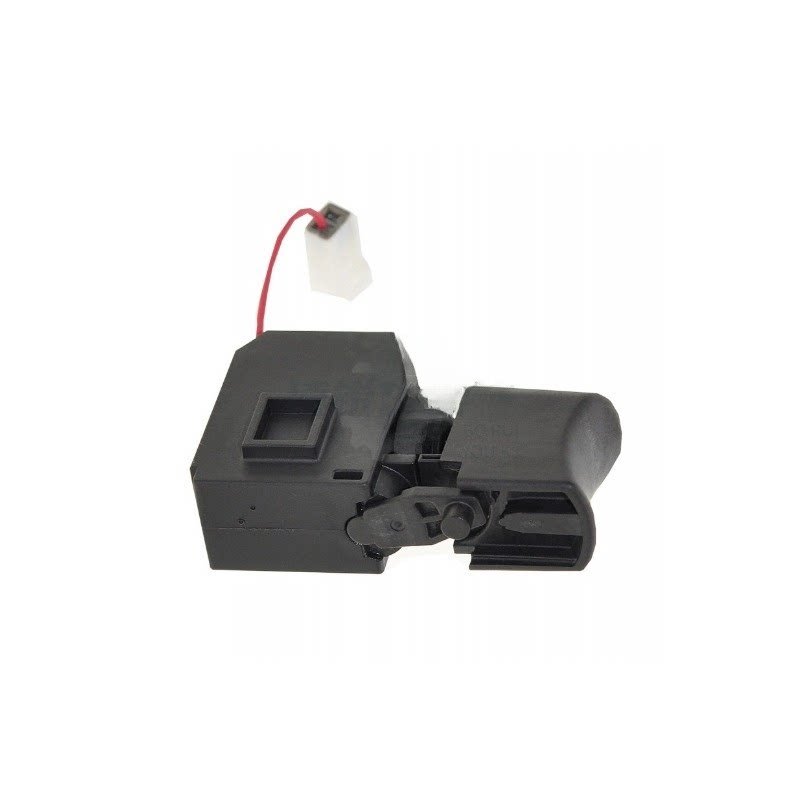

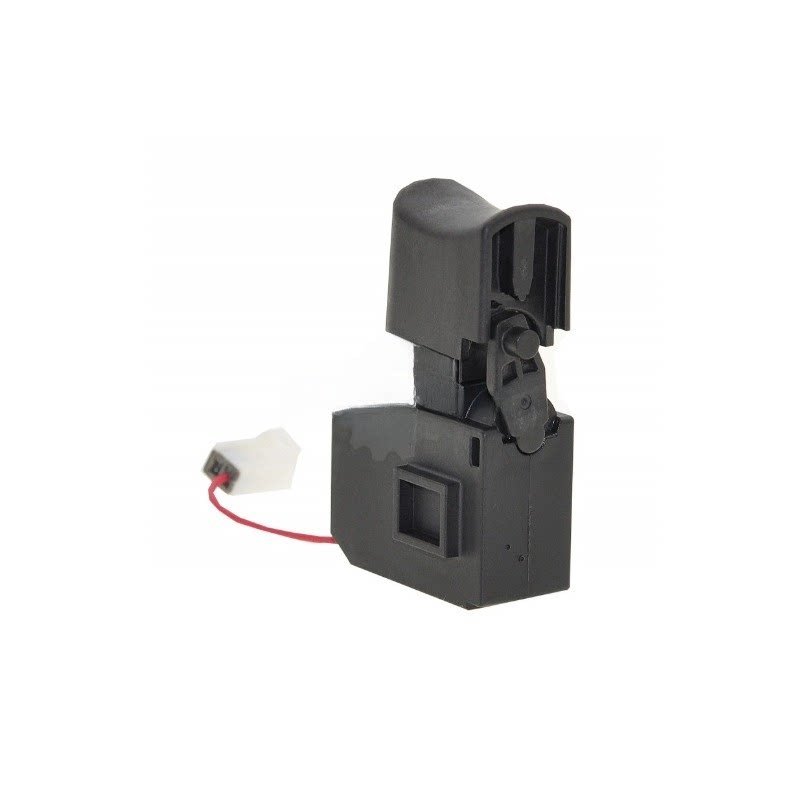

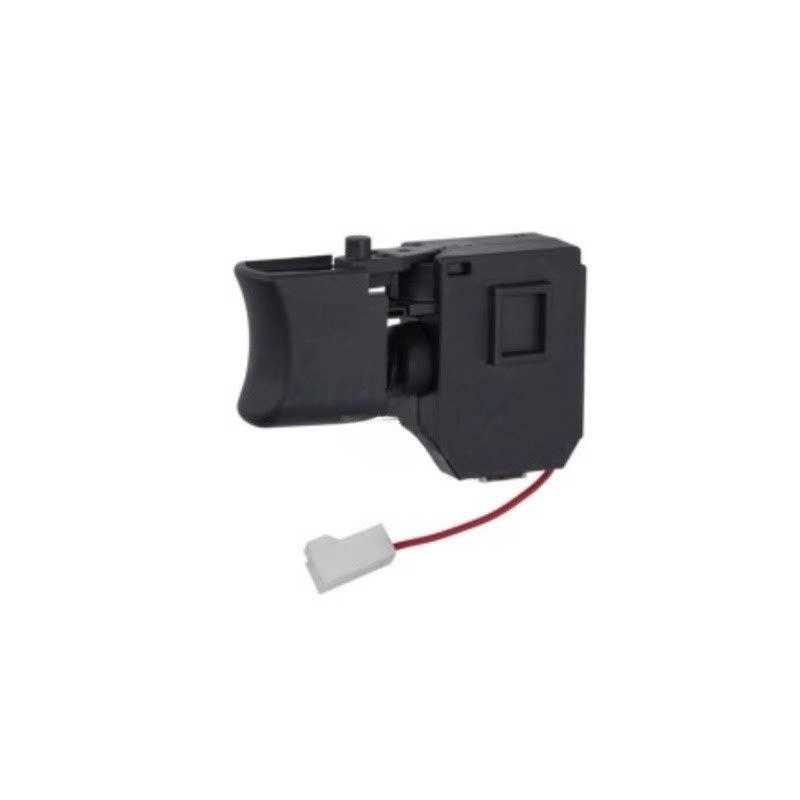

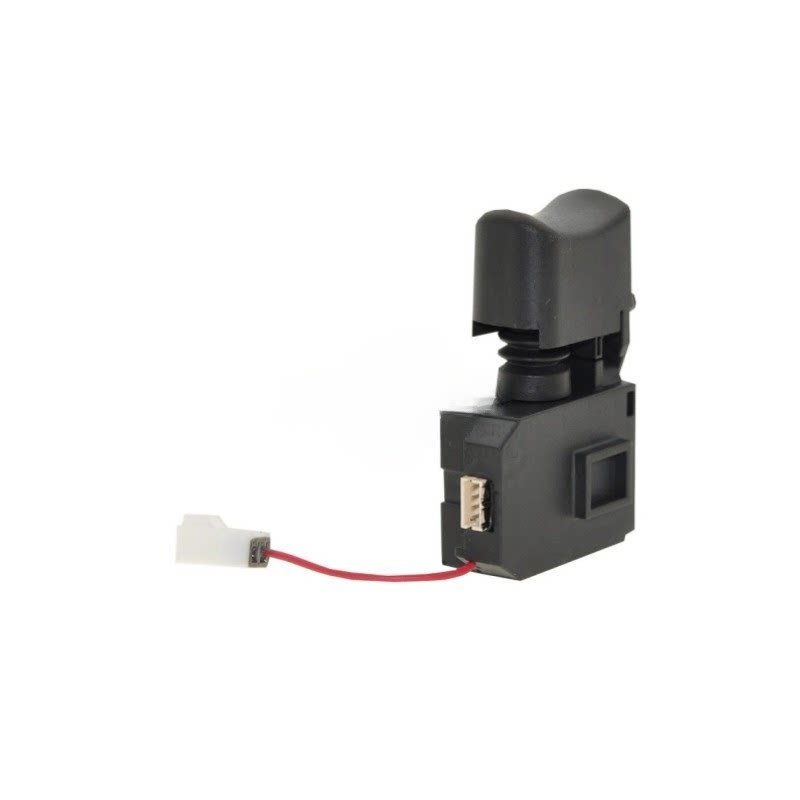

The 650772-3 Switch Assembly is a precision-engineered direct-fit trigger switch replacement for 18V cordless impact drivers built on the DTD170 / DTD171 platform. This complete switch assembly includes the trigger, variable-speed control board, and wiring harness – the primary user interface component that translates finger pressure into motor speed.
Designed for professional repair technicians and equipment maintenance specialists, this switch restores factory-spec performance to tools exhibiting intermittent operation, complete failure to start, or loss of variable-speed control. The OEM-spec variable-speed trigger delivers smooth, proportional speed control from zero to maximum RPM – restoring the fine-touch precision required for driving small fasteners without stripping or over-torquing.
This switch assembly is referenced under OEM part number 650772-3 and is the direct replacement for the original equipment switch in DTD170, TD170D, DTD160, and DTD171 impact drivers. It is also cross-referenced with 650772-1 and 650772-2 in some regions.
💡 Pro Tip – Pre-Installation Diagnostic: Before replacing the switch, perform a simple test. With the battery removed, press the trigger and listen for a click – this indicates the internal contacts are engaging. If you hear the click but the tool doesn’t run, the issue may be the motor or controller rather than the switch. If there’s no click, or if the trigger feels mushy or inconsistent, the switch has failed. Also inspect the wiring harness for signs of chafing or damage. Always remove the battery pack before beginning any disassembly.
Diagnostic & Fitment – When to Replace
Specification Comparison
| Specification | Worn / Generic Aftermarket | FixPartHub Precision Replacement ✅ |
|---|---|---|
| Variable-Speed Control | Inconsistent or missing – full speed only | Smooth proportional control – OEM-spec |
| Contact Durability | Low-grade contacts – rapid failure | OEM-spec contacts – extended service life |
| Connector Fitment | Loose or incorrect connector – poor contact | OEM-spec connector – positive lock |
| Trigger Feel | Mushy or inconsistent | Crisp, responsive – OEM-spec |
| Part Number Status | Generic cross-reference – uncertain quality | Active OEM 650772-3 – factory specification |
Teardown & Replacement Workflow
Compatibility – Cross-Reference & OEM Part Numbers
Diagnostic Q&A
❓ Q: My impact driver doesn’t start with a fully charged battery – is this definitely a switch problem?
A: Not always. First, clean the battery and tool contacts with an eraser – corrosion or debris can prevent power delivery. If the problem persists, listen for a click when pressing the trigger – if you hear a click but the tool doesn’t run, the issue may be the motor or controller. If there’s no click, or if the trigger feels mushy, the switch has likely failed and needs replacement with the 650772-3 assembly.
❓ Q: What’s the difference between 650772-3 and 650772-1 – which one do I need?
A: 650772-3 is the current-spec OEM part number for this switch assembly. It is the direct replacement for 650772-1 and 650772-2 variants. This listing supplies the 650772-3 assembly, which is the correct replacement for all compatible DTD170, DTD160, and DTD171 models.
❓ Q: Does the 650772-3 switch assembly include the wiring harness?
A: Yes. This is a complete switch assembly that includes the trigger, variable-speed control board, and the integrated wiring harness with the correct OEM-spec connector. No additional wiring components are required – the switch installs as a single unit.
❓ Q: Will this switch work with my DTD171Z model?
A: Yes. The 650772-3 switch assembly is compatible with DTD171, DTD171Z, and all related DTD171 variants. The switch platform is identical across DTD170, DTD160, and DTD171 series impact drivers.
Safety Notes
- 🔴 Always remove the battery pack before beginning any disassembly or switch replacement procedure.
- 🔧 Note wire routing before disconnecting – the switch harness must be routed exactly as original to prevent chafing or pinching.
- 🧤 Wear ESD-safe gloves when handling the switch assembly to prevent static discharge damage to sensitive electronic components.
- 📐 Verify switch alignment before final assembly – the trigger must sit correctly in its housing channel for proper operation.
- ✅ Perform a function test before full reassembly – insert battery and verify smooth variable-speed operation and forward/reverse function.
A: First, clean the battery and tool contacts with an eraser. If the problem persists, listen for a click when pressing the trigger – a click with no rotation indicates a potential motor or controller issue, while no click indicates a switch failure. Additionally, if the trigger feels mushy or the tool only runs at full speed regardless of trigger pressure, the variable-speed potentiometer has failed – requiring replacement of the 650772-3 switch assembly.
A: Yes. 650772-3 is the OEM switch assembly for DTD170, DTD170D, TD170D, DTD160, DTD171, and related 18V impact driver platforms. This is the correct direct-fit replacement across all compatible models.
A: Yes. This is a complete switch assembly that includes the trigger, variable-speed control board, and the integrated wiring harness with the correct OEM-spec connector. The switch installs as a single unit.
A: 650772-3 is the current-spec OEM part number and is the direct replacement for 650772-1 and 650772-2 variants. This listing supplies the 650772-3 assembly, which is the correct replacement for all compatible models.
