Revive Your 18V Drill: Why You Need the Full 632K62-2 Brush Holder Assembly (Not Just Brushes)

You pull the trigger on your 18V hammer drill, get a massive flash of blue light from the rear vents, and instantly smell melting plastic. When you open the casing, you find the carbon brushes haven’t just worn down—they’ve completely fused or deformed their mounting slots. At this point, dropping in a new set of bare CB440 brushes won’t save your tool. You need to replace the entire 632K62-2 brush holder assembly.

For heavy-duty 18V platforms like the XPH03 and BHP454 series, the brush holder is the absolute bottleneck for thermal management. Here is exactly how to diagnose a melted holder, evaluate a replacement, and get your equipment back on the job site.

1. The Melting Point: Diagnosing Holder Failure

Many technicians mistake a failed brush holder for a dead motor armature. Before tossing the tool, inspect the rear assembly. You are looking for the exact failure points that necessitate a full 632K62-2 assembly replacement instead of just bare carbon:

• Thermal Warpage: The plastic housing holding the brass brush channels is warped, preventing the carbon brush from sliding freely.
• Loss of Spring Tension: The coil springs have overheated, lost their temper (metallurgical elasticity), and no longer push the brushes firmly against the commutator.
• Scorched Wiring Harness: The braided copper leads or the integrated lead wires on the assembly show signs of extreme oxidation or insulation melting.

2. High-Temp Composite vs. Cheap Plastic: What to Look For

When sourcing replacement parts within the Power Tool & Equipment Parts category, thermal resistance is the only metric that matters for a brush holder. A high-torque drill pulling maximum amps through a bound-up drill bit will generate intense localized heat right at the commutator.

Workshop Pro-Tip: Never install a replacement assembly that feels like brittle, lightweight styrene. A proper 632K62-2 compatible holder must be molded from a high-temperature fiberglass-reinforced composite to withstand sustained 18V amp draws without softening.

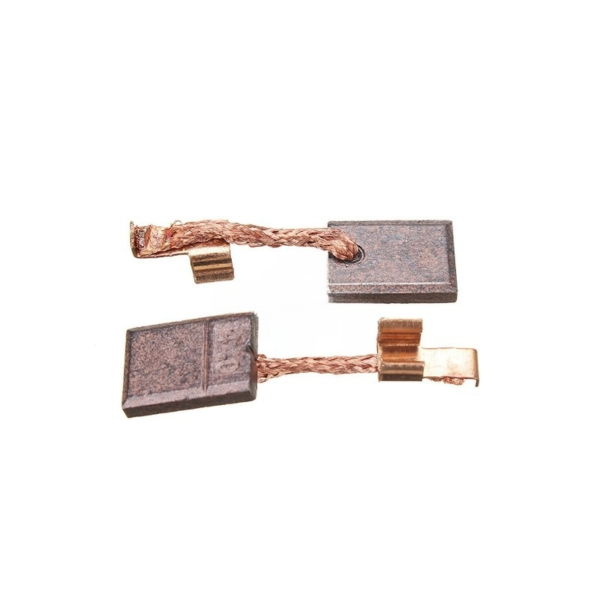

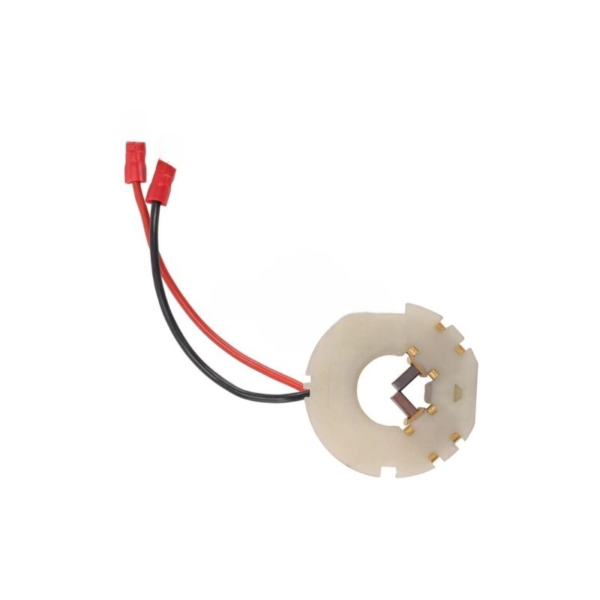

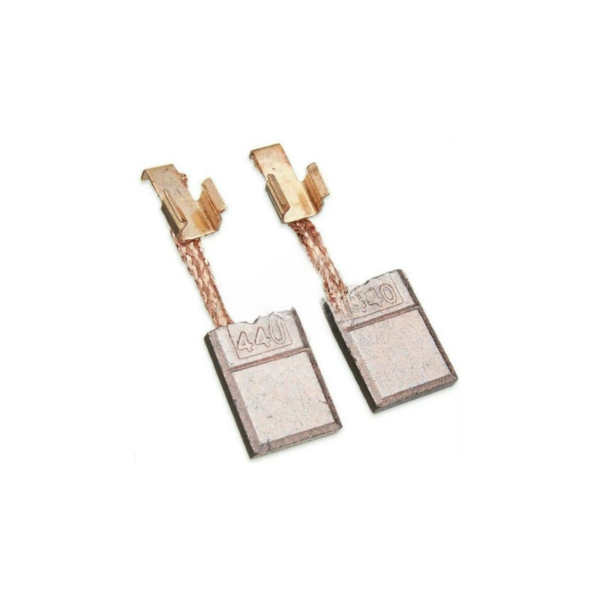

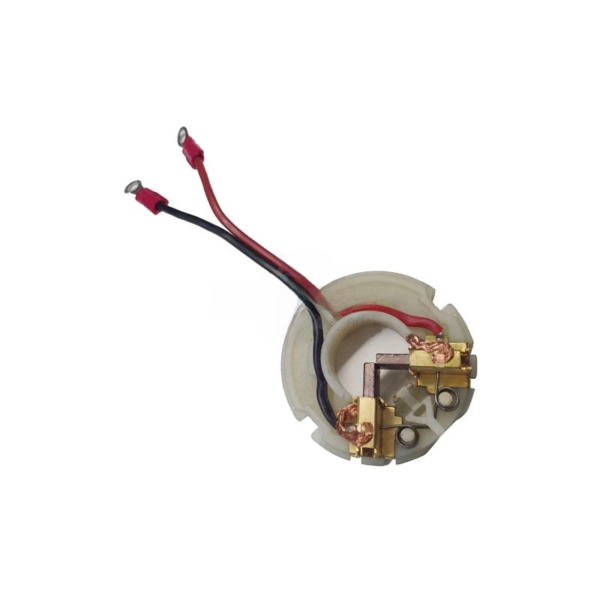

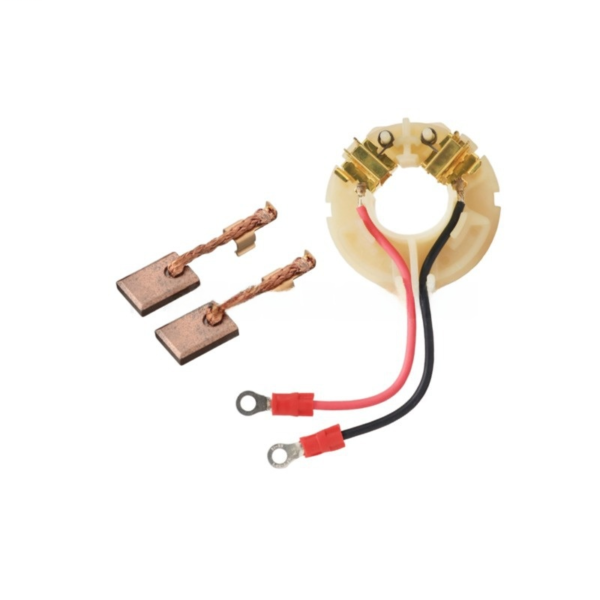

Our 632K62-2 Brush Holder Assembly comes pre-loaded with premium CB440 copper-graphite brushes, calibrated tension springs, and high-gauge lead wires, designed specifically to meet or exceed original thermal specifications.

3. Application Scenarios That Destroy Factory Holders

Why did your original assembly melt in the first place? It usually comes down to specific, high-stress applications:

• Continuous Concrete Drilling (XPH03): Pushing a hammer drill through dense masonry without letting the motor RPM stay high reduces cooling fan efficiency, spiking internal temperatures.
• Over-Torquing Lag Bolts (BHP454): Using a drill-driver instead of an impact driver to sink heavy hardware causes massive amp spikes, instantly overheating the brass brush channels.

4. The 5-Minute Drop-In Installation SOP

Replacing the entire assembly is actually faster and less frustrating than trying to seat bare brushes into a damaged housing. Follow this protocol to prevent armature damage:

1. Remove the Rear Cover: Take out the housing screws and gently separate the rear motor casing.
2. Disconnect the Terminals: Carefully unplug the two lead wires connecting the old holder to the trigger switch/stator block. Do not yank the wires.
3. Extract the Assembly: Unthread the mounting screws holding the circular brush holder plate to the motor block. Pull the entire melted unit straight off the commutator.
4. Clean the Commutator: Before installing the new unit, use 600-grit sandpaper or a fiberglass pen to clean any black carbon scoring off the copper motor commutator.
5. Seat the New Holder: Slide the new 632K62-2 assembly over the commutator. Secure the mounting screws, attach the leads, and reassemble the casing. Run the drill with no load for 60 seconds to bed in the new CB440 brushes.

5. The True Cost of “Cheaper” Alternatives

Can you just buy a $2 set of bare CB440 brushes and jam them into a slightly melted holder? Yes. Will it work? Briefly.

A compromised holder prevents the brush from sitting perfectly flat against the motor. This causes micro-arcing, which generates even more heat, eventually welding the brush to the commutator and completely destroying the expensive motor armature. Upgrading to a fresh, perfectly aligned holder assembly is the only reliable fix.
