The “Melted Housing” Trap: Why You Can’t Just Swap Brushes
The XPH03 and BHP454 are absolute beasts on the job site. But when you push an 18V motor past its limits—driving heavy lag screws or drilling deep into concrete—the electrical current spikes. As carbon brushes wear down, the metal tension springs get dangerously close to the spinning commutator, creating massive electrical arcing.
That extreme heat travels straight up, warping the brass channels and melting the plastic brush holder. If you try to shove brand-new CB-440 brushes into a melted, warped holder, they will get stuck. They won’t make flush contact with the spinning motor, and you will burn out your expensive armature the second you pull the trigger.

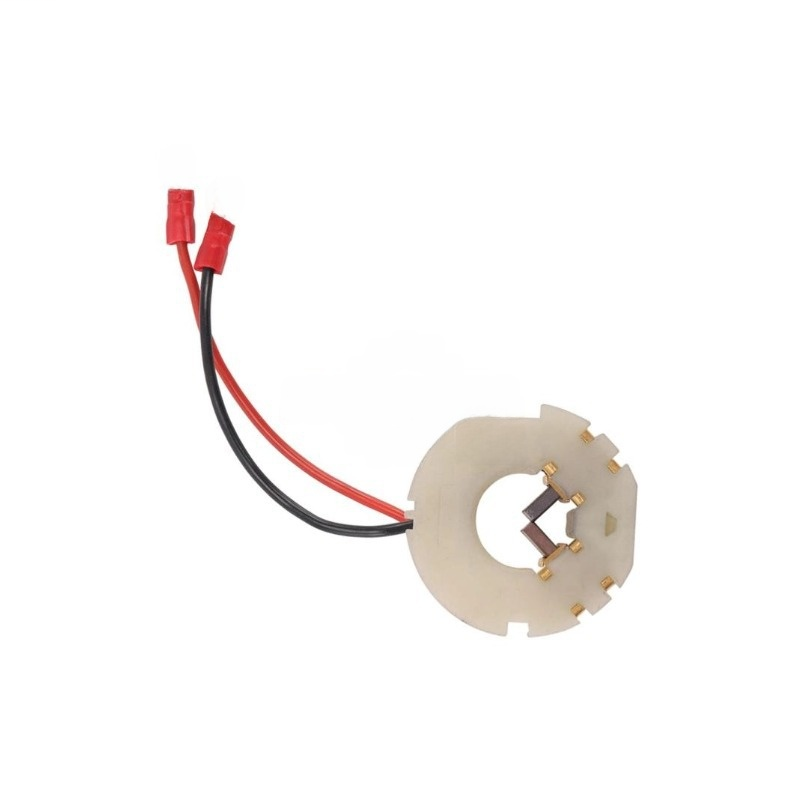

The only professional fix is a complete heart transplant. This Premium Aftermarket 632K62-2 Brush Holder & CB-440 Assembly provides a fresh, perfectly aligned electrical pathway. It completely replaces the compromised factory housing, giving your drill a second life.
Tech Q&A: From the Mechanic’s Bench
Are the carbon brushes pre-installed?

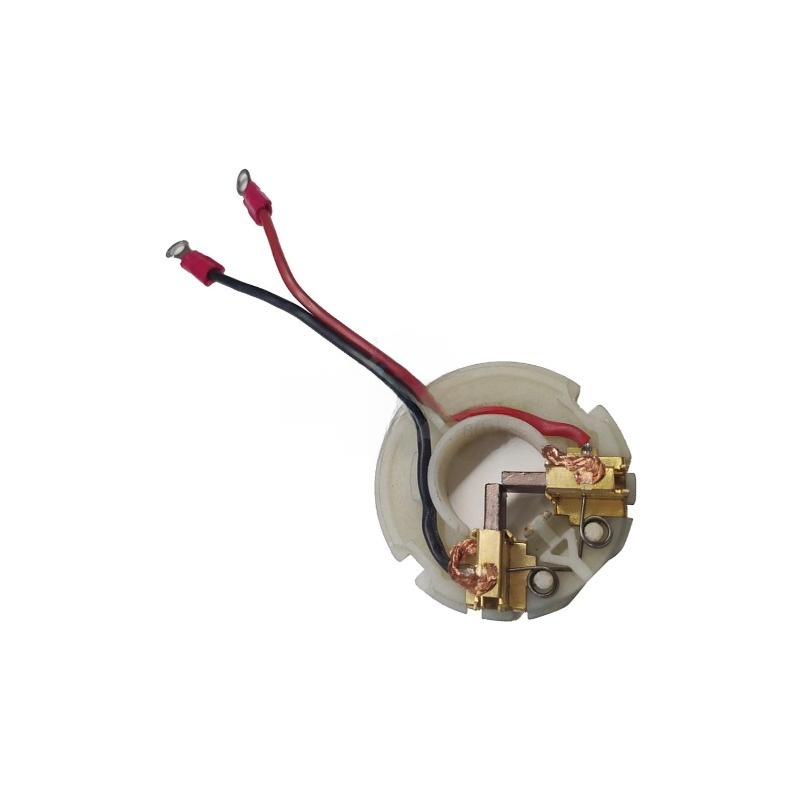

Yes. This assembly arrives with the CB-440 compatible carbon brushes already seated in the brass channels, held under perfect tension by the heavy-duty coil springs. It is truly a “drop-in” repair.
Do I need to break in the new brushes?
Absolutely. New carbon brushes are perfectly flat, but your motor’s copper commutator is round. After installing this assembly, run your drill at half-speed with zero load (just holding it in the air) for about 3 to 5 minutes. This gently shapes the carbon to match the curve of the motor, preventing heavy sparking and maximizing tool life.
Why did my original brushes burn out so fast?
Brushes are wear items, but premature failure is usually caused by excessive dust packing into the motor housing or constantly forcing the tool to stall out under heavy loads. Keep your vents clean and let the drill’s RPMs do the work.
Critical Installation Notes
- Commutator Inspection: Before sliding this new brush holder over your motor, inspect the copper bars on the armature. If they are deeply scarred or black with carbon buildup, clean them gently with 400-grit sandpaper or a fiberglass scratch brush. A clean commutator ensures a flawless electrical connection.
- Wire Routing: Pay close attention to how the lead wires are tucked around the new holder. Pinched wires are the #1 cause of post-installation failure.

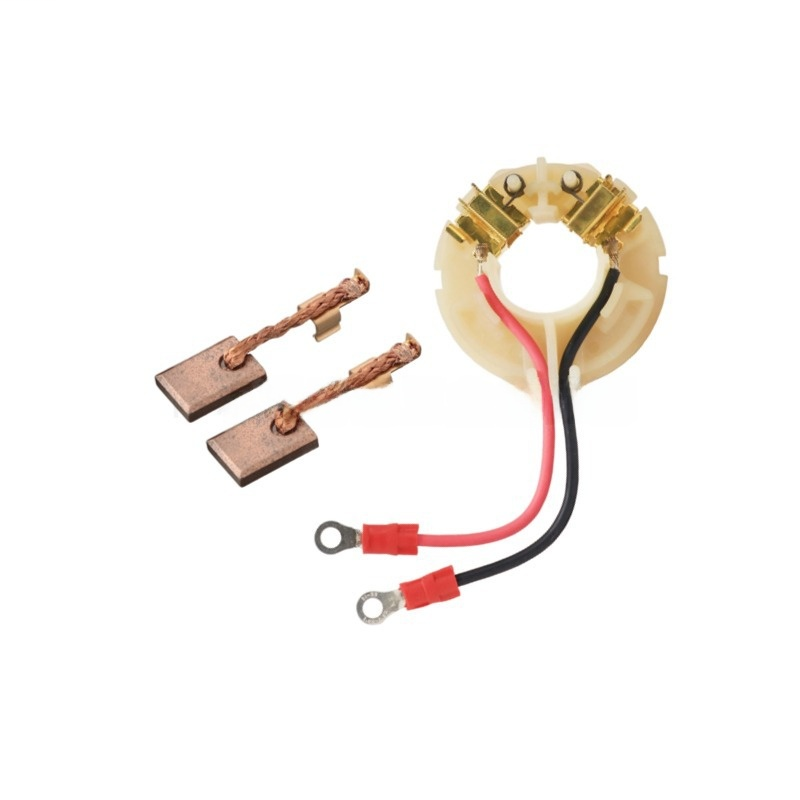

Yes, this is a complete aftermarket assembly. It includes the 632K62-2 compatible plastic brush holder frame, the brass channels, the tension springs, and a brand-new set of CB-440 compatible carbon brushes pre-installed.
Yes, this assembly is fully compatible with the 18V XPH03, as well as the BDF454 and BHP454 models. It acts as a direct replacement for the factory brush holder.
Sí, este conjunto (aftermarket) viene completamente ensamblado. Incluye el porta escobillas 632K62-2 y un juego nuevo de carbones CB440 ya instalados, listo para restaurar su taladro de 18V.
