Reviving a Dead Rotary Hammer: The Ultimate 650508-0 Switch Rebuild Guide

You are midway through sinking a 1/2-inch concrete anchor, applying heavy forward pressure, when your rotary hammer suddenly dies. No hum. No click. Just dead silence on the job site. Before you toss a $180 heavy-duty hammer drill into the scrap bin, you need to check the trigger pathway.

Rotary hammers like the legendary HR2020 and HR2450 are practically bulletproof mechanically. However, the fine silica dust generated from masonry work is ruthless on electrical contacts. When these tools fail, the culprit is almost always a packed and burnt 650508-0 trigger switch.

Diagnosing the 650508-0 Switch Failure

How do you know if the switch is the actual bottleneck? Concrete dust is highly abrasive. As it gets sucked through the motor cooling vents, it packs tightly into the sliding mechanisms of the trigger block. This creates extreme friction and eventually compromises the internal copper contacts.

• The “Full-Speed Only” Symptom: If your drill has lost all variable speed sensitivity and acts like a standard on/off light switch, the internal variable resistor board is fried.
• Intermittent Cut-Outs: You pull the trigger, and nothing happens until you wiggle the handle or squeeze it at a very specific angle. This indicates heavily oxidized or dust-packed internal contacts.
• Loss of Reverse: The mechanical forward/reverse shuttle sits directly on top of the 650508-0 switch block. If the underlying switch contacts melt, the tool gets permanently stuck in one direction.

Evaluating the Fix: OEM vs. Premium Aftermarket

When professional contractors face a dead tool, downtime is the most expensive factor. Sourcing an Original Equipment Manufacturer (OEM) 650508-0 switch often means navigating backordered supply chains and paying a premium markup that makes repairing an older tool feel economically irrational.

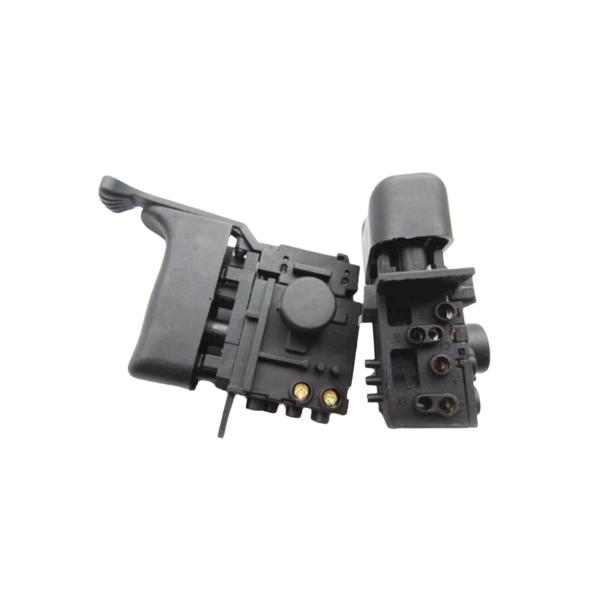

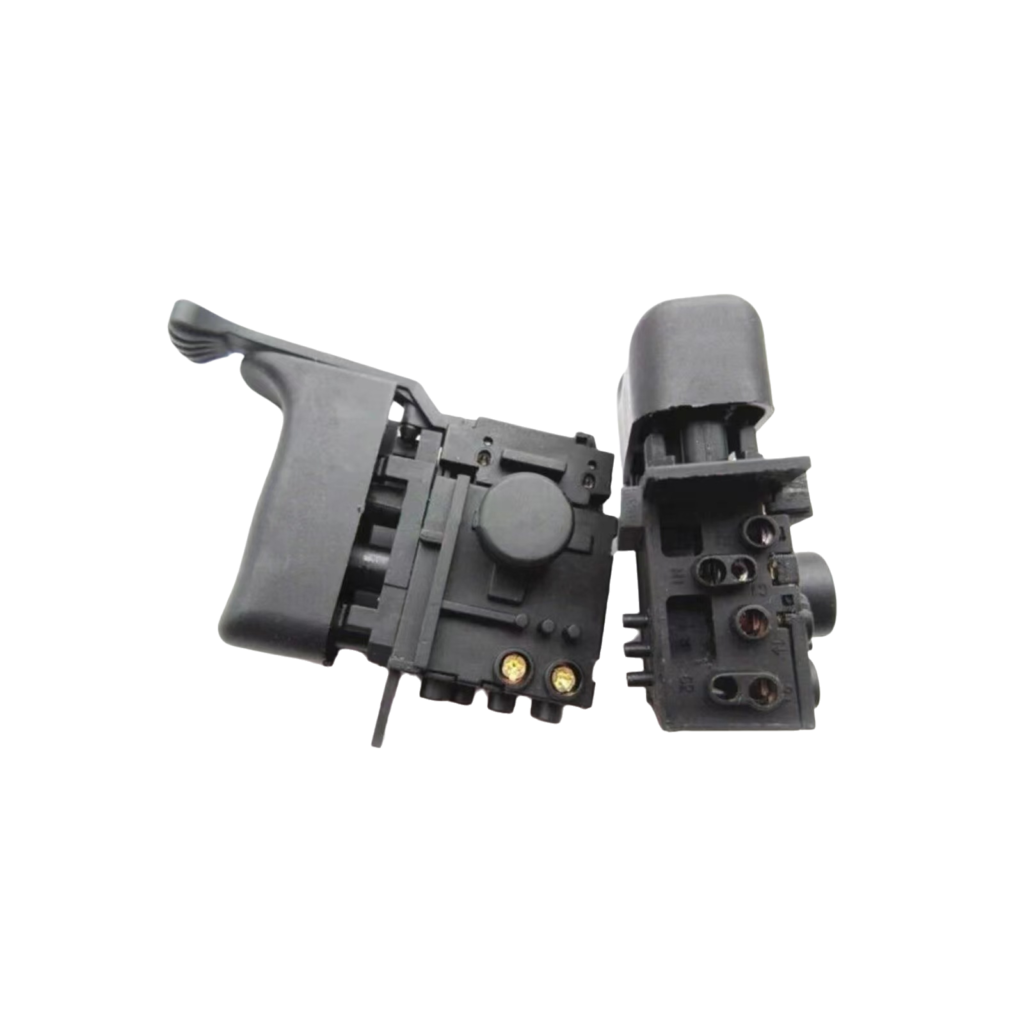

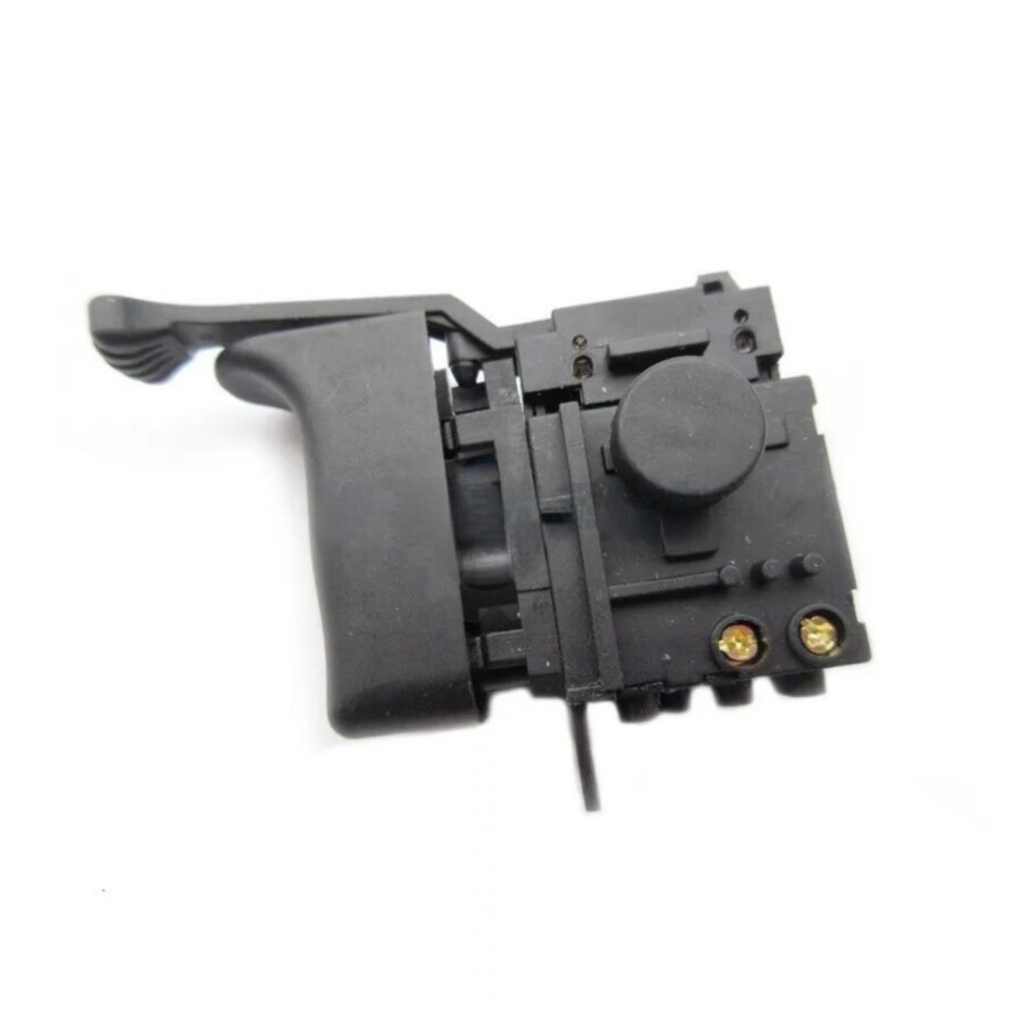

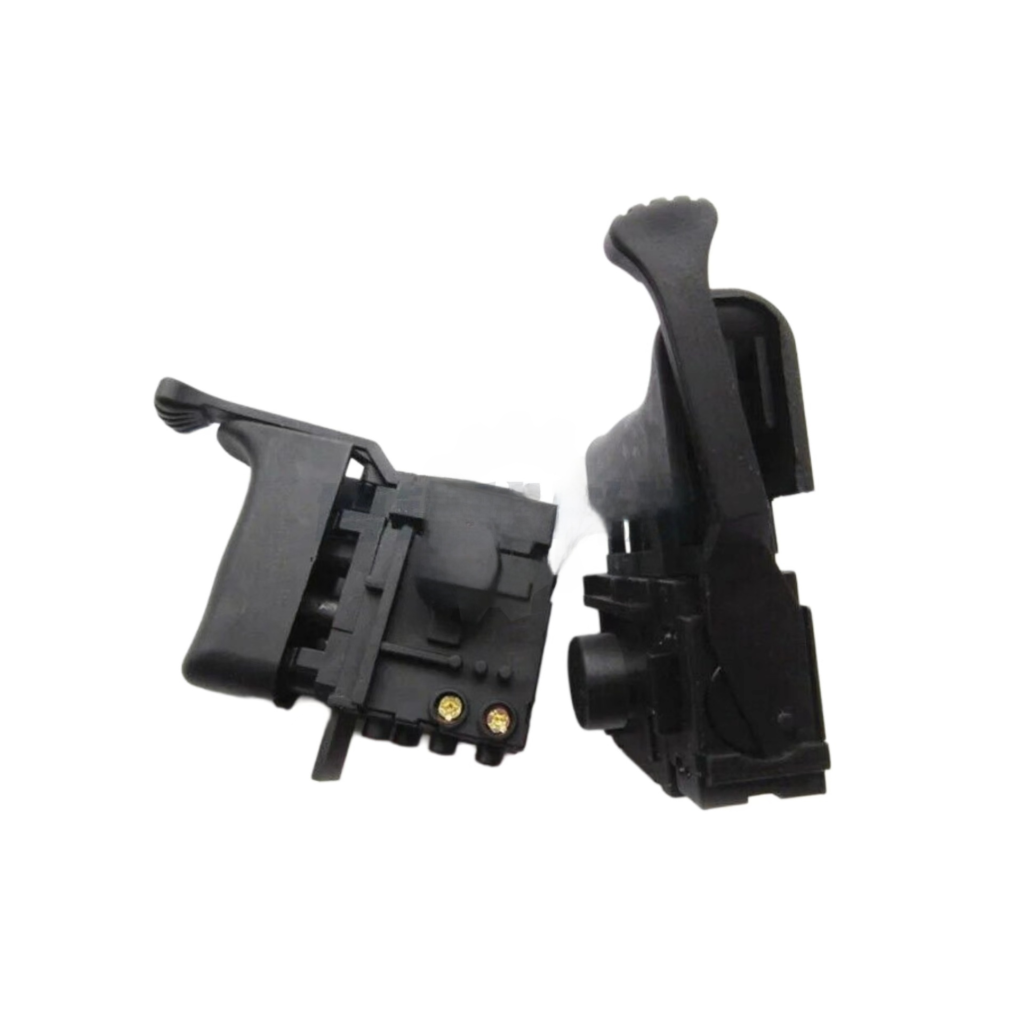

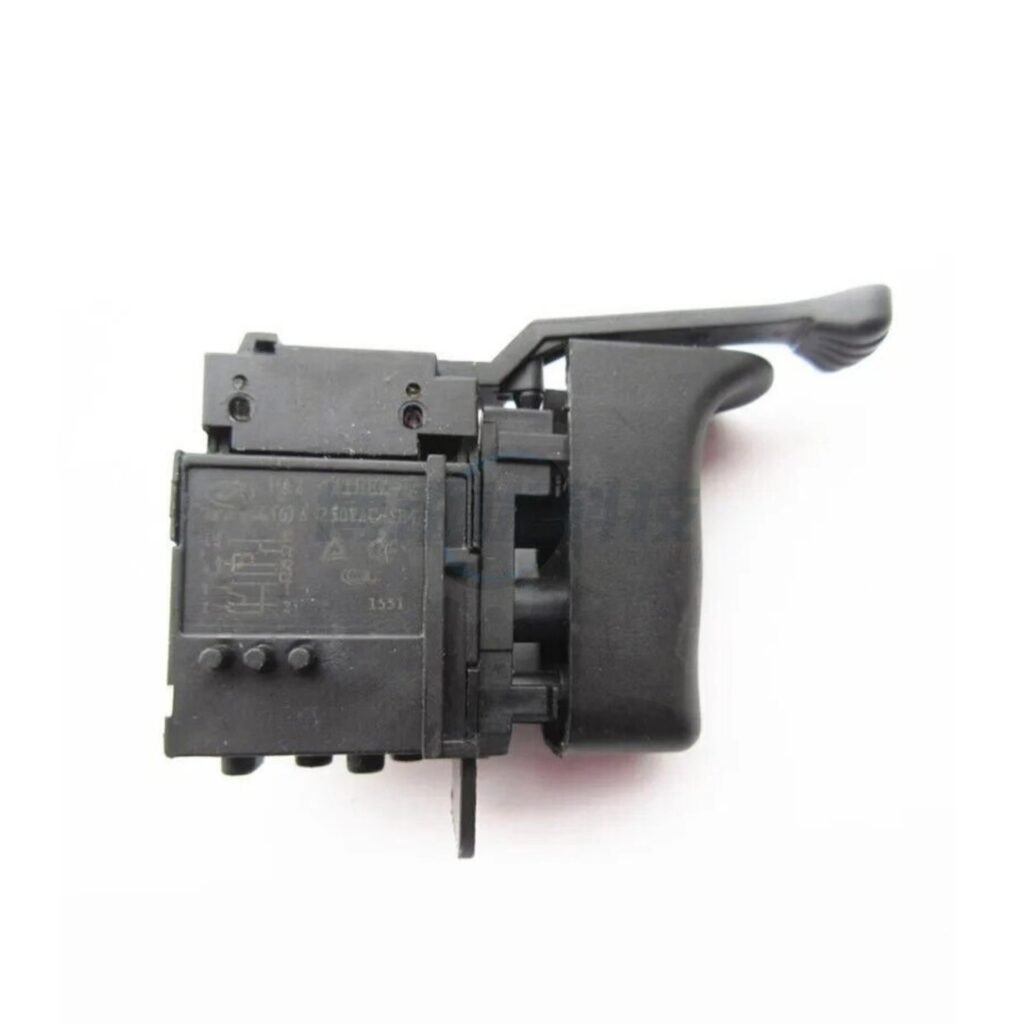

This is where premium aftermarket replacements dominate the repair bench. A high-quality aftermarket 650508-0 switch is engineered to the exact dimensional blueprints of the factory component. It offers a direct, drop-in fitment with upgraded heat-resistant polymer housings designed to handle the heavy amp draw of continuous concrete drilling, all at a fraction of the cost.

The 15-Minute Rebuild: HR2450 Installation Guide

Swapping the 650508-0 switch is a straightforward bench repair that requires nothing more than a standard Phillips screwdriver.

1. Isolate Power: Never open a corded tool while it is plugged into a power source.
2. Split the Handle: Back out the screws securing the rear handle clamshell. Carefully lift the top half off.
3. Map the Wiring: Stop right here and take a clear photo with your phone. Rotary hammers have incredibly tight internal wire routing channels. If a wire is out of place, the clamshell will pinch and sever it when you reassemble the tool.
4. Extract and Swap: Lift the old switch block out. Transfer the lead wires from the factory switch to the identical push-in or screw-down terminals on the new aftermarket 650508-0 switch.
5. Align the Shuttle: Ensure the forward/reverse lever perfectly engages with the selector switch on top of the new block before sealing the housing.

Are There Alternative Solutions?

Many DIYers attempt to flood a stuck switch with electrical contact cleaner. While this might blow out some loose dust, it is strictly a temporary band-aid. Contact cleaner cannot rebuild the microscopic copper contact pads that have been arc-welded or worn away by friction. Once a switch begins to stutter, full replacement is the only reliable, long-term fix to prevent sudden failure in the middle of a critical job.

Stop fighting a dying trigger. Drop a fresh aftermarket 650508-0 switch into your HR2020 or HR2450, and restore the raw, predictable power your rotary hammer was engineered to deliver.
