Dead DeWalt DCF887? The Ultimate N880474 (220V) Motor & Switch Replacement Guide

You smell it before you see it. That unmistakable, acrid scent of burnt epoxy and melted copper. Your 20V impact driver just shut down in the middle of driving a heavy lag bolt. The LED worklight still clicks on, but the anvil refuses to spin.

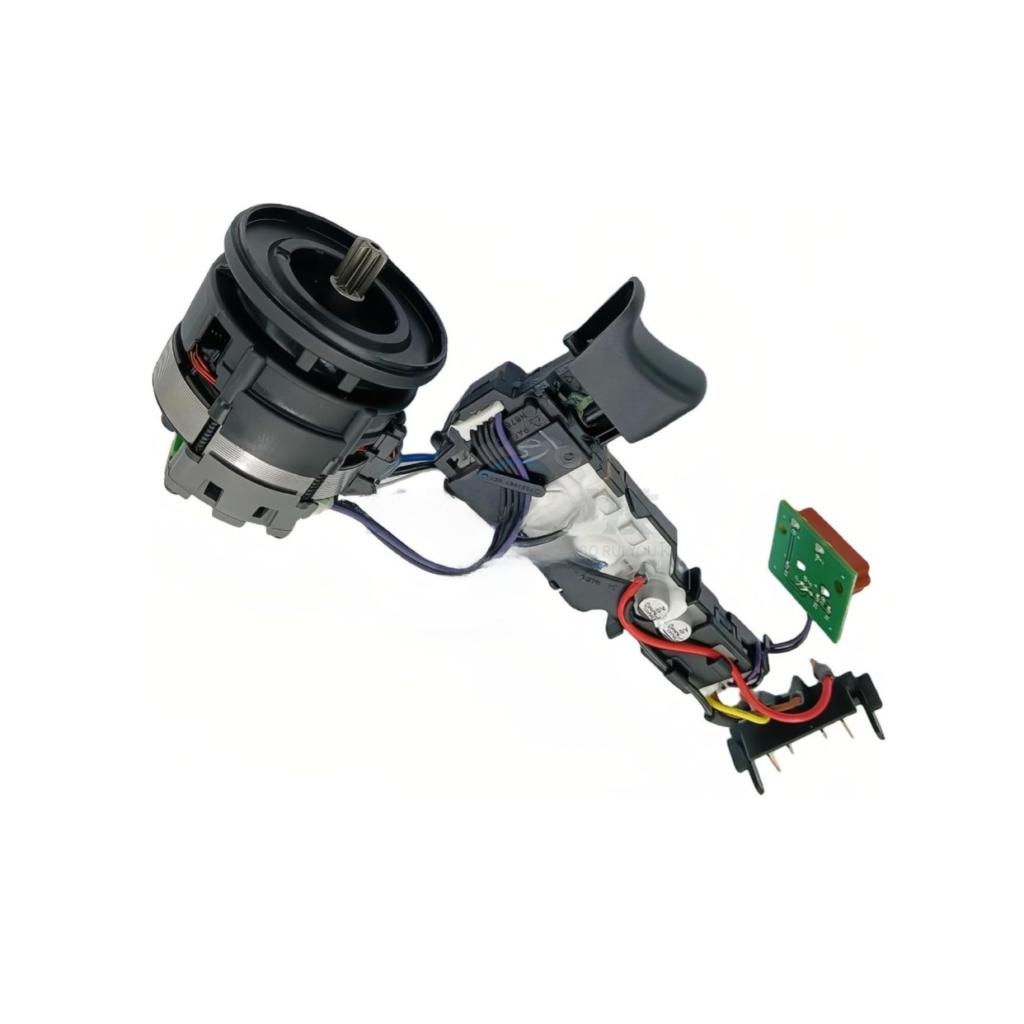

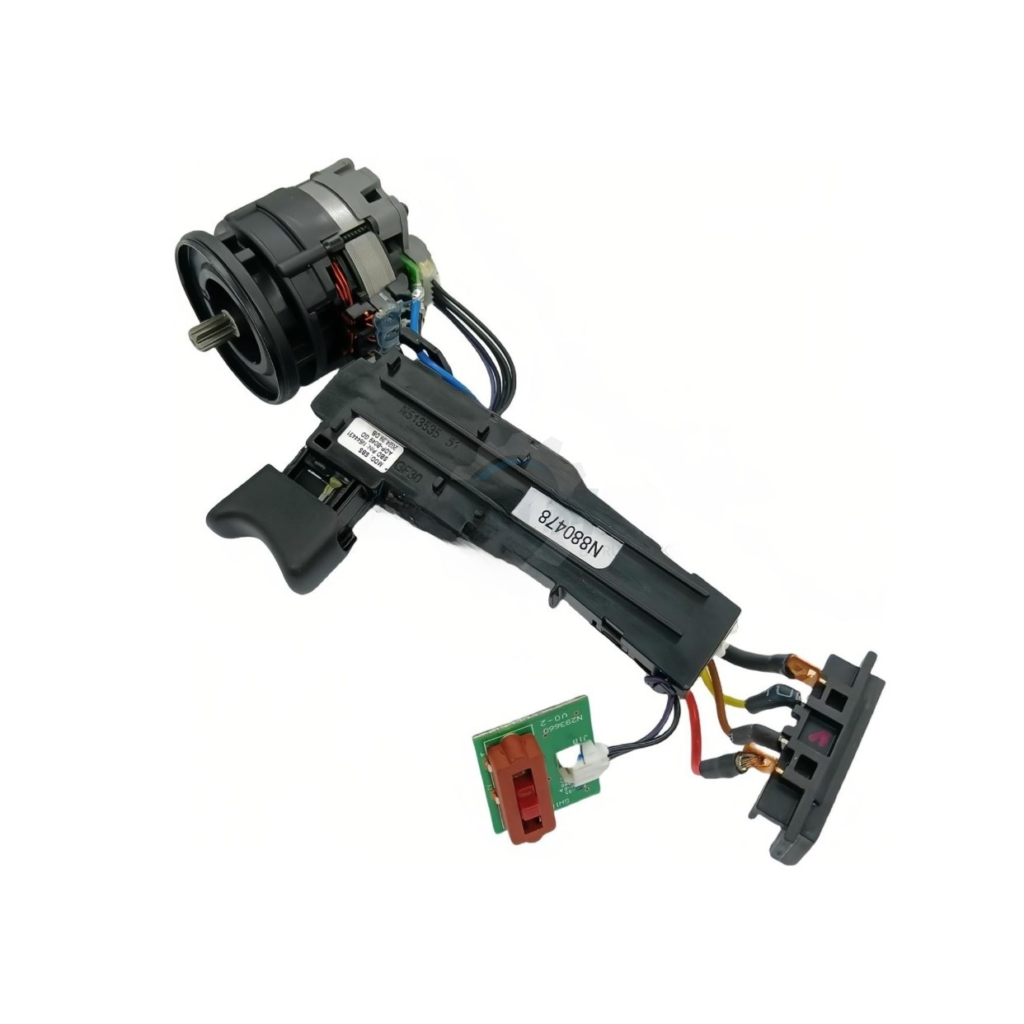

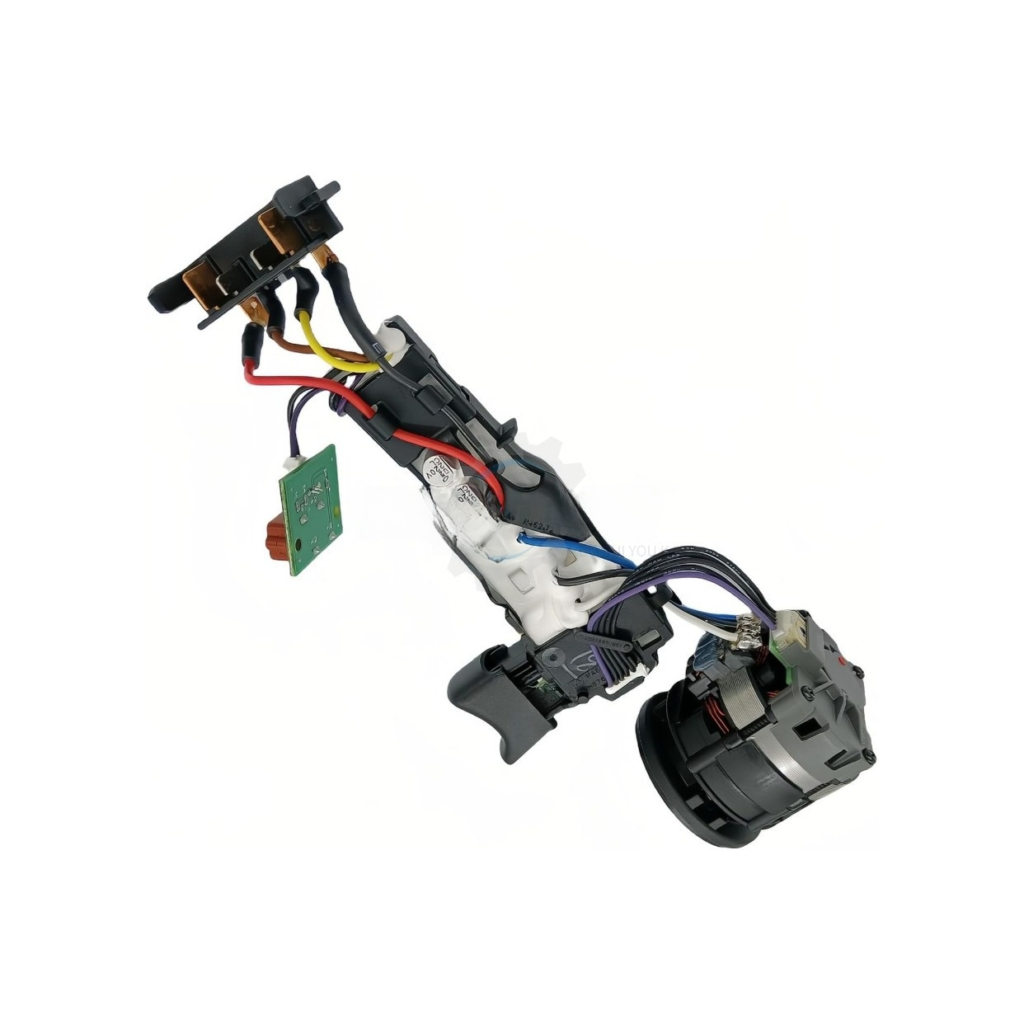

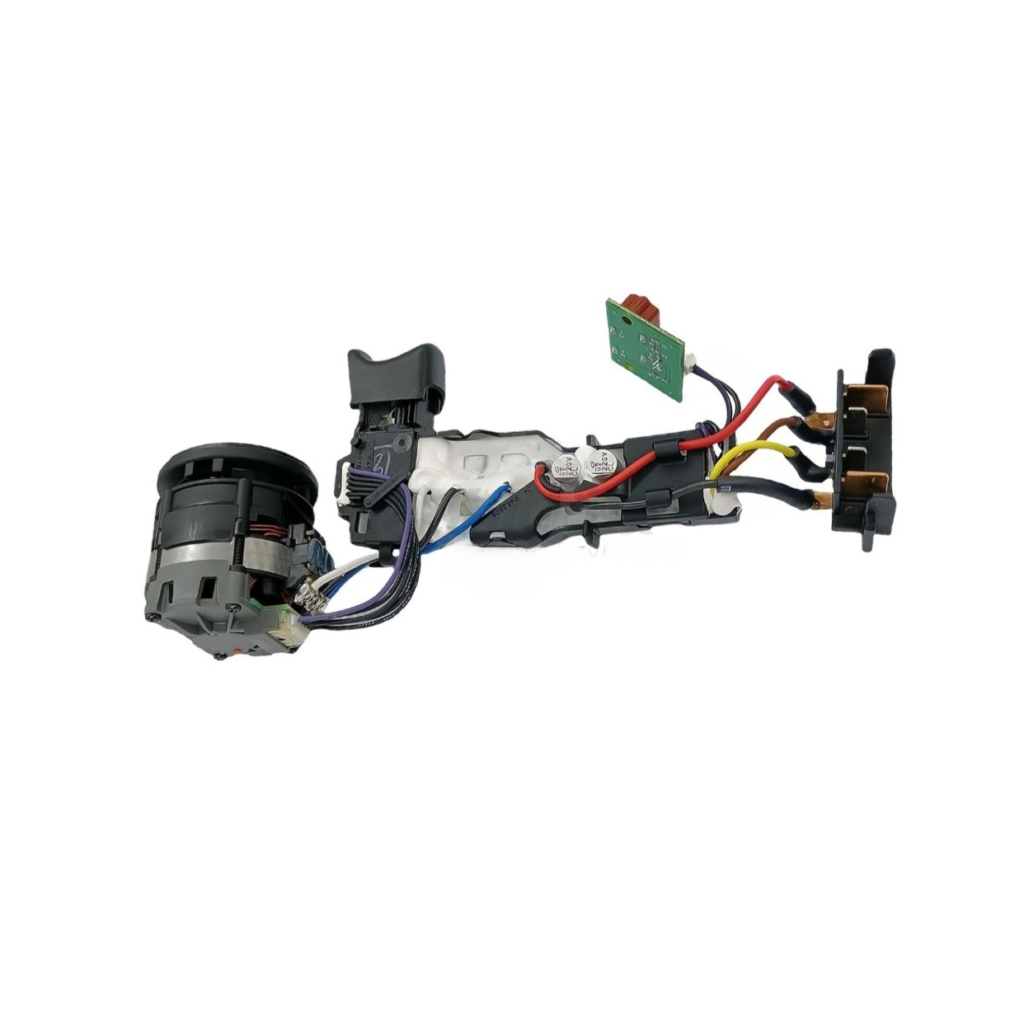

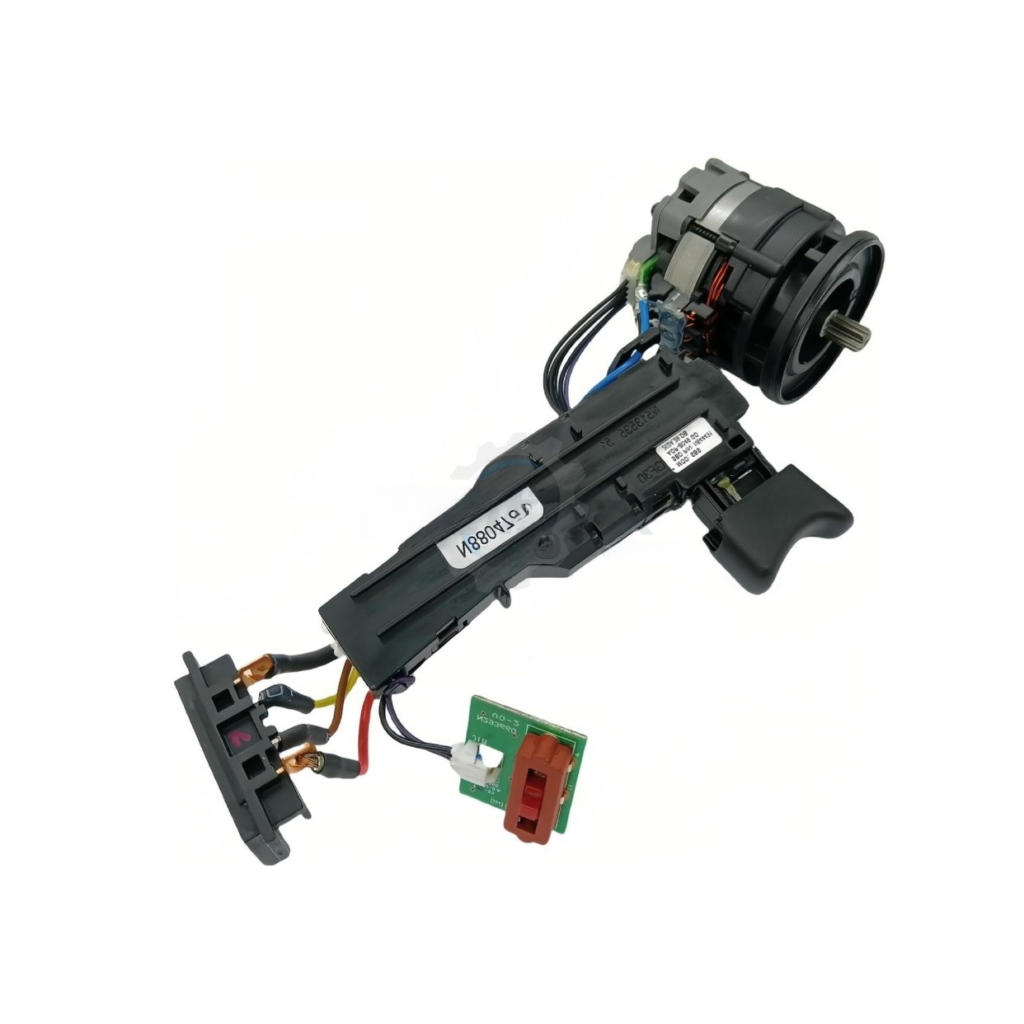

Before you throw a $120+ tool into the scrap bin, let’s run a proper field diagnosis. Nine times out of ten, a “dead” DeWalt DCF887 has simply suffered a thermal overload in its central nervous system. The fix doesn’t require a new bare tool, nor does it require a degree in micro-soldering. You need a pre-wired N880474 Motor and Switch Assembly. Here is the technical breakdown of how to evaluate, select, and transplant this critical component.

1. The Smoke Test: Diagnosing a Bad N880474 Assembly

Mechanics often misdiagnose power tool failures. A mushy switch or a wobbly battery usually points to a cracked clamshell housing. However, electronic drive failures look entirely different. Your N880474 control module and stator are likely fried if you experience:

• The Stutter: The tool runs intermittently under no load but instantly cuts out when torque is applied.
• The Phantom Switch: The battery is fully charged, the LED light activates when you press the variable speed actuator, but the motor remains completely silent.
• The Melt: Visible scorching or a heavy electrical burning smell emanating from the rear motor vents.

2. Evaluation: Why Piecemeal Repair is a Trap

When evaluating alternatives, some technicians attempt to replace just the control board or re-solder broken leads on the stator. Do not do this.

DeWalt engineers the DCF887 with the stator, control board, and variable speed switch as a permanently sealed, encapsulated unit to protect against jobsite dust and moisture. Breaking these factory seals to micro-solder a new switch compromises the vibration resistance.

The correct industrial solution is a complete aftermarket drop-in replacement. A high-quality aftermarket N880474 harness comes pre-wired. You bypass the risk of bad solder joints entirely.

3. The Voltage Variable: Selecting the Right Regional Part

Here is the most common ordering mistake: ignoring regional voltage variants.

If you are operating a DCF887 purchased in regions utilizing a 220V grid standard, the internal control board is calibrated differently than its 110V North American counterpart (often part N439270). Installing a 110V board into a 220V tool will result in immediate electronic failure. You must specifically source the N880474 (220V) iteration to match your tool’s original engineering tolerances.

5. Aftercare: Preventing Thermal Overload

Impact drivers are designed for high torque bursts, not sustained heavy drilling. If the tool housing becomes uncomfortably hot to the bare hand, the copper windings inside the stator are approaching their thermal limit. Let the tool idle with no load for 30 seconds; the internal fan will rapidly pull ambient air across the control board, cooling it down and extending the life of your new assembly.
