The Ultimate 608116-00SV Anvil Guide: Fixing the DCF883 & Converting the DCF887

A sheared anvil is a mechanic’s worst nightmare. You apply torque to a stubborn, rusted bolt, hear a sharp *crack*, and suddenly your socket hits the concrete. Your impact wrench motor spins freely, but the 3/8″ square drive is completely snapped off.

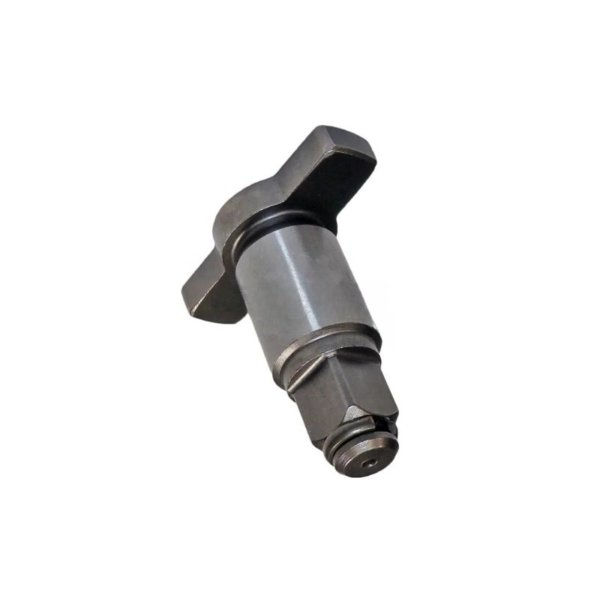

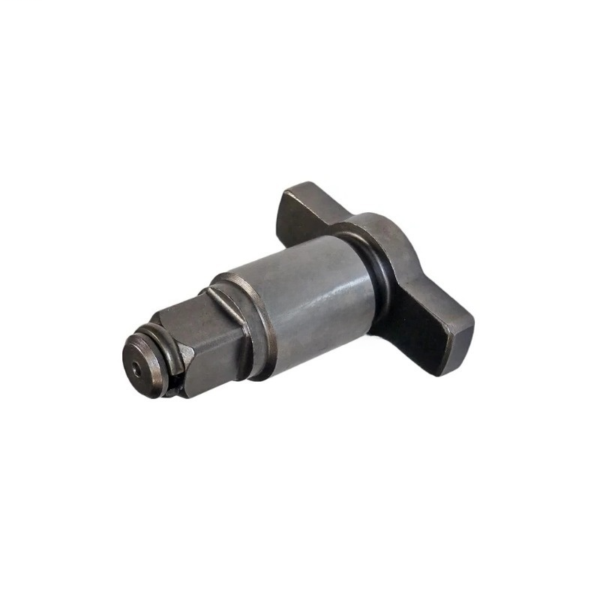

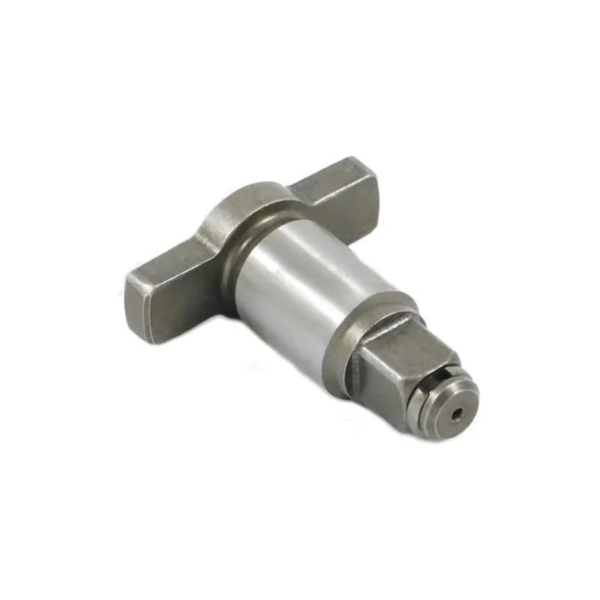

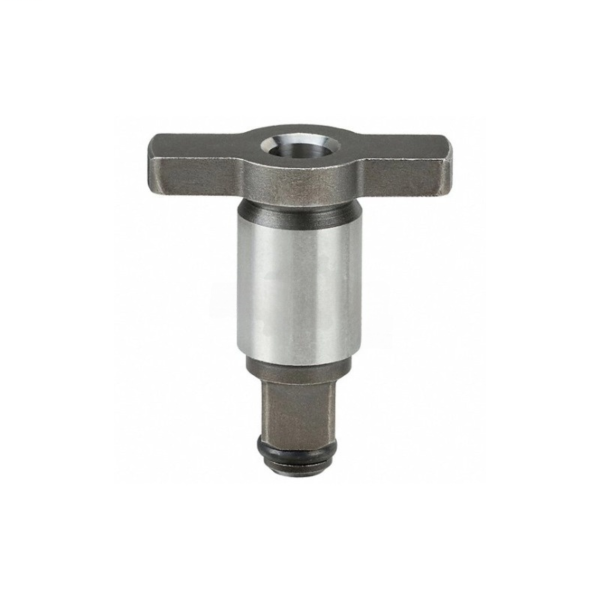

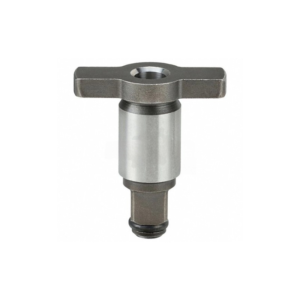

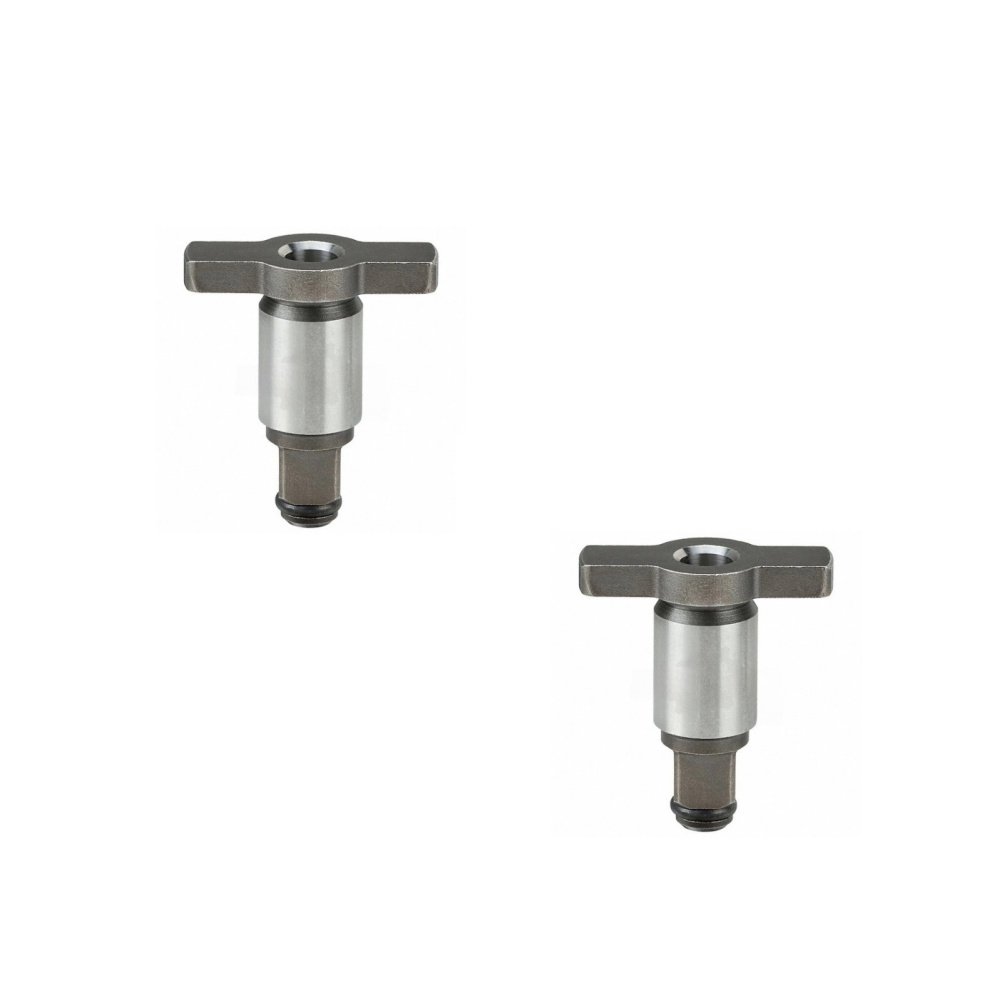

Instead of shelling out $150+ for a bare tool replacement, a simple front-end teardown is all it takes. Whether you are repairing a sheared DCF883 or executing the famous “1/4-inch to 3/8-inch” conversion on a DCF887, the 608116-00SV Aftermarket Anvil Assembly is the exact component you need. Here is the technical breakdown on how to evaluate, install, and maintain this heavy-duty friction ring anvil.

1. The Problem: Why Do 3/8″ Anvils Break?

Impact tools rely on high-frequency rotational strikes. Over years of heavy automotive or industrial use, metal fatigue sets in. The two most common failure points on the factory anvil are:

• Shearing at the Neck: Excessive torque applied to seized fasteners can physically twist and snap the high-carbon steel square drive right off the base cylinder.
• Friction Ring Wear (Hog Ring Failure): The small groove holding the retaining ring wears flat. Sockets stop locking onto the tool and constantly fall off, posing a severe safety hazard on job sites.

2. The Mechanic’s Hack: Converting the DCF887

The DCF887 is an incredibly powerful 1/4″ hex impact driver. However, when mechanics use 1/4″-to-3/8″ socket adapters, those cheap adapters snap constantly under the tool’s massive torque.

The pro solution? The anvil swap. Because the internal hammer mechanism of the DCF887 shares identical dimensional tolerances with the DCF883, you can remove the 1/4″ hex collet and drop the 608116-00SV 3/8″ square drive directly into the housing. This instantly converts your standard driver into a dedicated, ultra-compact 3/8″ impact wrench, eliminating the need for weak adapters entirely.

3. Evaluation: Detent Pin vs. Friction Ring

When evaluating replacements, buyers often wonder about socket retention methods. The 608116-00SV utilizes a Friction Ring (also known as a Hog Ring). Unlike a detent pin—which requires you to align holes and often use a sharp tool to pry sockets off—the friction ring allows for rapid, secure socket changes using just your hands. This is the preferred setup for scaffolding workers and automotive technicians who swap socket sizes dozens of times an hour.

5. Aftercare: Preventing Premature Wear

The secret to anvil longevity lies entirely in lubrication. The intense metal-on-metal striking generates extreme heat. If the anvil base runs dry, it will friction-weld and snap. We recommend opening the nose cone every 6–8 months (depending on usage) to clean and repack the hammer mechanism with fresh moly grease.

Legal Disclaimer: FixPartHub is an independent distributor of aftermarket parts. We are not affiliated with, or endorsed by DeWalt. Brand names and models are used strictly to demonstrate compatibility.
