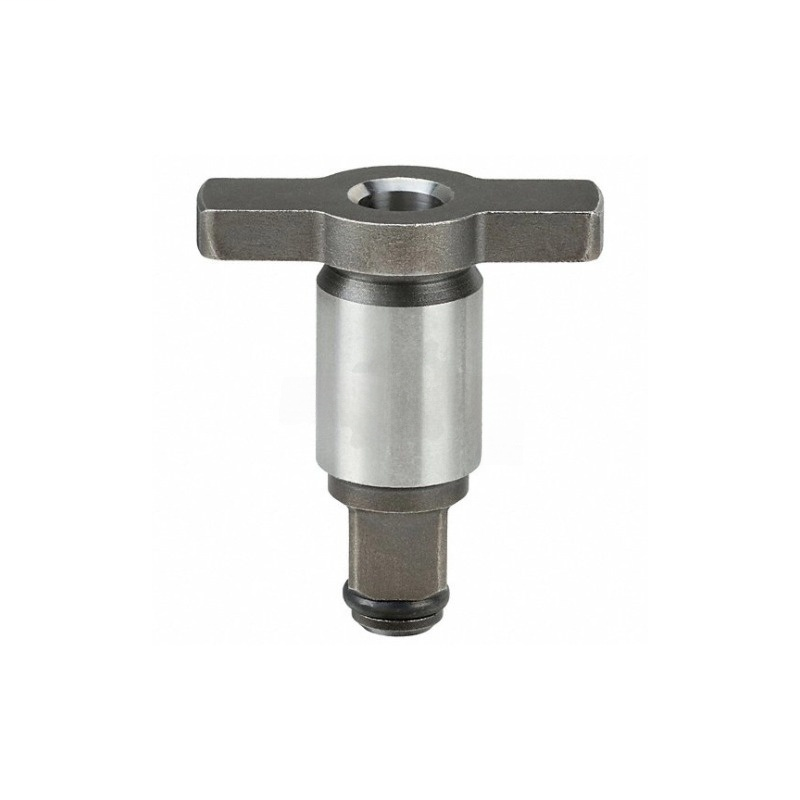

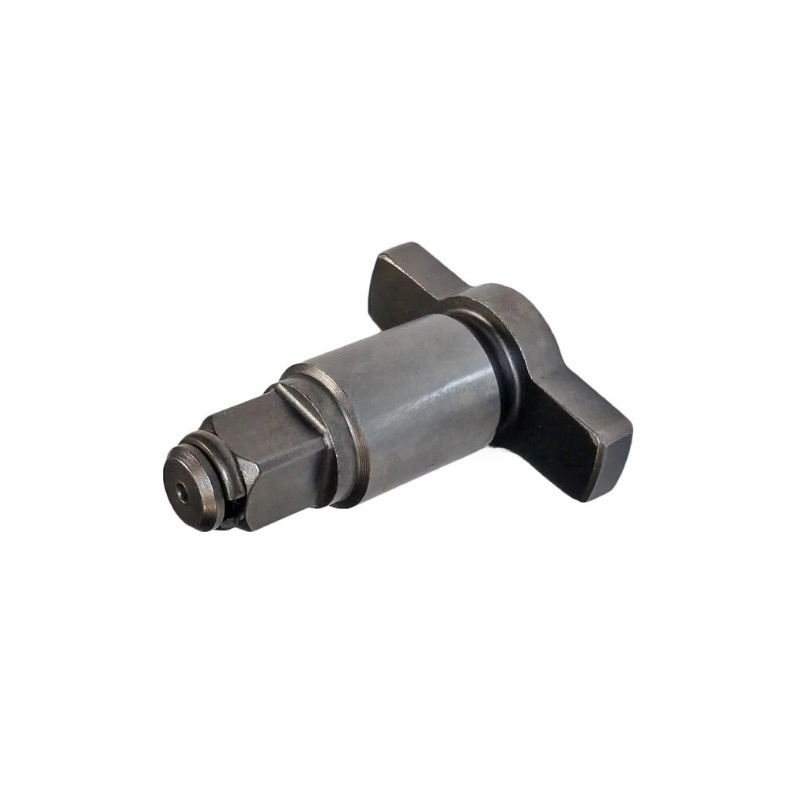

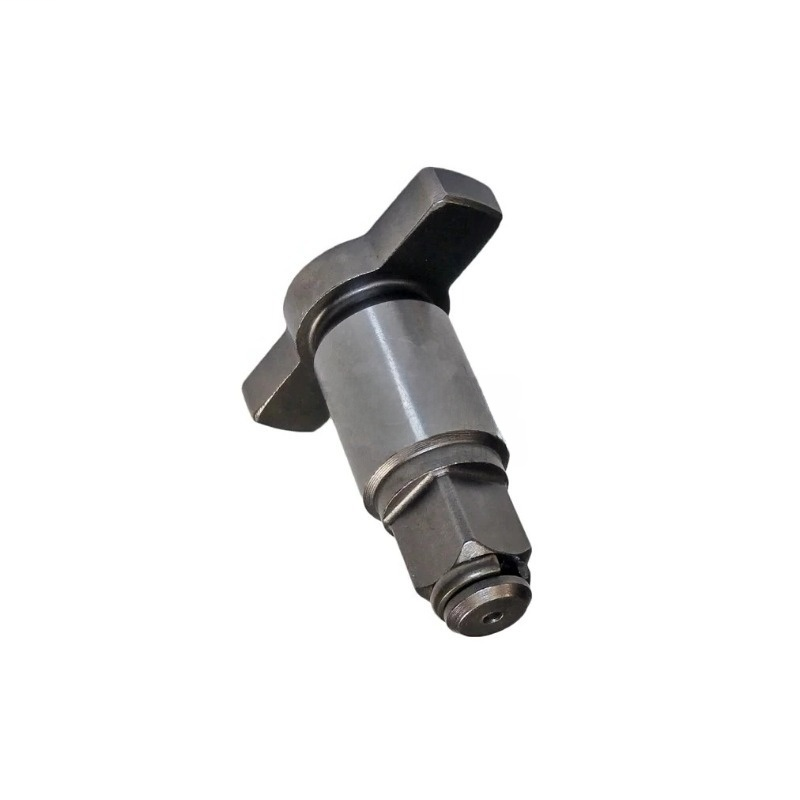

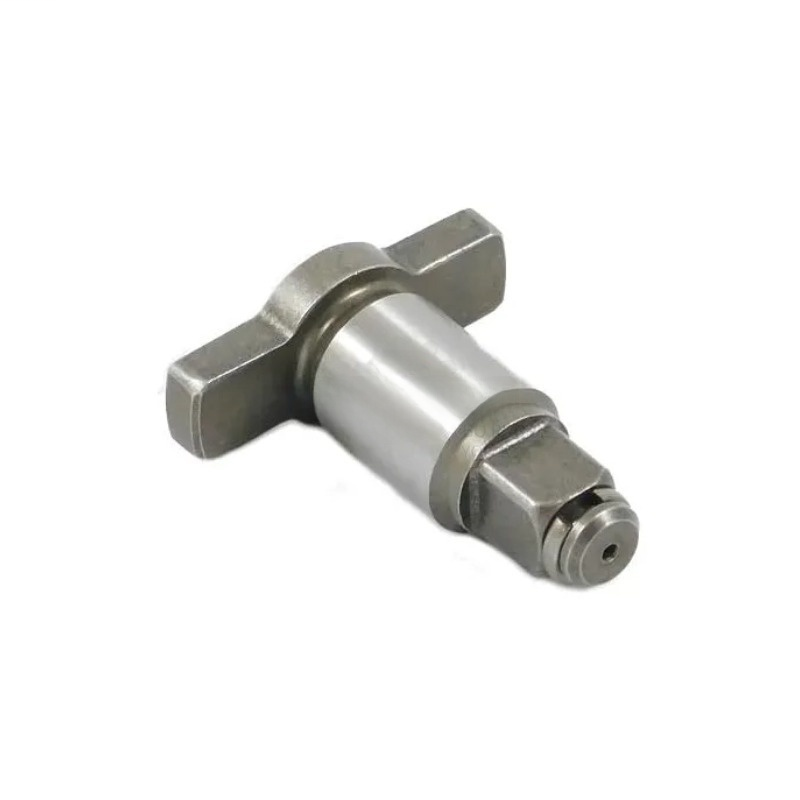

Restore Your Torque: The 608116-00SV Replacement Anvil
The anvil is the most physically abused component in any impact tool. Over time, heavy impacts can cause the square drive to shear off completely, or the friction ring groove to wear down, leaving your sockets constantly falling onto the shop floor. The FixPartHub Premium Aftermarket 608116-00SV Anvil Assembly is forged to meet rigorous industrial standards, allowing you to rebuild the front end of your tool quickly and affordably.
The Famous DCF887 3/8″ Conversion
While this part is the exact replacement for the DCF883 3/8″ model, it is most highly sought after for tool modification. By opening the nose cone of a standard DCF887 1/4″ Hex Impact Driver, you can swap out the hex collet and drop this 3/8″ square drive anvil directly in. This popular modification converts your standard driver into an ultra-compact, high-speed 3/8″ impact wrench, perfect for automotive technicians dealing with lug nuts and tight engine bays.
Tech Q&A: Field Installation Guide
Q: Does this anvil use a detent pin or a friction ring?
A: This specific 608116-00SV aftermarket assembly utilizes a high-tension Friction Ring (Hog Ring). It allows for rapid socket changes without needing to align a pin or use a sharp object to release the socket.
Q: Do I need to lubricate the new anvil during installation?
A: Absolutely. When replacing the anvil, you must thoroughly clean the old grease from the impact mechanism housing. We highly recommend applying a generous coat of high-quality molybdenum disulfide (moly) grease to the base of the new anvil before inserting it to prevent premature metal-on-metal wear.
Q: Will this fit my older 18V tools?
A: Yes, this aftermarket anvil is backward compatible with several older generation models, including the DC823 and DC823B. Always cross-reference your tool’s parts diagram to confirm 608116-00SV is the correct fitment.
Legal Disclaimer: FixPartHub is an independent supplier of premium aftermarket power tool components. We are not affiliated with, endorsed by, or sponsored by DeWalt. All brand names, model numbers, and trademarks mentioned are the property of their respective owners and are used strictly for compatibility identification.
Yes. This premium aftermarket 1/4-inch hex anvil is engineered to be a direct, drop-in replacement for popular 20V MAX impact drivers that require part number 608116-00SV, including the heavy-duty DCF887. It is forged from hardened, impact-grade steel to withstand extreme torque applications and prevent premature shearing.
The most obvious sign of catastrophic failure is a snapped anvil tip, which often breaks off cleanly during heavy fastening. However, a more common and frustrating symptom is severe “bit wobble” (runout). If your driver bits wobble aggressively, making it impossible to drive screws straight, or if the metal shaft has deep grooves worn into it by the steel ball bearing, a complete anvil replacement is required.
This replacement is the bare metal anvil shaft only. You must transfer your existing chuck hardware (the outer sleeve, compression spring, steel ball, and hog ring) onto this new anvil. Because the tiny front hog ring often bends or loses its tension during removal, we highly recommend purchasing a fresh N464409 Chuck Repair Kit to install alongside your new anvil for a completely rebuilt, factory-fresh front end.
