Dropped Your Makita? Why a Cracked XDT13 Housing Will Destroy Your Brushless Motor

Gravity always wins on the job site. You set your Makita XDT13 impact driver on the top step of a ladder, someone bumps the rail, and your tool takes a 10-foot dive onto the concrete slab.

You pick it up, dust it off, and pull the trigger. The motor spins, and the anvil hits hard. You think you got lucky. But then you look at the handle and the rear casing—the yellow-green plastic has a massive spiderweb crack running down the seam.

Most guys will just wrap the handle tightly in electrical tape or duct tape and get back to framing. If you do this to a modern brushless impact driver, you are going to destroy a $130 bare tool within a week.

Here is the mechanical truth about why cracked clamshells are fatal to brushless tools, and how you can save your investment with a 20-minute “guts swap” using the Makita 183E34-9 Housing Set.

The Hidden Danger: Stator Shift and Rotor Rub

To understand why a cracked casing is a death sentence for your tool, you have to look inside.

In older, brushed tools, the motor was a heavy, self-contained steel can. The plastic housing just acted as a dust cover and a handle.

The Makita XDT13 is an 18V LXT Brushless tool. It does not have a steel motor can. Instead, the outer copper coils (the stator) rely entirely on the internal plastic ribs of the housing to hold them perfectly still. The inner magnetic core (the rotor) spins inside that stator at over 3,400 RPM with a clearance of less than a millimeter.

When your housing cracks, those internal plastic ribs lose their structural integrity. The moment you pull the trigger to drive a heavy lag screw, the massive torque causes the stator to shift violently inside the broken shell. The copper coils will physically rub against the spinning neodymium magnets of the rotor.

This friction will grind the protective lacquer off the copper wire, causing an immediate, catastrophic electrical short. Your drill will smoke, seize up, and the control board will fry.

The “Brain Transplant”: Why You Need the OEM 183E34-9 Shell

You don’t need a new tool; you just need a new skeleton.

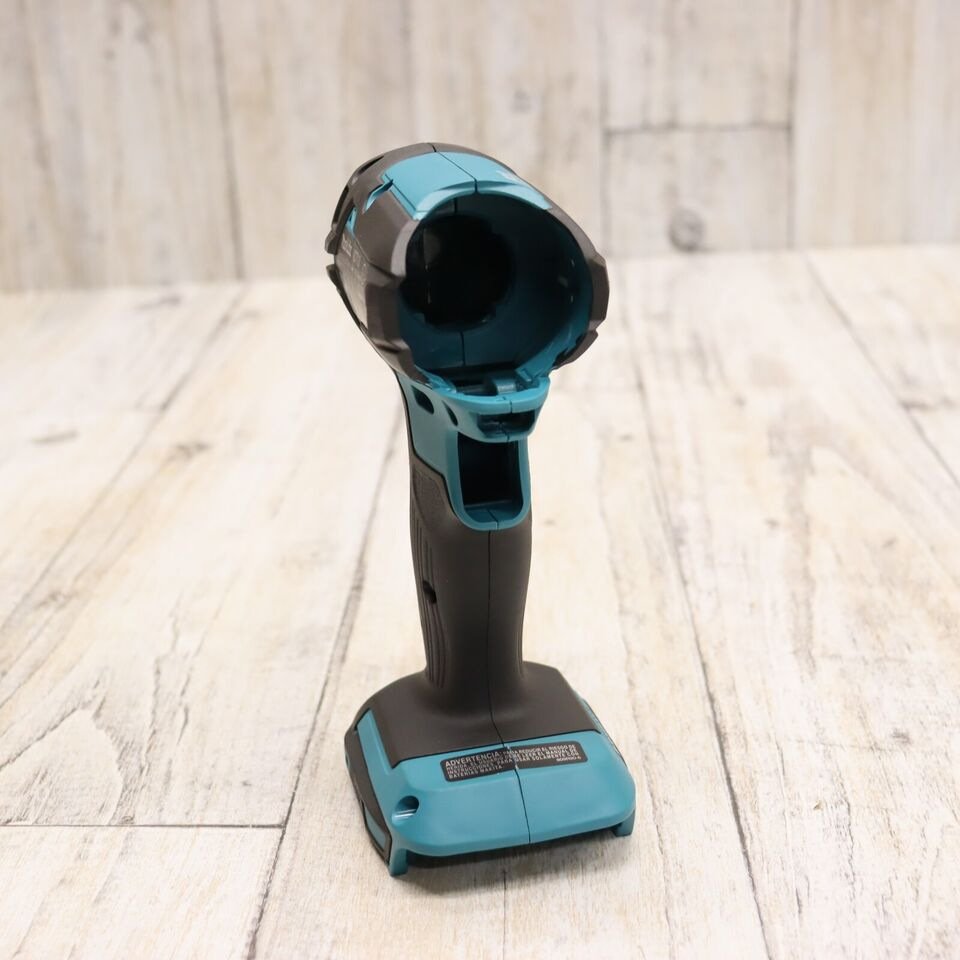

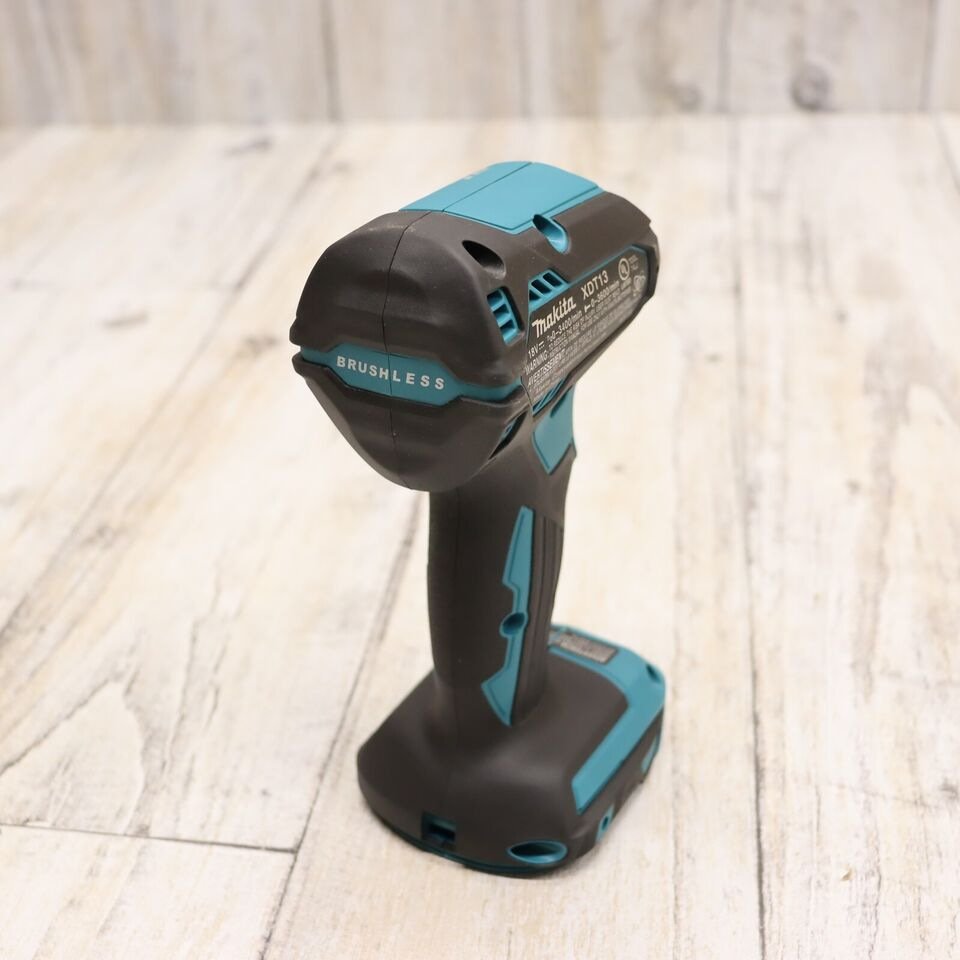

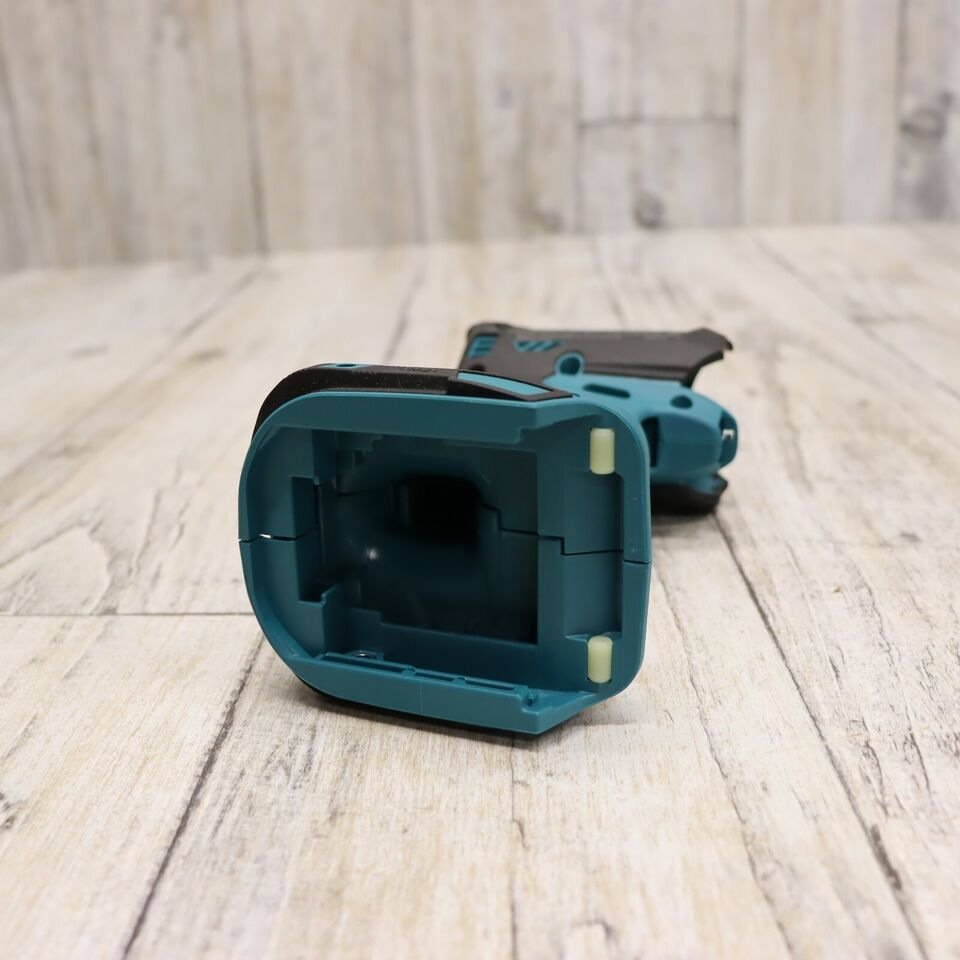

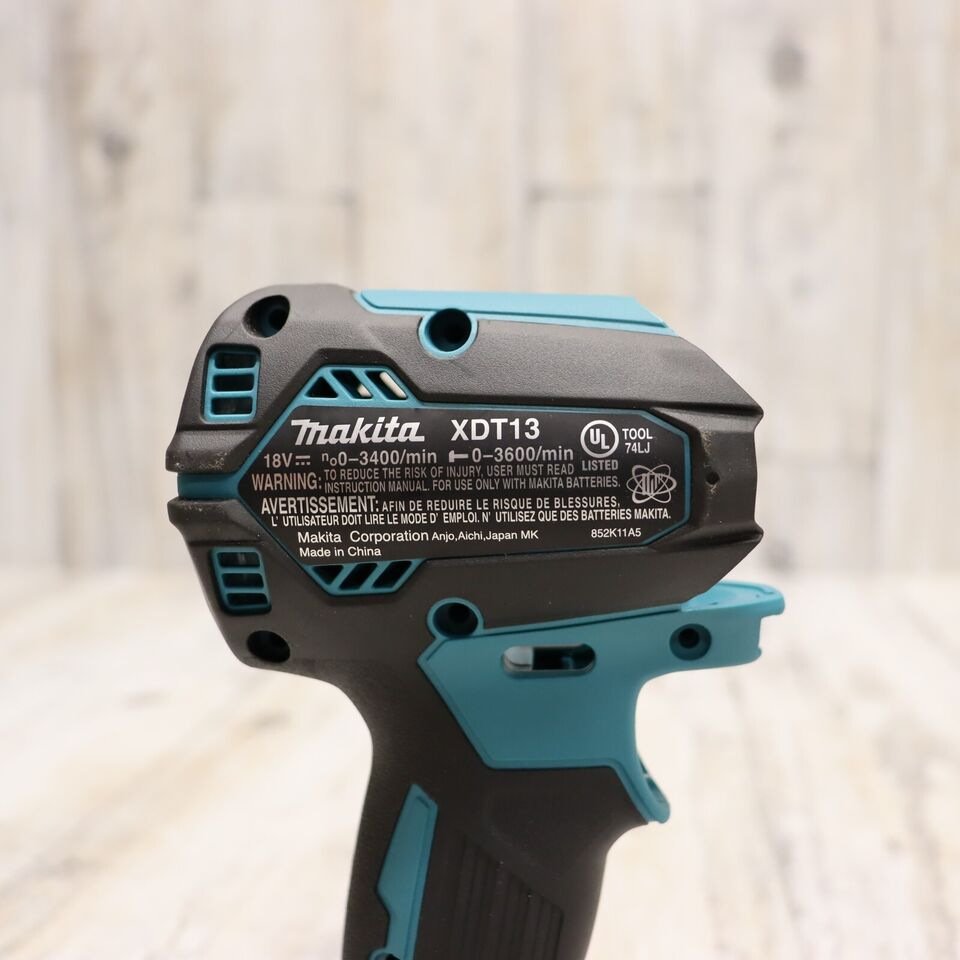

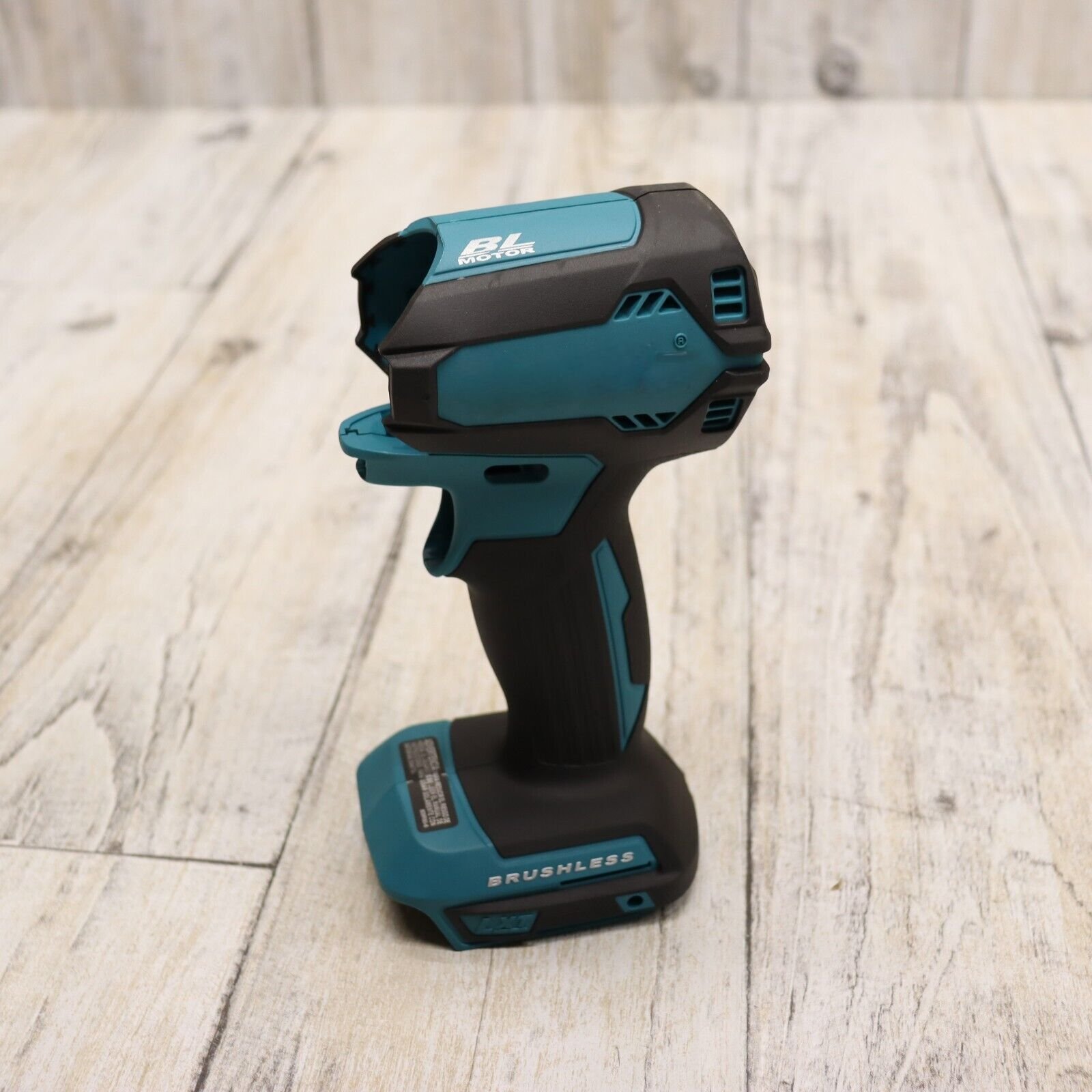

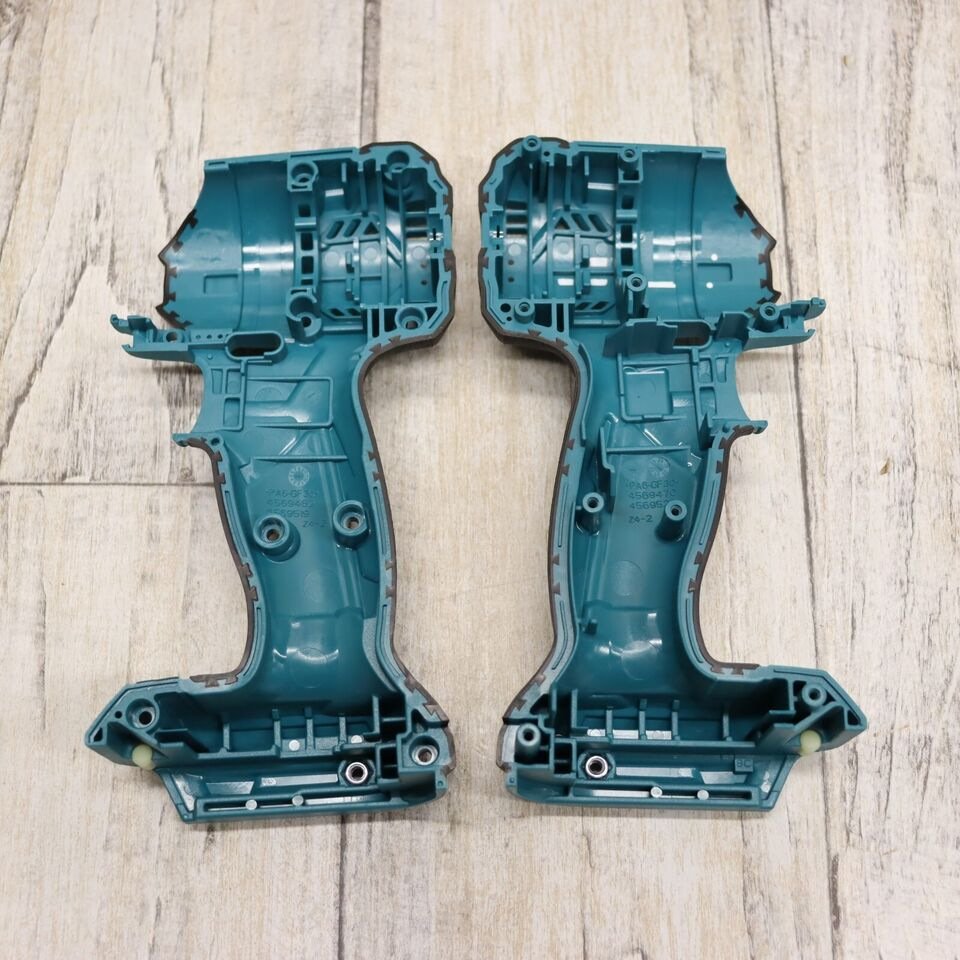

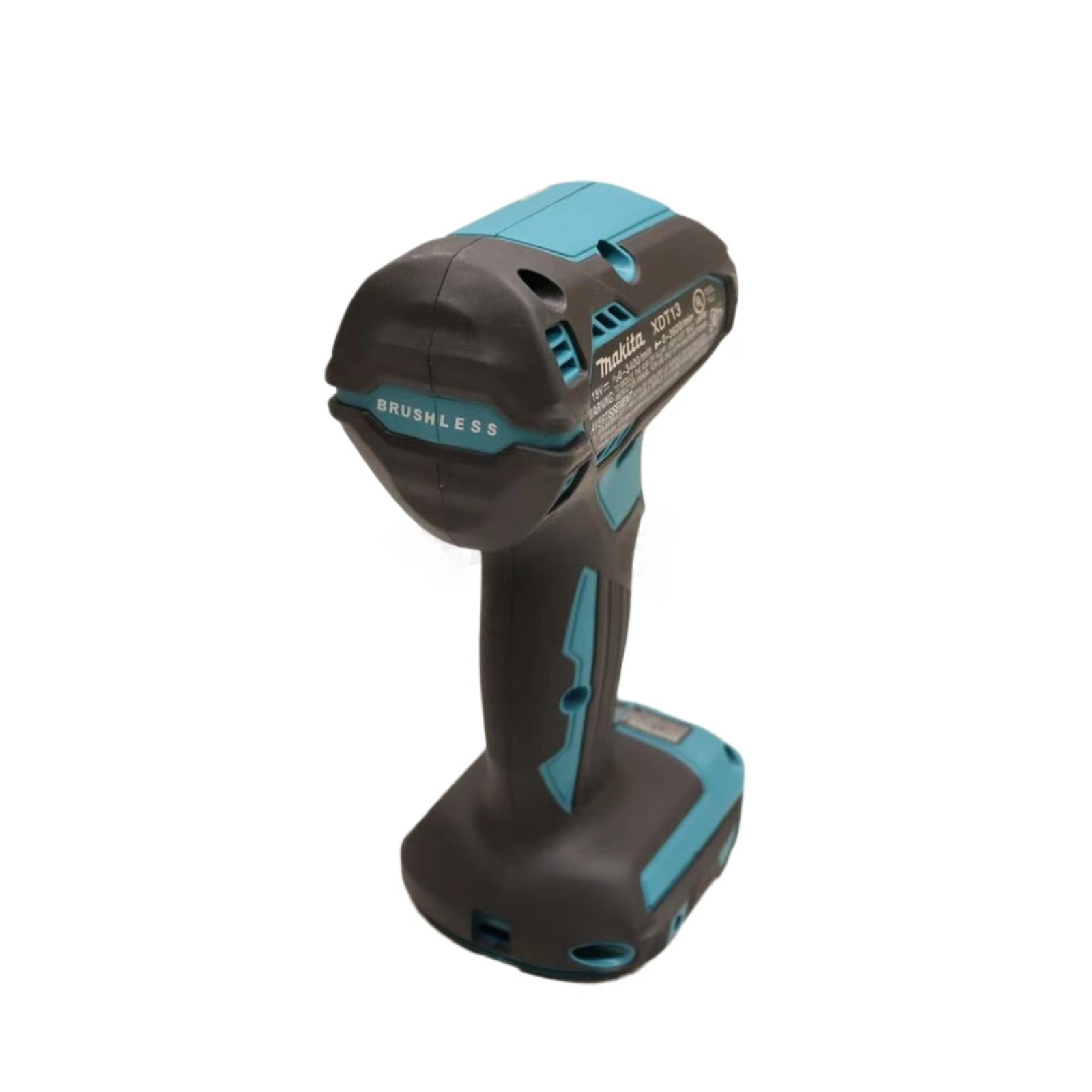

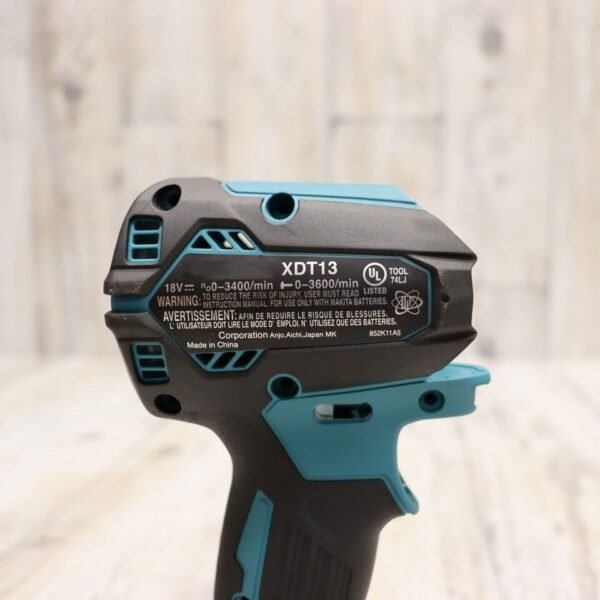

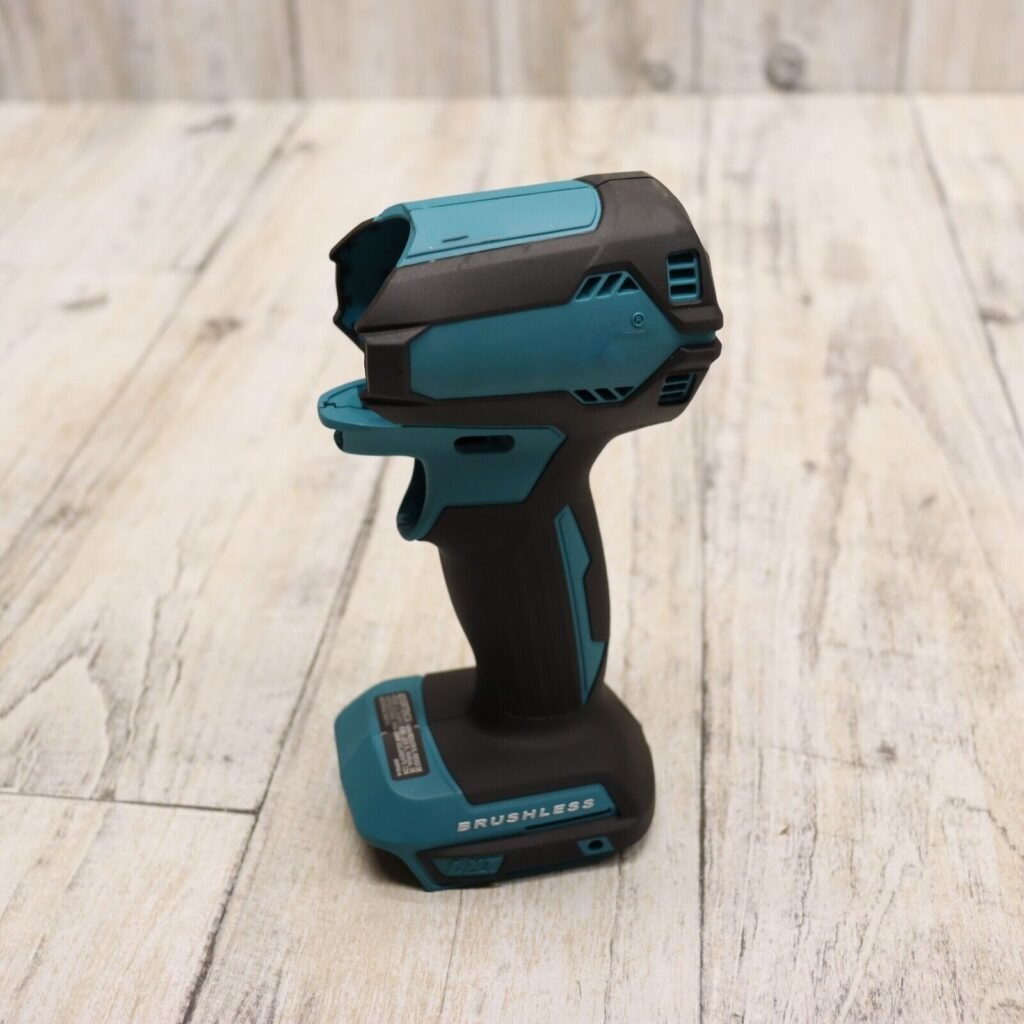

The Makita 183E34-9 Housing Set is the exact factory OEM left and right plastic clamshell designed for the XDT13 and XDT13Z. Buying a genuine housing is critical. Do not buy cheap 3D-printed aftermarket shells. If the wire routing channels are even a fraction of an inch off, you will pinch and sever the thin LED or control board wires when you screw the two halves together.

How to Rebuild Your XDT13 in 20 Minutes

Transferring your working electronics into the new housing requires patience, not an engineering degree. Here is how the pros do it on the workbench:

1. The Teardown: Remove the battery. Unscrew all the exterior Torx/Phillips screws from your broken casing. Gently lift the top half of the shell off.
2. The Golden Rule (Take a Photo): Stop what you are doing, pull out your phone, and take a brightly lit photo of the exposed wiring. Pay extreme attention to how the black and white wires wrap around the plastic screw posts near the trigger. You must replicate this exact routing in the new shell.
3. The Guts Lift: Grab the front metal gearbox and the rear stator. Lift the entire connected assembly (motor, anvil, trigger, and battery terminal) out of the broken shell as one solid unit.
4. The Drop-In: Lay the entire assembly into the bottom half of your new 183E34-9 housing.
5. The Wire Tuck: Using a flathead screwdriver or a plastic spudger, gently press the wires deep into the retention channels of the new housing.
6. The Clamshell Test: Place the top shell on. Do not force it. If the shell does not sit 100% flush on its own, a wire is out of place. Find the pinched wire, adjust it, and then secure the housing with your original screws.

🛑 Professional Risk Management Disclaimer

Always remove the 18V lithium-ion battery before opening a power tool casing. Ensure your workbench is completely free of metallic dust or steel shavings before opening the casing; brushless magnetic rotors will attract metal shavings instantly, which will destroy the motor if left inside the new housing. Do not overtighten the housing screws during reassembly, as this can strip the plastic threads. FixPartHub assumes no liability for tool damage or injury resulting from improper repair procedures.

Stop Taping, Start Rebuilding

A cracked impact driver is a ticking time bomb. Ditch the electrical tape, protect your expensive brushless electronics, and restore the structural integrity of your tool with a fresh factory shell.
