How to Fix the DeWalt “Death Grind”: Rebuilding the DCD796 & DCD797 Gearbox

It happens in a split second. You are driving a 3-inch lag screw into dense, pressure-treated lumber, or maybe you are drilling through masonry with your hammer setting engaged. Suddenly, there is a loud metallic CRUNCH.

You pull the trigger again. The brushless motor whines perfectly, but the chuck barely moves. Instead of smooth rotation, your drill emits a horrific, rattling grinding noise. Alternatively, your speed selector switch might be physically jammed, leaving your tool caught in a useless “neutral” between gears 1 and 2.

If this sounds familiar, your drill is suffering from what tool mechanics call the “Death Grind.”

Most guys will curse, toss the $150 bare tool into the trash, and drive to the big box store to buy a new one. But if you have 15 minutes and a Torx screwdriver, you can completely rebuild the drivetrain and get back to work for a fraction of the cost. Today, we are looking at the ultimate drop-in fix: the DeWalt N438603 Transmission Assembly.

Anatomy of a Blown Gearbox

To understand why the DCD797 chuck is not spinning but the motor runs, you have to look inside the transmission.

The DCD796 and DCD797 series are powerful 20V MAX XR Brushless compact hammer drills. That brushless motor generates massive torque. To transfer that torque to the chuck, DeWalt uses a complex planetary gear system housed inside a plastic and metal casing.

When you subject the drill to sudden, extreme stress (like the bit binding up in a knot of wood, or dropping the drill on its nose while it’s spinning), the microscopic teeth on those internal ring gears shear completely off. The motor is spinning the primary shaft, but without those gear teeth to catch the linkage, the chuck remains dead, and you hear the broken metal shards grinding against each other.

The Myth of the “Impossible” Repair

Dealerships and repair centers want you to think that opening up a drill is a magical, complex process that will result in a pile of springs and ball bearings exploding across your workbench.

If you were trying to rebuild the individual gears one by one, they would be right. But that is not how modern tool repair works.

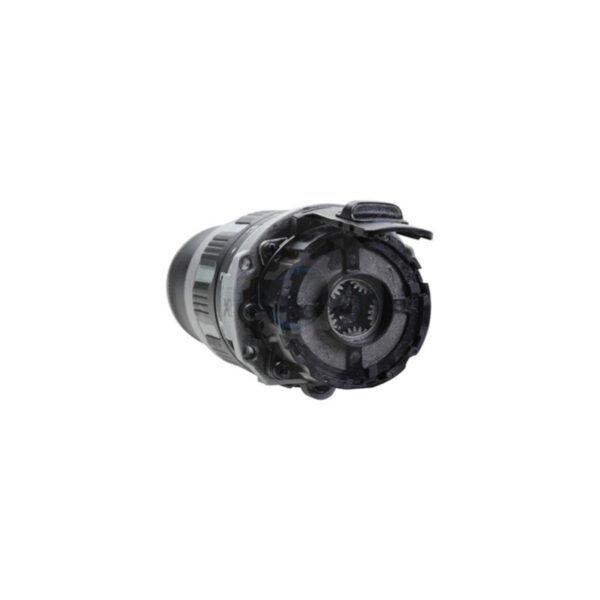

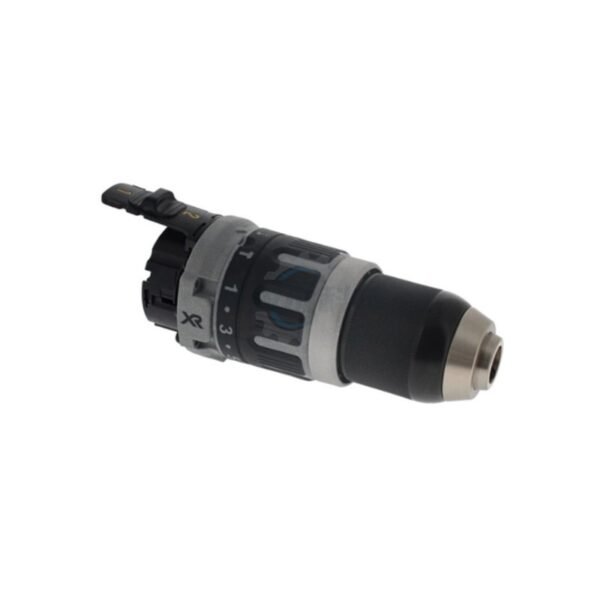

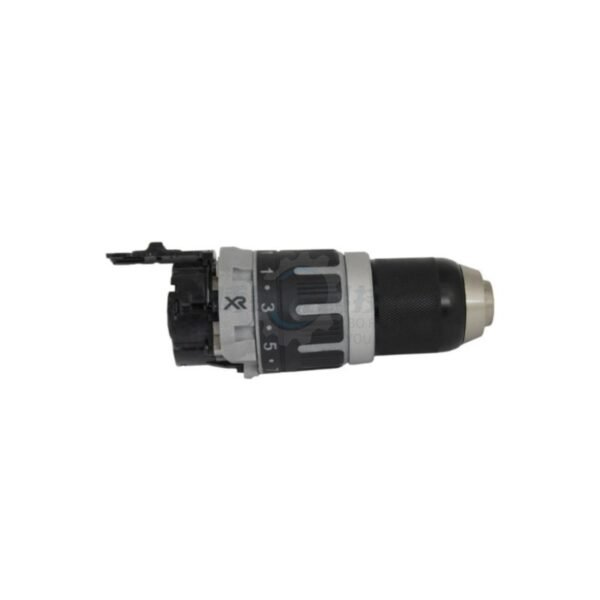

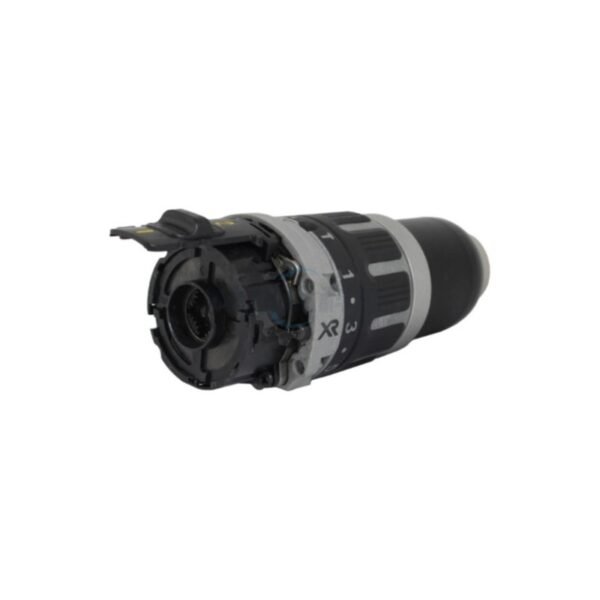

The DeWalt N438603 Transmission is a modular, pre-assembled, fully enclosed unit. It contains the entire planetary gear set, the mechanical clutch, the hammer mechanism, and the speed selector switch, all factory-sealed and pre-greased. You are not rebuilding a transmission; you are simply swapping a cartridge.

The 15-Minute Bench Fix (How to Install the N438603)

Here is how the pros execute a DeWalt N438603 transmission replacement in under 15 minutes:

1. Open the Clamshell: Remove all the T-10 Torx screws holding the yellow and black plastic housing together. Carefully lift the top half of the shell off.
2. Lift the Guts: The chuck, transmission, and brushless motor sit in the housing as one continuous tube. Lift this entire assembly out of the plastic casing.
3. The Twist and Swap: Grip the motor stator in one hand and the old broken transmission in the other. Give it a slight twist and pull. The transmission will detach from the motor. Take your new N438603 assembly, align the gear splines with the motor shaft, and lock it into place.

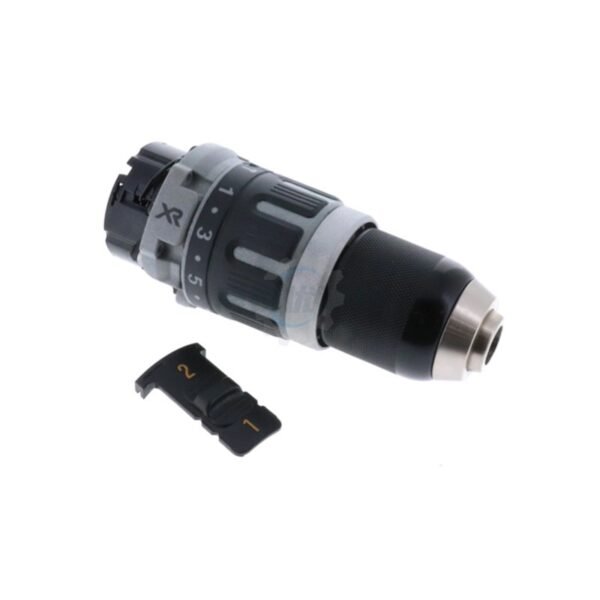

4. The Critical Alignment: Place the combined unit back into the bottom half of the plastic shell. Pay close attention to the red speed selector switch on top. It must slot perfectly into the grooves of the plastic housing. If it is misaligned, the drill will be stuck between gears 1 and 2 when you close the case.
5. Button it Up: Put the top shell back on, secure your Torx screws, and test the chuck.

🛑 Critical Risk Control & Safety Protocols

Tool repair is safe if you follow strict protocols. Please read this before opening your drill.

SAFETY NOTICE: Always remove the 20V Lithium-Ion battery before removing a single screw from the housing. The internal circuitry and exposed stator wires can cause severe short circuits, electrical burns, or permanent damage to the drill’s control board if accidentally bridged by a metal screwdriver.

Furthermore, the N438603 transmission comes pre-lubricated with factory-spec gear grease. Do not open the sealed module to add your own grease, and ensure your workbench is completely free of sawdust or metal shavings. Contaminants entering the open motor housing during the swap will destroy the brushless motor bearings. FixPartHub assumes no liability for injuries or tool damage resulting from improper installation.

Stop Buying New Bare Tools

If the motor spins and the LED light turns on, the “brain” and the “heart” of your drill are perfectly fine. Don’t throw away a perfectly good brushless stator just because a cheap mechanical gear sheared off.

Grab your Torx driver, order the replacement module, and keep your trusted drill in the fleet.
