Bosch RH540M Stuck on Full Speed? How to Diagnose and Replace the Speed Controller

If you punch through reinforced concrete for a living, you know the Bosch RH540M (SDS-max) and RH540S (Spline) are absolute beasts. The mechanical gearbox is practically indestructible. But eventually, almost every heavy-duty rotary hammer develops a highly specific, highly annoying electronic glitch.

You turn the variable speed dial down to a low setting to carefully start a hole in ceramic tile or brittle masonry. You pull the trigger, and the hammer violently blasts into 100% maximum RPM, rattling your teeth and completely destroying your starting point. Alternatively, the tool might surge uncontrollably, pulsing power up and down without you touching the dial.

Most guys assume the motor is burning out. It’s not. The carbon brushes and the stator are likely perfectly healthy. You are dealing with a dead Speed Controller Module.

Here is exactly why this happens, how to order the correct voltage replacement, and how to execute a 10-minute bench repair.

The Silent Killer: Silica Dust vs. Triacs

Why does the speed controller fail? It comes down to the environment.

Job sites are covered in microscopic silica dust. While Bosch heavily coats (pots) their internal electronics, years of heavy percussion vibration combined with ultra-fine concrete dust eventually breach the defenses.

Inside the handle sits a small electronic board featuring a potentiometer (the dial you spin) and a triac (the component that regulates the voltage going to the motor). When silica dust bridges the contacts, or when heavy vibration cracks the solder joints, the triac usually shorts closed.

When a triac shorts, it acts like a straight piece of wire. It bypasses the variable speed dial entirely and dumps full 110V or 220V mains power directly into the motor. That is why your drill is stuck on full speed.

⚠️ Critical Step: Choosing Your Voltage (1619P09590 vs. 1619P09589)

Before you order a replacement part, you must read the data plate on the side of your tool’s motor housing. Bosch makes two identical-looking speed controllers, but mixing them up will result in a catastrophic failure.

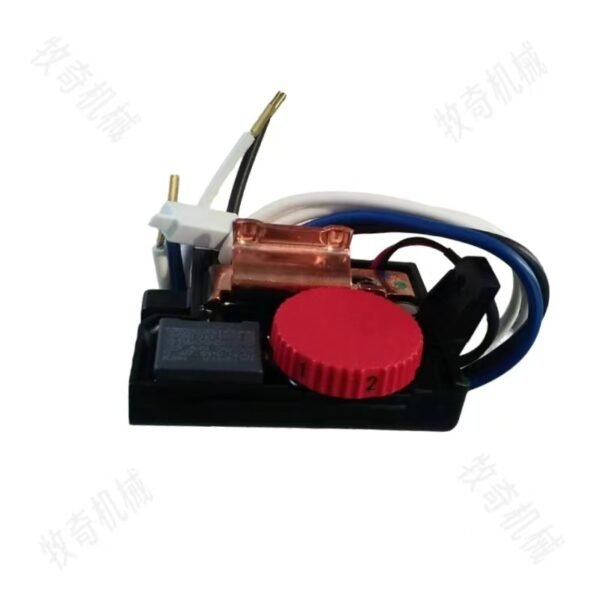

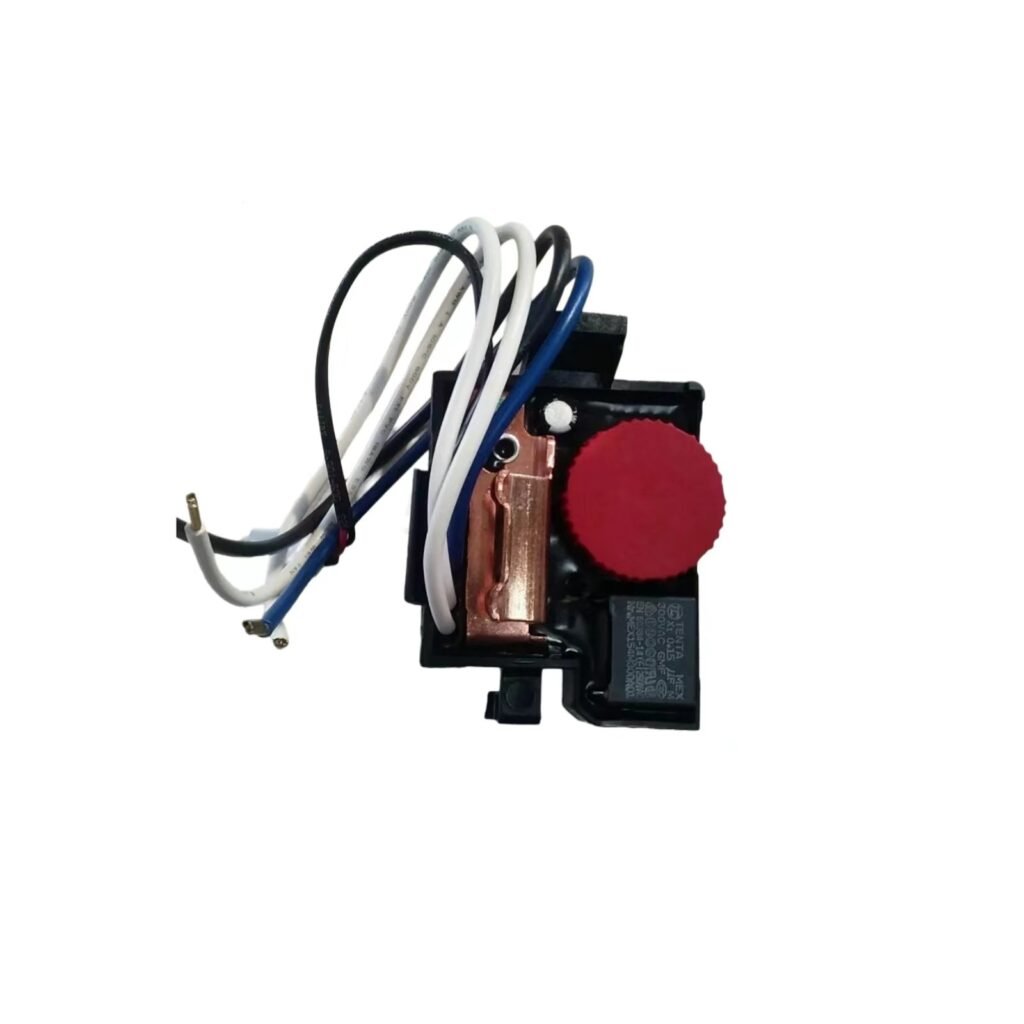

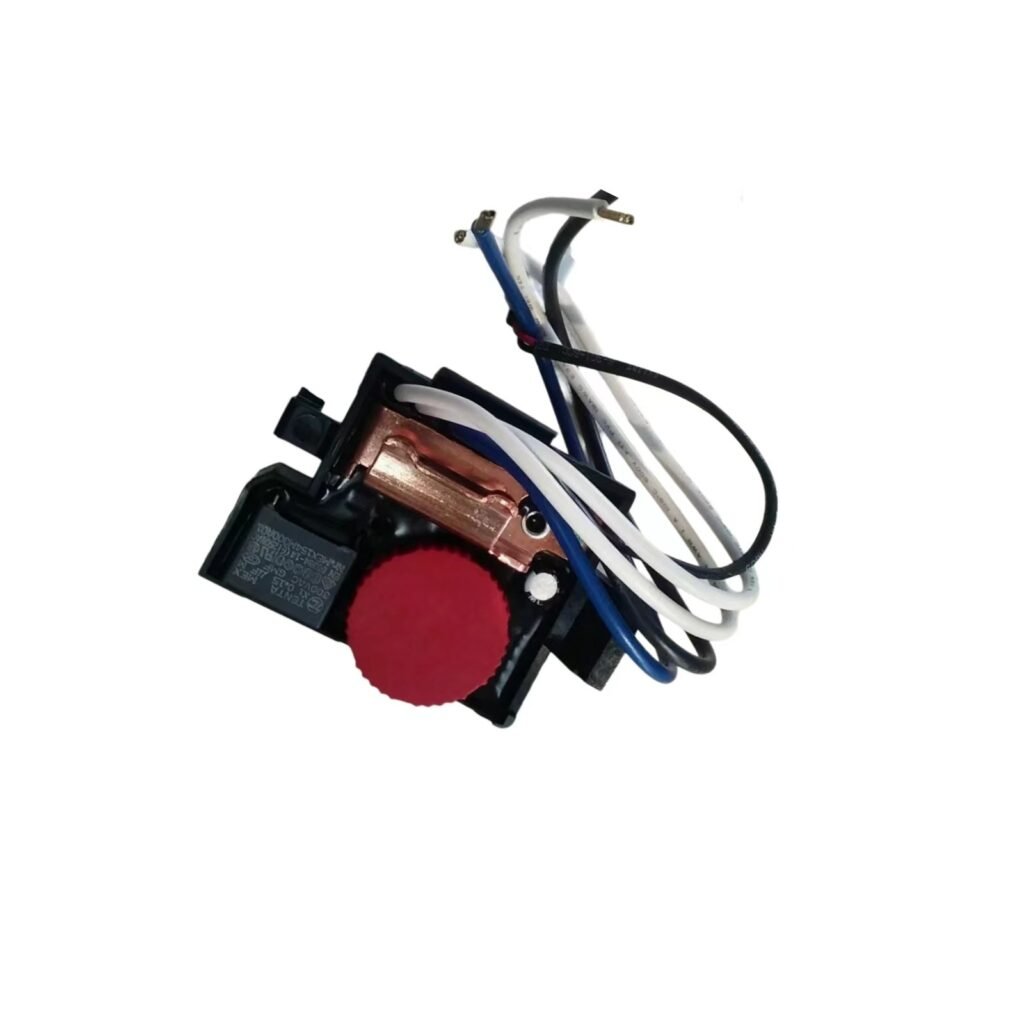

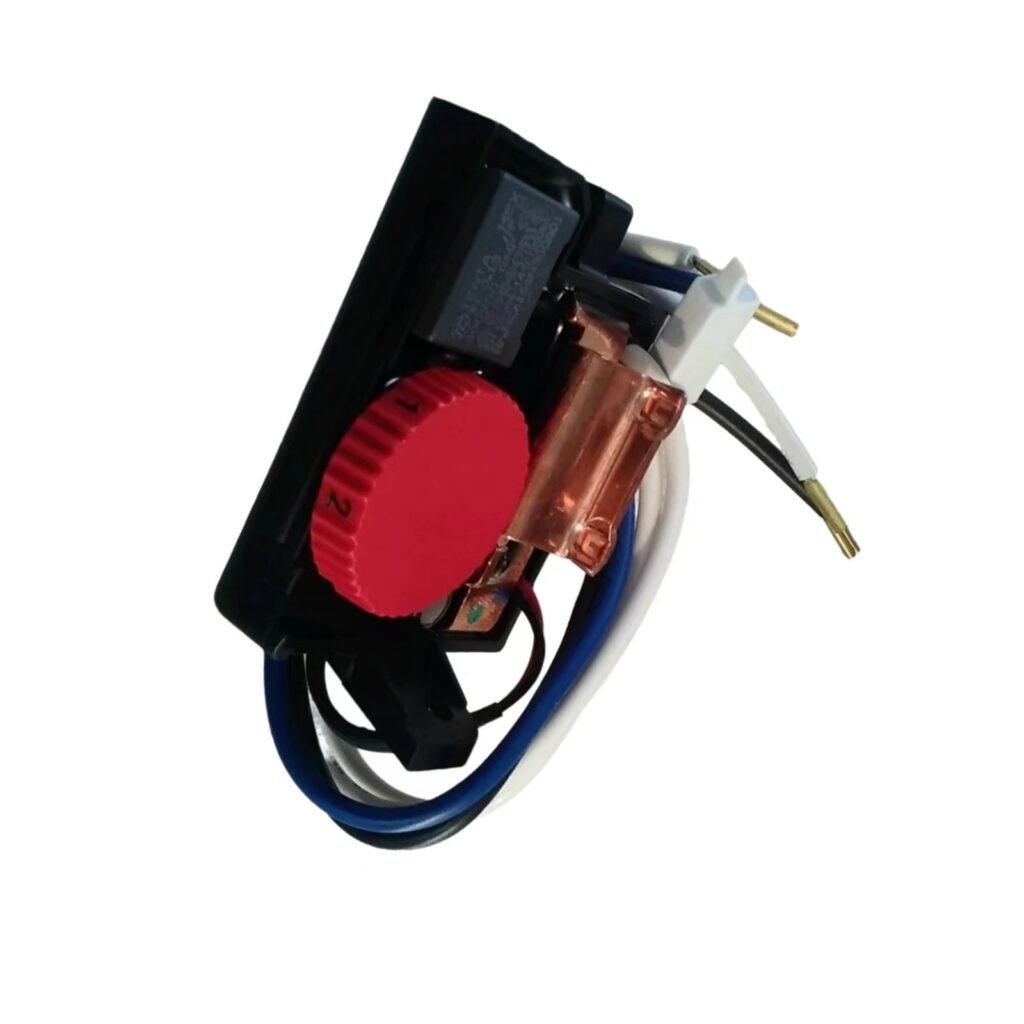

• For 110V / 120V Tools (North America & UK Jobsite Transformers): You must order the Bosch 1619P09590 Speed Controller.
• For 220V / 240V Tools (Europe, Asia, Australia): You must order the Bosch 1619P09589 Speed Controller.

What happens if you get it wrong? If you plug a 110V board into a 220V outlet, the capacitors will instantly detonate with a loud pop and magic smoke. If you put a 220V board on a 110V line, the tool will barely have enough power to spin.

The 10-Minute Handle Rebuild

You do not need to send your hammer to a service center and wait a month to get it back. The repair is modular and simple.

1. Unplug the Tool: Never open a tool housing while it is connected to mains power.
2. Open the Handle: Remove the Torx screws holding the lower rear handle assembly together.
3. Extract the Module: You will see the speed controller board sitting in a plastic slot. It is connected to the main wiring harness via standard spade terminals.
4. Swap and Reconnect: Use a pair of needle-nose pliers to gently pull the spade connectors off the burnt board. Plug them directly into the corresponding male terminals on your new 1619P09590 or 1619P09589 module.
5. Clean the Housing: Before closing the handle, use an air compressor to blow all the accumulated concrete dust out of the trigger mechanism and handle cavity.

Button the handle back up, and your rotary hammer will immediately respond to the lowest speed settings, giving you back the precision control you need.

🛑 Professional Safety Disclaimer

Working with concrete demolition tools carries inherent risks. Always ensure the tool is disconnected from all power sources before attempting electrical diagnostics. Silica dust is a severe respiratory hazard; always wear a NIOSH-approved respirator when blowing out tool housings. Ensure all spade connectors are tightly crimped; a loose connection inside a vibrating handle will cause arcing and create a fire hazard. FixPartHub assumes no liability for injury or tool damage caused by improper repair procedures.

Keep Your Hammer on the Job

A dead speed dial doesn’t mean a dead tool. Grab a Torx driver, order the correct replacement module, and keep your heavy-duty Bosch hardware out of the landfill.
