The Grinding Sound of Death: Why Your Drill Stopped Spinning
Sub-compact brushless drills like the DDF083 and DF032D are incredible for tight spaces, but their small footprint means the internal planetary gears are put under immense stress. When you constantly drive heavy lag screws or bind a hole saw in dense wood, the torque feedback eventually shears the teeth off the internal metal gears or shatters the plastic ring gear housing.
The symptoms are unmistakable: you pull the trigger, the motor hums perfectly, but the chuck either doesn’t move at all, or it emits a violent, metallic grinding noise the second it hits resistance.

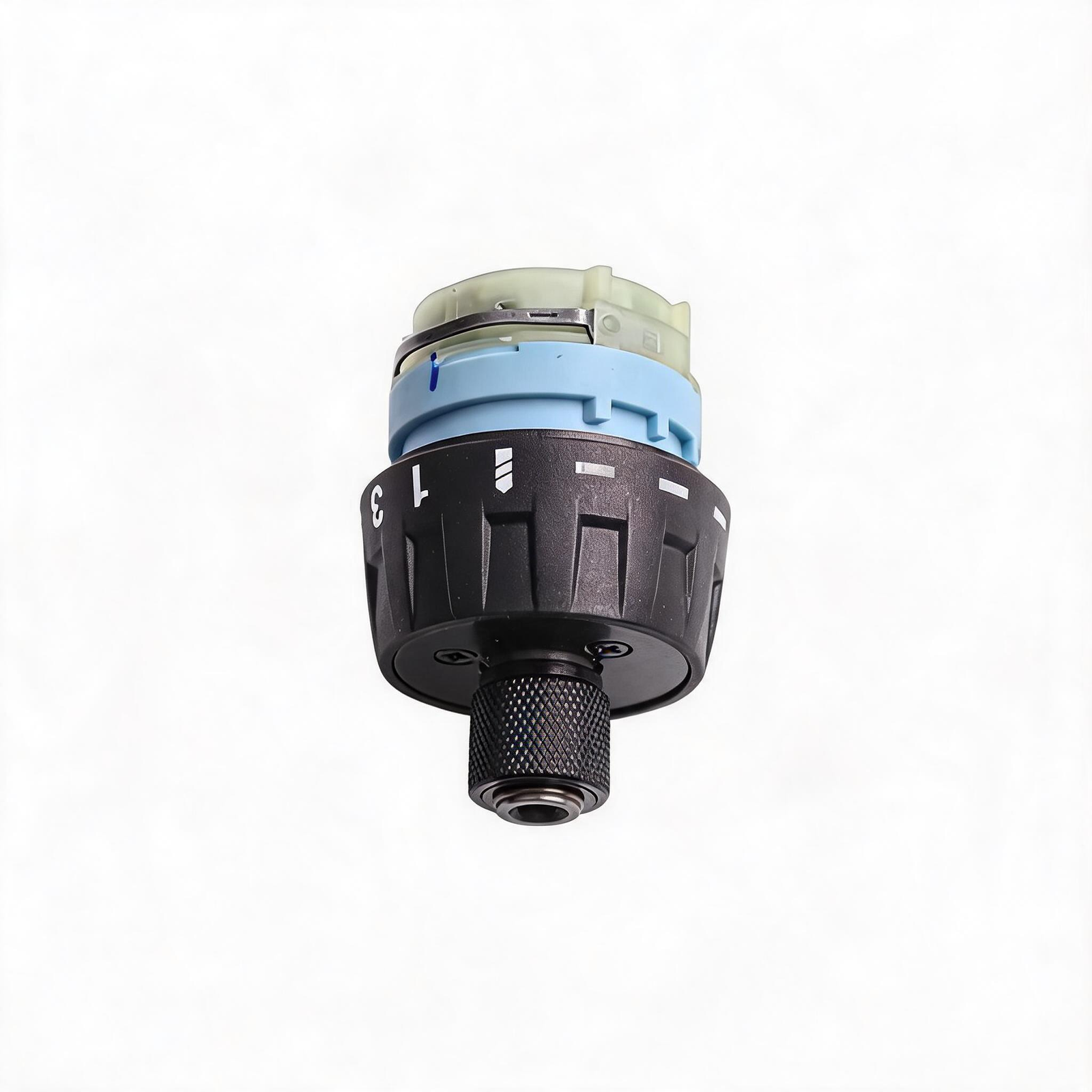

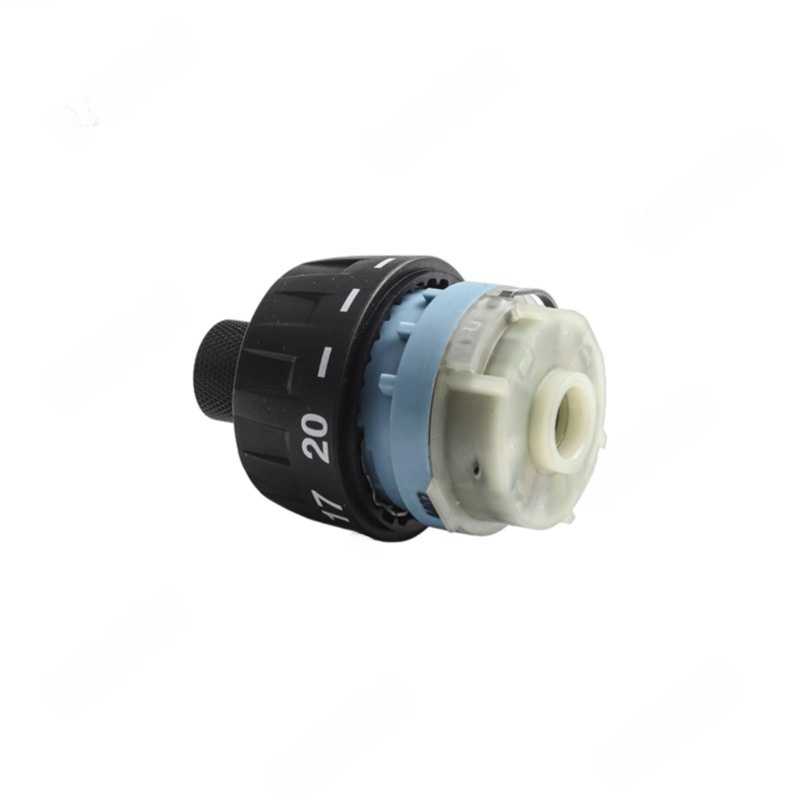

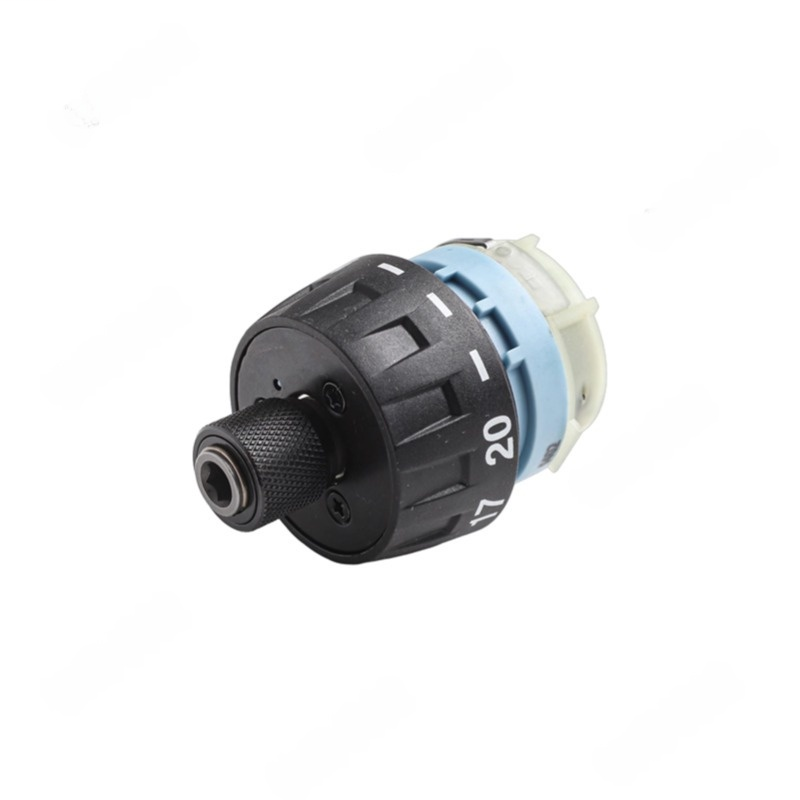

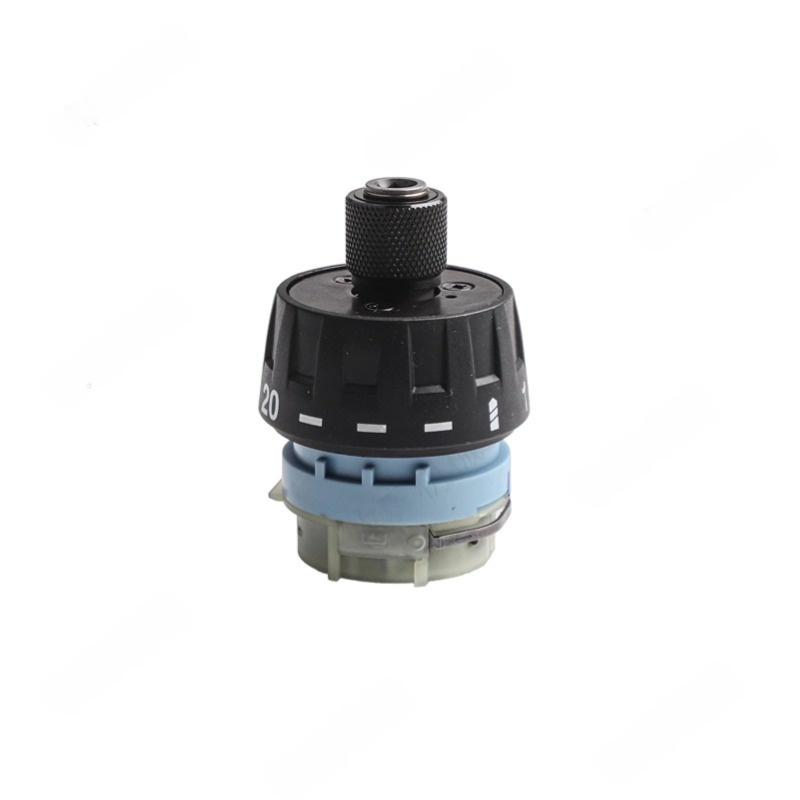

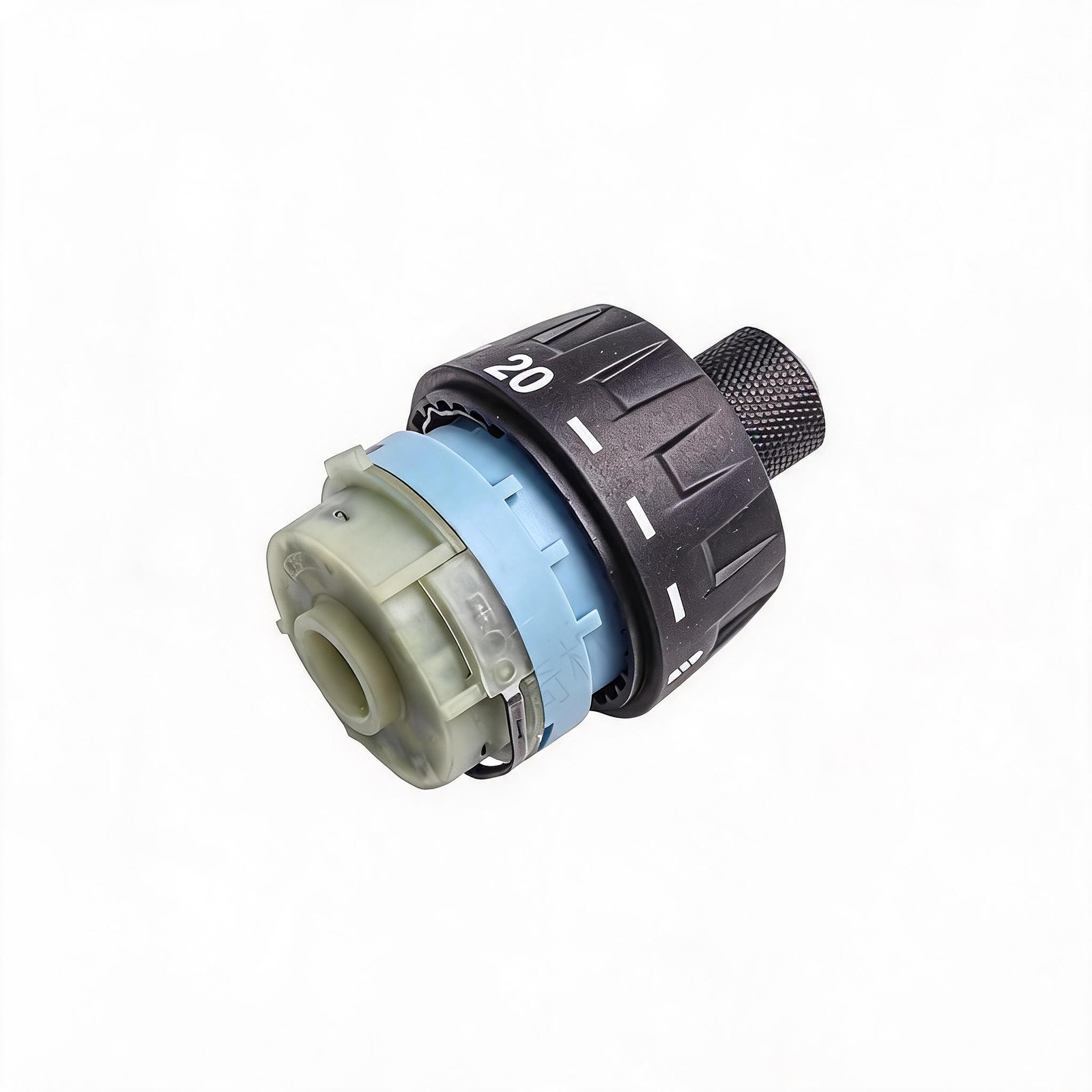

You cannot effectively replace a single stripped gear inside these tight transmissions. The only professional, long-lasting fix is dropping in this Premium Aftermarket 2-Speed Gearbox Assembly (Compatible with 123869-6 / 127599-1). It completely replaces the compromised drivetrain, linking your healthy brushless motor back to the chuck with zero slip.
Tech Q&A: From the Mechanic’s Bench
Is it hard to align this new gearbox with my motor?
Not at all. The rear of this aftermarket gearbox features the exact spline and mounting hole pattern as the factory unit. Simply unbolt your old transmission from the motor face, slide this new one on until the motor gear meshes with the rear planetary gears, and drive the screws back in.
My drill is stuck in high speed and the switch won’t move. Will this fix it?
Yes. The physical speed-selector switch on top of your drill connects directly to a shifting fork inside this gearbox assembly. If you cannot change speeds, it means the shifting fork is bent or jammed with metal shavings from destroyed gears. Replacing the entire transmission assembly solves this instantly.
Do I need to add grease before installing?
No. This unit arrives completely assembled and pre-lubricated with the correct specification of high-temperature gear grease. Opening the housing to add more grease can actually cause hydraulic lock-up inside the transmission. It is a true “drop-in” part.
Yes, this specific aftermarket transmission assembly (replacing 123869-6 and 127599-1) is a standardized mechanical component used in both the 18V LXT DDF083 and the 12V Max CXT DF032D sub-compact drill/drivers.
This happens when the internal planetary gears or the ring gear inside the transmission have stripped their teeth. The motor is spinning freely, but it can no longer transfer that rotational force to the chuck. A complete gearbox replacement is required.
Sí, esta caja de engranajes de repuesto (aftermarket) es un reemplazo directo y exacto para los números de pieza 123869-6 y 127599-1. Restaura toda la fuerza y el torque de su taladro DDF083 y DF032D.
