The “Wandering Blade” Syndrome: Why Your Jigsaw Can’t Cut Straight
The Bosch PST 700 E and PST 650 are fantastic jigsaws, but they rely entirely on one small component to keep the blade aligned: the Guide Roller (Support Roller). Every time you push the saw forward through thick plywood or hardwood, the back of the T-shank blade presses violently against this roller. Over time, the intense friction cuts a deep groove into the metal roller, or the internal bearing completely seizes up.
When the guide roller fails, the blade has no lateral support. It will immediately begin to bend and flex sideways during a cut. The result? You trace a perfectly straight pencil line on top of the wood, but the bottom of the cut is wildly slanted and ruined.

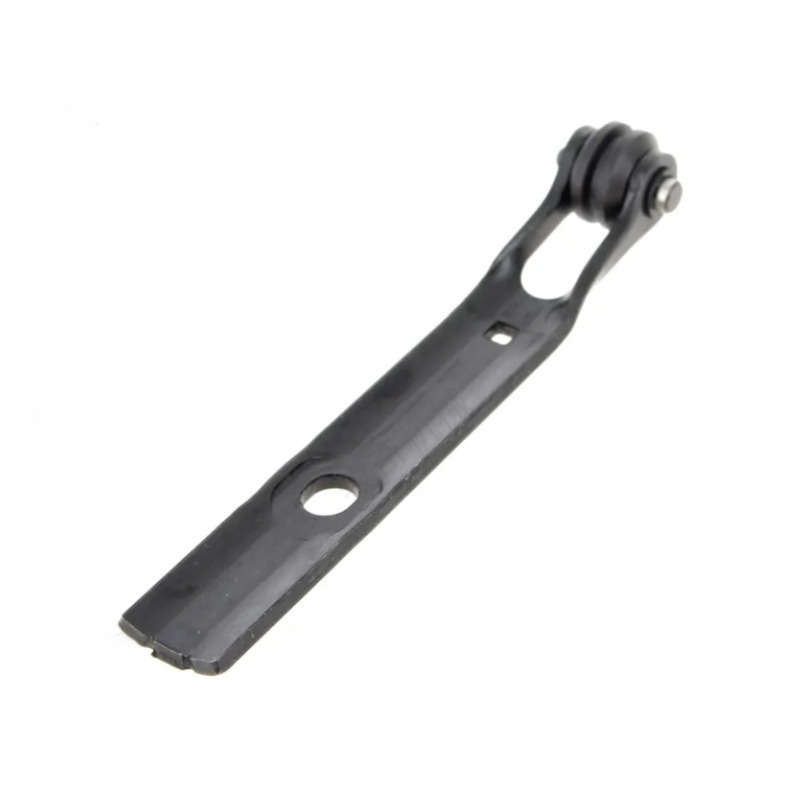

This Premium Aftermarket Guide Roller Assembly (Compatible with 160804011G) is the exact mechanical replacement you need. It drops perfectly into the tool housing, providing a fresh, perfectly grooved bearing surface that locks your blade strictly at 90 degrees.
Tech Q&A: From the Woodworker’s Bench
Do I need to lubricate this new roller?
While the internal bearing is pre-lubricated, we highly recommend placing a single drop of light machine oil on the spinning roller once a month. Keeping the roller spinning freely against the back of the blade prevents premature grooving and drastically extends the life of this part.
My saw blade keeps popping out of the roller. Will this fix it?
Yes. If your blade is jumping out of the roller channel, it means the channel on your old roller has worn too wide, or the roller arm itself is bent. Replacing the complete 160804011G assembly provides a tight, factory-spec channel that securely cradles the back of the blade.
Why did my original roller wear out so fast?
The most common cause of premature roller failure is “forcing the cut.” If you push the jigsaw forward faster than the teeth can clear the wood, you put massive crushing pressure on the guide roller. Let the tool do the work, and your new aftermarket roller will last for years.
Critical Installation Notes
- Clean the Housing: Before inserting the new roller assembly, use compressed air to blow out all packed sawdust from the mounting slot. A clean seat ensures the roller sits perfectly plumb.
- Blade Alignment: After installation, insert a brand-new blade. Slowly turn the motor by hand (unplugged) to ensure the back edge of the blade rides smoothly in the absolute center of the roller groove.
Yes, this aftermarket guide roller assembly is fully compatible with both the PST 700 E and the PST 650 jigsaws. It is a direct cross-reference and exact replacement for OEM part number 160804011G.
If your roller has a deep, jagged groove cut into the center, if it refuses to spin freely when you turn it with your finger, or if your cuts are consistently slanted (not perfectly 90 degrees), the roller is compromised and must be replaced.
Sí, este conjunto de rodillo guía (aftermarket) es un reemplazo directo y exacto para la pieza 160804011G. Funciona perfectamente para restaurar la precisión de corte en las sierras de calar PST 700 E y PST 650.
