Restore Full Torque to Your 12″ Sliding Miter Saw

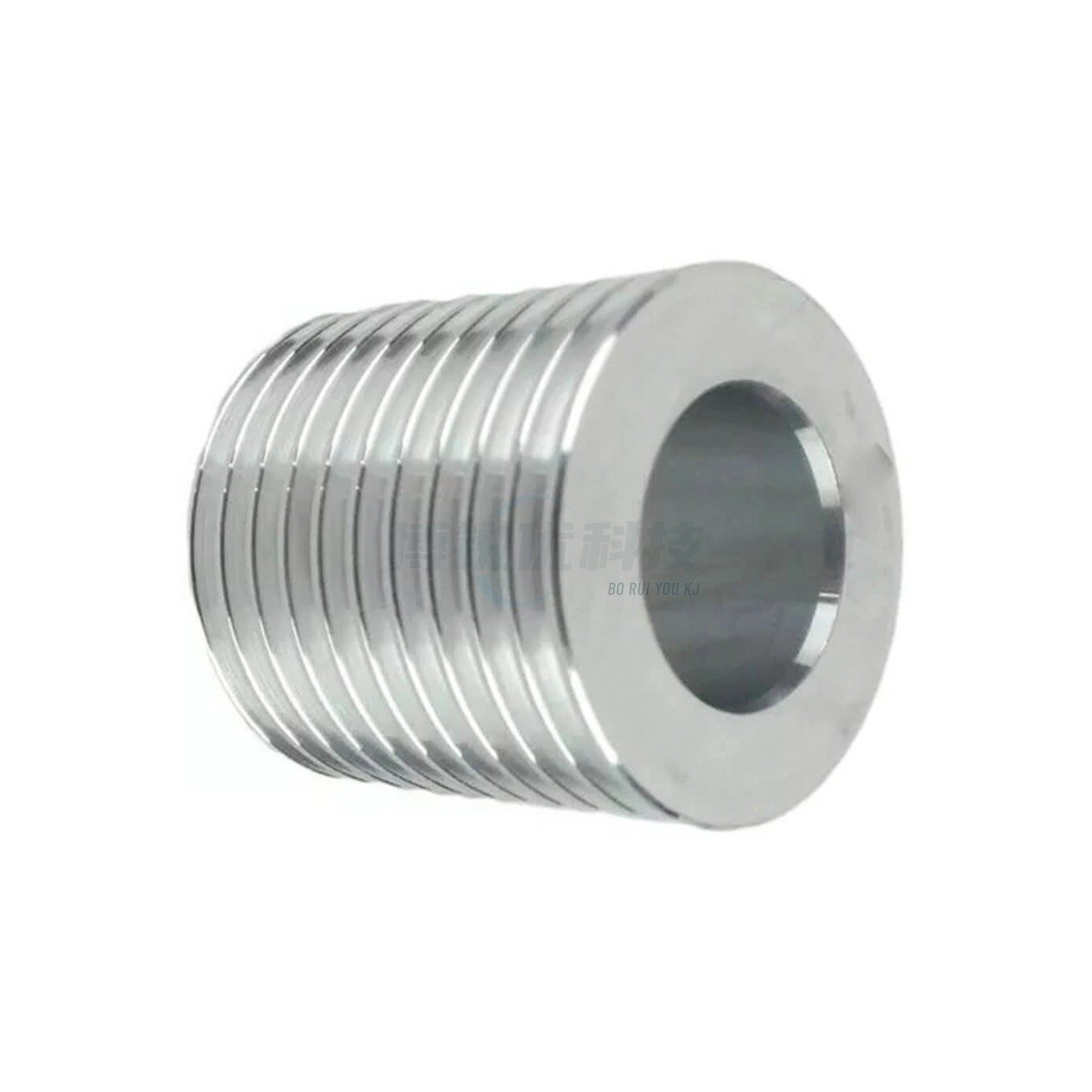

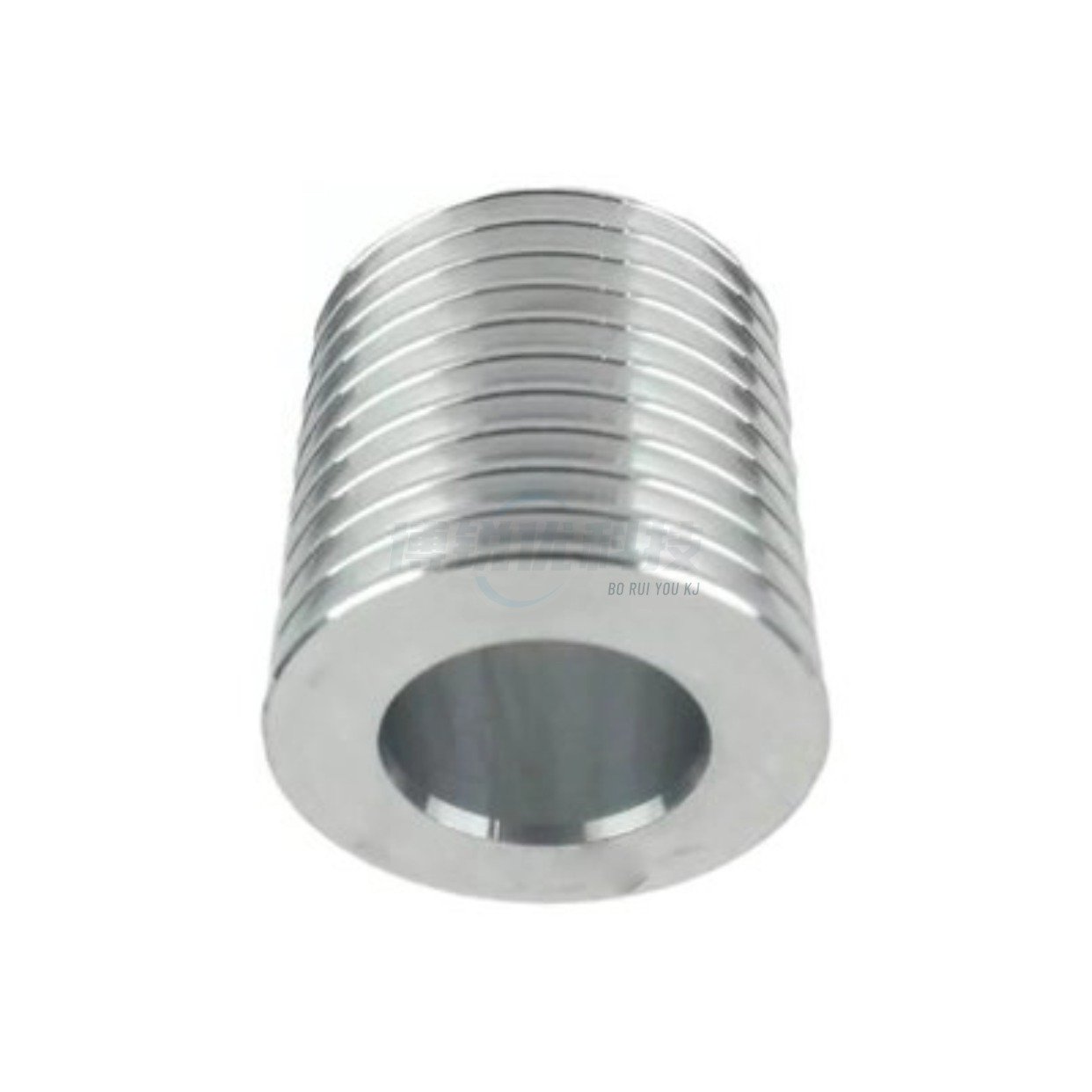

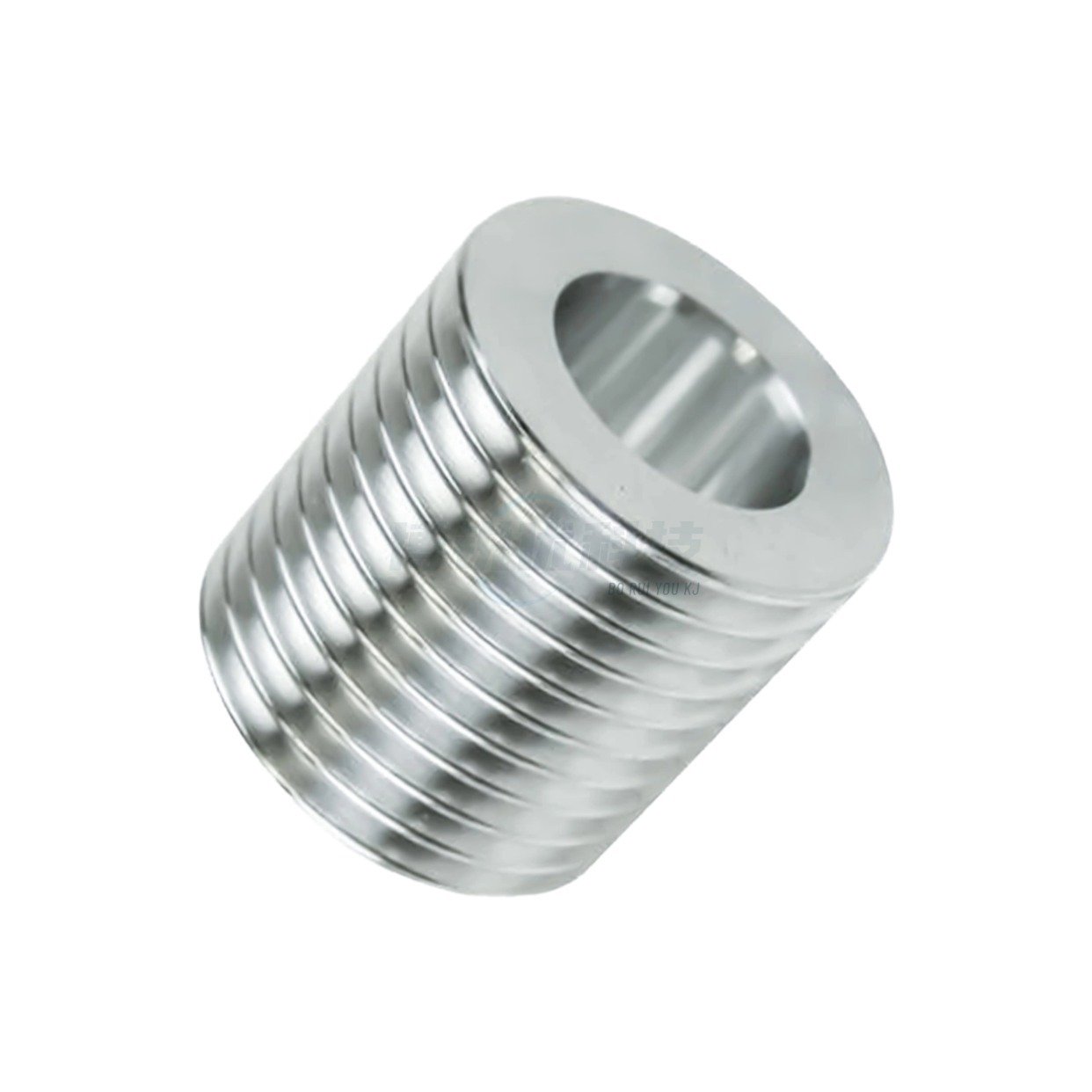

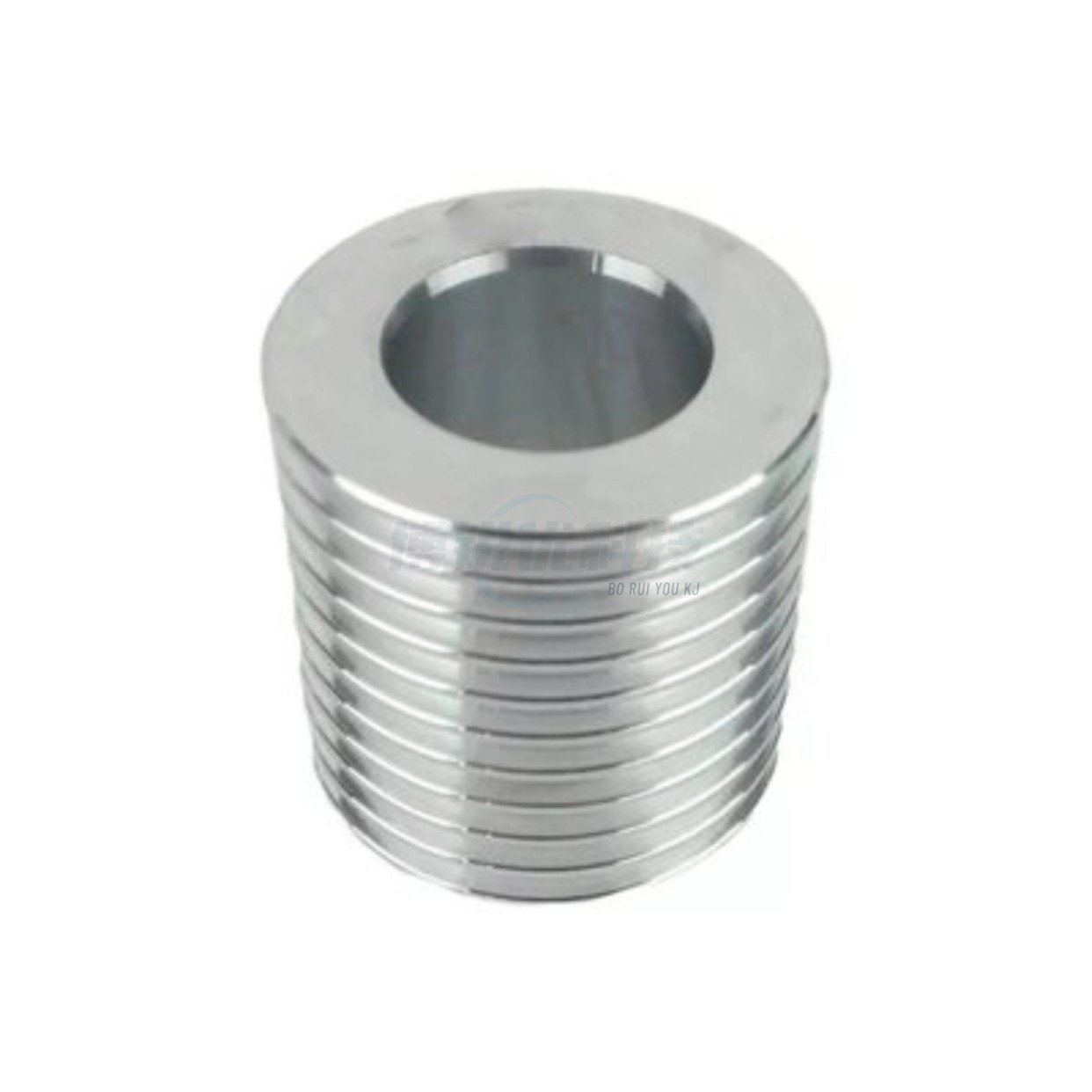

The drive system of a premium sliding miter saw relies on absolute friction synchronization. The N004510 Drive Pulley acts as the critical bridge transferring mechanical energy from your high-RPM motor to the cutting assembly. Over years of processing dense hardwoods or handling framing lumber, micro-fine wood dust forces its way between the drive belt and the pulley track. This abrasive dust acts like sandpaper, flattening the essential v-shaped grooves, inducing belt slippage, and severely reducing your tool’s cutting depth capacity under load. Replacing a compromised pulley with our premium aftermarket assembly ensures crisp throttle response and stable blade rotation.
Installation Best Practices & Inspection Protocols
Performing a pulley teardown provides the perfect opportunity to run a comprehensive drive-train health check. Observe these steps for optimal performance:
- Absolute Power Isolation: Disconnect the AC power cord or slide out both 60V MAX batteries before removing the belt guard casing.
- Examine the Poly-V Belt: Check your existing drive belt (commonly paired with part N010943) for inner rib cracking or fraying edges. Running a brand-new pulley with a stretched or glaze-damaged belt will cause the new pulley to wear prematurely.
- Shaft and Keyway Cleansing: Thoroughly wire-brush the motor shaft spline to remove old thread-locking compound residue and debris before pressing the new N004510 pulley into place.
- Torque Calibration: Thread the retention hardware smoothly to avoid cross-threading the armature axis. Apply a drop of medium-strength blue thread locker to prevent rotational vibration backing out the fastener.
Tech Q&A: Diagnostics and Powertrain Troubleshooting
Q: When I trigger the saw, the motor screams but the blade takes several seconds to accelerate. Is this the pulley?
A: Yes, a slow blade ramp-up paired with high-pitched whining is a definitive indicator of internal drive slip. The belt is failing to grab the flattened grooves of a worn N004510 pulley. Continued operation in this state will quickly generate enough frictional heat to ruin the bearing journals.
Q: Will this aftermarket pulley affect the electronic blade brake function on my DHS790?
A: No. The electronic brake function relies on electrical opposition within the motor module, but that braking force requires a solid mechanical connection to stop the blade. A crisp, unworn pulley ensures that brake force transfers instantly to the arbor without slipping.
Q: How can I tell if my existing pulley grooves are officially worn out?
A: Inspect the peaks of the internal grooves. A healthy pulley has sharp, uniform ridgelines. If the peaks look rounded, shiny, polished, or have deep gouges from belt strands, the part has reached its engineering wear-limit and must be swapped.
