Restoring Your Concrete Crusher
A hammer drill (combi drill) like the DCD776 is subjected to a level of abuse that standard drill/drivers never see. When you switch your tool into “hammer mode” to blast a hole through a brick wall, the transmission engages a mechanical percussion anvil. This creates violent, high-frequency vibrations while demanding maximum rotational torque from the motor simultaneously.

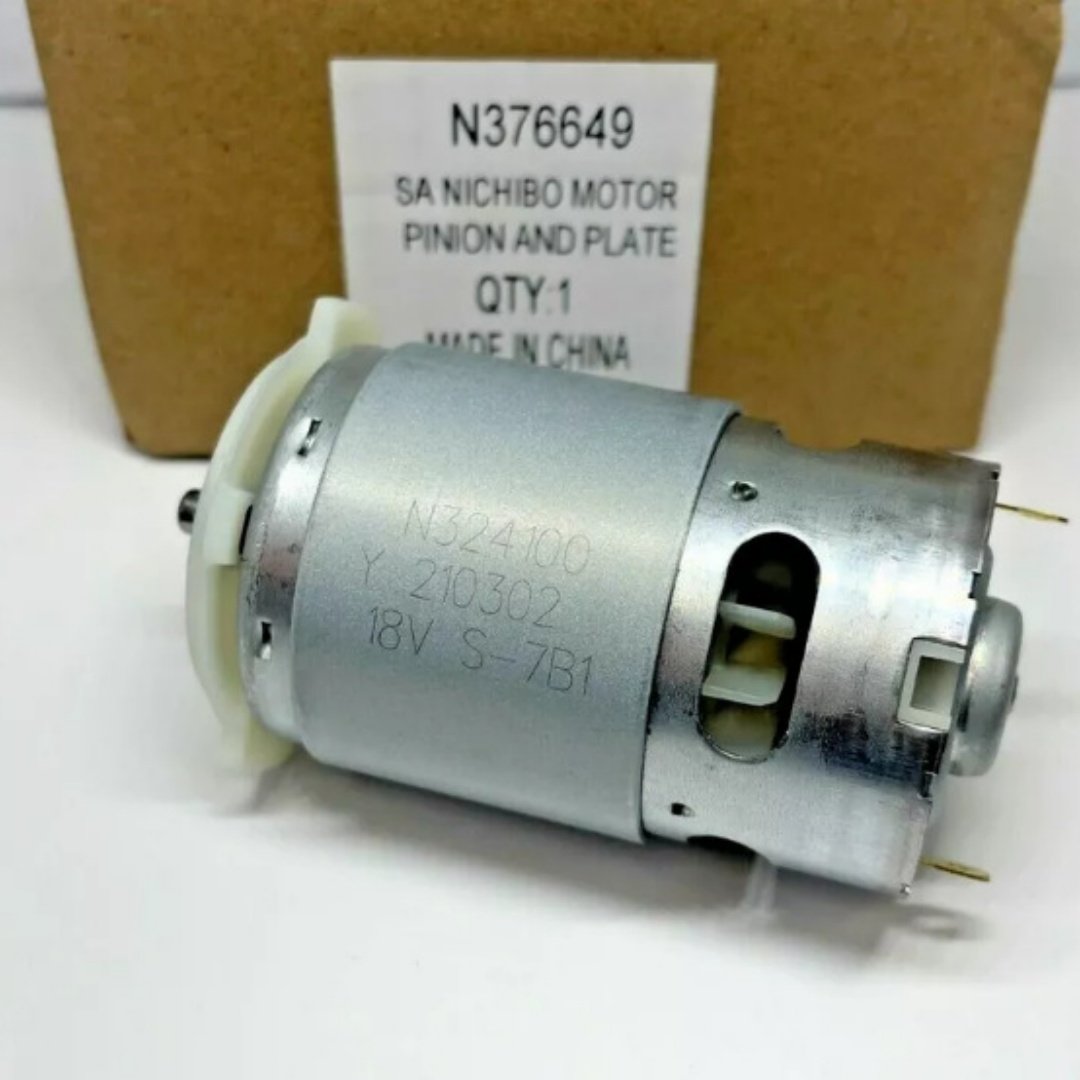

Under these brutal conditions, standard motors quickly overheat, melting the insulation on the copper windings or shattering the carbon brushes. Our FixPartHub Premium Aftermarket Motor (Replaces N362741) is explicitly built to handle this dual-threat environment. With its pre-pressed 18-teeth hardened steel pinion gear, it perfectly meshes with the DCD776’s reinforced planetary gearbox, ensuring every ounce of 18V/20V battery power is transferred directly into your masonry bit.
The “Masonry Dust” Repair Protocol
Hammer drills live in clouds of highly abrasive silica and brick dust. When replacing your burnt-out motor, you must perform these critical maintenance steps to protect your new investment:
- Purge the Housing: The vents on your old motor acted like a vacuum for masonry dust. Before soldering the new motor in, use an air compressor to blow out the entire plastic clamshell housing, paying special attention to the trigger switch assembly.
- Inspect the Percussion Anvil: While the motor is out, manually spin the transmission. If it feels extremely gritty or binds up, the brick dust has compromised the gear grease. You must clean and repack the gearbox with fresh lithium grease before installing the new motor.
- Secure the Wiring Routing: The intense vibration of a hammer drill will rub loose wires raw against the plastic housing. Ensure your soldered motor leads are tucked tightly into their designated retaining clips to prevent a future short circuit.
Tech Q&A: Hammer Drill Diagnostics
Q: I found a cheaper DCD771 motor. Can I just use that in my DCD776 since they look identical?
A: Absolutely not. While the outer casing of the motor might look identical, the DCD776 is a hammer drill platform. Its transmission requires precise gear alignment (OEM part N362741) to handle the percussion mechanism. Installing a standard DCD771 flat-drill motor can lead to immediate gearbox binding and stripped planetary gears.
Q: Why does the drill stop and flash the battery light when drilling into concrete? Is the new motor weak?
A: If the drill cuts out and flashes the LED, it is not the motor. This is the electronic overload protection circuit inside your DeWALT battery pack. You are likely applying too much body weight to the drill. Let the hammer mechanism do the work; leaning too hard binds the masonry bit and spikes the amperage, forcing the battery to shut down to prevent fires.
Q: Do I need to lubricate the 18-teeth gear on the new motor before installing it?
A: Yes. The pinion gear on the motor engages directly with the planetary gears in the transmission. You must apply a generous coat of high-quality gear grease (like a white lithium or molybdenum disulfide grease) to the teeth to prevent metal-on-metal wear and reduce gear whine.
