Revive Your Heavy-Duty Saws: The 614367-00 Brushes
Miter saws and tile saws endure brutal working conditions. Every time you pull the switch on your DW715 or D24000, high electrical currents pass through the carbon brushes to spin the armature. Over time, friction and heat naturally wear these brushes down to small stubs. If your saw is experiencing intermittent power drops, struggling to start, or producing a “firework show” of sparks from the motor vents, it is time for a replacement. The FixPartHub Premium Aftermarket 614367-00 Carbon Brushes ensure you have enough replacement sets to keep your fleet running smoothly without expensive downtime.
Essential Installation & Break-In Precautions
Replacing carbon brushes is quick, but doing it correctly prevents damage to your expensive motor armature. Follow these professional guidelines:
- Clean the Commutator: Before inserting the new brushes, look inside the brush holder. If the copper commutator (the spinning cylinder) is blackened with carbon dust, use an electrical contact cleaner or a specialized cleaning stick to polish it. A dirty commutator will quickly destroy new brushes.
- Always Replace in Pairs: Even if one brush looks slightly longer than the other, NEVER replace just one side. Mismatched brushes cause uneven electrical loads and will burn out your motor.
- The “No-Load” Break-In: After installing the new brushes, turn the saw on and let it run freely without cutting any material for 3 to 5 minutes. This allows the square edges of the new graphite to seat and curve perfectly to the shape of the spinning commutator, reducing future arcing.
Tech Q&A: Diagnostics and Usage
Q: Why does my DW715 electric brake not stop the blade anymore?
A: The electric braking system on these miter saws relies on reversing the polarity through the carbon brushes. If the brushes are heavily worn or caked with dust, the braking circuit fails, causing the blade to spin down slowly. New 614367-00 brushes usually restore the instant braking function.
Q: Is it normal to see some sparks with new brushes?
A: Yes, minor sparking is entirely normal when new brushes are first installed. As they run through the “break-in” period, the graphite wears down to match the exact curvature of the commutator, and the sparking will significantly diminish.

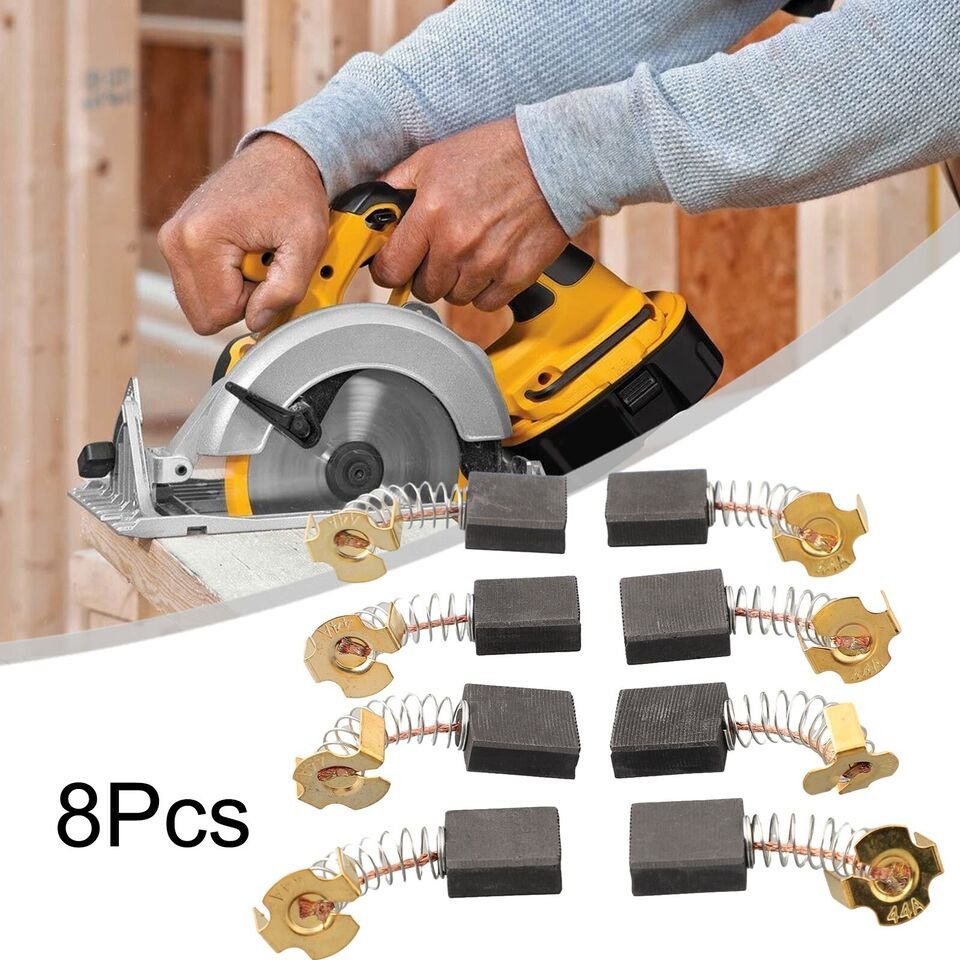

Q: Why buy an 8-pack?
A: Saws require two brushes to operate. This 8-pack provides 4 complete sets. For heavy-use environments like framing sites or tile-cutting stations, having backup sets on hand prevents a worn brush from stopping your workday dead in its tracks.
Legal Disclaimer: FixPartHub is an independent distributor of premium aftermarket power tool components. We are not affiliated with, endorsed by, or sponsored by DeWalt. All brand names, model numbers, and trademarks mentioned are the property of their respective owners and are used strictly for compatibility identification and diagnostic purposes.
Yes. This premium aftermarket carbon brush 8-pack is engineered to be fully compatible with popular 12-inch single and double-bevel compound miter saws that require part number 614367-00, including the widely used DW715 and DW716 models. They are a direct, drop-in replacement.
Unlike continuous-running tools, miter saws endure extreme “burst loads” due to constant starting and stopping for individual cuts. This rapid electrical cycling burns through carbon brushes much faster. For professional framing crews and busy woodworking shops, keeping an 5 Pairs (10 Brushes) on hand eliminates costly job site downtime and ensures your saws run strong all season.
The most obvious sign is a dead trigger—if you pull the trigger and the saw does nothing until you physically tap the motor housing, the brushes are too short to make contact. Other critical symptoms include a sluggish startup, a sudden drop in cutting power when hitting dense knots in the wood, or aggressive sparking visible through the motor vents.
