Stop Guessing Your Angles. Drill Perfect Cable Railings & Dowel Joints Every Time.
Drilling angled holes freehand into a stair post is a recipe for ruined lumber and crooked cable railings. When you are building a deck or crafting custom furniture, your drill bit naturally wants to “walk” down the wood grain. You need mechanical precision, not guesswork.

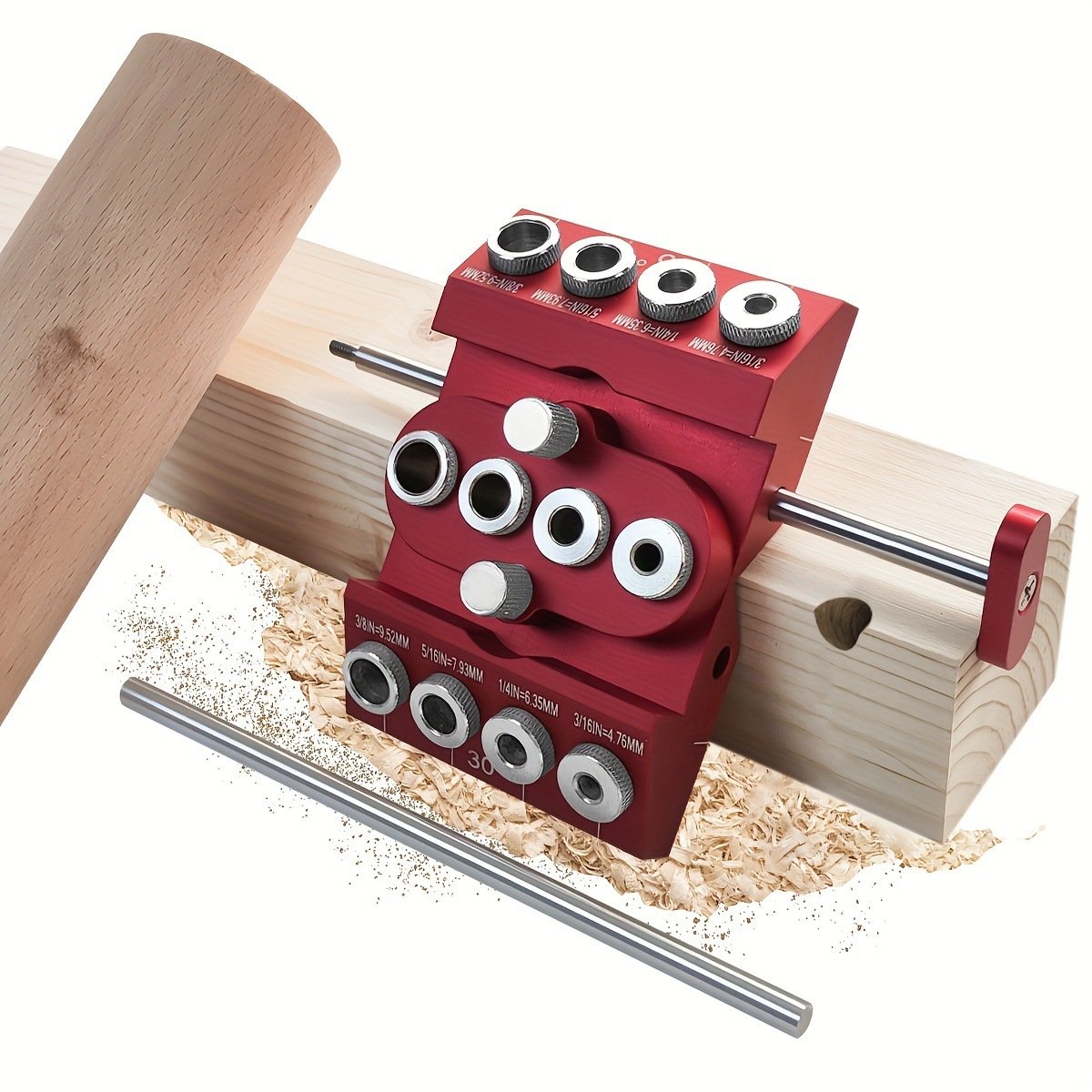

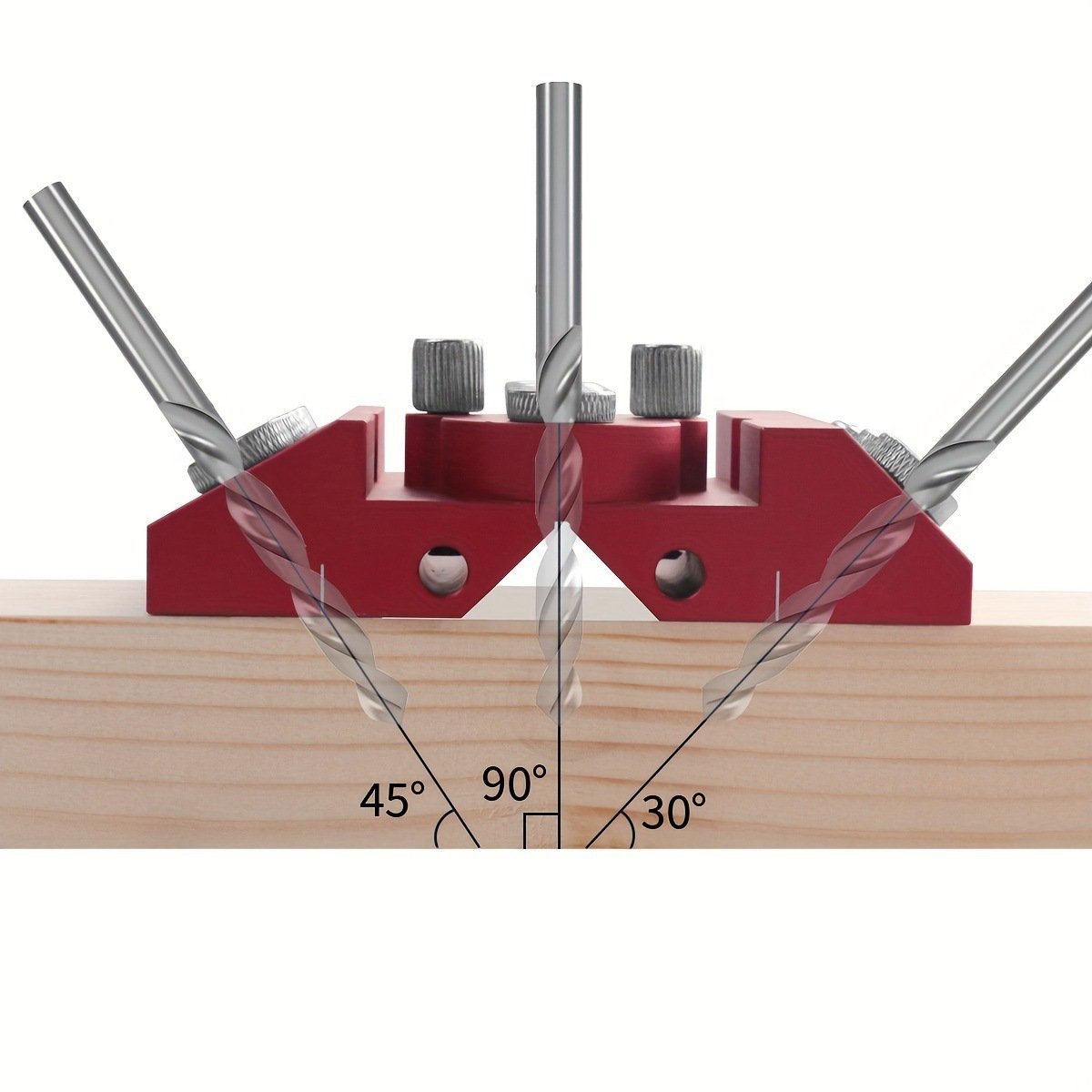

The FixPartHub Multi-Angle Drill Guide Block is a CNC-machined aluminum powerhouse designed to lock your drill bit into perfect 30°, 45°, and 90° trajectories. Upgraded with an innovative V-groove base for centering on round dowels, and extension positioning rods for rapid, repeatable hole spacing, this is the ultimate jig for framing, deck building, and complex joinery.
🔥 Pro-Grade Engineering Advantages
- Aerospace-Grade Aluminum: CNC-machined from a solid block of aluminum alloy and finished with an industrial anodized coating. It weighs a solid 520g, providing a stable, vibration-free base.

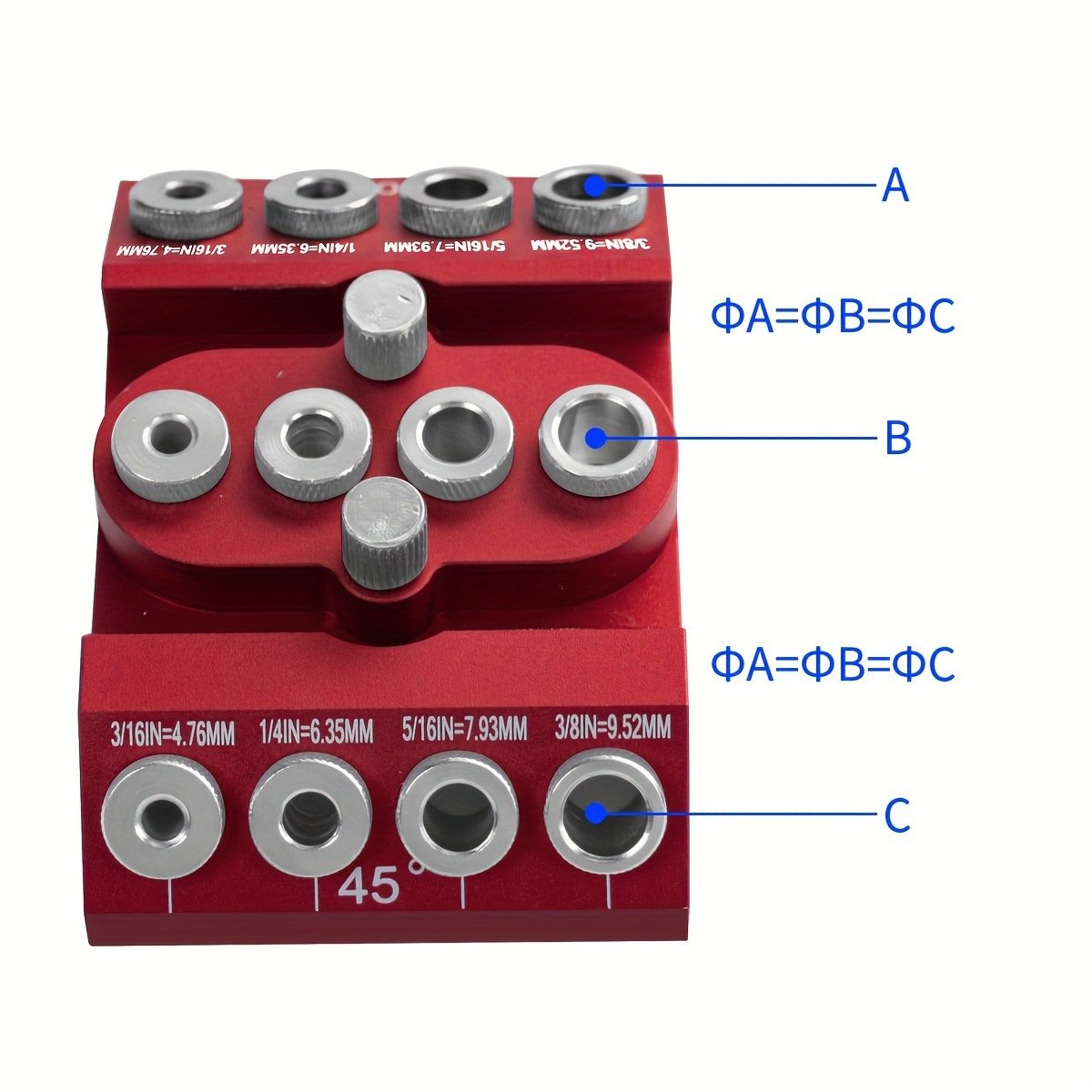

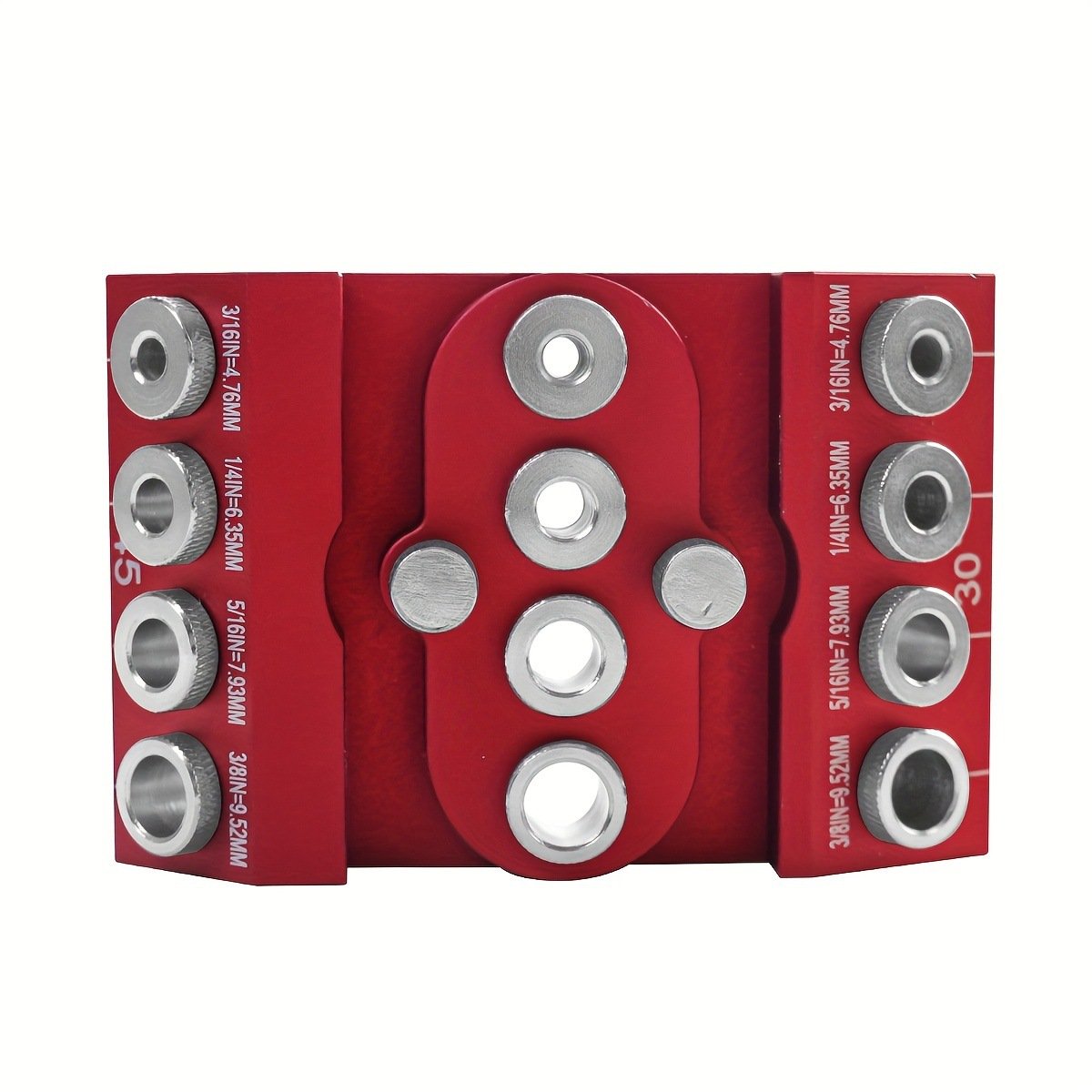

- 3 Angles & 4 Standard Sizes: Features precise guide channels for 30-degree, 45-degree, and 90-degree drilling. Each angle supports four standard bit sizes: 3/16″ (4.76mm), 1/4″ (6.35mm), 5/16″ (7.93mm), and 3/8″ (9.52mm).

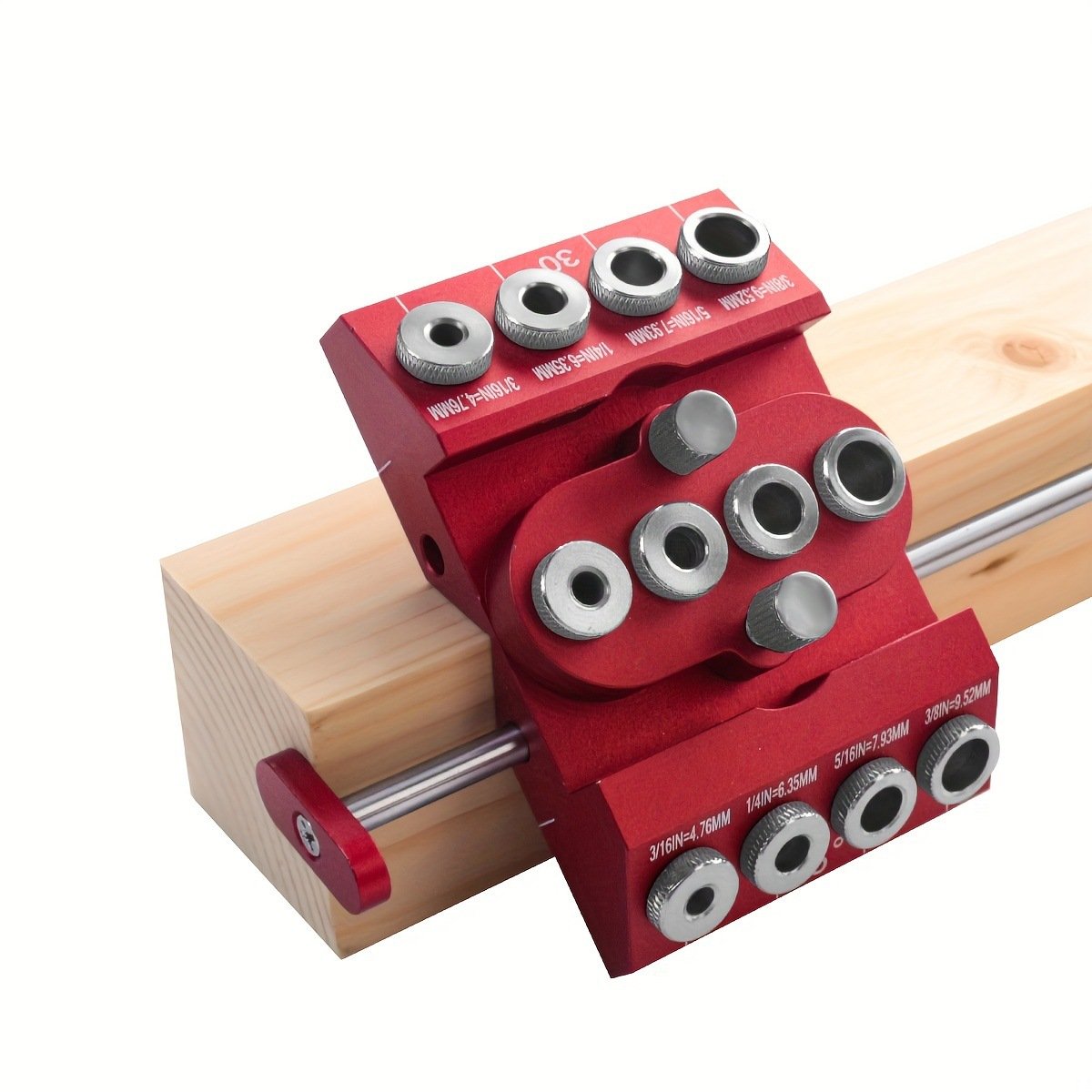

- Upgraded Extension Positioning Rods: Available in Single or Dual-Rod configurations. The rods act as a mechanical stop—once you set your distance, you can drill a line of 50 holes with identical spacing without touching a tape measure. Perfect for deck balusters!
- Self-Centering V-Groove: The newly designed base features a 90-degree V-notch. This allows you to firmly seat the jig on the corner of square timber or directly on top of round dowels and pipes, ensuring dead-center drilling on curved surfaces.
🛠️ Operational Guidelines & Tips

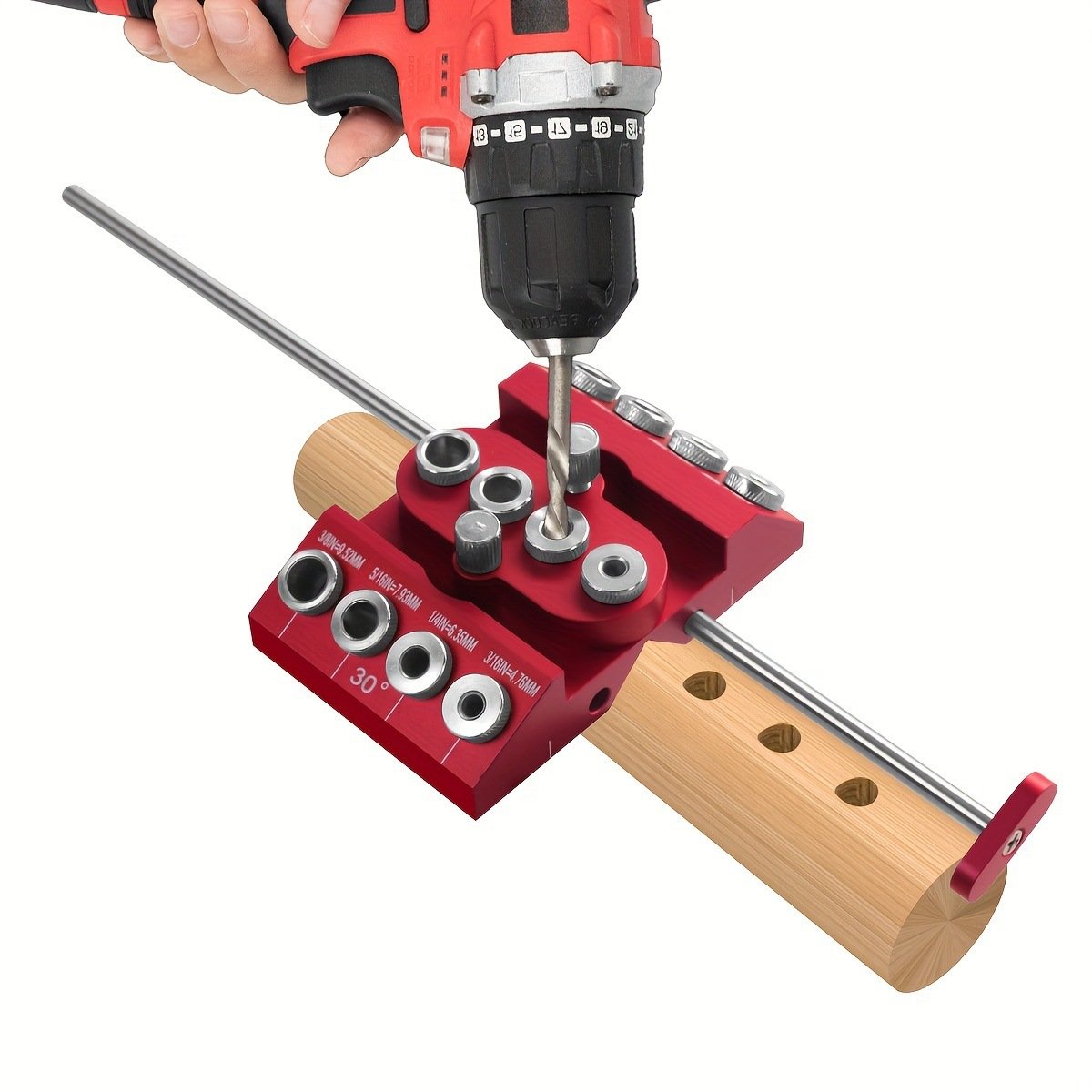

- Clamping is Mandatory: Even though the block is heavy, always use an F-clamp or C-clamp to secure the guide to your workpiece before drilling.
- Cable Railing Setup: Use the 90° holes for straight-run terminal posts, and the 30°/45° holes for angled stair transitions to ensure smooth cable tension.
- Bit Selection: Use high-speed steel (HSS) twist bits or brad-point bits. Keep your drill at high RPM and use light pressure to let the guide sleeves do the work.
🧠 Tech Q&A: Master Your Drill Jig
The jig accommodates four standard drill bit sizes for each angle: 3/16 inch (4.76mm), 1/4 inch (6.35mm), 5/16 inch (7.93mm), and 3/8 inch (9.52mm).
The extension rods act as a built-in measuring stop. They allow you to rapidly drill multiple holes at the exact same distance from each other without having to measure and mark every single hole, saving immense time on deck railing installations.
Yes! The bottom of the aluminum block features an upgraded V-groove design. This allows the jig to straddle round dowels, pipes, or the corners of square timber to guarantee perfectly centered holes.
