Making a perfect 90-degree crosscut on a large sheet of plywood shouldn’t require a geometry degree. Yet, aligning a standard guide rail using a pencil line and a framing square often results in microscopic shifts the moment you turn on your heavy plunge saw.

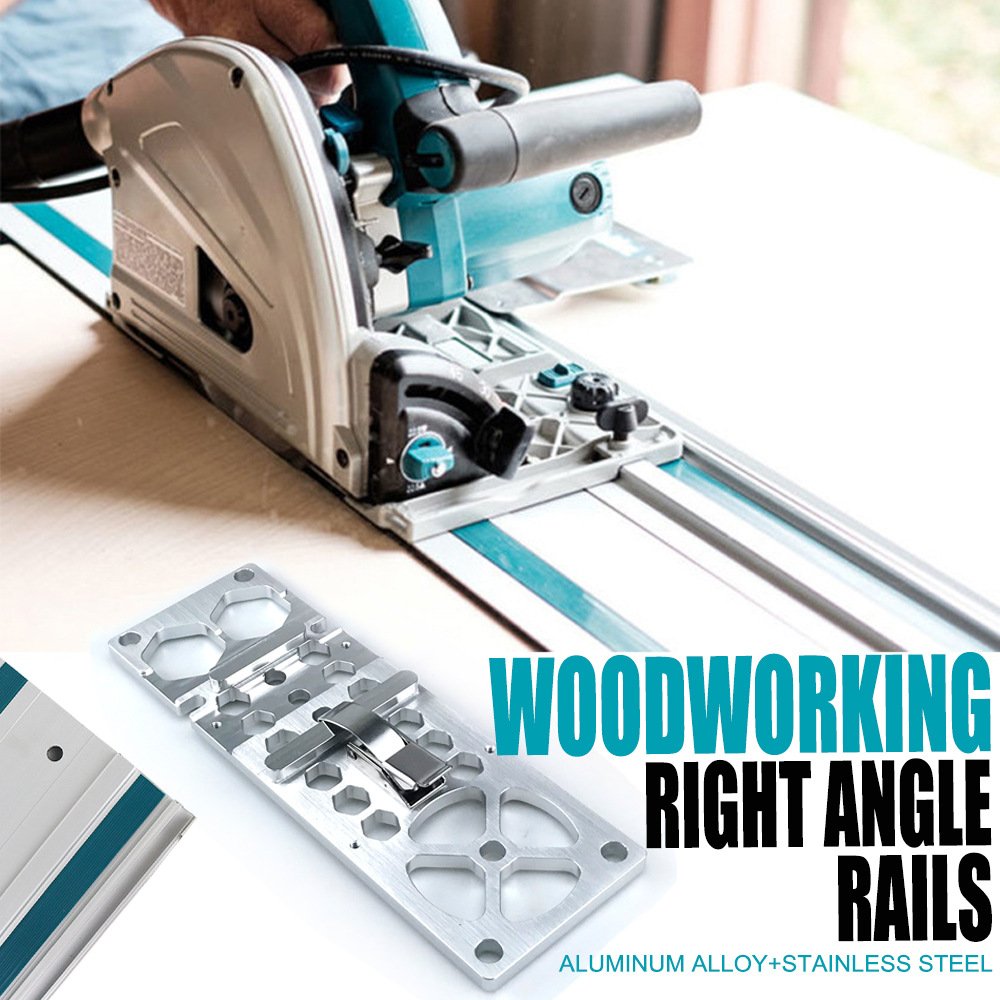

A cut that is off by even half a degree will ruin an entire cabinetry build. The Premium 90-Degree Track Saw Square | FixPartHub Edition removes the human error from panel processing. By locking a rigid, CNC-machined aluminum reference edge directly onto your track, you create an immovable 90-degree intersection. Drop the rail onto the board, push it against the edge, and make your cut with absolute confidence.

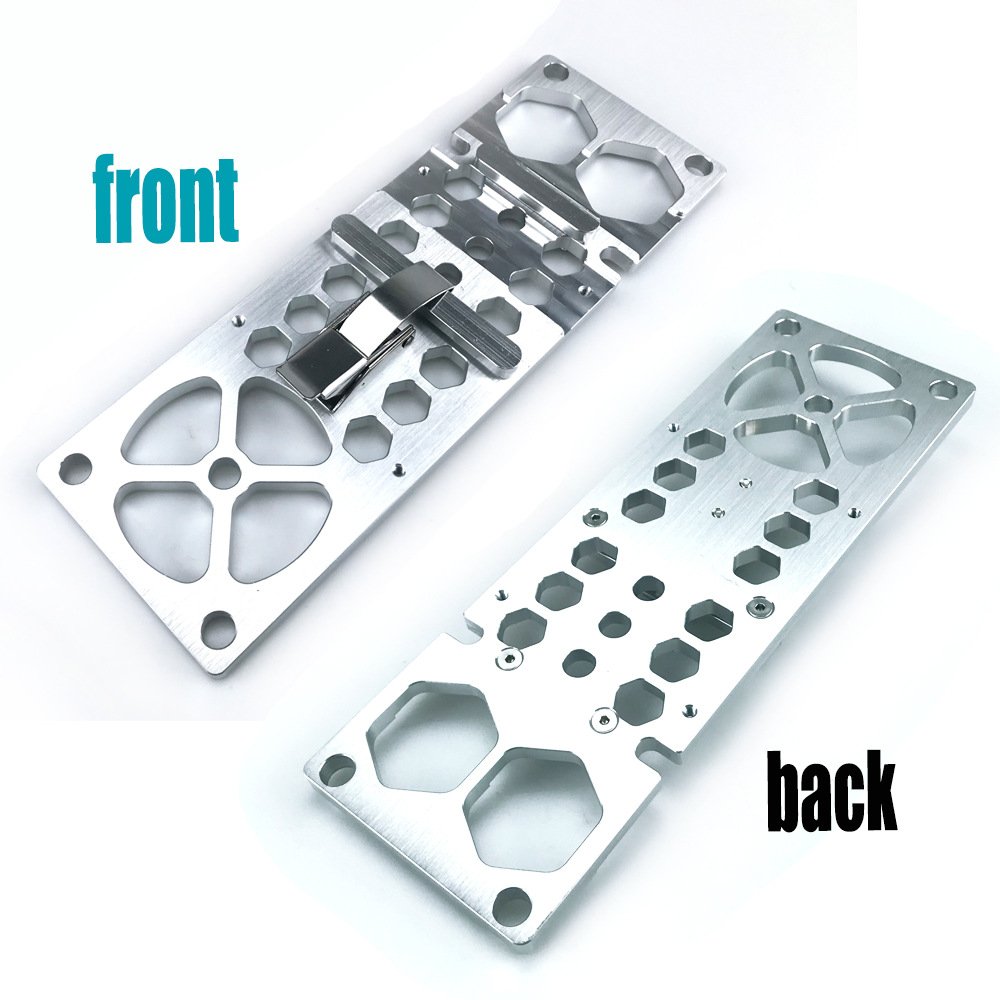

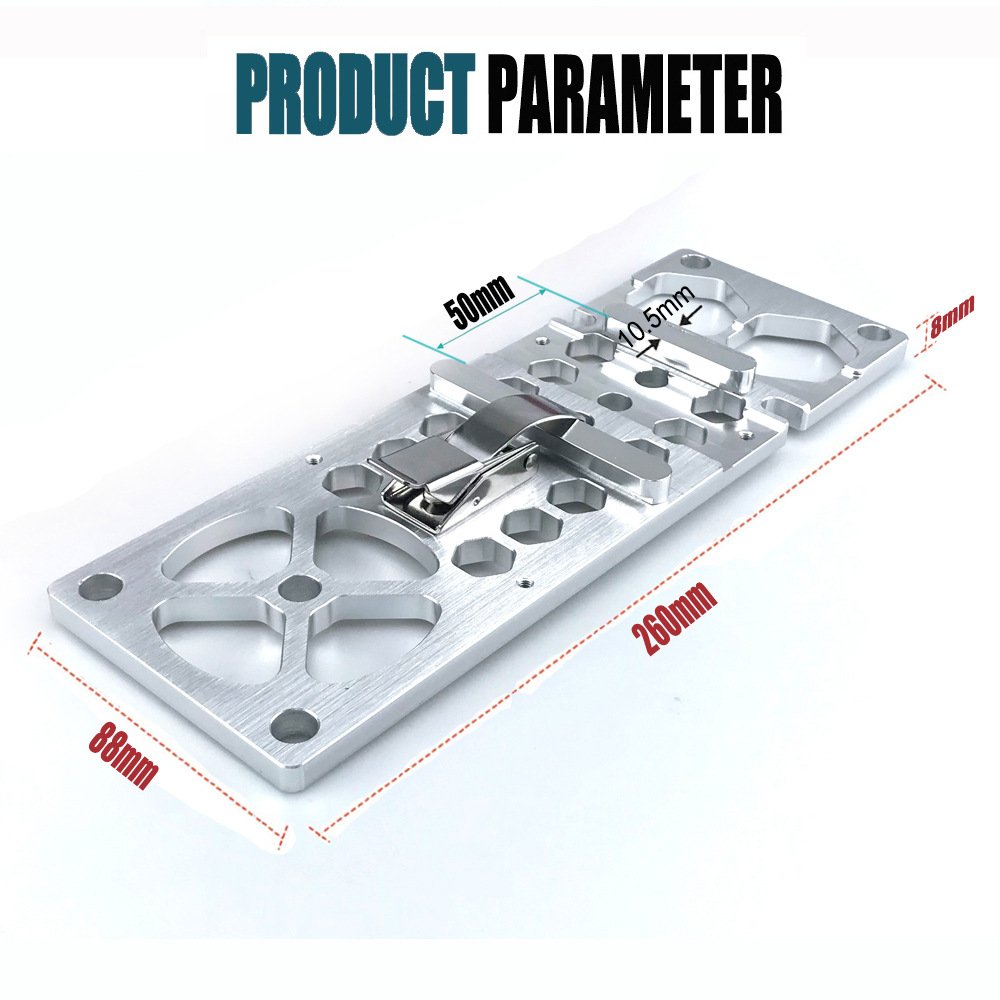

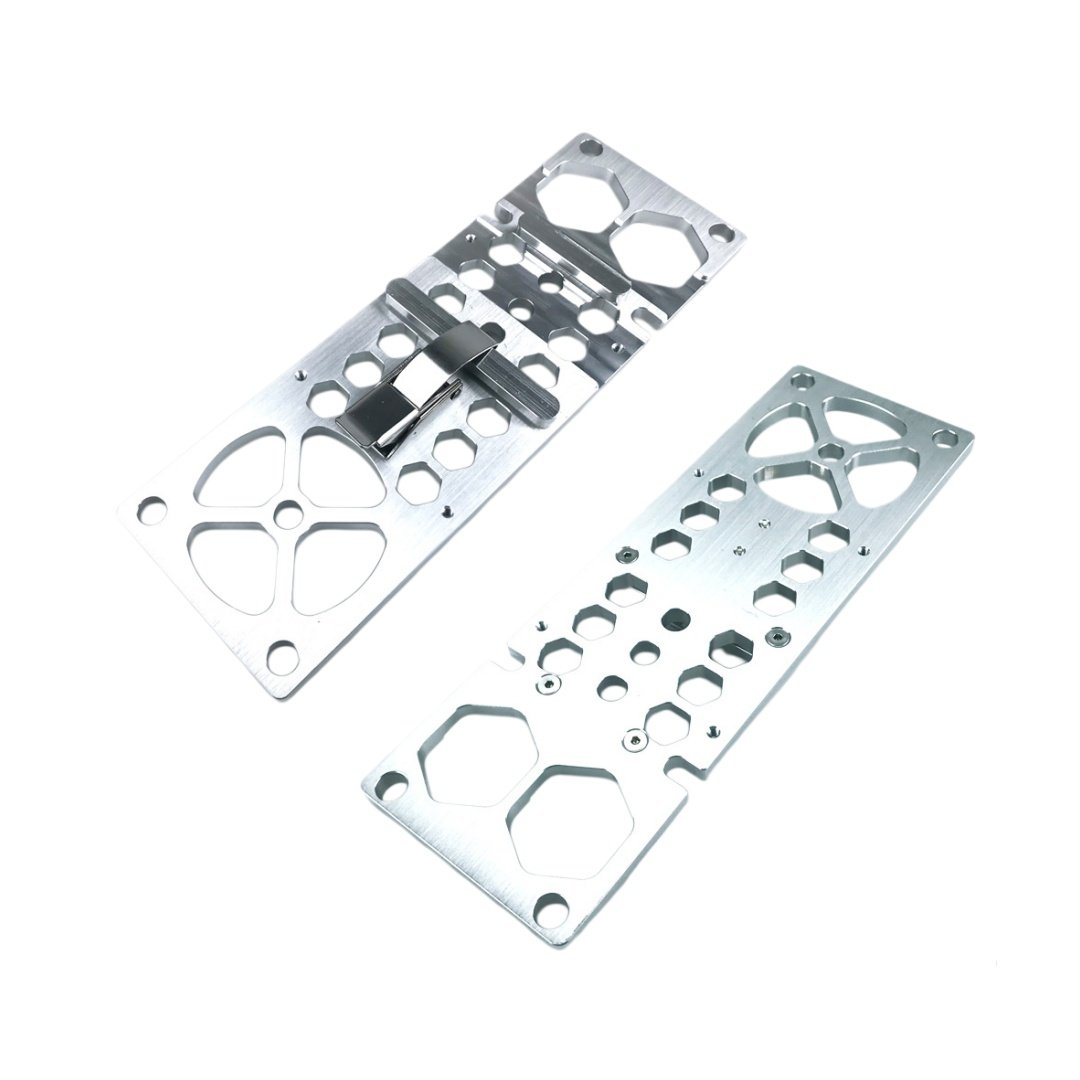

Milled from solid billet aluminum for zero deflection under load.

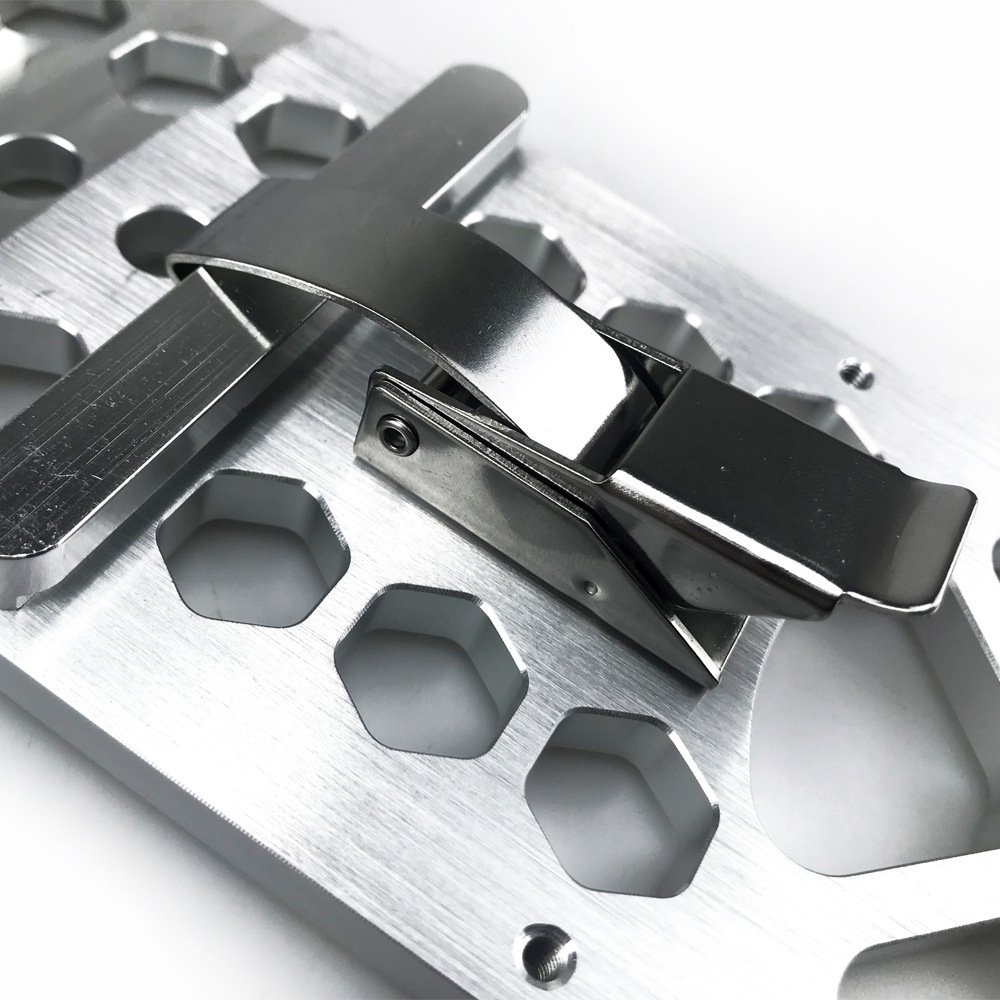

Quick-action toggle clamp secures the square to your track instantly.
Forces the rail into perfect perpendicular alignment automatically.
Step-by-Step Crosscut Setup
Transform your standard circular saw track into a highly accurate panel sizing station. Here is the professional workflow:
- Mount the Square: Slide the aluminum clamping lip of the square into the bottom T-slot profile of your guide rail.
- Lock It Down: Position the square at the desired starting end of your track. Engage the heavy-duty quick-lock latch to immobilize the square against the rail body.

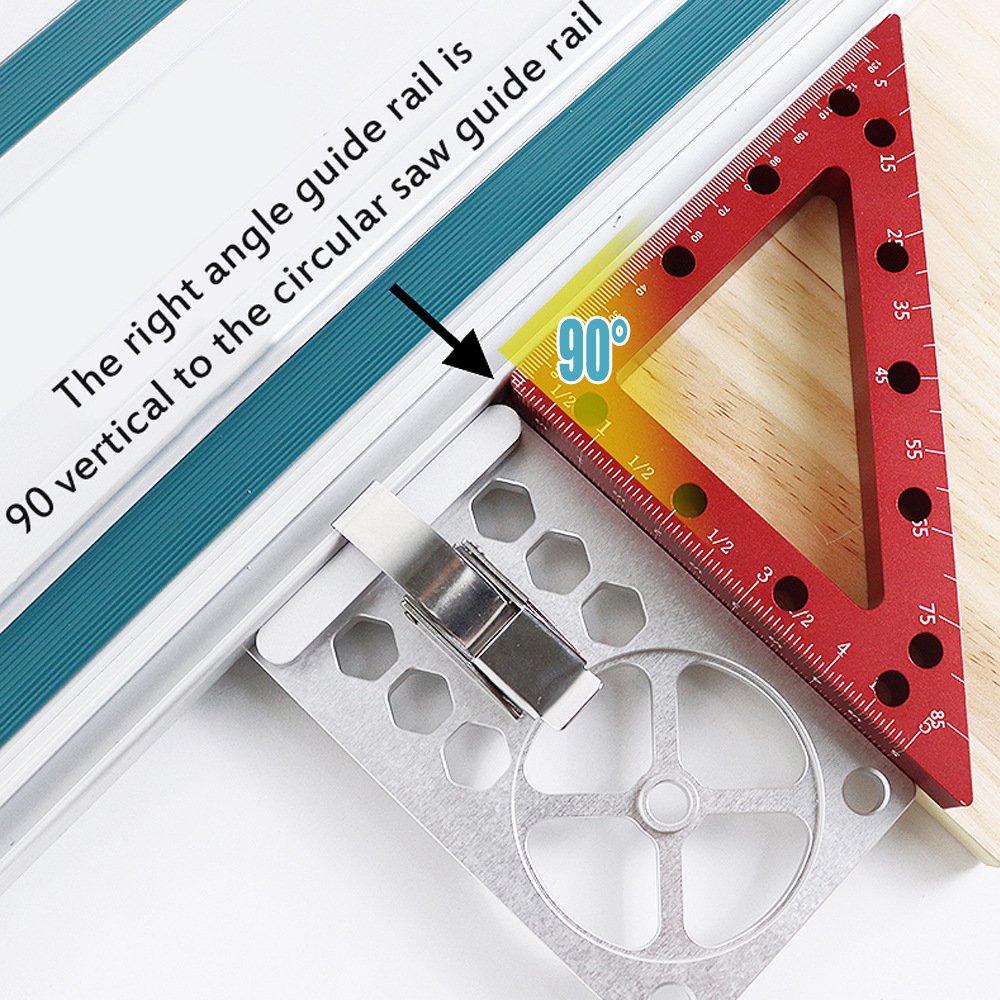

- Reference the Edge: Place the track assembly onto your workpiece. Pull the track toward you until the long reference lip of the square sits flush and tight against the factory edge of your plywood.
- Make the Cut: With the square hugging the edge, your rail is now perfectly perpendicular. Run your track saw or router along the guide for a flawless 90-degree cut.
⚠️ Workshop Accuracy Rule:
This tool guarantees a perfect 90-degree angle relative to the edge it is resting against. Therefore, always ensure that the reference edge of your lumber (the side the square is hugging) is perfectly straight and milled. If the reference edge is curved or severely splintered, your final cut will reflect that inaccuracy.
Tech Q&A: Tool Fitment Insights
❓ Q: Will this fit my specific brand of guide rail?
A: This square utilizes a universal clamping profile designed to slide into the standard bottom T-slot found on 95% of professional track systems in the market. As long as your rail has an open bottom accessory slot, this tool will drop right in.
❓ Q: Does the square require regular calibration like a miter gauge?
A: No. Because the body is milled from a single, solid piece of aluminum billet rather than assembled from separate bolted pieces, there are no joints to loosen or shift over time. It is perfectly square directly out of the box and stays that way.
❓ Q: Can I leave the square attached to the track permanently?
A: Yes. Many cabinet makers leave the square locked onto their shorter crosscut rails permanently. The lightweight aluminum adds minimal weight (only 420g) to your track, making it easy to hang on the wall when not in use.
At FixPartHub, we believe precision shouldn’t cost a fortune. Upgrade your panel processing workflow with our industrial measuring and alignment jigs—engineered to cut your setup time in half while delivering cabinet-grade accuracy.
A standard framing square requires you to hold it against the track and the wood simultaneously while trying to secure a clamp, often leading to microscopic slipping. Our track saw square physically locks onto the rail’s internal T-slot, creating a rigid, one-piece assembly that aligns itself automatically when pushed against the board edge.
No. The internal clamping flange is designed to disperse the locking pressure evenly across the inside of the T-slot, preventing any gouging, denting, or scratching of your expensive extruded aluminum guide rails.
Absolutely. If you use a guide rail system to run a plunge router for cutting dadoes or sliding dovetails, this square ensures your routed trenches are perfectly perpendicular to the edge of the workpiece.
