Product Overview

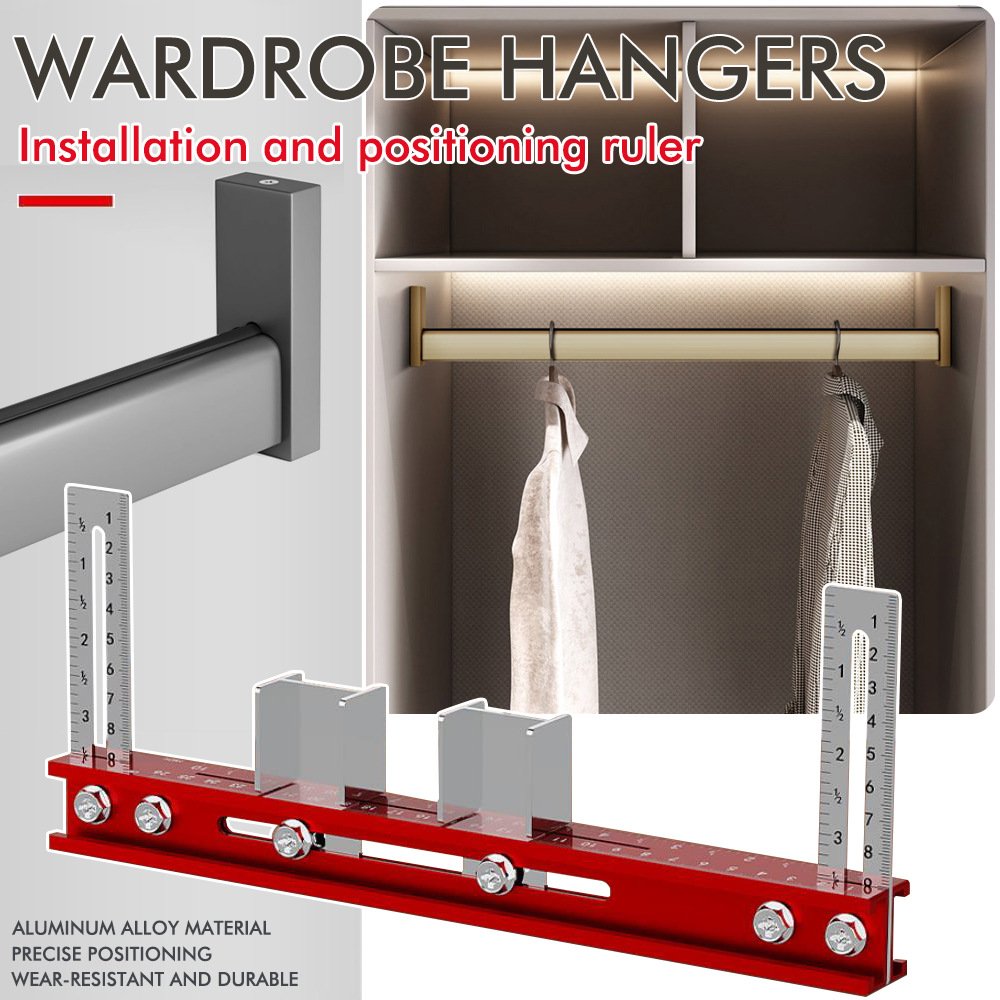

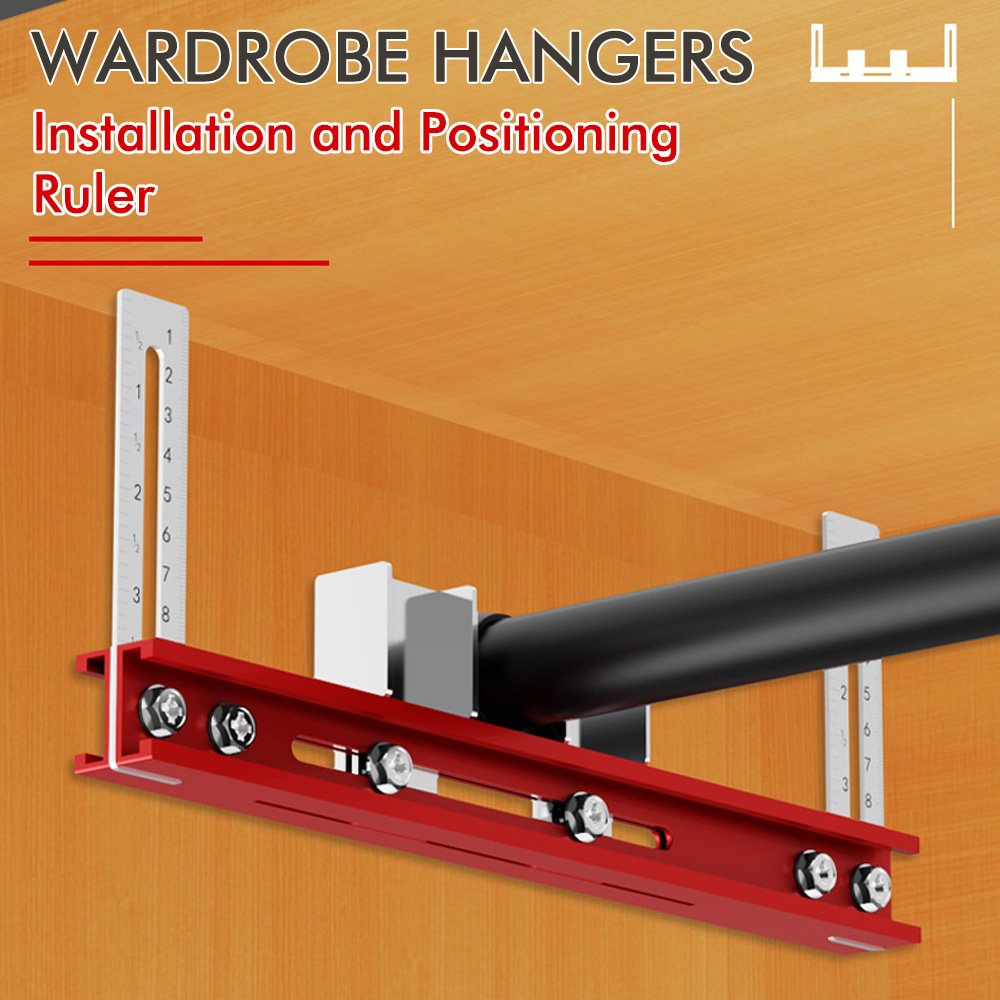

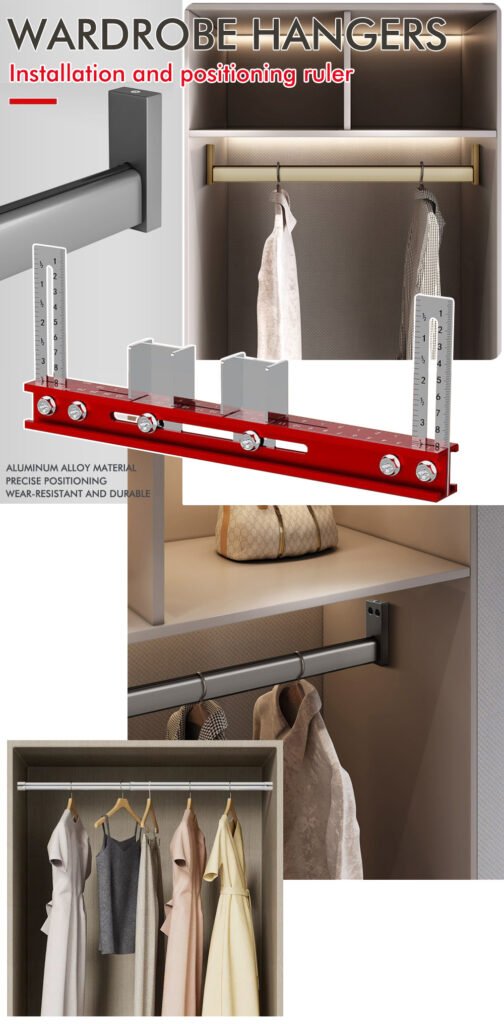

The Wardrobe Hanging Rod Positioning Ruler is a precision installation template engineered for cabinetmakers, carpenters, and DIY enthusiasts who demand perfectly aligned hanging rod flanges and brackets. Whether you’re installing new wardrobe systems, retrofitting existing cabinets, or building custom closets, this L-shaped positioning tool eliminates the guesswork of measuring and marking flange locations.

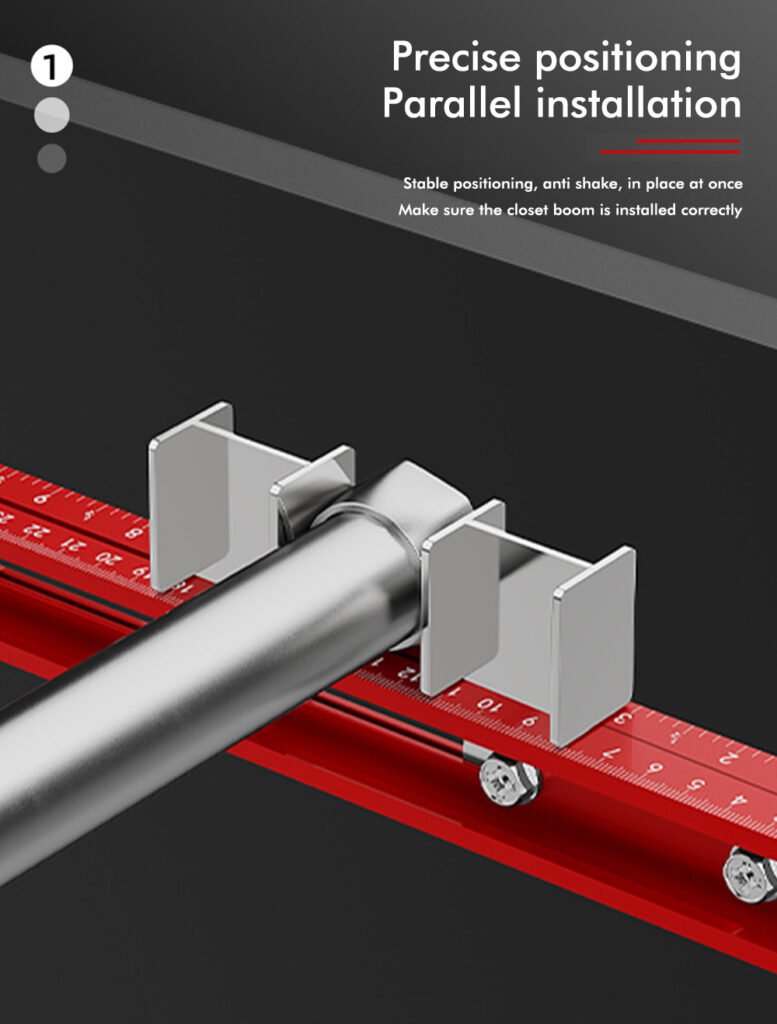

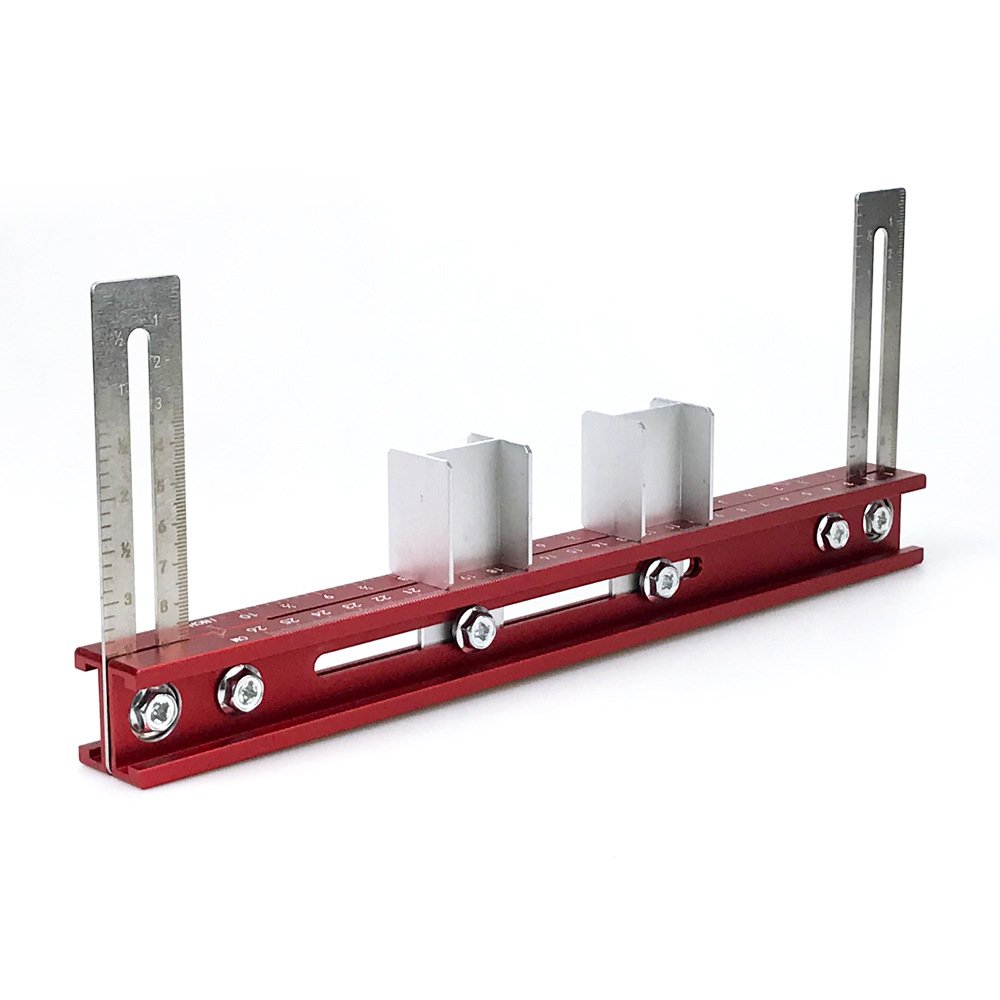

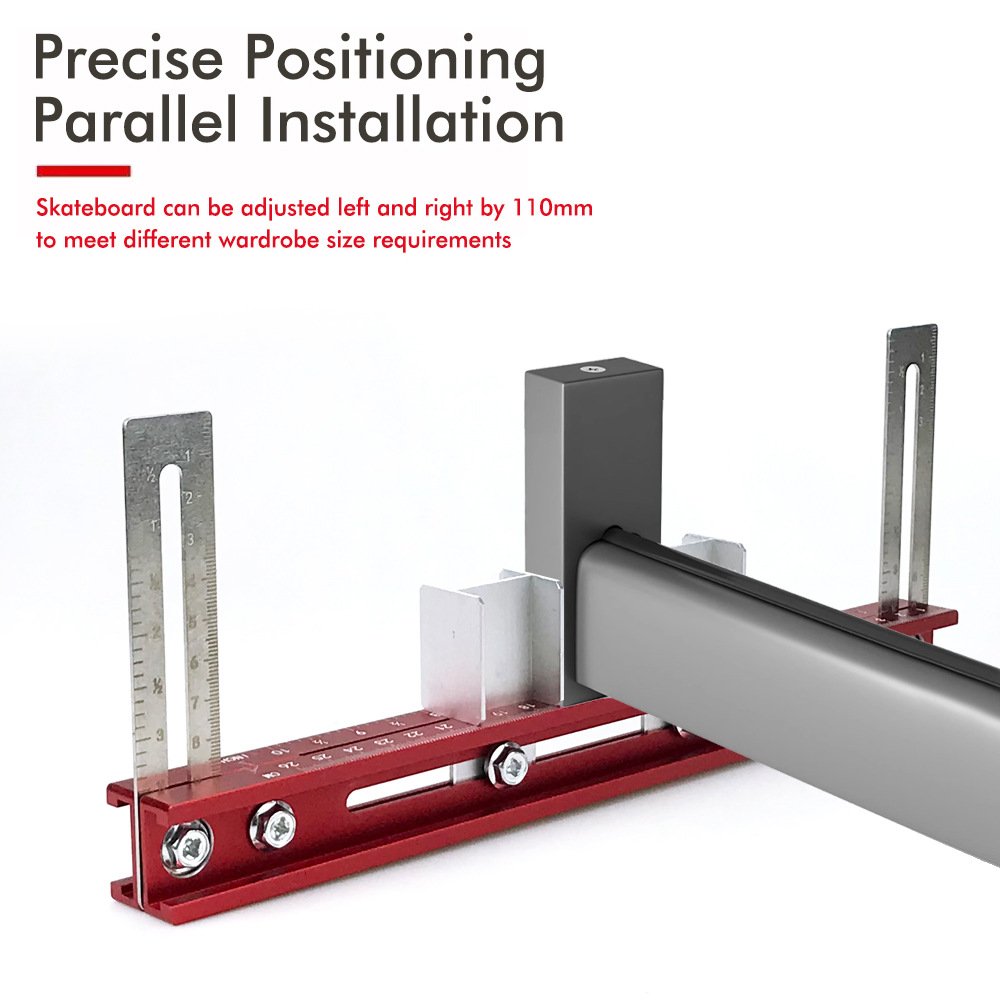

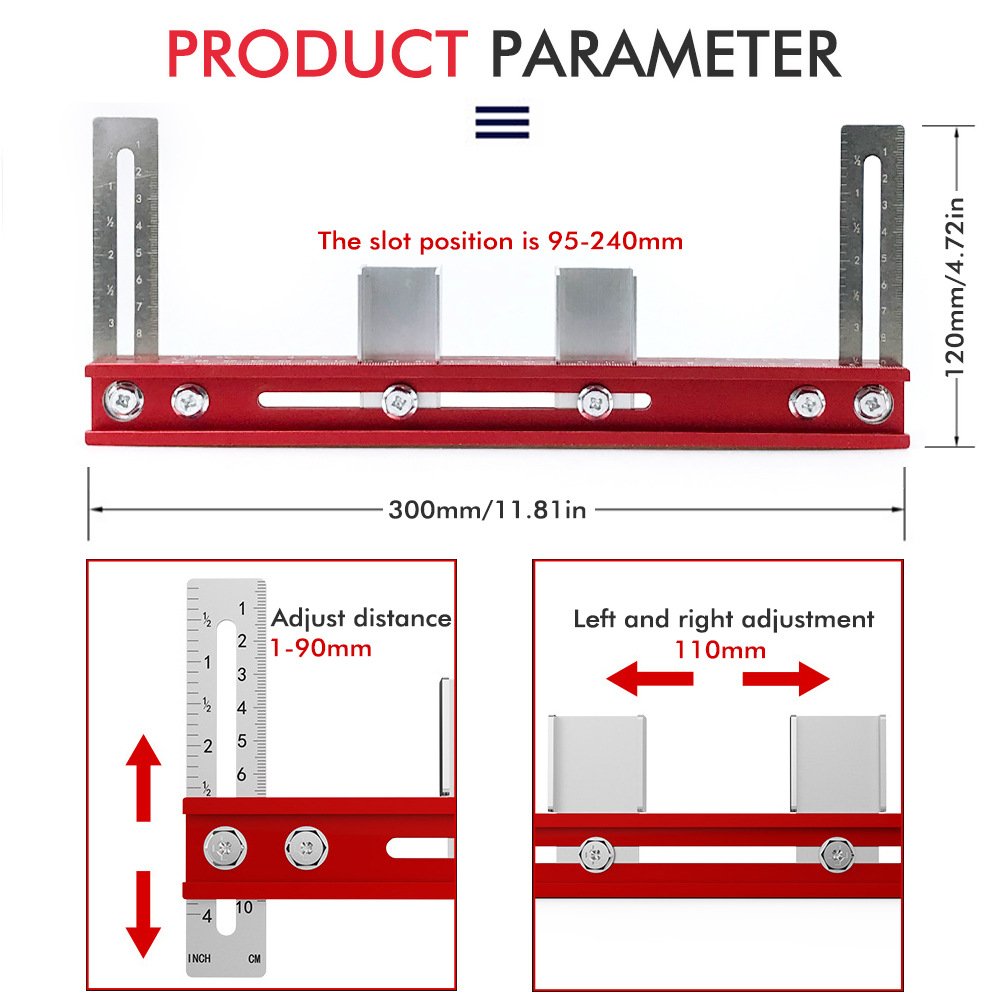

CNC-machined from high-grade aluminum alloy with a durable anodized finish, the ruler features an integrated L-shape design that provides both vertical and horizontal reference edges in a single tool[reference:0]. Position flanges at the correct height and depth simultaneously – eliminating the need for separate measuring instruments and reducing installation time by up to 50%[reference:1].

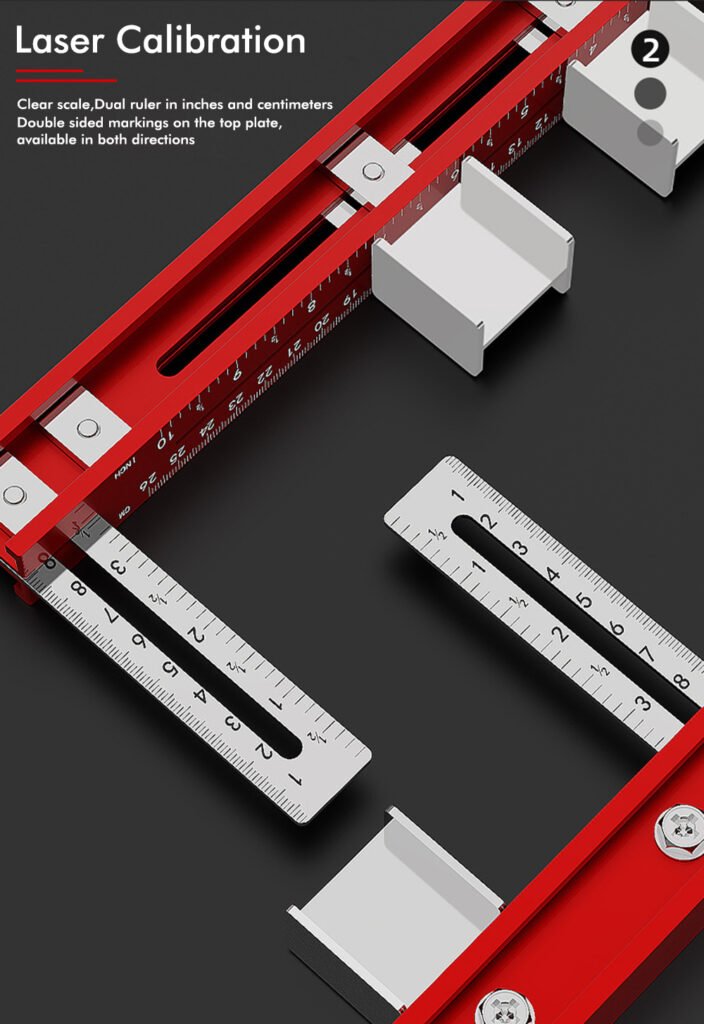

Laser-engraved dual-scale markings on both sides provide immediate reference for both metric and imperial measurements[reference:2]. The lightweight aluminum construction reduces fatigue during extended installation work, while the corrosion-resistant finish ensures years of reliable service in workshop and on-site conditions[reference:3].
💡 Pro Tip – The Three-Point Verification Method: Before drilling any holes, use the positioning ruler to mark all flange locations on both side panels and the back panel. Verify alignment by placing a straightedge across the marked positions – all marks should fall on the same plane. This 30-second check prevents the most common installation error: flanges that are level but offset in depth, causing the rod to sit crooked or bind against the brackets[reference:4].
Diagnostic & Fitment – When to Use This Positioning Ruler
Specification Comparison
| Specification | Tape Measure / DIY Method | FixPartHub Precision Replacement ✅ |
|---|---|---|
| Alignment Accuracy | ±1/8″ – cumulative errors across multiple flanges | ±1/32″ – repeatable, identical flange placement |
| Setup Time per Flange | 2-3 minutes – measure, mark, verify, repeat | 15-20 seconds – place, mark, move |
| Depth & Height Reference | Separate measurements – two instruments required | Integrated L-shape – both references in one tool |
| Measurement System | Single scale – metric or imperial only | Dual scale – metric & imperial on both sides |
| Durability | Paper tape tears, metal rulers bend | Solid aluminum – anodized finish |

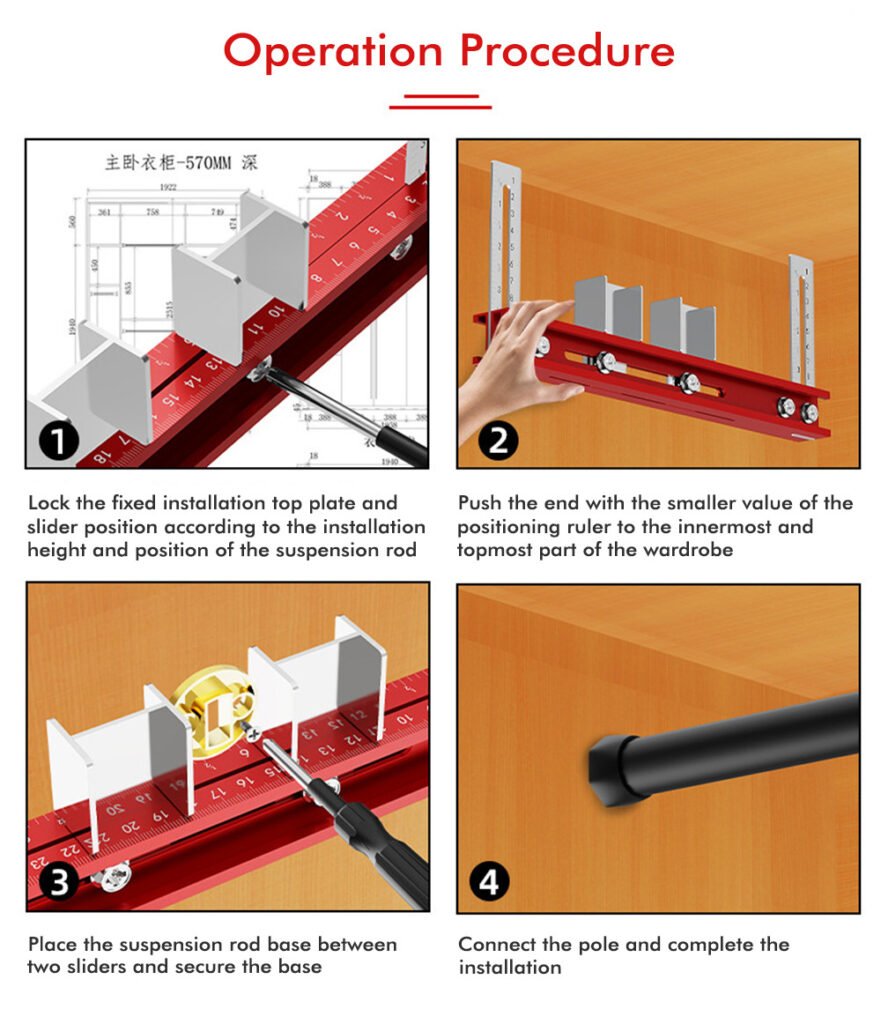

Installation & Usage Workflow
Compatibility – Applications & Use Cases
Diagnostic Q&A
❓ Q: What is a wardrobe hanging rod positioning ruler and why do I need one?
A: It’s a precision L-shaped installation template that positions hanging rod flanges and brackets at the correct height and depth simultaneously[reference:7]. It eliminates the need for separate tape measures and combination squares, reducing installation time and eliminating measurement errors that cause crooked or sagging rods[reference:8].
❓ Q: What material is this positioning ruler made from?

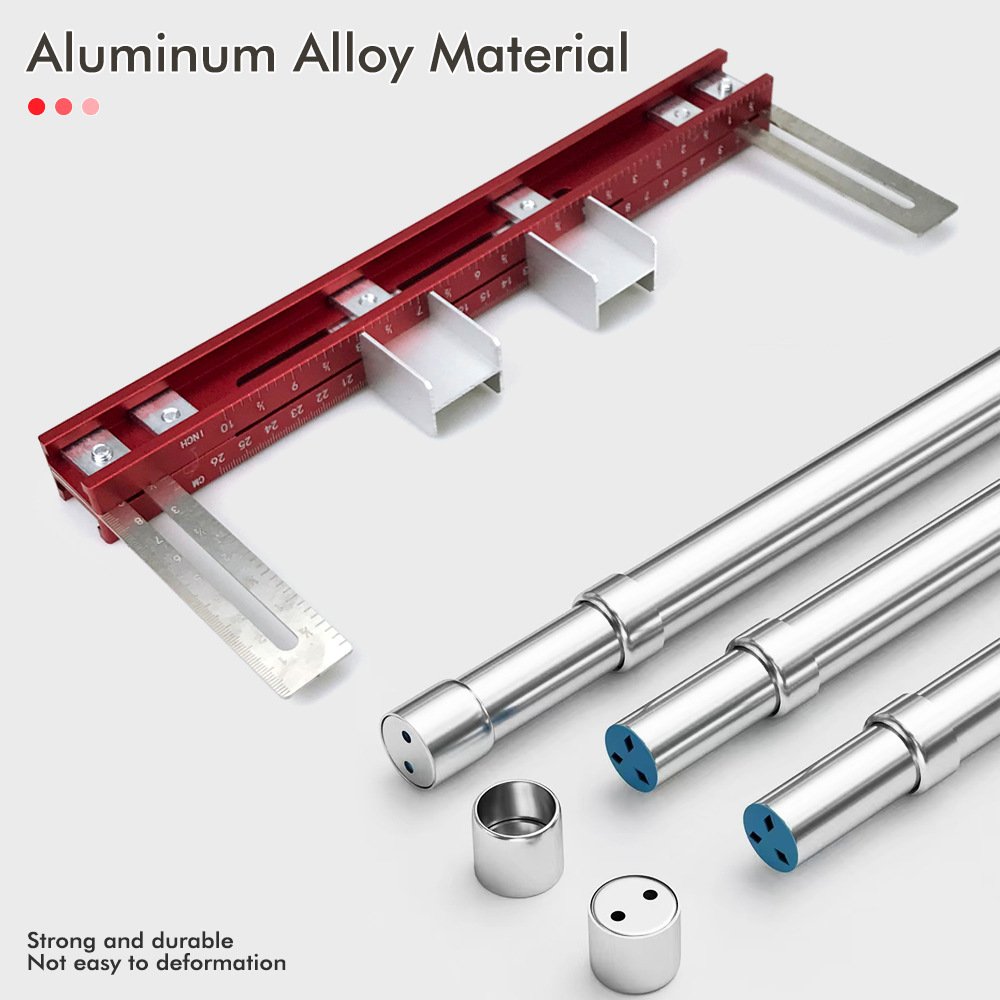

A: The ruler is CNC-machined from high-grade aluminum alloy with a durable anodized finish[reference:9]. The aluminum construction provides excellent rigidity while keeping the tool lightweight for extended use. The anodized finish resists corrosion and wear[reference:10].
❓ Q: Will this ruler work with all standard flange and bracket systems?
A: Yes. The ruler is designed to work with standard wardrobe hanging rod flanges, brackets, and support systems[reference:11]. The dual-scale markings accommodate both metric and imperial measurements for versatile installation across all cabinet configurations[reference:12].
❓ Q: Can I use this ruler for other installation tasks besides wardrobe rods?
A: Yes. The L-shape design with dual reference edges makes this ruler suitable for any installation task requiring precise height and depth positioning – including shelf bracket mounting, drawer slide installation, and cabinet hardware placement[reference:13].
Safety Notes
- 🔴 Always disconnect power from drills and power tools before marking or positioning the ruler on cabinet surfaces.
- 🔧 Hold the ruler firmly in position when marking – any movement will result in inaccurate flange placement.
- 🧤 Wear appropriate PPE – safety glasses when drilling, and gloves when handling metal components.
- 📐 Verify measurements before drilling – a quick check with a tape measure confirms your settings before committing to pilot holes.
- ✅ Clean the ruler after each use – sawdust and debris on the reference edges will affect accuracy on subsequent installations.
