Product Overview

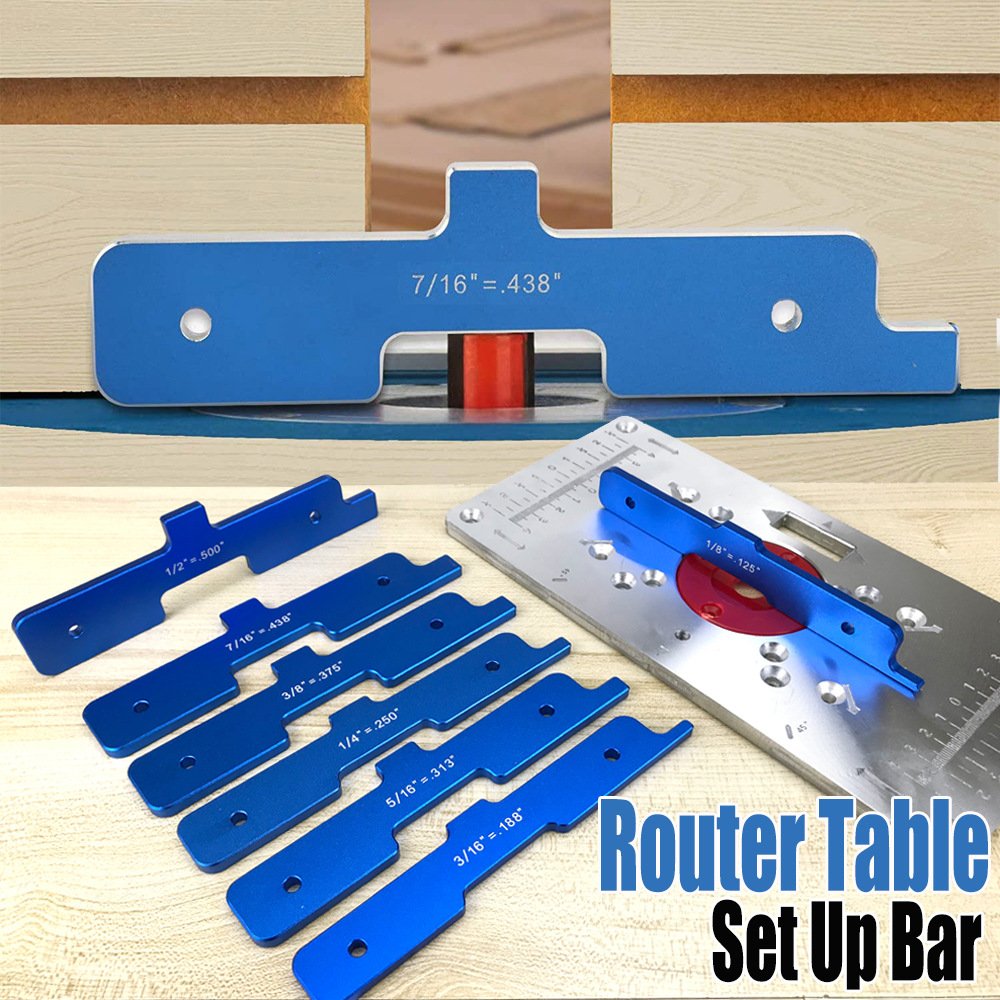

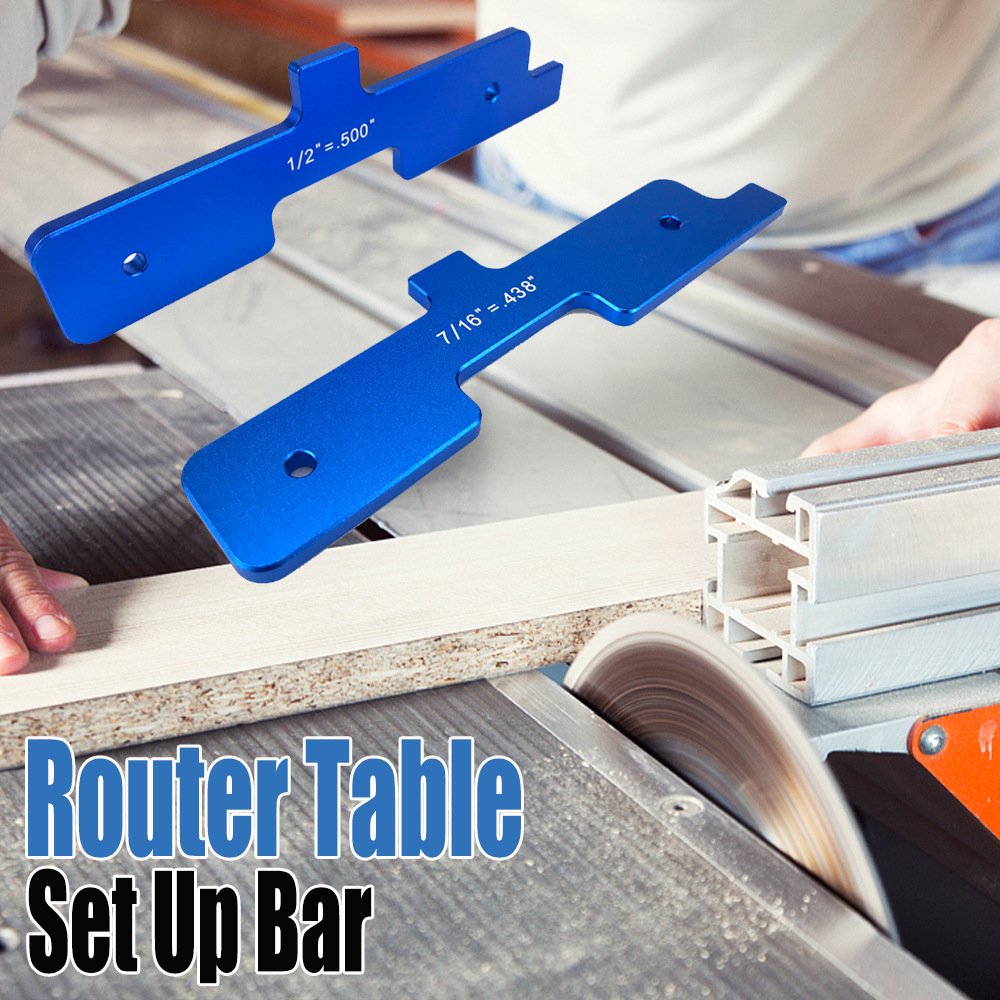

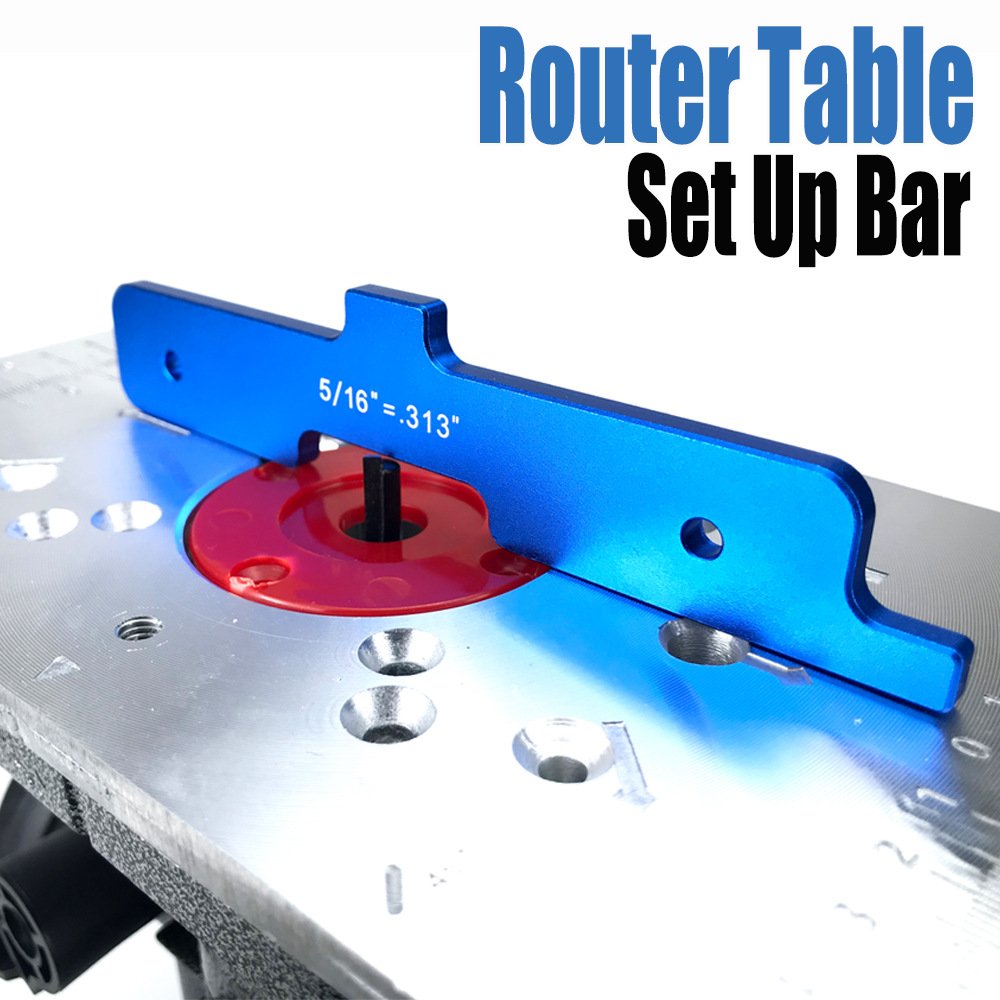

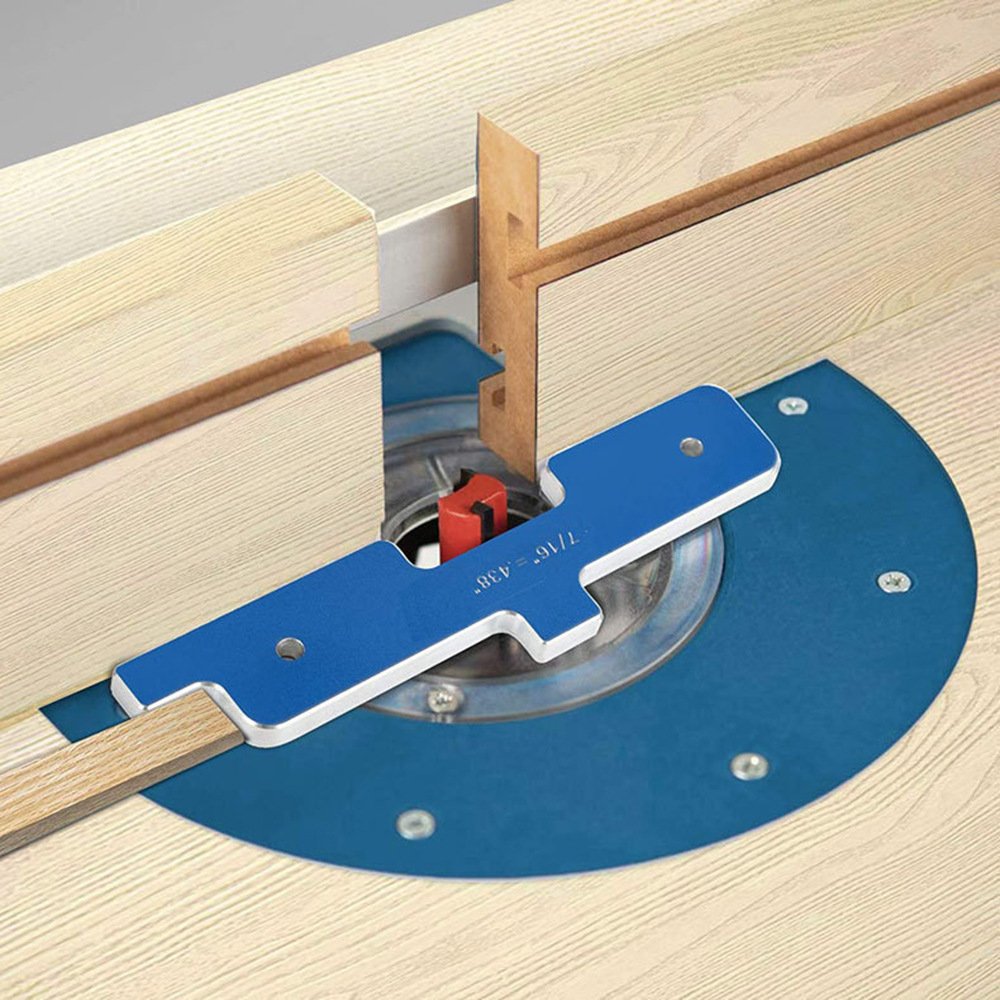

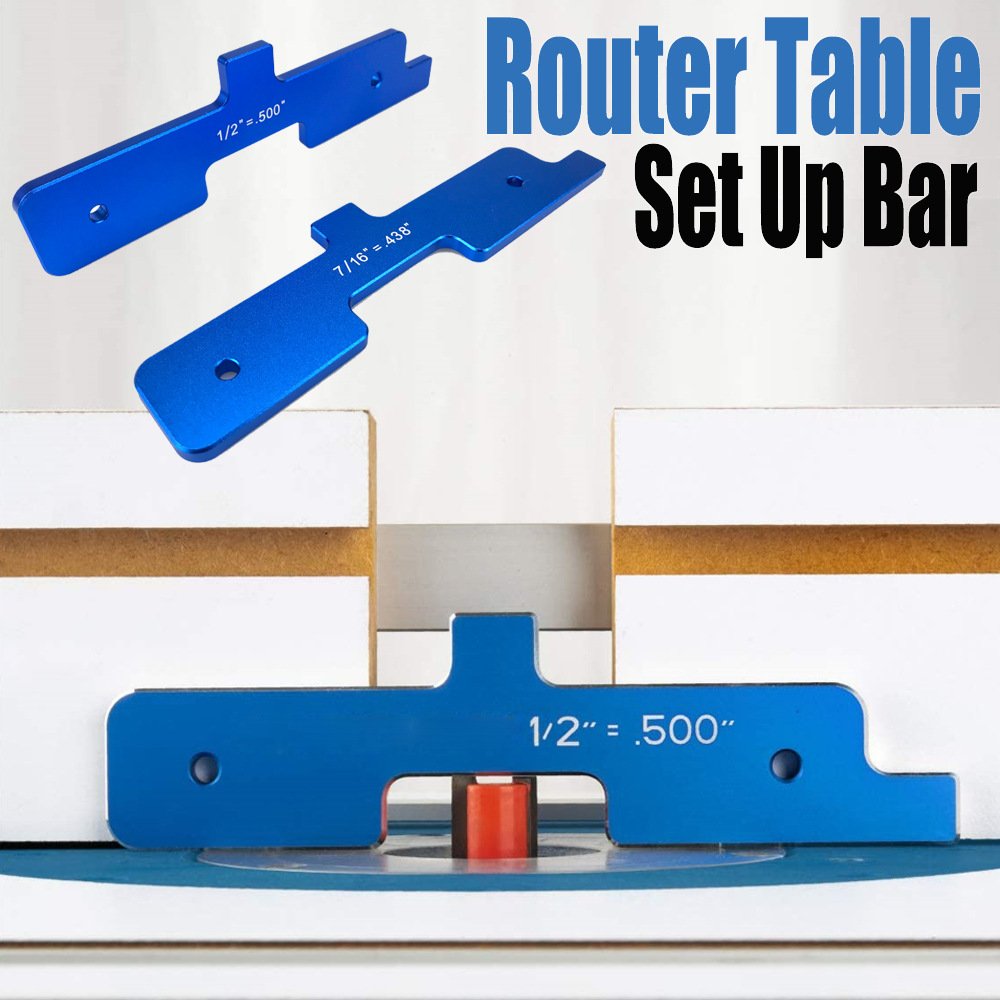

The 7-Piece Precision Router Table Setup Bar Set is an essential calibration tool for any workshop where repeatable precision matters. Whether you’re setting router bit height, table saw blade projection, fence alignment, or drill press depth stops, these CNC-machined aluminum bars deliver the accuracy you need – without the frustration of tape measures, combination squares, or improvised spacers[reference:0].
Each bar is precision-ground from high-quality aluminum alloy with a durable anodized finish. The soft aluminum construction is specifically designed to prevent damage to your router bits or saw blades in case they make contact during setup[reference:1]. The laser-engraved size markings are permanent and easy to read, even in poor lighting[reference:2].
Stack multiple bars to create custom heights – the 7-piece set provides over 120 possible measurement combinations. This set replaces the need for separate setup bars, feeler gauges, and improvised spacers, making it the go-to tool for professional woodworkers, cabinetmakers, and workshop professionals who demand fast, repeatable setups without compromise[reference:3].
💡 Pro Tip – The Stacking Method: For heights that fall between the individual bar sizes, stack two or more bars together. Ensure the mating faces are clean and free of debris – even a 0.001″ layer of sawdust will throw off your setup. The 7-piece set (1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, and 1/2″) can be combined to create any measurement from 1/8″ up to 2-1/8″ in 1/16″ increments. For critical setups, always verify your stacked height with a caliper before locking down your fence or blade[reference:4].
Diagnostic & Fitment – When to Use Setup Bars
Specification Comparison
| Specification | Cheap / Generic Setup Bars | FixPartHub Precision Replacement ✅ |
|---|---|---|
| Material | Low-grade aluminum or plastic – prone to warping | High-quality aluminum alloy – dimensionally stable |
| Non-Marring Design | Hard edges – can damage bits and blades | Soft aluminum – protects tools during contact[reference:5] |
| Size Markings | Painted or stamped – wears off | Laser-engraved – permanent readability[reference:6] |
| Number of Bars | 5 or fewer – limited combinations | 7 bars – 120+ measurement combinations |
| Storage | Loose – bars get lost or damaged | Portable storage case – organized protection[reference:7] |
Setup & Usage Workflow
Compatibility – Sizes Included
All bars measure approximately 4″ in length[reference:9]. Stack multiple bars to achieve any measurement from 1/8″ up to 2-1/8″ in 1/16″ increments[reference:10].
Diagnostic Q&A
❓ Q: What sizes are included in this 7-piece setup bar set?

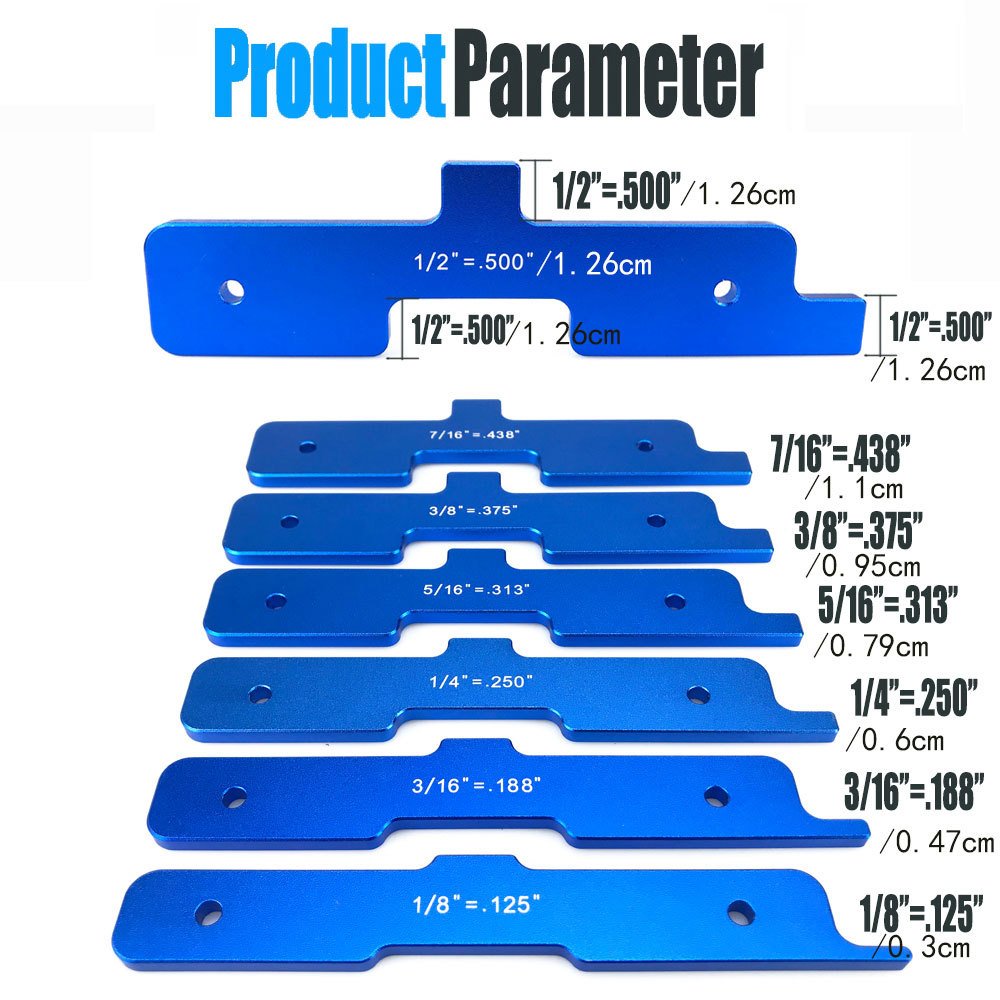

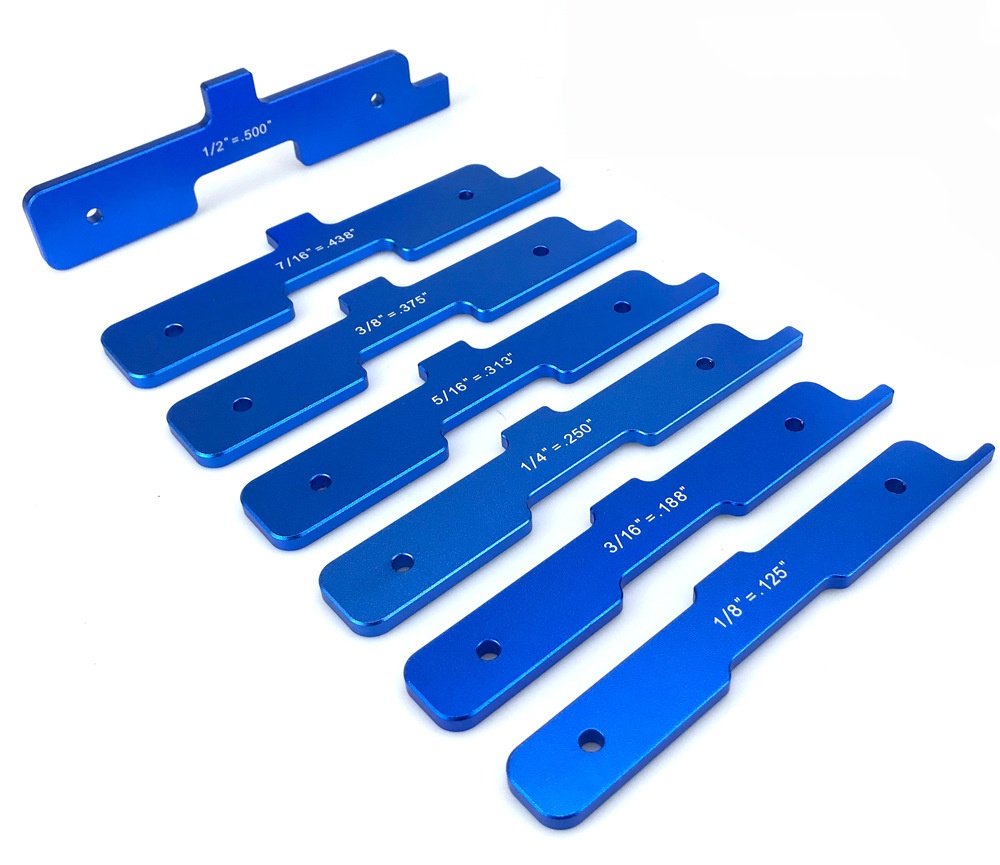

A: The set includes 7 precision-ground bars in the following thicknesses: 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, and 1/2″[reference:11][reference:12]. Each bar is approximately 4″ in length[reference:13].
❓ Q: What material are these setup bars made from?
A: The bars are precision-machined from high-quality aluminum alloy with a durable anodized finish[reference:14]. The soft aluminum construction is specifically designed to prevent damage to your router bits or saw blades in case they make contact during setup[reference:15].
❓ Q: What’s the advantage of setup bars over using a tape measure or ruler?
A: Speed and repeatability. A tape measure or ruler requires you to read a scale, align your eye, and adjust – all with room for parallax error. Setup bars are a physical, tactile reference – you simply place the bar and adjust until contact is made. No reading, no interpretation, no error.[reference:16]
❓ Q: Can I stack multiple bars together for custom measurements?
A: Yes. Stacking bars allows you to achieve virtually any height or depth measurement. The 7-piece set provides over 120 possible measurement combinations[reference:17]. Always ensure the mating faces are clean and free from debris before stacking – even a small particle of sawdust will affect accuracy.
Safety & Maintenance Notes
- 🔴 Always disconnect power from your tool before making any setup adjustments with the setup bars.
- 🧤 Keep bars clean – wipe with a clean, dry cloth after each use. Sawdust and debris on the mating faces will affect accuracy when stacking.
- 🔧 Store in the provided case – protect bars from impacts, moisture, and shop contaminants[reference:18]. The anodized finish is durable but not indestructible.
- 📐 Verify with a test cut – always make a test cut on scrap material before committing to your final workpiece.
- ✅ Inspect periodically – check for nicks, burrs, or wear on the bar surfaces. Damaged bars should be replaced.
A: The set includes 7 precision-ground bars in the following thicknesses: 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, and 1/2″. Each bar is approximately 4″ in length.
A: Setup bars provide a physical, tactile reference that eliminates parallax error and guesswork. You simply place the bar and adjust your tool until contact is made – no reading, no interpretation, no error
A: Yes. Stacking bars allows you to achieve virtually any height or depth measurement. The 7-piece set provides over 120 possible measurement combinations. Always ensure the mating faces are clean before stacking.
A: The soft aluminum construction is specifically designed to prevent damage to your router bits or saw blades in case they make contact during setup. Harder materials can chip or dull cutting edges.
