Product Overview

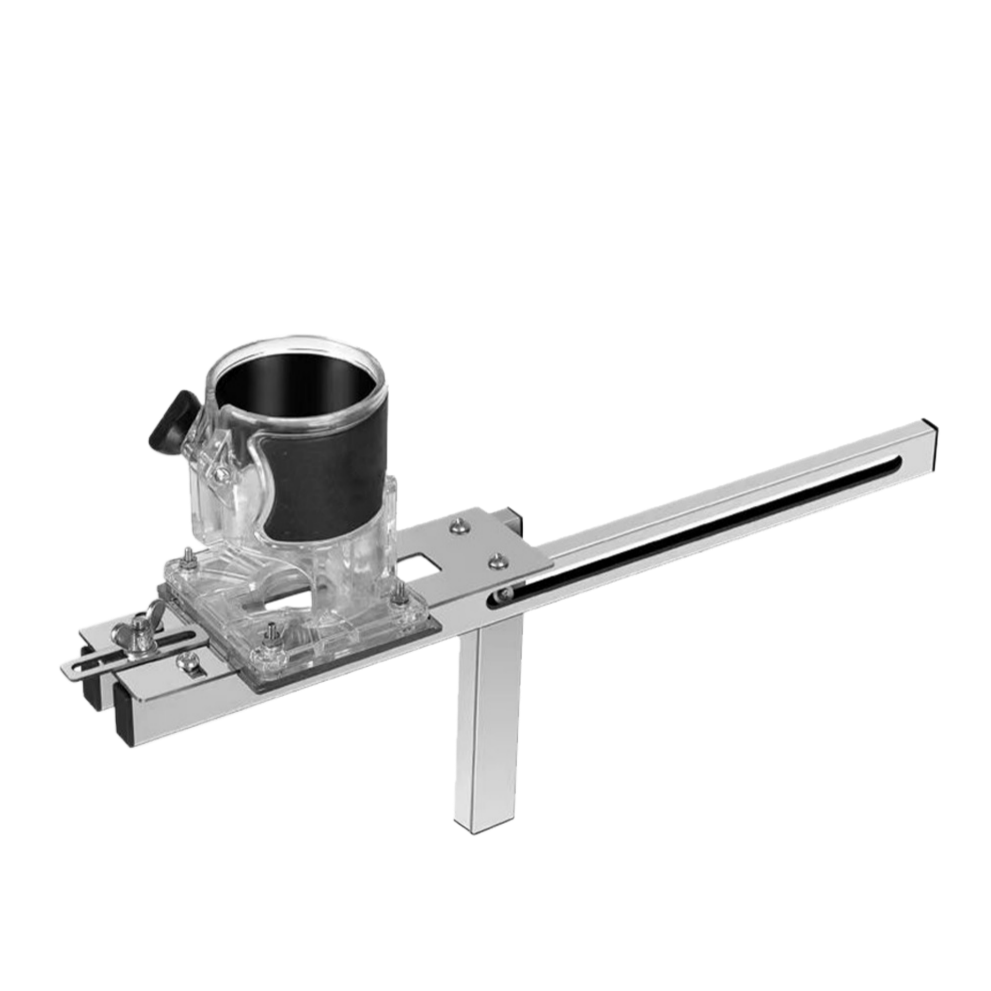

The 2-in-1 Slotting & Positioning Bracket is a precision router jig engineered for professional woodworkers and cabinetmakers who demand flawless invisible joints. This heavy-duty aluminum fixture transforms your standard trim router into a dedicated slotting station for 2-in-1 invisible slide fasteners – the hardware used in high-end frameless cabinetry, floating shelves, and flat-pack furniture where zero visible fasteners are required.
CNC-machined from solid aluminum alloy with a rugged anodized finish, the 900g chassis provides the mass and rigidity needed to eliminate flex, chatter, and vibration during high-RPM routing[reference:0]. The result is perfectly straight, consistently deep slots that allow invisible connectors to slide and lock with zero play – every time[reference:1].

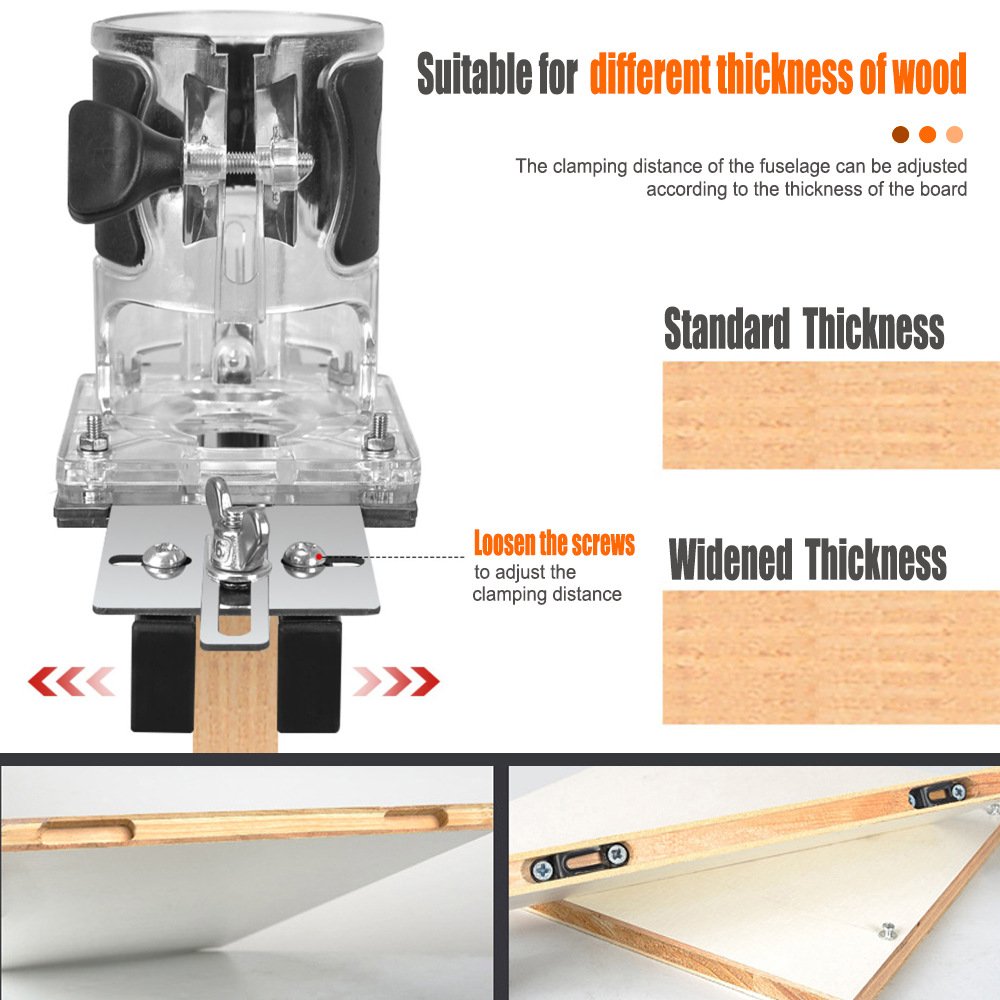

The dual-function design combines precision slotting guidance with integrated positioning stops, allowing you to cut the exact profile required for your chosen invisible fasteners while maintaining perfect centerline alignment on panels ranging from 9mm to 25mm thick[reference:2]. Tool-free adjustments let you switch between different panel thicknesses and connector profiles in seconds[reference:3].
💡 Pro Tip – The Test Cut Protocol: Before committing to your final panels, always cut a test slot in scrap material of the exact same thickness. Install your invisible fastener and test the slide-and-lock action. If the joint is too tight, increase depth by 0.5mm. If it’s loose, reduce depth. Record your final settings – this becomes your baseline for the entire production run. A 30-second test cut saves a $50 sheet of plywood[reference:4].
Diagnostic & Fitment – When to Use This Jig
Specification Comparison
| Specification | Cheap Plastic / Generic Jig | FixPartHub Precision Replacement ✅ |
|---|---|---|
| Chassis Material | Injection-molded plastic or thin stamped metal | Solid billet aluminum – CNC-machined[reference:8] |
| Structural Rigidity | Flexes under load – chatter and drift[reference:9] | Zero deflection – 900g rigid mass |

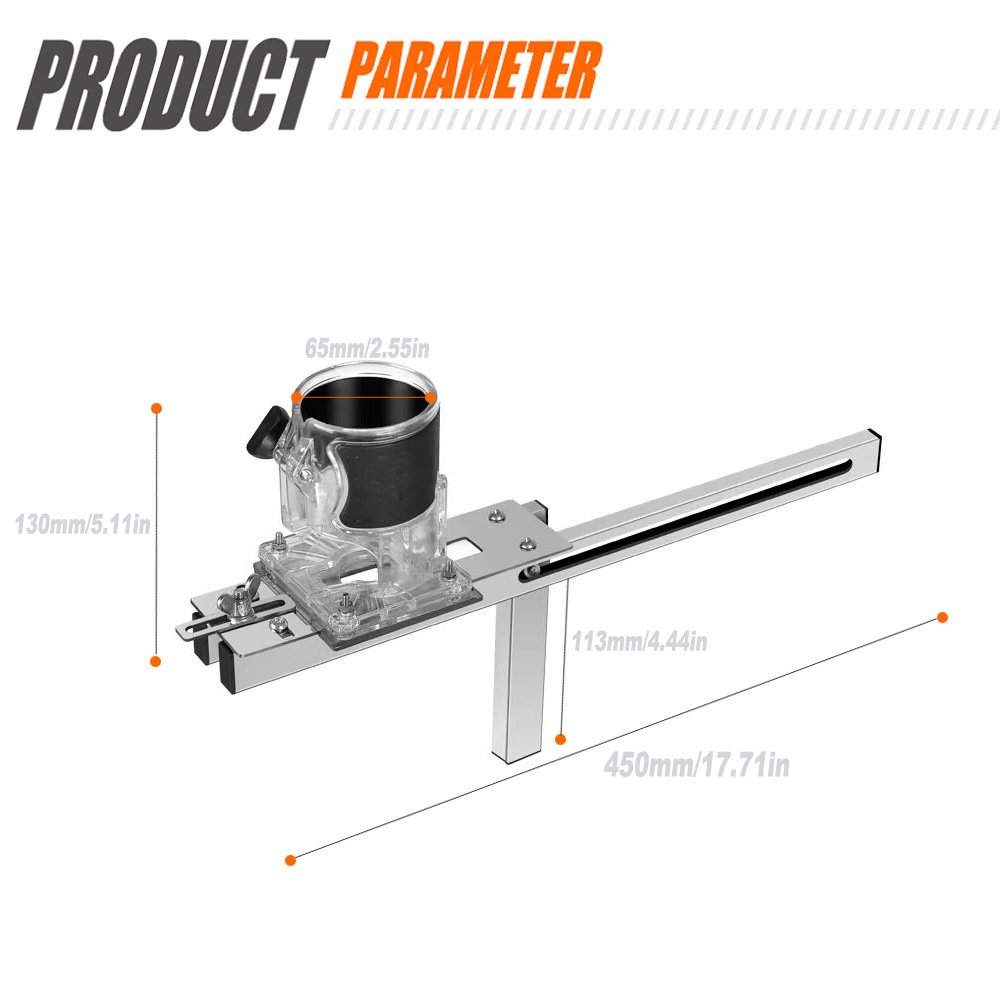

| Router Fitment | Loose or incompatible – router shifts | Precision 65mm collar – zero-play hold[reference:10] |
| Panel Thickness Range | Limited range – frequent re-calibration | 9mm to 25mm – tool-free adjustment[reference:11] |
| Setup Speed | Multiple tools – measuring, marking, aligning | Integrated scales + stops – 30-second setup[reference:12] |
Setup & Operation Workflow
Compatibility – Router & Fastener Fitment
Diagnostic Q&A
❓ Q: Will this jig fit my specific trim router?
A: The clamping collar is engineered to accept standard 65mm (2.56″) cylindrical trim router bodies – the industry standard for most compact routers on the market[reference:17]. Measure your router’s motor housing diameter to confirm compatibility.
❓ Q: What type of router bit do I need for this jig?
A: You’ll need a T-slot or keyhole router bit with a shank size matching your router’s collet (typically 1/4″ or 1/2″). The specific profile depends on the brand of 2-in-1 invisible fasteners you’re using[reference:18].
❓ Q: Why is this jig so heavy (900g) – isn’t that excessive?
A: Mass is critical for precision routing. A lightweight plastic or thin-metal jig will flex and vibrate when the bit engages dense hardwood – introducing chatter that ruins slot consistency[reference:19]. The 900g aluminum chassis acts as an inertial damper, absorbing router torque and delivering zero-deflection slotting every time[reference:20].
❓ Q: What panel thicknesses does this jig support?
A: The jig accommodates panels from 9mm to 25mm (approximately 3/8″ to 1″) with tool-free adjustments[reference:21]. This covers the vast majority of cabinet, shelving, and furniture applications.
Safety & Maintenance Notes
- 🔴 Always disconnect the router from power before mounting, adjusting, or cleaning the jig.
- 🧤 Wear eye and hearing protection – routing operations generate high-frequency noise and airborne wood chips.
- 🔧 Use the correct clamping torque – tighten the collar just enough to hold the router securely. Over-tightening can deform the collar or damage the router housing.
- 📐 Verify calibration after every bit change – even the same bit can seat differently in the collet, altering depth and center settings.
- ✅ Keep the jig clean – built-up resin and sawdust on the guide rails will cause the carriage to bind, ruining slot consistency[reference:22].
A: It’s a precision router jig that guides your trim router to cut perfectly straight, consistently deep slots for 2-in-1 invisible slide fasteners. The “2-in-1” refers to the dual functionality – it both guides the slotting operation and positions the router for accurate centerline alignment.
A: The jig cuts the T-slot or keyhole profile required for most 2-in-1 invisible fasteners on the market. You’ll need the corresponding router bit for your specific fastener brand – the jig provides the guidance, and your bit determines the final profile.

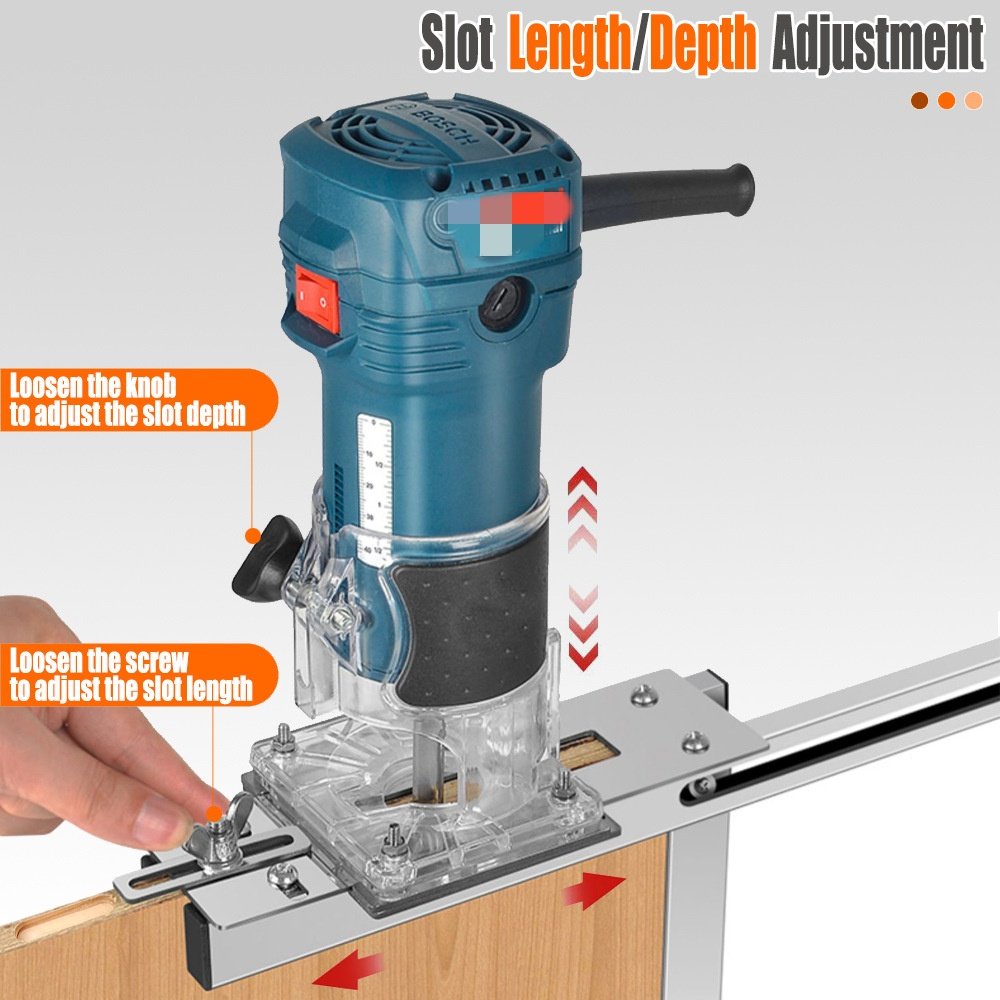

A: The jig features integrated positioning stops and micro-adjustable scales. Set the stops according to your panel thickness, and the jig automatically centers the slot on the board edge. A test cut on scrap material confirms your settings before you proceed to final panels.
A: While optimized for 2-in-1 invisible fasteners, the rigid sliding carriage and precise depth control make this jig suitable for general edge mortising, groove cutting, and other slotting operations where repeatable accuracy is required.
