Why You Need a Dedicated Manual Trimmer
Applying edge banding is only half the battle; the finish quality is dictated entirely by how you trim the excess. Using a standard razor blade or utility knife often results in the blade diving into the workpiece, causing catastrophic gouges on expensive melamine or veneer. Firing up a compact router for a few cabinet doors is loud, messy, and overkill. The 3-in-1 Manual Edge Banding Trimmer bridges the gap, offering machine-like precision powered by human control.
💡 Pro Tip: When trimming highly brittle edge banding (like high-gloss PVC), tilt the trimmer slightly to create a shearing angle rather than pushing straight ahead. This slicing motion significantly reduces the chance of micro-cracking the plastic edge.
How It Works: The Mechanics of a Perfect Edge
Select the Profile
Choose the correct blade profile for your task. Insert the straight blade for flush scraping, or the angled/curved blades for chamfering and round-overs.
Register the Base
Place the flat registration fence of the tool directly against the face of your board. This guarantees the blade remains at a constant, fixed angle.

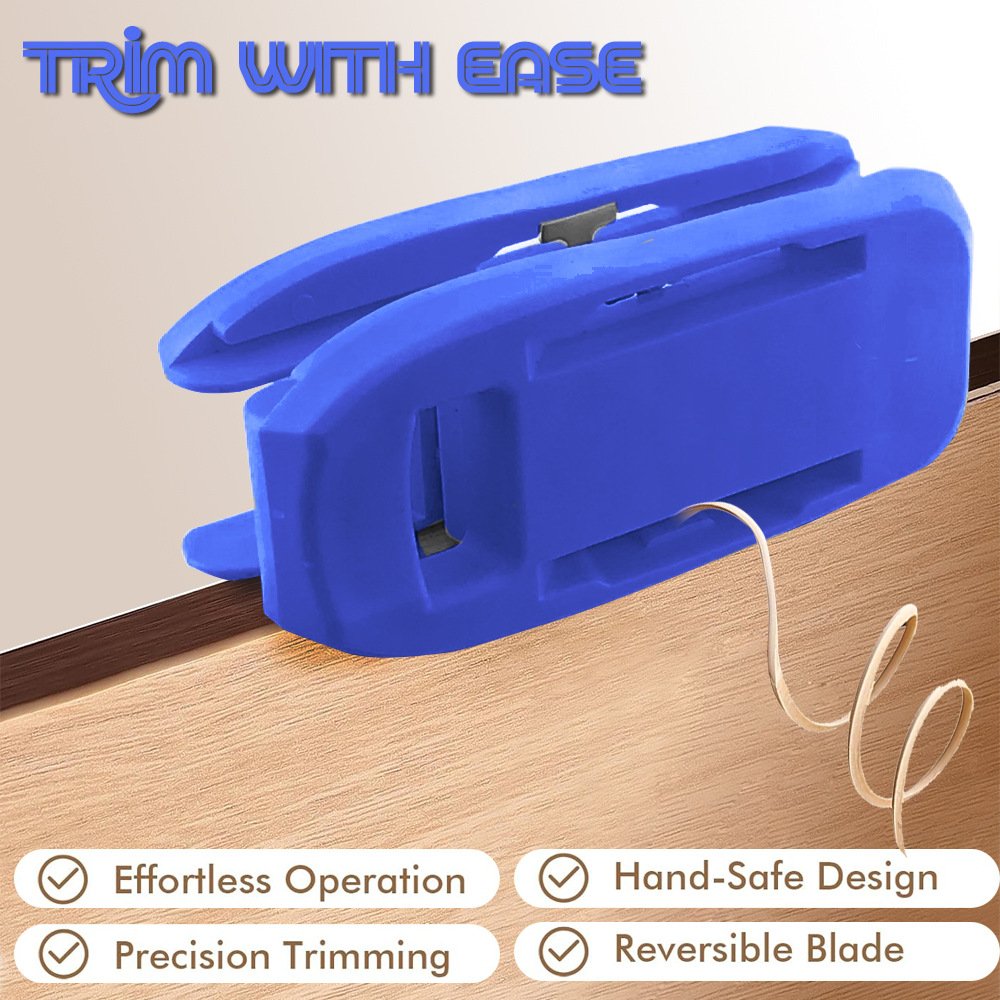

Continuous Glide
Apply light, even downward pressure and push or pull the trimmer smoothly along the edge to shave off the excess material in long, continuous ribbons.
Why Our Trimmer Outperforms the Competition
| Feature | Cheap Plastic Trimmers | FixPartHub 3-in-1 Trimmer |
|---|---|---|
| Chassis Material | Flimsy plastic that flexes and chatters. | ✅ 180g rigid alloy for zero deflection. |
| Blade Versatility | Fixed straight blade only. | ✅ Interchangeable profiles for flush, chamfer, and round-over. |
| Surface Protection | Scratches delicate high-gloss finishes. | ✅ Smooth registration fence glides without marring. |

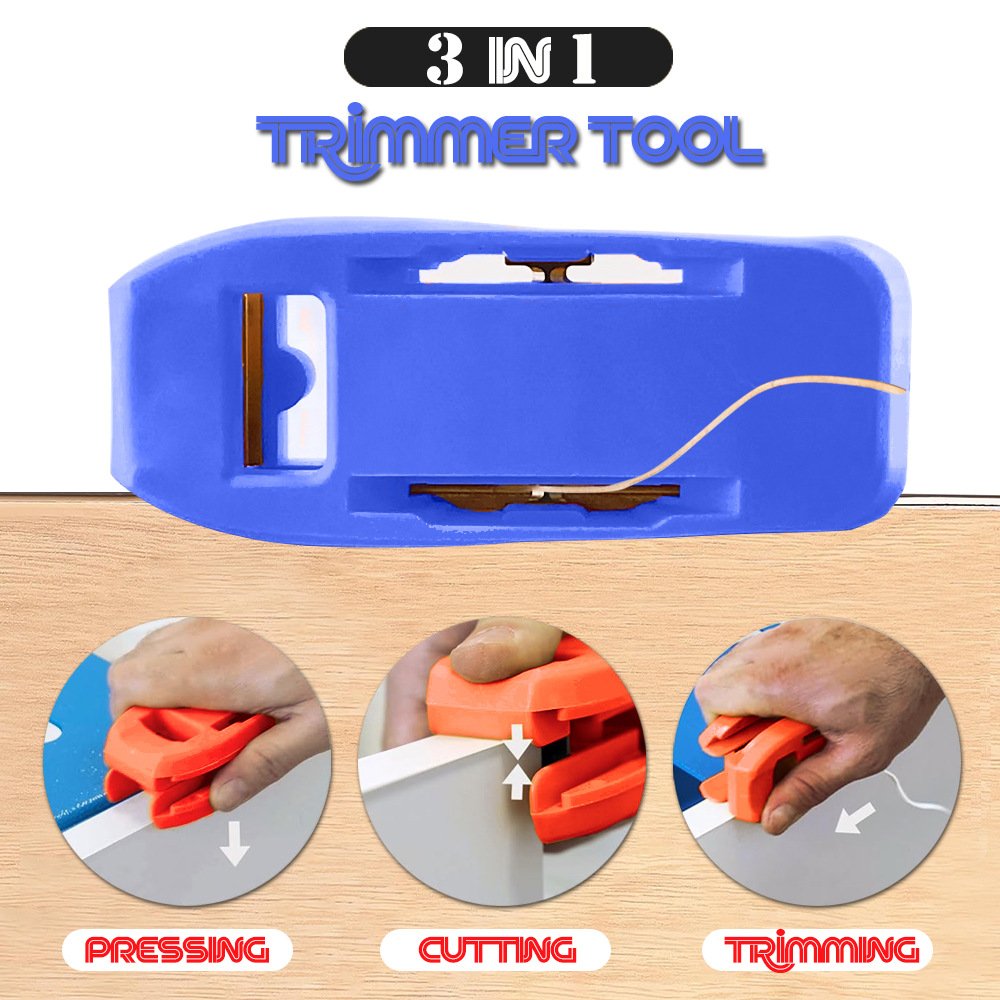

Step-by-Step: Edge Trimming Workflow
Apply Edge Banding
Iron on or glue your edge banding, ensuring it is fully adhered and cooled before trimming to prevent the adhesive from shifting.
End Trim First
Snip or chisel the overhanging tape at the very ends of the board flush with the corners before addressing the long edges.
Flush Trim
Using the straight blade profile, run the tool flat against the panel face to shave the edge banding down until it is perfectly flush with the wood.
Break the Edge
Swap to the chamfer or round-over blade and make one final light pass to remove the sharp 90-degree corner, making the edge safe and professional.

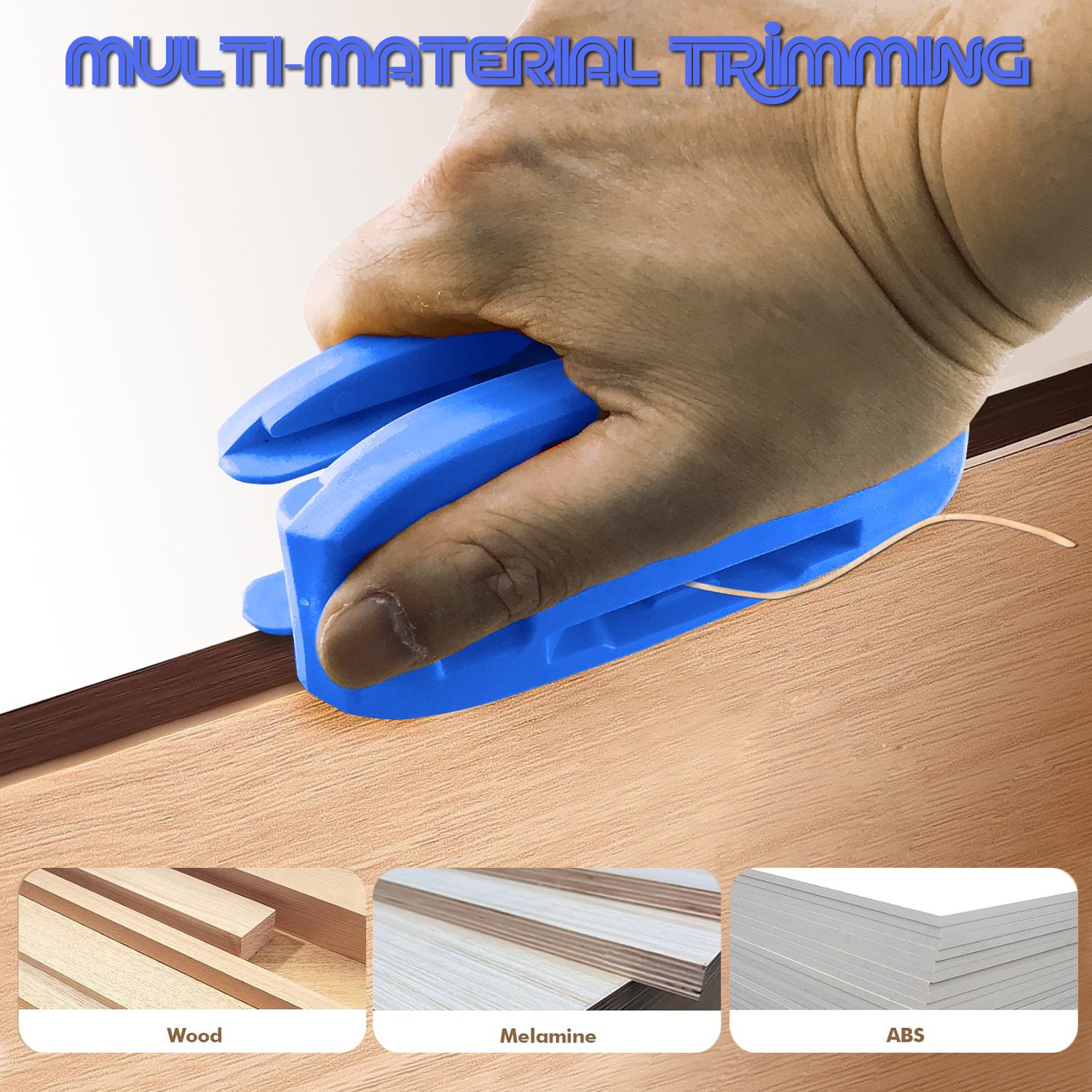

Compatible Materials
Tech Q&A: Expert Answers to Your Questions
❓ Q: How do I change the blades on this tool?

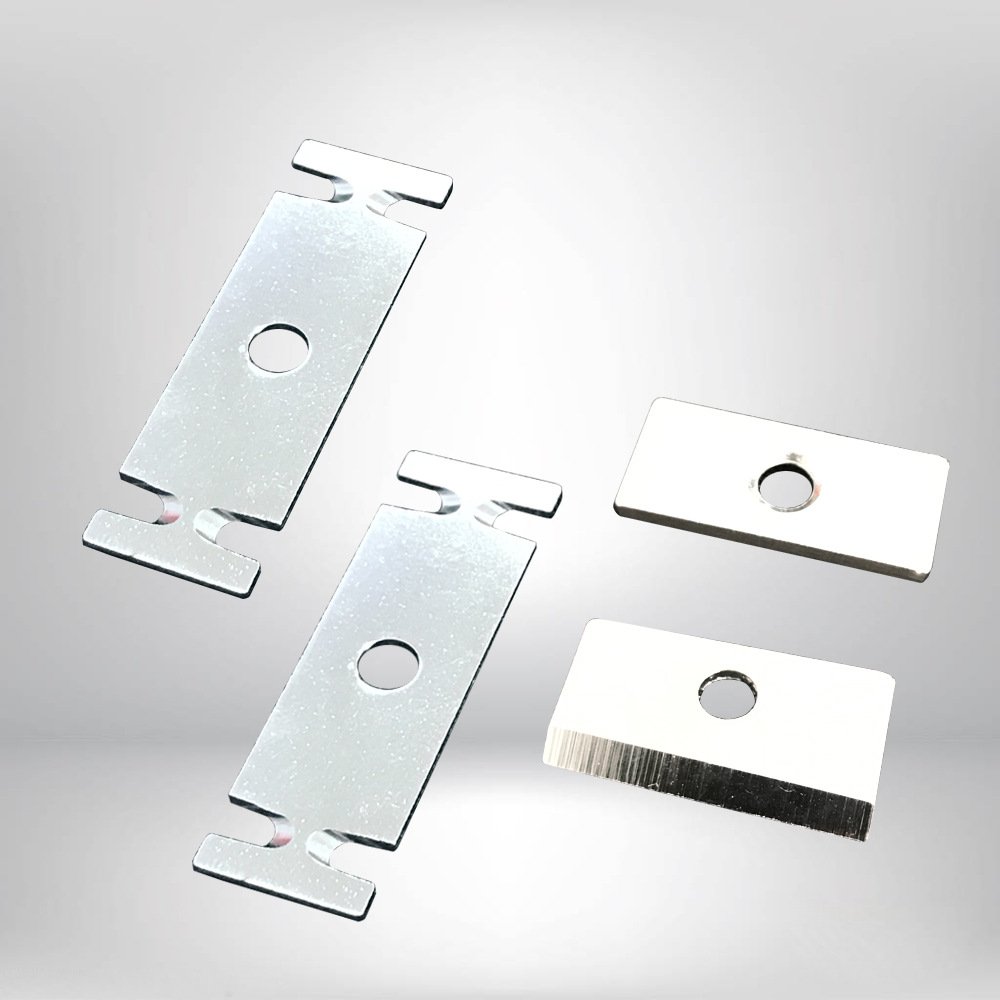

A: The tool features a simple locking screw mechanism. Loosen the retaining screw with a standard hex key, slide out the current blade, drop in the new profile (straight, chamfer, or round-over), and tighten it down securely.
❓ Q: Will this tool work on thick 2mm commercial PVC edge banding?
A: Yes. The rigid alloy chassis and sharp blades are more than capable of shearing thick 2mm and 3mm commercial PVC banding. For thicker materials, take two lighter passes instead of one heavy cut for the cleanest finish.
❓ Q: Does this replace the need for a compact router?
A: For edge banding, absolutely. While a router is needed for heavy profiling on solid wood, this manual tool is significantly faster and cleaner for removing tape overhang and creating micro-bevels on cabinet doors and shelves.
Safety & Usage Notes
- Mind your fingers: The blades are razor-sharp. Keep your guiding hand well behind the tool’s cutting path during operation.
- Clear debris: Ensure the registration fence is free of glue squeeze-out and plastic shavings; debris on the fence will alter the cutting angle and ruin the profile.
- Blade storage: Always store the spare blade set in a protective case to prevent the delicate cutting edges from chipping against other metal tools in your toolbox.
Yes, it performs exceptionally well on real wood veneer tape. However, because wood has directional grain, be sure to pay attention to the grain direction. Always shave “with” the grain to prevent tear-out or splintering.
The chamfer blade cuts a flat, angled 45-degree bevel, which provides a crisp, modern look. The round-over blade cuts a smooth, curved radius, which is softer to the touch and less prone to edge-chipping from impacts.
The blades are made from hardened, wear-resistant material. For a hobbyist or DIYer, a single set of blades will easily last through multiple kitchen builds. For heavy daily shop use, we highly recommend purchasing the bundle with the spare blade set.
