Mounting drawer fronts is notoriously frustrating. Holding the front panel perfectly level, maintaining the exact reveal, and driving screws from the inside—all with only two hands—often leads to misaligned cabinets and wasted material. The Precision Adjustable Aluminum Drawer Front Installation Jig acts as your second pair of hands, locking your panels into a rigid, perfect 90° alignment before you drive a single screw.
The “Heavy-Duty” Difference: Why Mass Matters

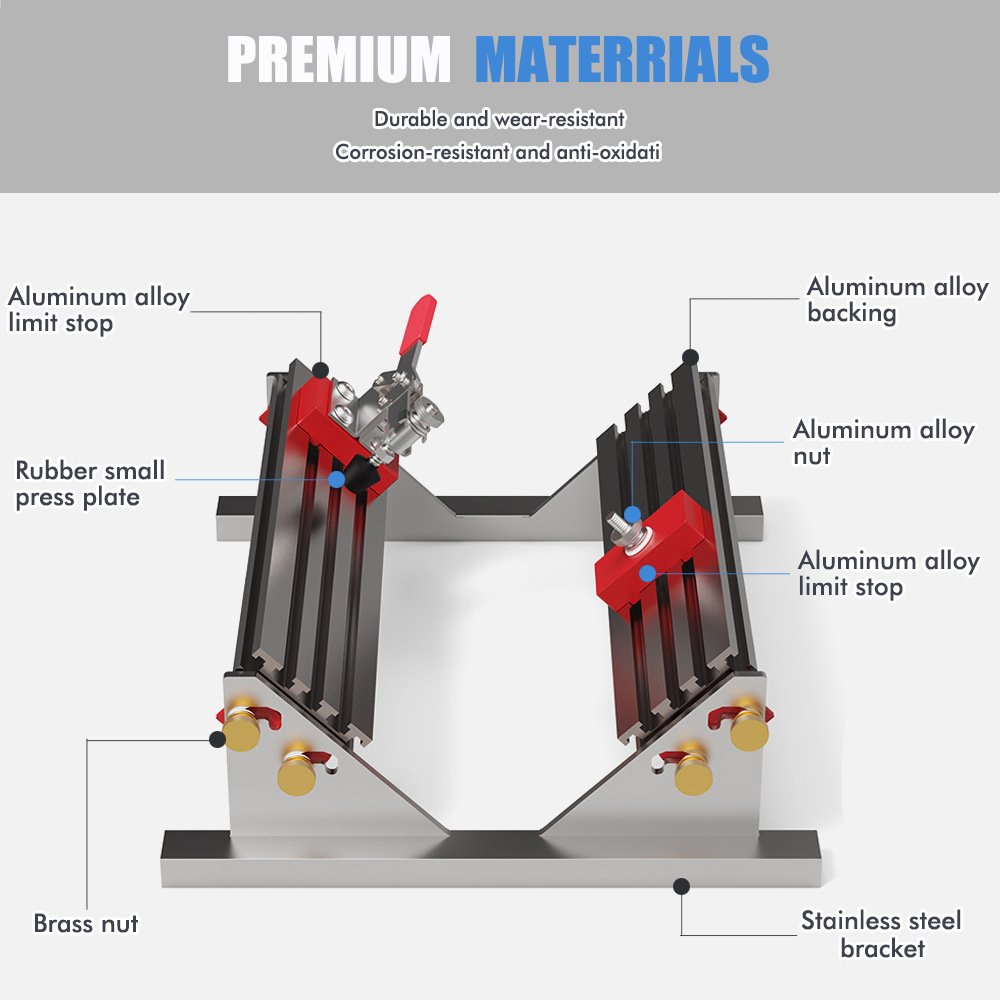

Unlike standard plastic jigs that flex under clamping pressure, this unit is machined from a solid block of industrial-grade aluminum alloy, weighing in at a substantial 1960g (4.32 lbs). This extreme structural rigidity completely eliminates deflection. When you lock this jig down, your drawer front will not shift, vibrate, or tilt when the drill bit bites into the wood. This is the difference between a frustrating DIY attempt and a flawless, cabinet-shop-quality installation.
Key Engineering Advantages
- True 90° Angle Design: The internal spline clamp is precision-machined to hold exactly 90 degrees, ensuring your drawer front sits flush against the drawer box with zero gap.

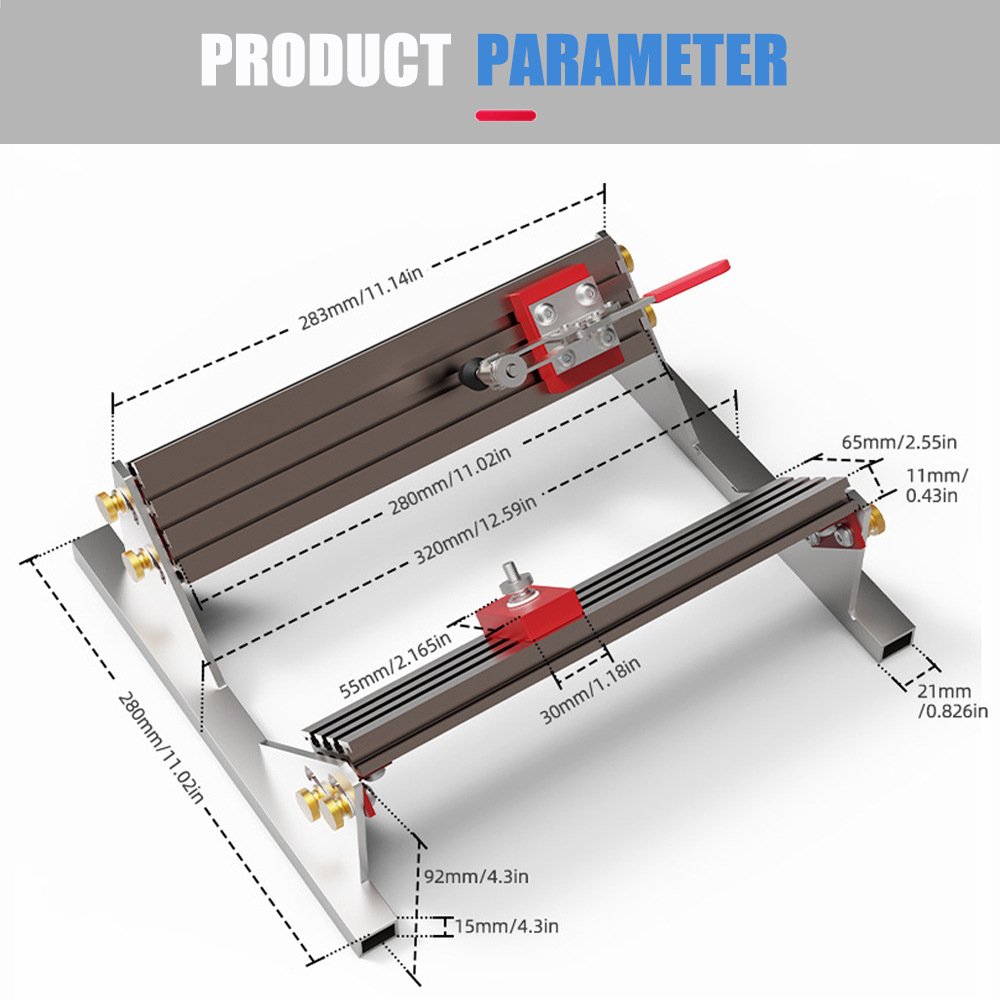

- Massive Adjustment Range: With a sliding capacity of 65mm to 210mm (approx. 2.5″ to 8.2″), this tool effortlessly accommodates everything from shallow top vanity drawers to deep, heavy-duty kitchen pot drawers.
- Non-Marring Contact Points: Engineered to grip tightly without crushing the wood fibers or scratching premium painted and veneered cabinet finishes.
How to Deploy the Jig
- Set the Reveal: Position your drawer box inside the cabinet and use shims to set your desired gaps for the front panel.
- Clamp the Front: Slide the Drawer Jig Locator over the drawer box side and the front panel. Turn the heavy-duty tightening knobs until the 90° internal face is firmly seated against both pieces.
- Verify and Fasten: Check your alignment one last time. Because the 1960g aluminum frame holds everything dead-still, you can easily reach inside the drawer box and drive your mounting screws without the panel shifting.
- Release: Loosen the clamps and move to the next drawer.
Tech Q&A: In-Depth Component Analysis
Q: Will a 1960g clamp be too heavy for delicate drawer glides?
A: No. Standard ball-bearing drawer glides are rated for 75-100 lbs minimum. The weight of the jig actually acts as a stabilizing ballast, preventing the drawer box from bouncing while you install the face panel.
Q: What is the maximum clamping thickness?
A: The adjustable spline mechanism opens from 65mm up to 210mm, easily bridging the thickness of a standard 5/8″ drawer box side plus a 3/4″ hardwood face panel, with plenty of room to spare for thicker custom builds.
Q: Is this tool susceptible to rusting in a damp workshop?
A: The core structure is fabricated from corrosion-resistant aluminum alloy. It will not rust like steel clamps, ensuring the sliding mechanisms remain smooth even in unconditioned garage environments.
It securely holds all standard cabinet materials including solid hardwood, MDF, plywood, and particleboard without causing structural damage or surface marring.
Yes. The clamping capacity extends up to 210mm (approx. 8.2 inches), making it perfect for tall, heavy drawer fronts used in kitchen base cabinets.
No, you still need to measure or shim to establish your initial gaps and reveals. The purpose of this jig is to lock the panel flawlessly at 90 degrees so it doesn’t move while you fasten it.
This tool is sold as a single unit. While one clamp is highly effective, purchasing two is recommended for extremely wide or heavy drawer fronts to balance the load evenly.
