Ditch the Flimsy Plastic. Build Rock-Solid Joints with Aircraft-Grade Aluminum.
Pocket hole joinery is the fastest and most reliable way to build cabinets, bookshelves, and custom furniture. But spending over $100 on a big-brand plastic jig that flexes under pressure? That doesn’t belong in a real workshop.
Meet the FixPartHub Heavy-Duty Aluminum Pocket Hole Jig System (Custom Green Edition). Weighing in at a solid 700g (1.5 lbs), this jig is CNC-machined from a single block of aluminum alloy. It guarantees zero flex, dead-accurate 15-degree drilling angles, and lifelong durability. Whether you are building face frames or fixing a wobbly table, this tool ensures your screws drive perfectly every single time, hiding the fasteners for a flawless, professional finish.
🔥 Core Workshop Advantages
- Solid Aluminum Alloy Construction: No cheap plastics here. The entirely metal body provides massive clamping pressure without warping, ensuring your drill bit never drifts off center.

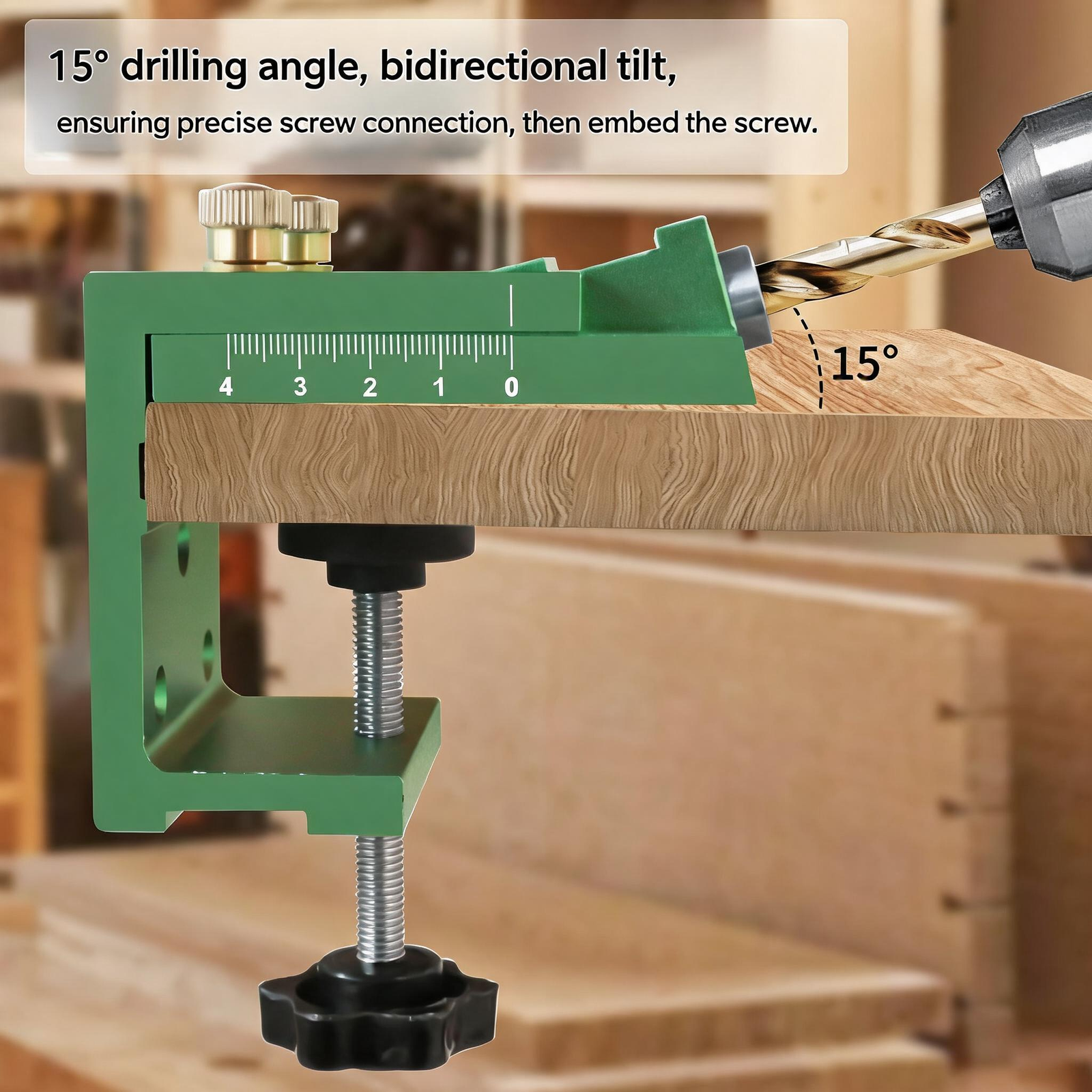

- Optimized 15° Drilling Angle: The industry-standard 15-degree twin drilling holes allow for maximum screw-thread engagement in the mating board, creating a joint stronger than the wood itself.

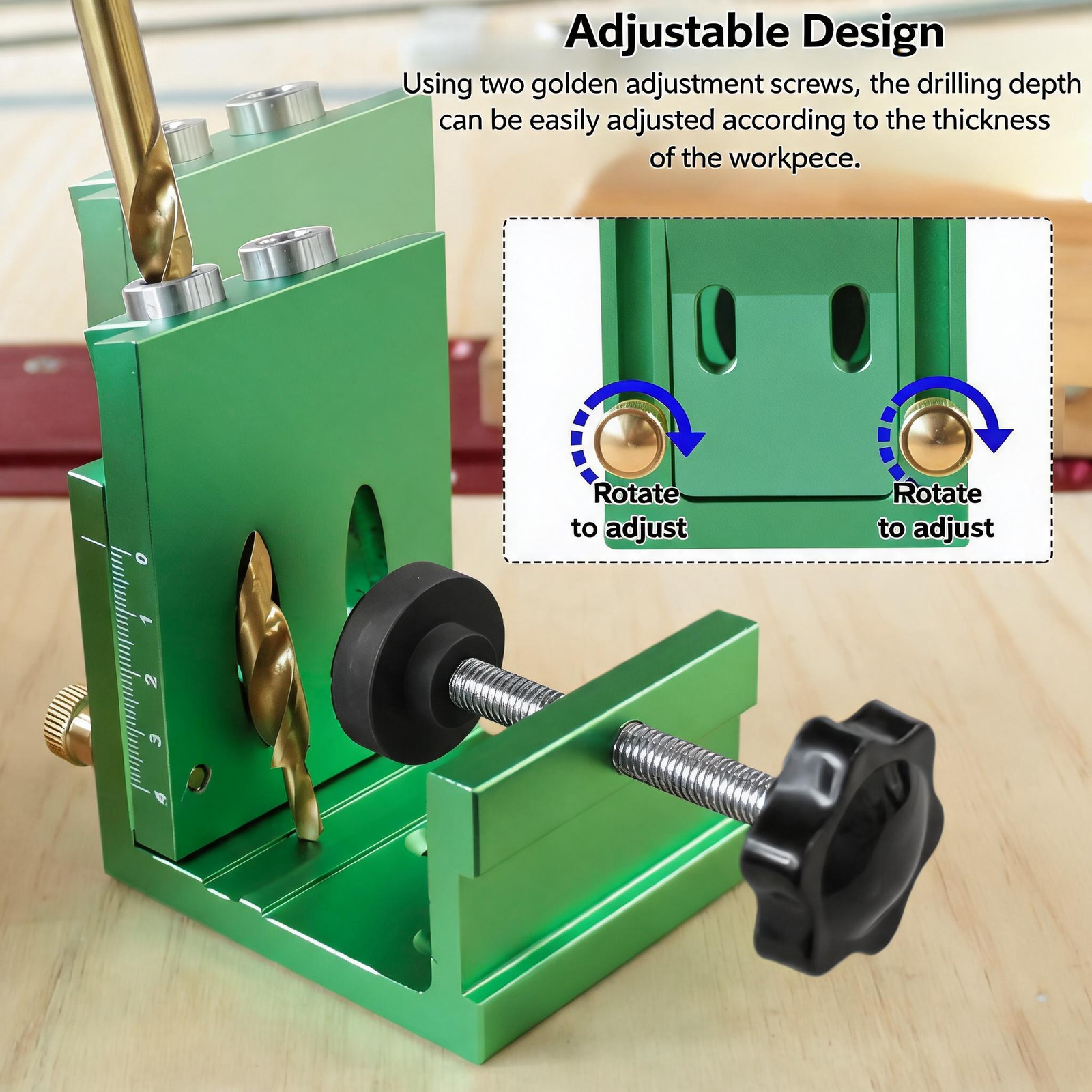

- Dual Brass-Tone Adjustment Screws: Adjusting for material thickness is instant. Simply loosen the two gold-anodized thumb screws, slide the guide block to match your board thickness, and lock it down. No extra tools required.

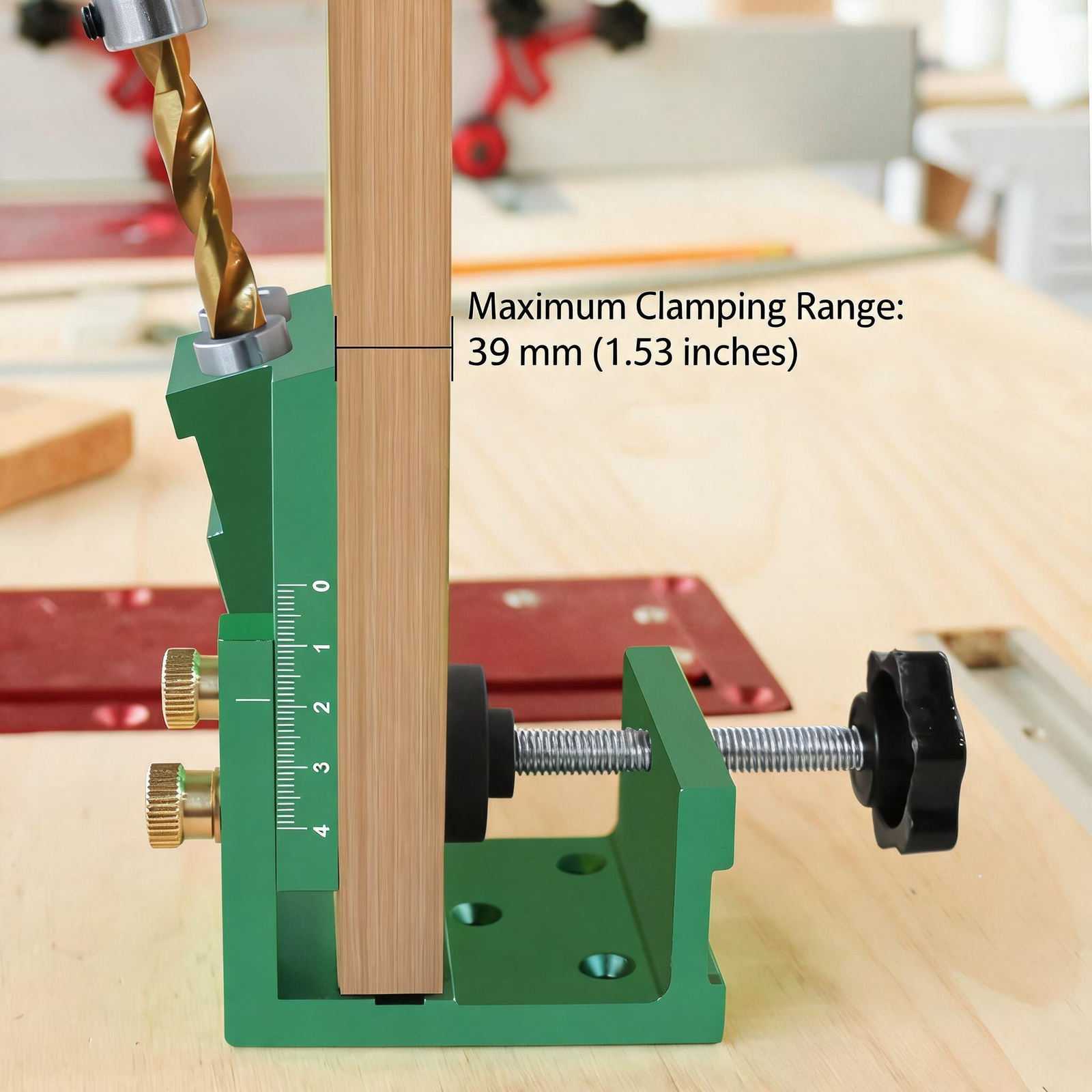

- Massive Clamping Capacity: Features a wide jaw that can accommodate material up to 39mm (1.53 inches) thick. Perfect for heavy 2×4 framing lumber or thick hardwood slabs.

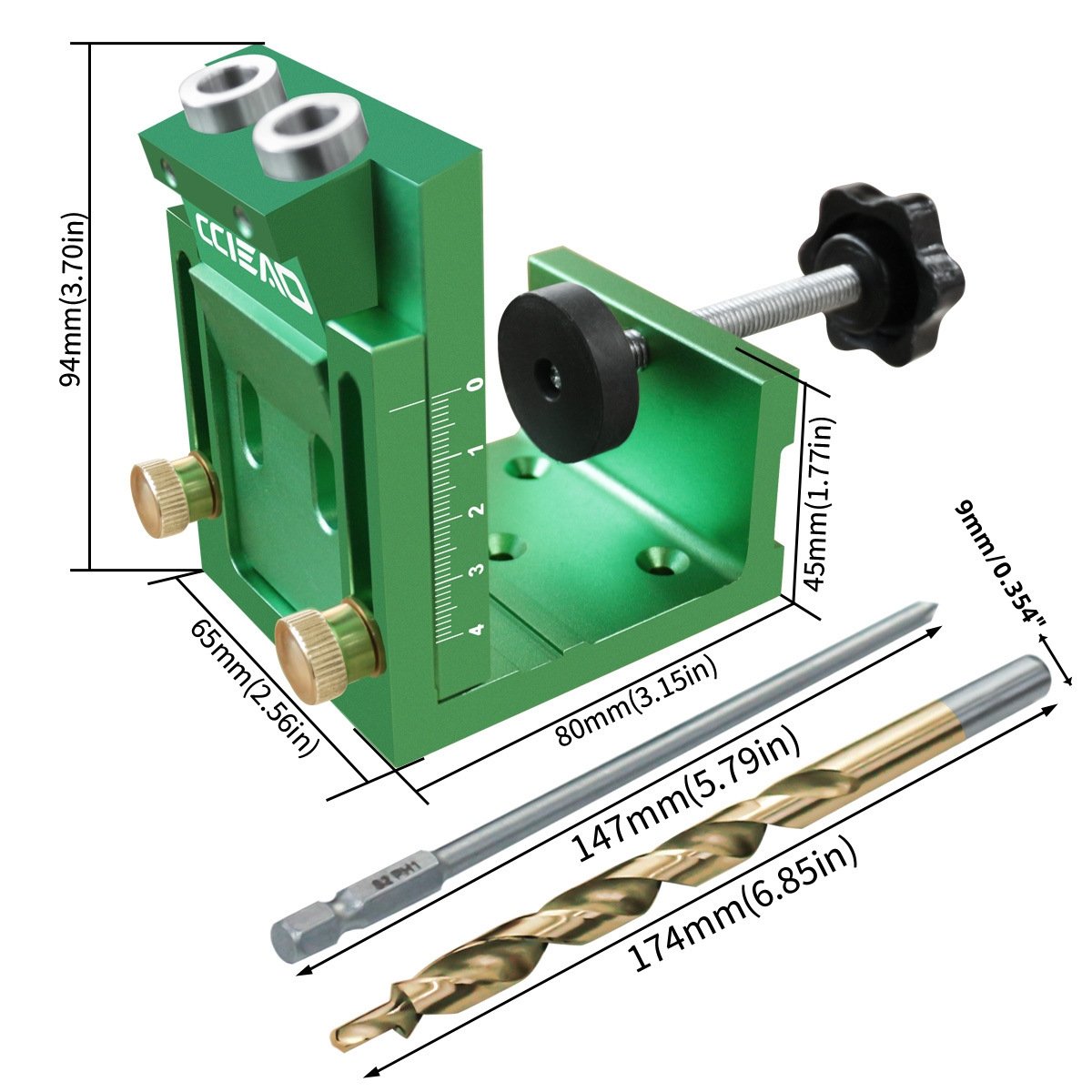

- Precision 9.0mm Step Bit Included: The kit includes a sharp, high-speed steel 9.0mm (0.354″) step drill bit and a depth stop collar to prevent over-drilling and blowout.
🛠️ Standard Operating Procedure (How to Use)
- Set the Jig Height: Loosen the gold screws and set the drill guide block to match the exact thickness of your wood.
- Set the Drill Depth: Slide the stop collar onto the 9.0mm drill bit and lock it so the tip stops just shy of the jig’s base.

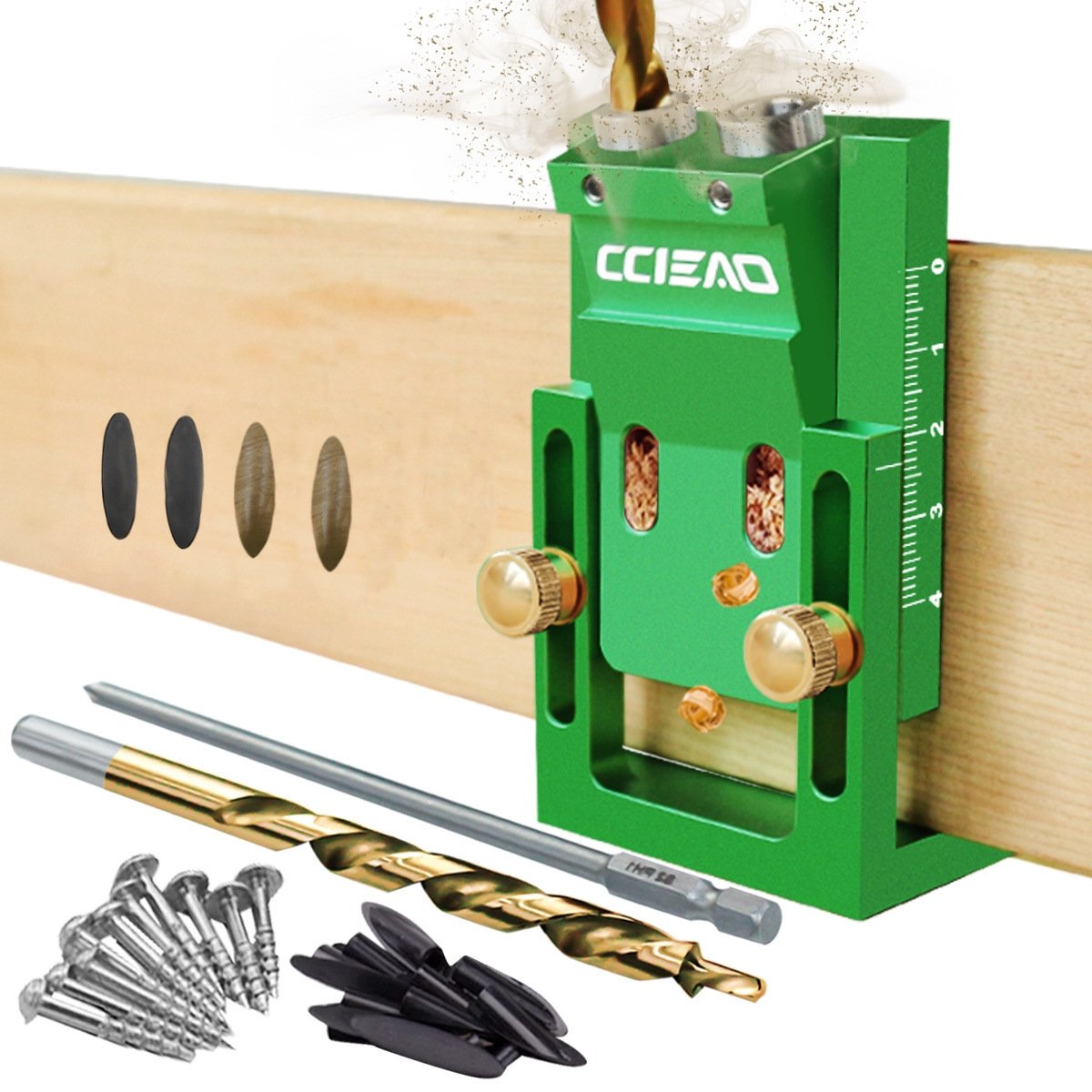

- Clamp and Drill: Clamp your workpiece securely into the jig. Drive the drill bit into the guide holes at high speed to create clean, tear-out-free pocket holes.
- Drive the Screws: Align your boards and drive in your pocket hole screws to pull the joint tight. (No messy wood glue required!)
🧠 Tech Q&A: Master Your Joinery
This heavy-duty aluminum jig can securely clamp and drill wood up to 39mm (1.53 inches) thick, making it perfect for thick structural framing as well as standard cabinetry.
The drill guide features an optimized 15-degree dual-hole design. This specific angle provides the strongest possible mechanical joint without breaking through the surface of the mating board.

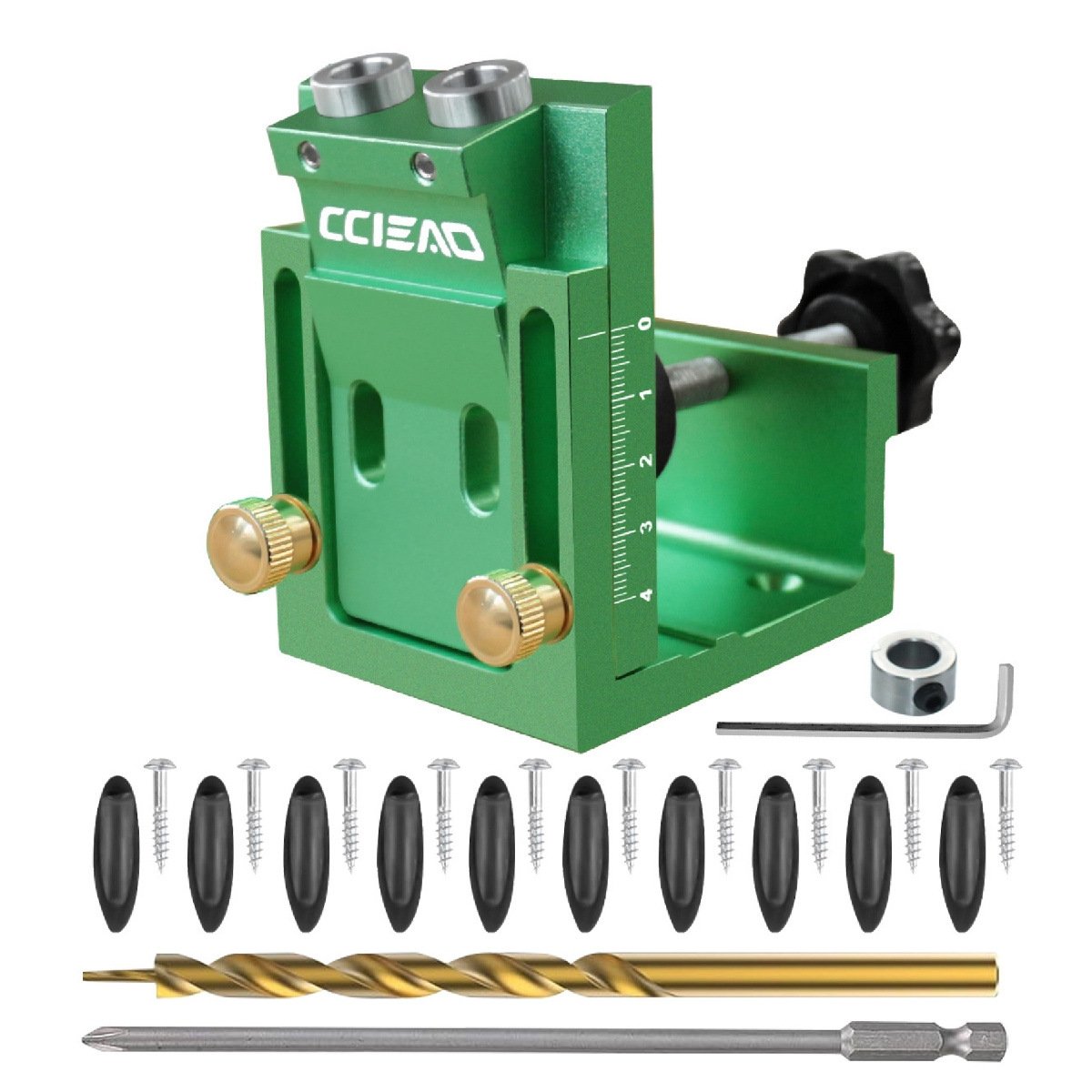

Yes, the kit comes complete with a precision 9.0mm (0.354 inch) stepped drill bit, a depth stop collar, and a hex wrench for setting the drilling depth.
