The Engine Builder’s Secret to Perfect Ring Gaps
Whether you are rebuilding a daily driver or assembling a high-boost LS swap for the drag strip, setting the proper piston ring end gap is a non-negotiable step. Factory rings often come with gaps that are too tight for performance applications. When an engine reaches operating temperature, especially under forced induction or nitrous, the piston rings expand. If they run out of room and butt ends, the resulting friction will literally tear the piston apart and destroy your freshly machined block. The FixPartHub 66785 Manual Piston Ring Filer takes the guesswork out of ring gapping, allowing you to build your engine with absolute confidence.
Accuracy You Can See and Measure

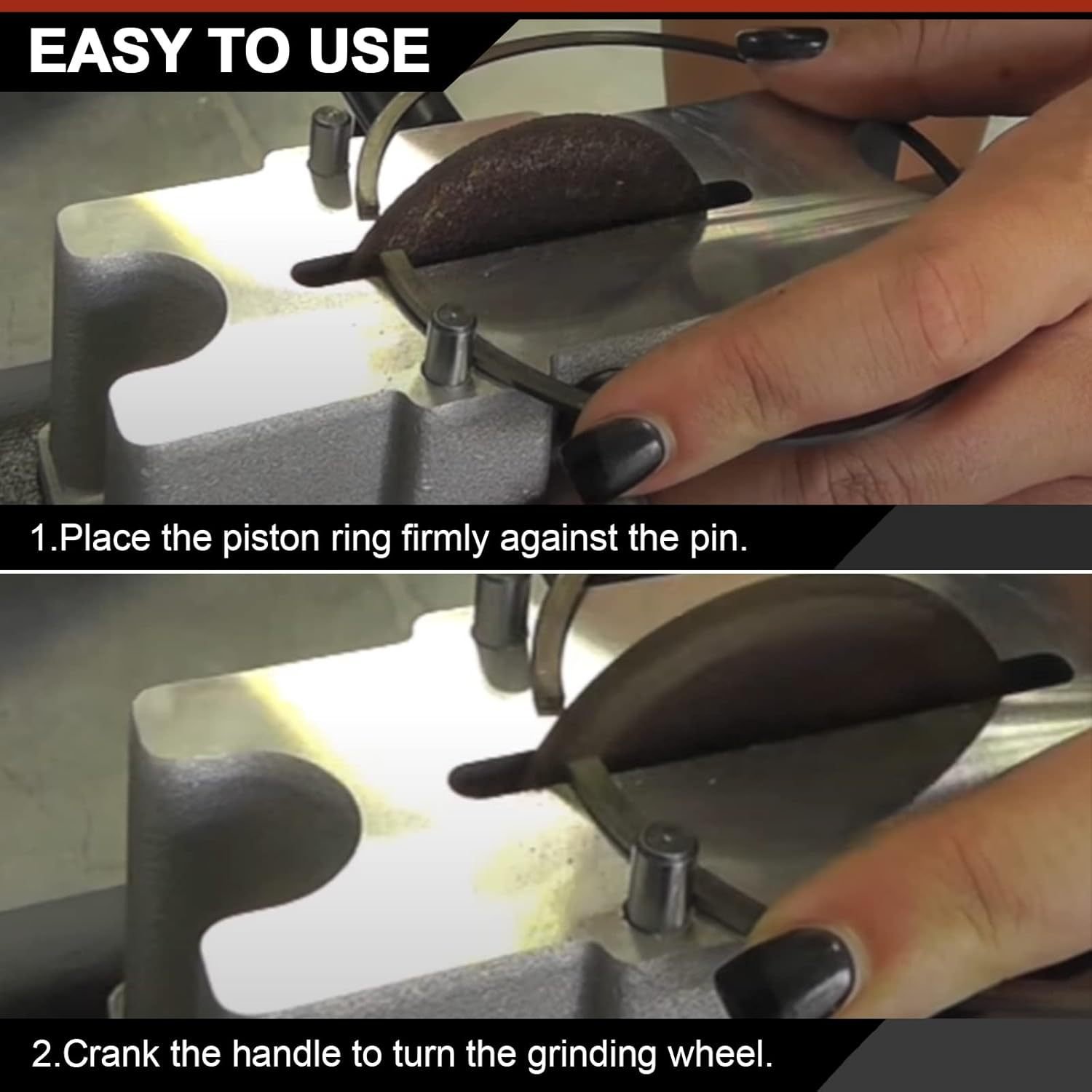

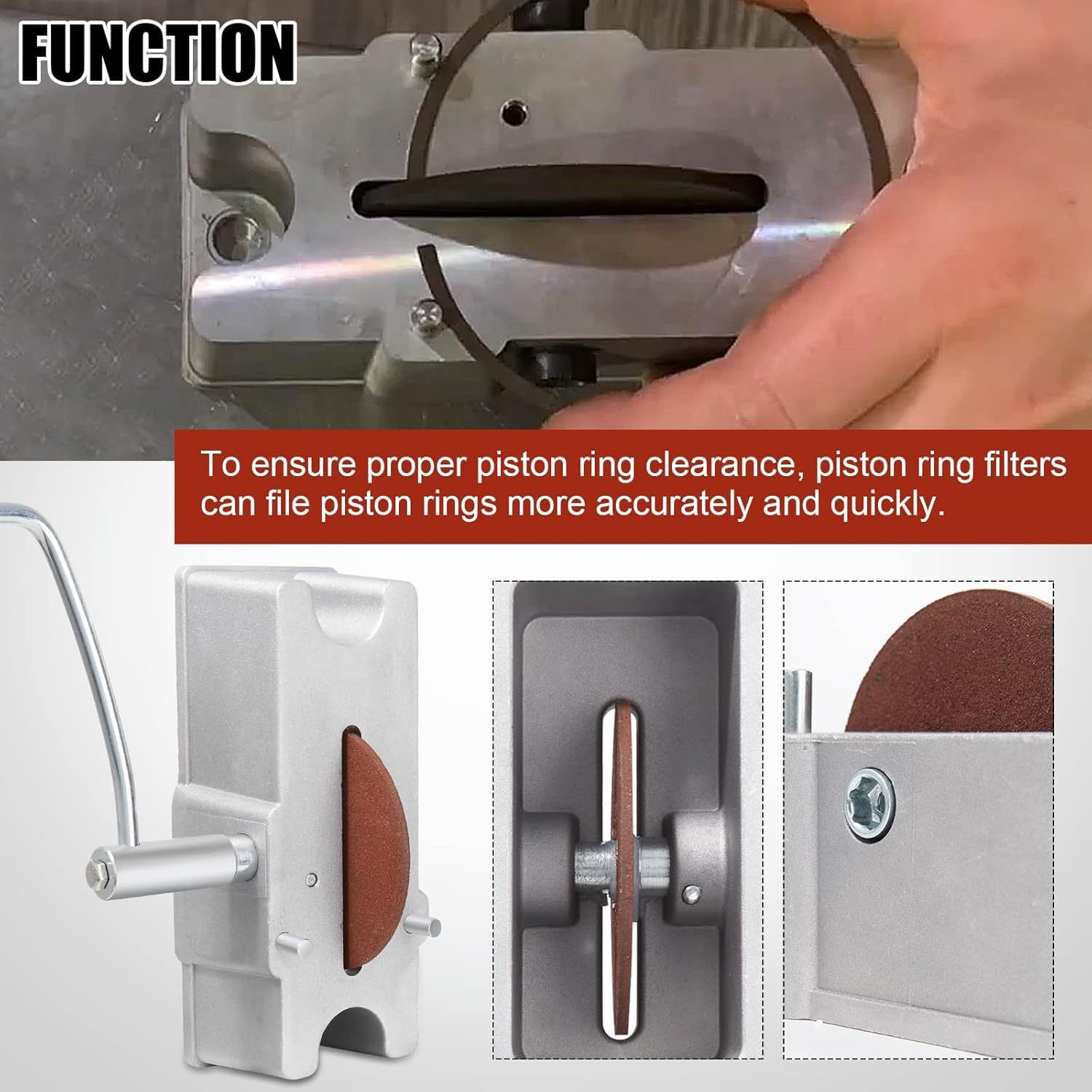

Trying to clamp a piston ring in a vise and hit it with a hand file is a recipe for disaster. It is physically impossible to keep the file perfectly straight, resulting in V-shaped gaps that allow combustion gases to blow by into the crankcase. Our manual ring filer utilizes precision alignment pins. You simply press the ring firmly against the pins, ensuring it sits at a perfect 90-degree angle to the abrasive wheel. A few smooth turns of the manual crank handle will shave off precise amounts of material, leaving a perfectly square edge ready for the feeler gauge.
Built for the Professional Workbench

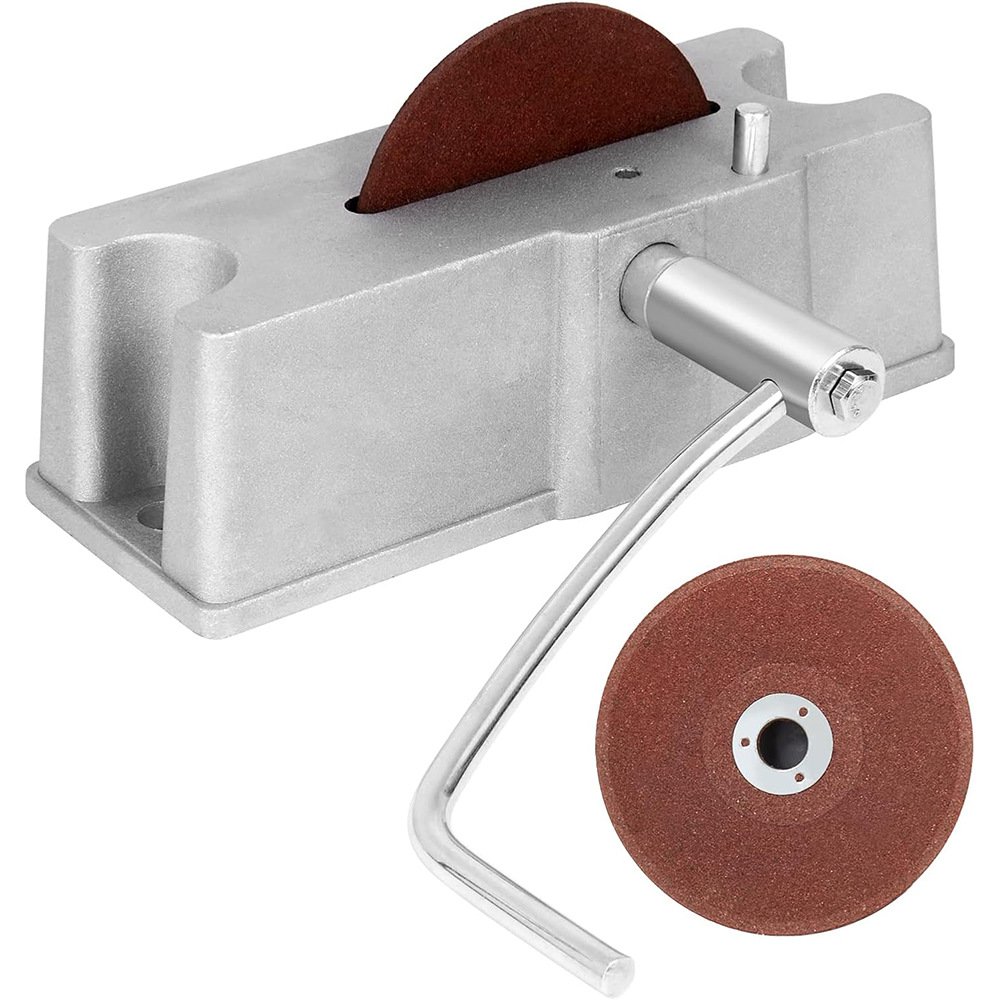

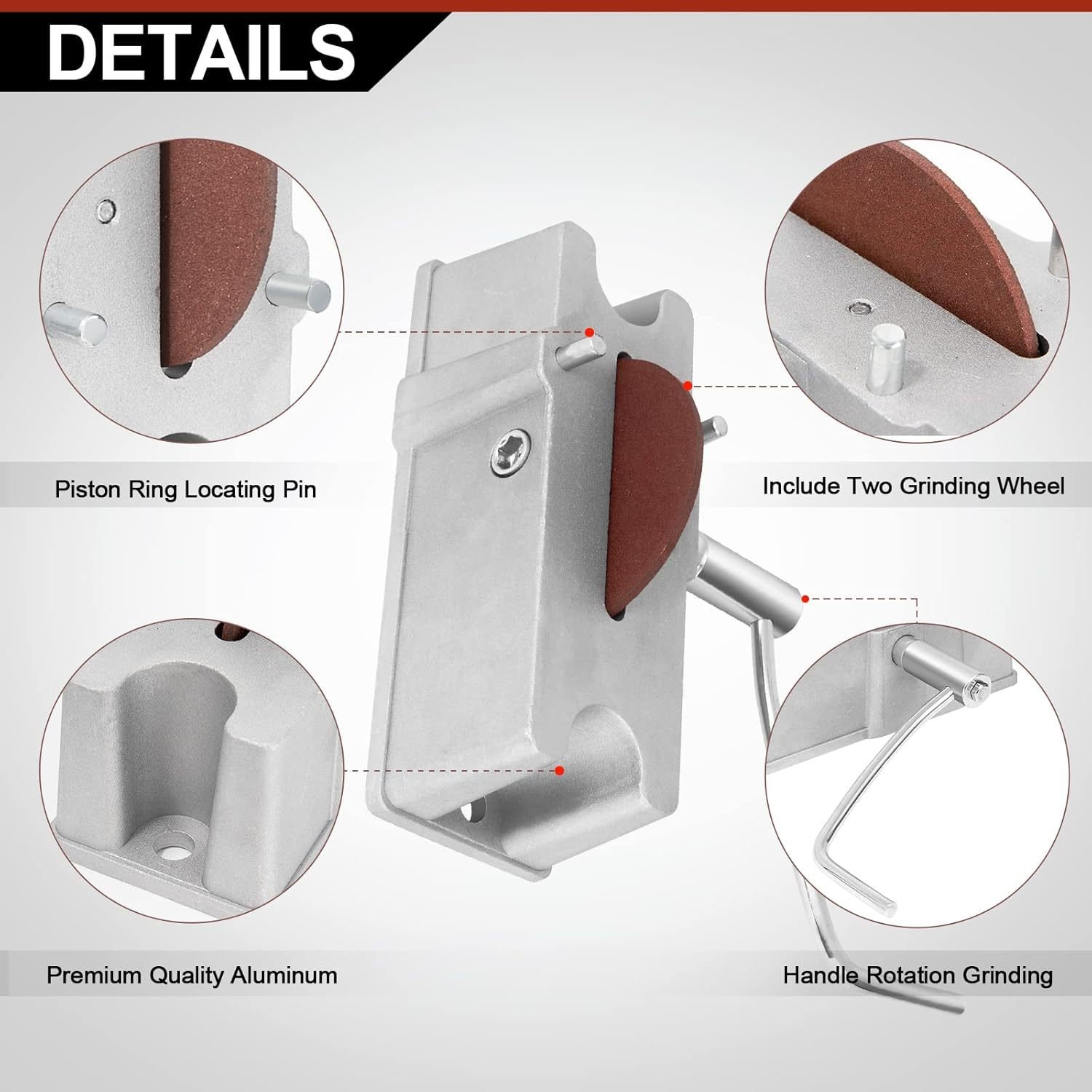

Weighing in at a solid 0.882kg, this isn’t a flimsy toy. The main body is cast from high-strength aluminum alloy, designed to withstand the daily abuse of a busy machine shop. It features pre-drilled mounting holes and a flat base, making it incredibly easy to secure in a standard bench vise for a stable, two-handed operation.
Technical Specifications

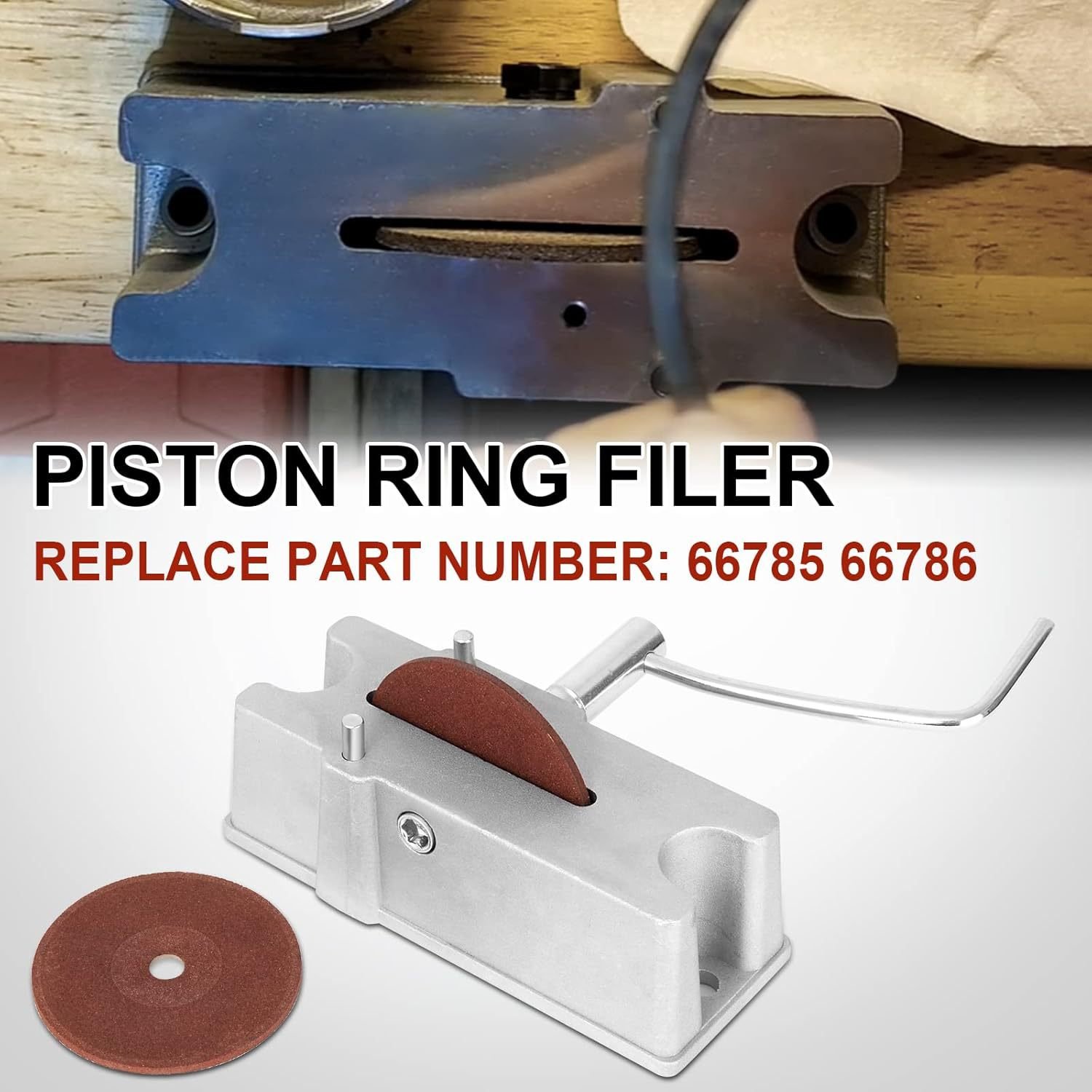

| Tool Model Reference | 66785 / 66786 Compatible |
|---|---|
| Grinding Wheel Specification | 120-Grit Carbide (Replaceable) |
| Body Material | Heavy-Duty Aluminum Alloy |

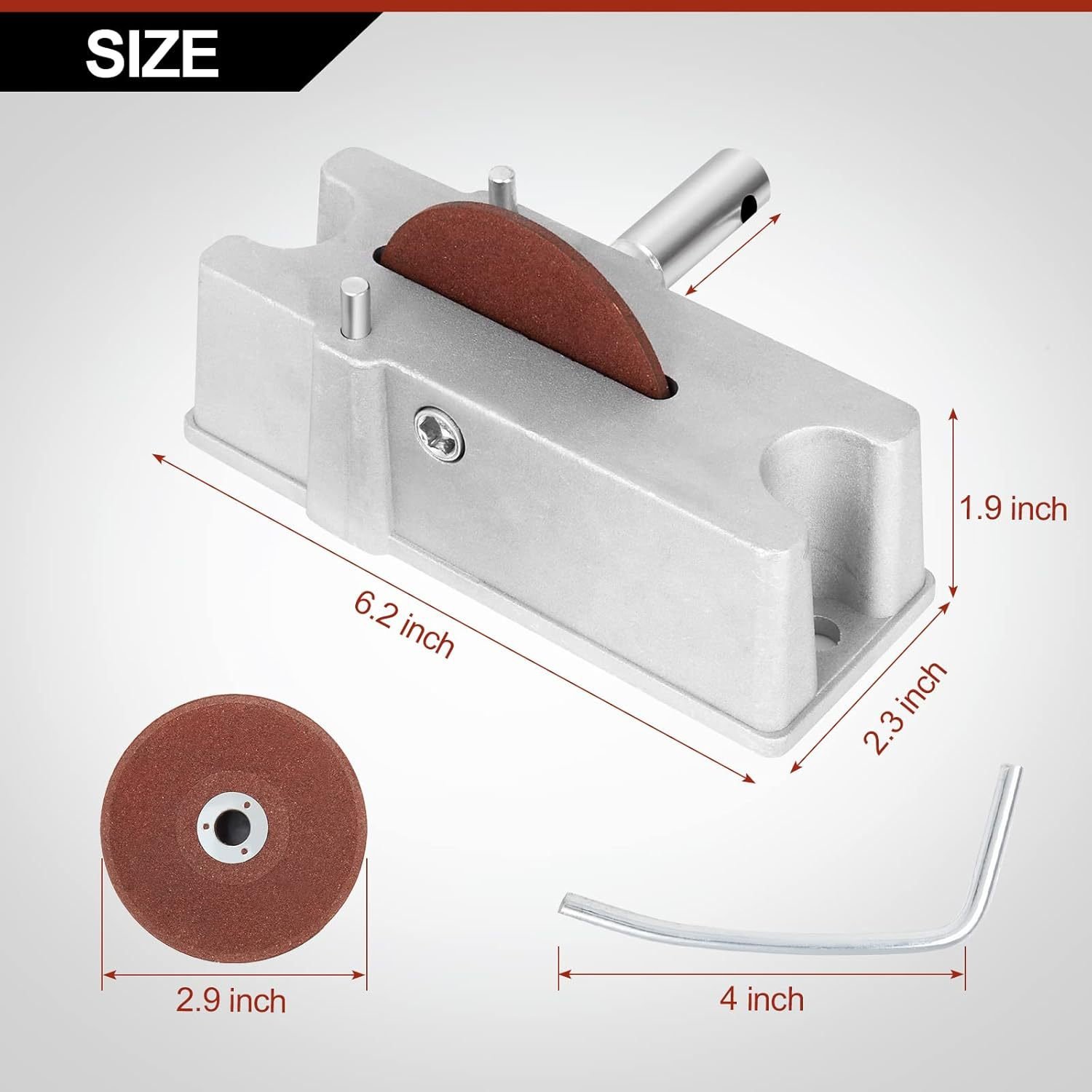

| Dimensions & Weight | 22.5 x 15 x 9.5 cm / Net Weight: 0.882 kg |
| FixPartHub Service | Did you wear out your grinding wheel after building multiple engines? Contact FixPartHub to source authentic 120-grit replacement carbide wheels to keep your filer cutting like new! |
ENGINE MACHINING SAFETY WARNING: Always use a high-quality feeler gauge to measure your ring gap inside the actual cylinder bore with a ring squaring tool. NEVER assume all cylinders are exactly the same size. After filing a piston ring, use a fine sharpening stone to gently deburr the sharp inner and outer edges before installing it onto the piston. Failure to remove filing burrs will scratch your cylinder walls during engine break-in.
