The Hidden Danger of Bare Motor Replacements
When your cordless drill bogs down or starts smelling like burnt electronics during a heavy hole-sawing operation, the internal RS550 motor has likely suffered a catastrophic short circuit. Many suppliers sell generic, bare RS550 motors, leaving you to extract the old pinion gear and press it onto the new shaft yourself.

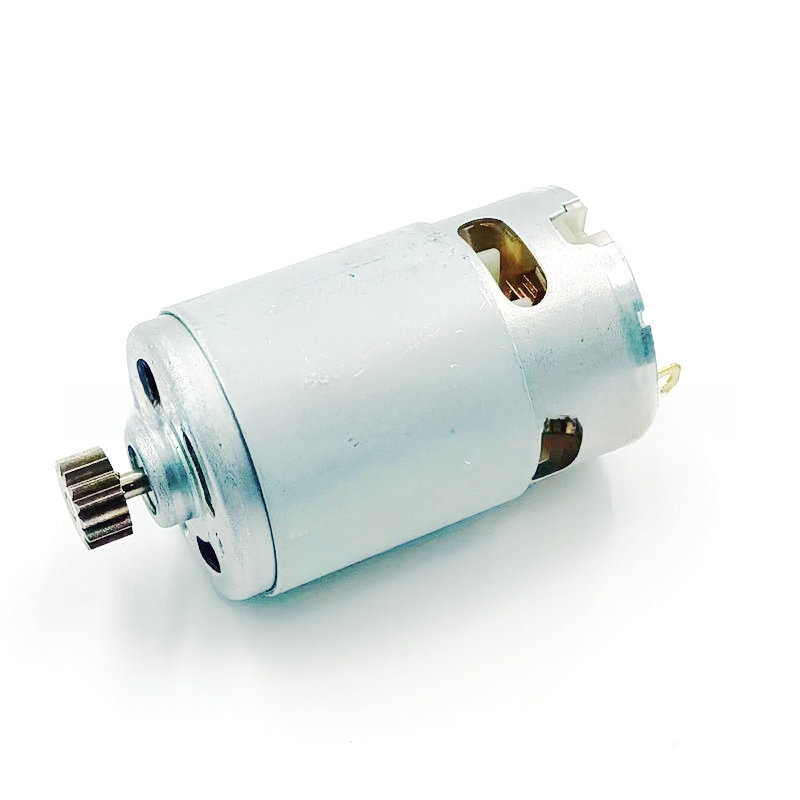

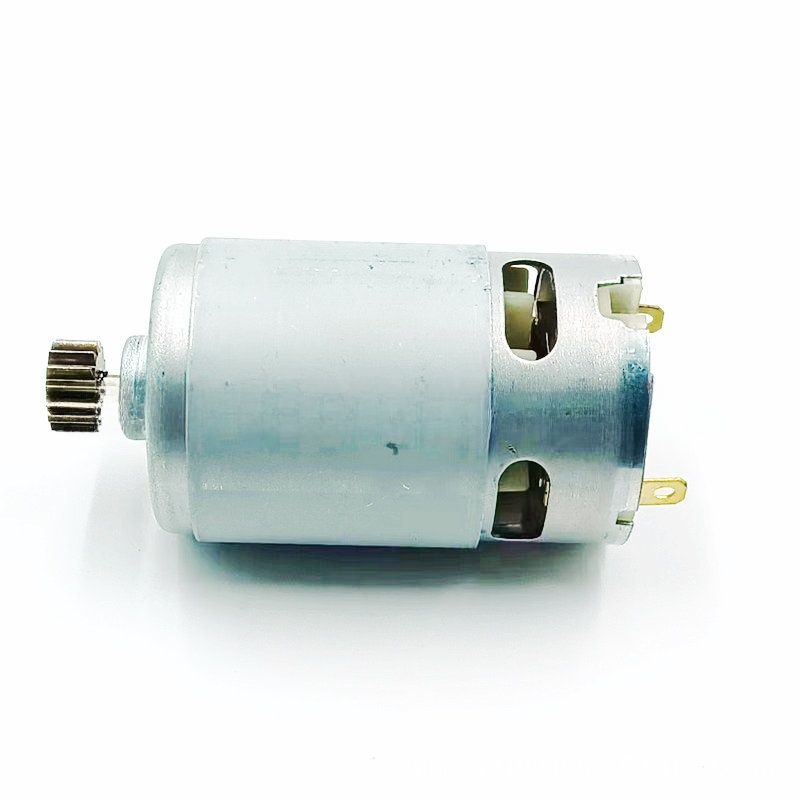

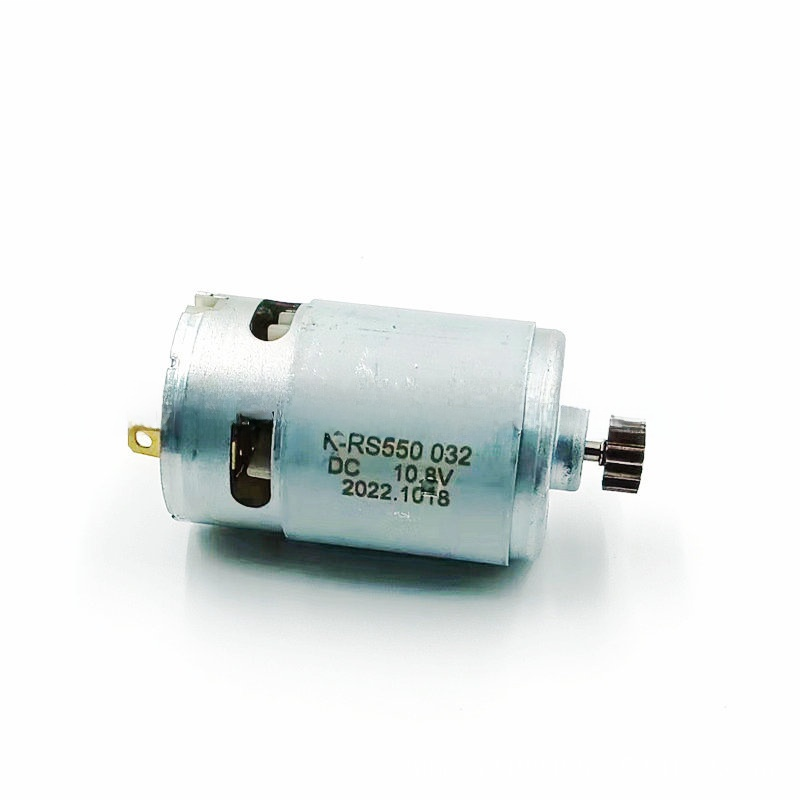

Here is the mechanical truth: Without a specialized industrial micro-gear puller and a precision hydraulic press, attempting to hammer or pry a 15-teeth gear onto a 3.17mm armature shaft will permanently bend the shaft by a fraction of a millimeter. This micro-bend creates intense radial runout, which will instantly destroy the plastic planetary gears inside your drill\’s gearbox within minutes of operation. Our FixPartHub Premium Aftermarket RS550 Motor arrives with the 15T gear perfectly pre-pressed at the factory, ensuring true center alignment and zero vibration.
Step-by-Step Installation Protocols
To ensure a successful repair and prevent premature burnout of your new 10.8V motor, follow these expert workshop steps:

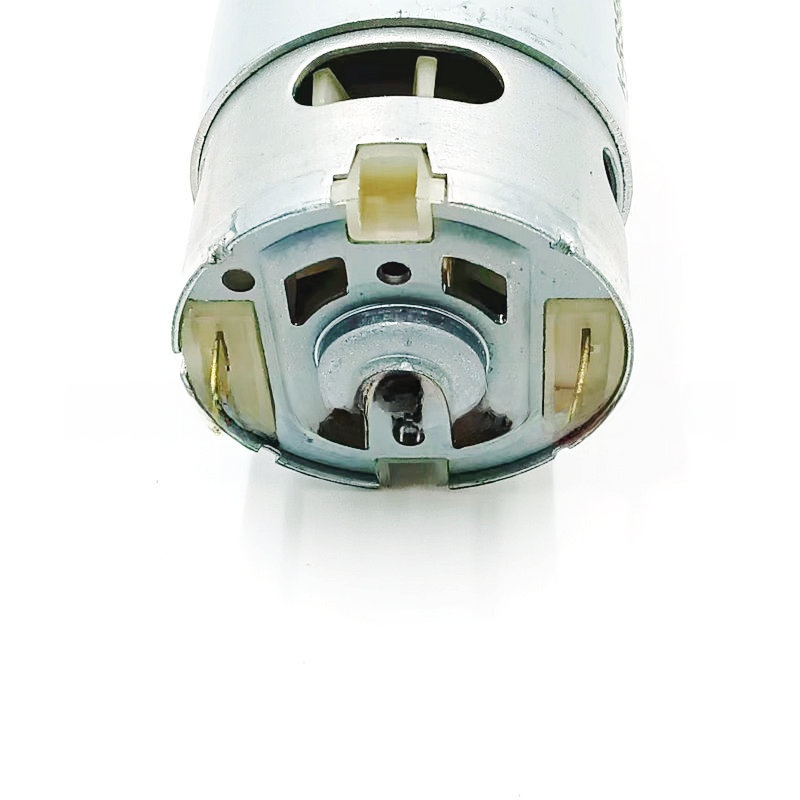

- Mind the Polarity: DC motors are highly sensitive to wiring direction. Look for the red dot or “+” stamp near one of the rear terminal lugs. Connecting the positive lead to the wrong terminal will cause your drill to run backward when pulling the forward trigger.
- Gearbox Debris Cleanout: When a motor burns up, tiny carbon and copper particles often blow forward into the rear of the gearbox. Thoroughly wipe down the input ring gear and re-lubricate with high-quality lithium grease before sliding the new 15-teeth motor into place.
- Solder Connection: Use a clean soldering iron at around 350°C to ensure a strong, low-resistance connection on the main leads. Loose solder joints cause voltage drops and excessive heat.
Tech Q&A: Cordless Drill Powertrain Electronics
Q: My tool states it is a 12V Max drill, but this motor is rated at 10.8V. Will it burn out?
A: No. 10.8V and 12V Max refer to the exact same battery platform. 10.8V is the nominal voltage under load, while 12V represents the maximum initial voltage right off the charger. This RS550 motor is perfectly optimized for both designations on the GSR and TSR platforms.
Q: The motor fits, but the drill only runs at one speed now. Is the motor defective?
A: No. Speed shifting is entirely controlled by the mechanical slide switch on top of the drill housing that locks/unlocks the planetary gears. If it won\’t switch speeds, the gear selector fork was likely misaligned when you clamped the two halves of the plastic clamshell housing back together.
Q: Why does the new motor create a small spark when I let go of the trigger?
A: This is completely normal behavior. Cordless drills feature an electronic brake built into the trigger switch. When you release the trigger, the switch short-circuits the motor leads together to instantly stop the chuck from spinning. This sudden back-EMF creates a brief flash at the carbon brushes.
Legal Disclaimer: FixPartHub is an independent distributor specializing in premium-grade aftermarket power tool components. We are not affiliated with, authorized by, or associated with Robert Bosch Tool Corporation. All manufacturer names, registered trademarks, and model numbers (e.g., Bosch, GSR1080-2-LI, TSR1080) are referenced solely for the purpose of cross-compatibility verification to assist professional technicians and end-users in hardware repairs.
