Every woodworker knows the frustration: you are building a beautiful piece of dark walnut cabinetry, but when it is time to pin the joints, you realize you only have cheap, light-colored pine dowels from the hardware store. It ruins the aesthetic of the entire piece.
Buying pre-milled exotic hardwood dowels is incredibly expensive. The Premium Adjustable Dowel Maker Jig | FixPartHub Edition gives you total independence. By acting as a miniature, drill-powered lathe, this heavy-duty aluminum fixture lets you transform square offcuts of any wood species into perfectly round, smooth dowels in a matter of seconds. Match your grain perfectly, save money, and elevate your joinery to a master-craftsman level.
Melt down your scrap bin. Turn useless square offcuts into high-value joinery pins.
Replaceable carbide inserts shave the wood smoothly. (Bonus spare blade included).
No hand pounding. Chuck the wood in your drill and push it through for instant results.
Workshop Workflow: How to Mill Perfect Dowels
Producing your own custom hardwood dowels is incredibly fast. Follow these steps for the best finish:
- Mount the Jig: Secure the aluminum jig firmly into your workbench vise, ensuring the exit hole is clear.

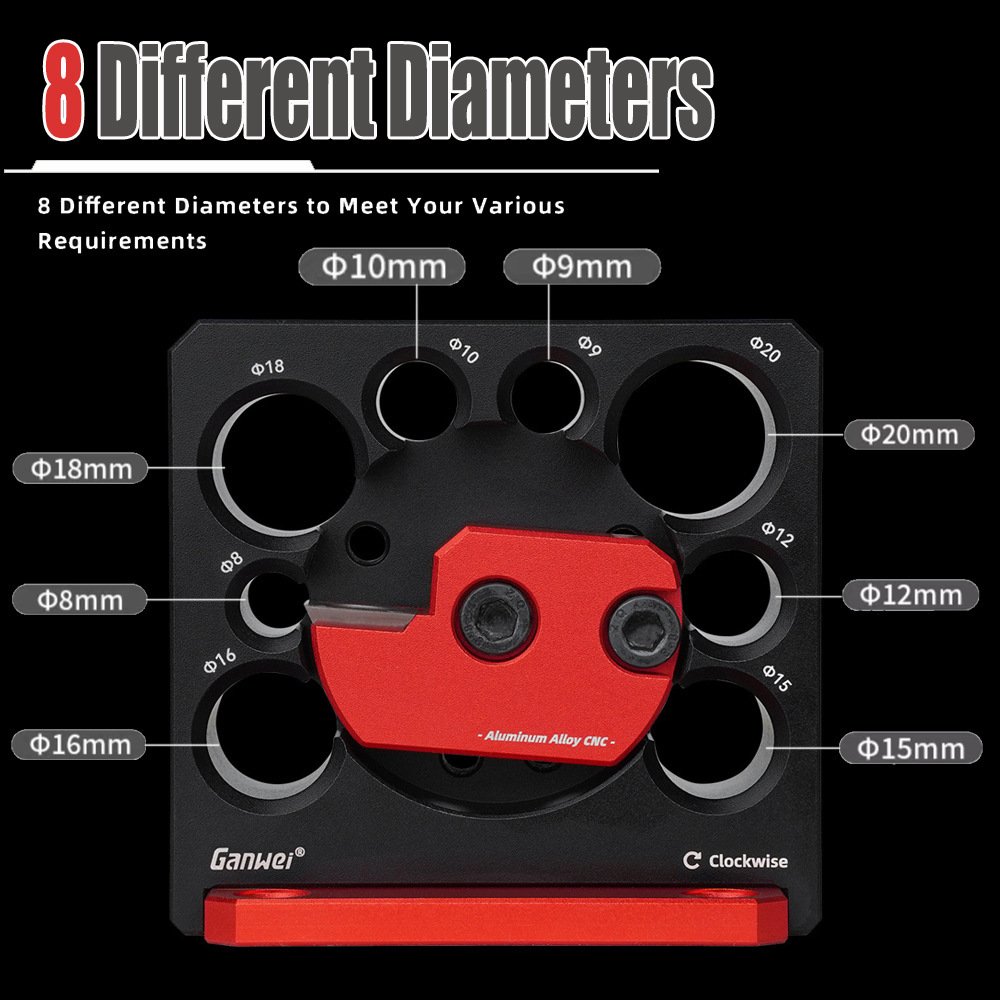

- Set the Dial: Rotate the adjustable sizing plate to your desired dowel diameter. Ensure the carbide cutter is positioned closely against the cutting aperture.
- Prep the Blank: Rip your scrap wood on the table saw into square strips slightly larger than your target dowel size. Pro Tip: Use a knife or sander to slightly taper one end of the square stick so it enters the jig easily.

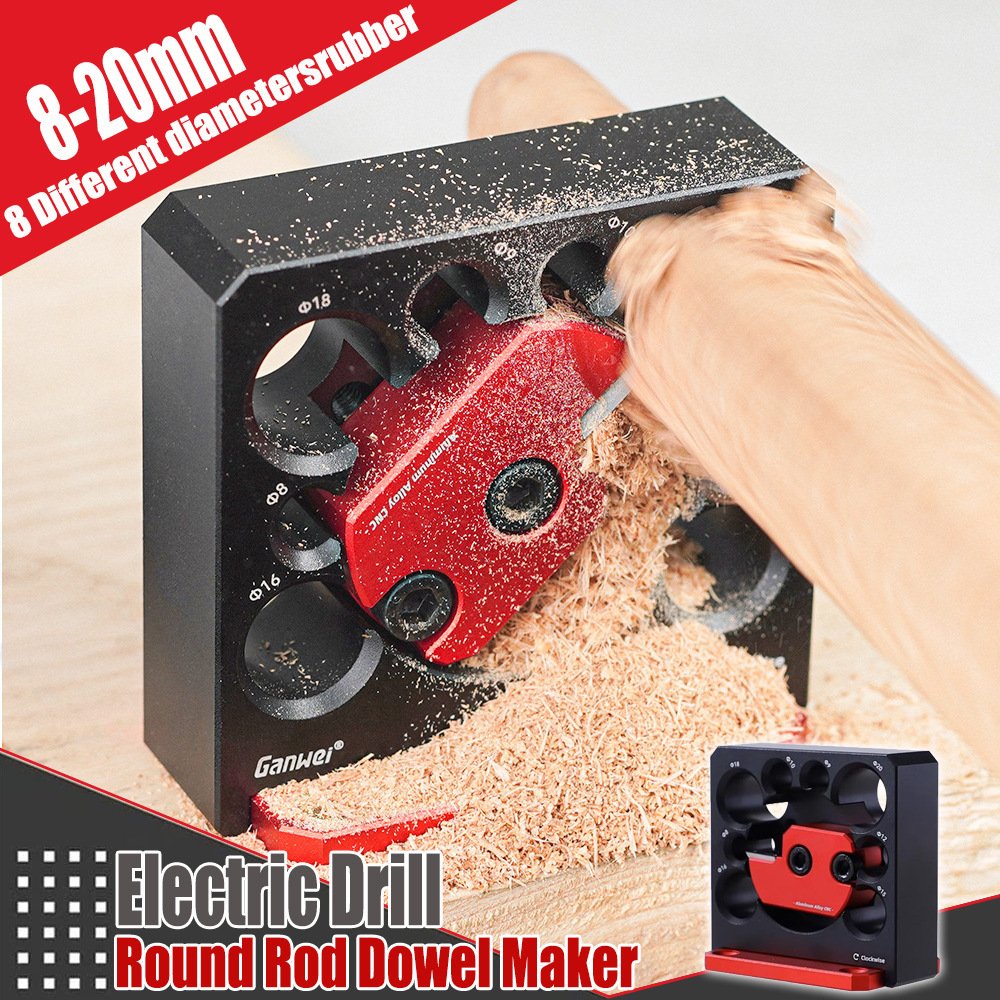

- Power Mill: Chuck the non-tapered end of the square stick into your power drill. Turn the drill on (moderate RPM) and slowly push the spinning stick through the jig’s cutting hole. The carbide blade will shave the corners off, leaving a perfectly round rod.
⚠️ Wood Grain Feed Warning:
Always ensure your square stock has straight grain running end-to-end. If the grain runs diagonally across the stick (runout), the spinning action of the drill will cause the stick to snap violently inside the jig. Feed the wood smoothly and consistently without applying excessive downward force to prevent burning the wood.
Tech Q&A: Tool Calibration & Maintenance
❓ Q: What kind of drill should I use with this jig?
A: A standard 18V or 20V cordless drill driver works perfectly. Do not use an impact driver, as the hammering action will shatter the wood blank. Set your drill to its higher speed gear but feed the wood forward at a moderate, steady pace.
❓ Q: How do I change or rotate the carbide cutting blade?

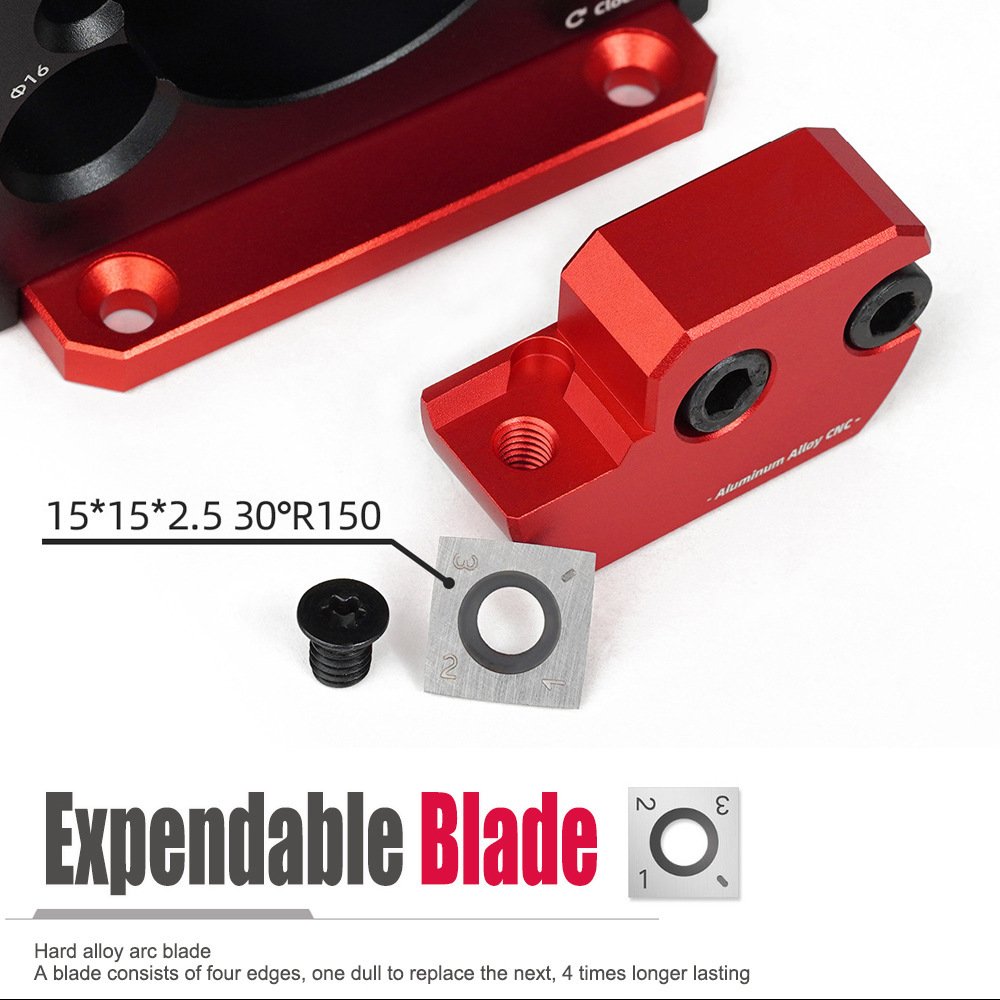

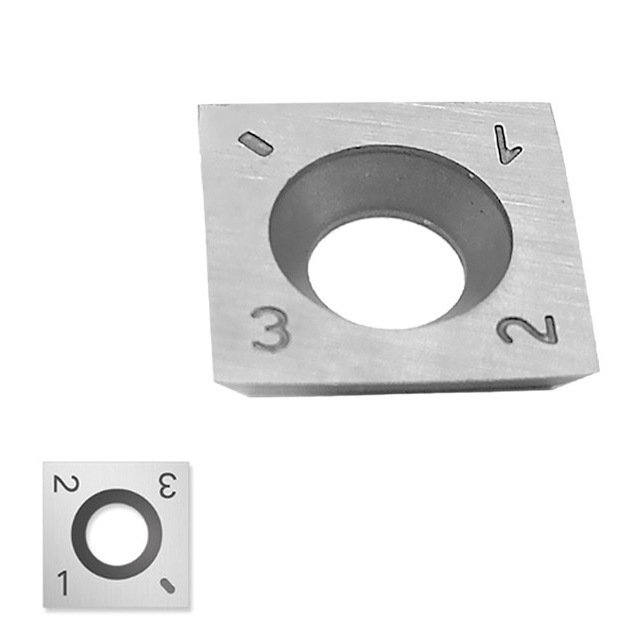

A: The tool uses a standard indexable carbide insert. When one edge gets dull, simply loosen the mounting screw with the included hex key, rotate the blade 90 degrees to expose a fresh, razor-sharp edge, and retighten. We also include a full spare blade in the kit for long-term reliability.
❓ Q: Can it mill extremely short pieces of wood?
A: Because part of the stick must be held inside the jaws of the drill chuck, the minimum length of stock you can comfortably feed through the jig is typically around 4 to 5 inches. It is best to mill a long 12-inch rod and cut it down into smaller individual dowel pins later.
Traditional steel dowel plates require you to physically hammer the wood through the hole, which is exhausting, incredibly slow, and often results in crushed or splintered wood. This drill-powered jig acts like a mini-lathe, using a carbide blade to cleanly shave the wood at high RPM, resulting in a much smoother surface finish in a fraction of the time.
Yes. The razor-sharp carbide blade cleanly cuts both softwoods (pine, fir) and dense exotic hardwoods (walnut, maple, oak). For softwoods, use a slightly faster feed rate to prevent the wood fibers from tearing.
In most cases, yes. The carbide cutter leaves a very smooth surface. However, some professional woodworkers prefer to give the finished dowel a very quick 5-second hand rub with 220-grit sandpaper just to create a slight texture that helps wood glue adhere better inside the joint.
