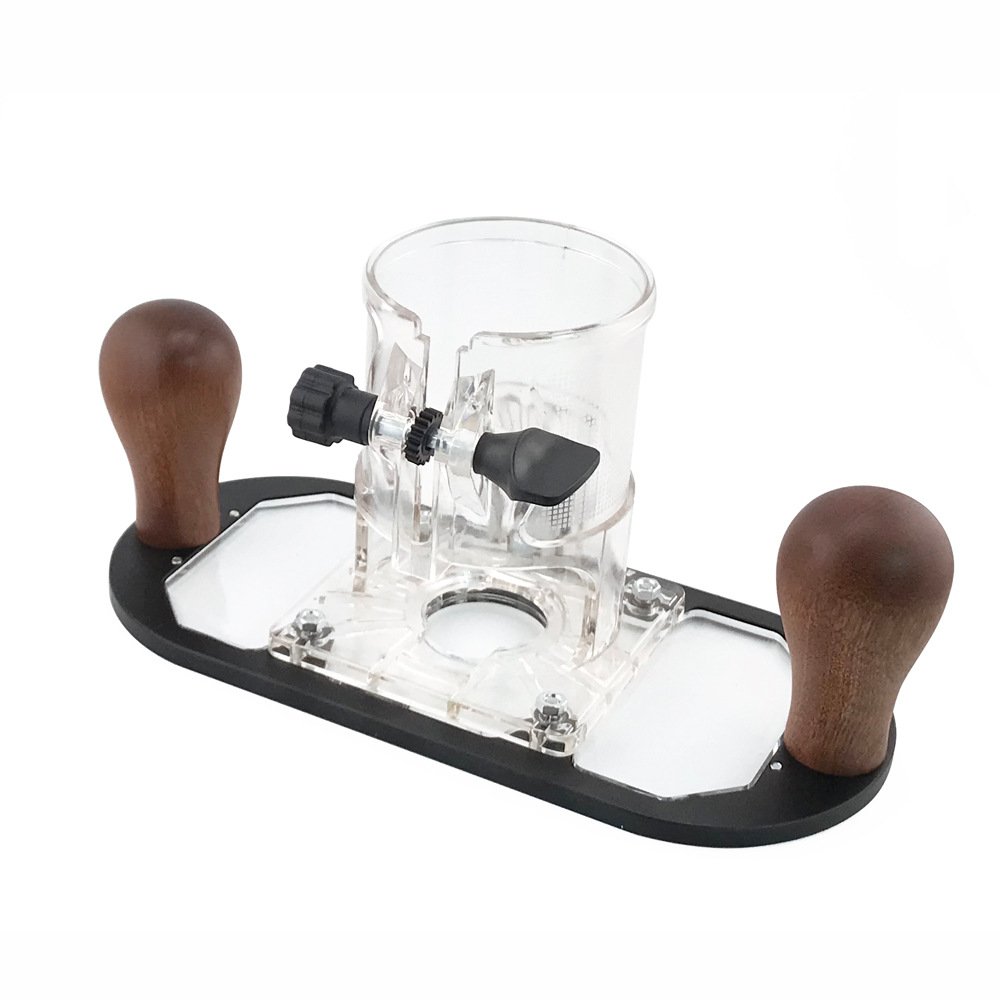

A standard fixed-base trim router is great for edge profiling, but when you need to drop a spinning bit perfectly into the center of a workpiece for a mortise or an inlay, a fixed base is dangerous and inaccurate. The Precision 65mm Compact Router Plunge Base Attachment is the definitive upgrade, transforming your lightweight palm router into a highly versatile, track-ready plunge routing machine.
Engineered for Smooth Vertical Action
At the core of this 500g (1.1 lbs) jig is a heavy-duty, dual-spring plunge mechanism. Unlike cheap plastic adapters that bind and stutter, our precision-machined steel columns ensure silky-smooth downward travel. This allows you to gradually lower the router bit directly into the hardwood with absolute control, eliminating burn marks and the risk of the bit wandering off your layout lines.
Key Engineering Advantages

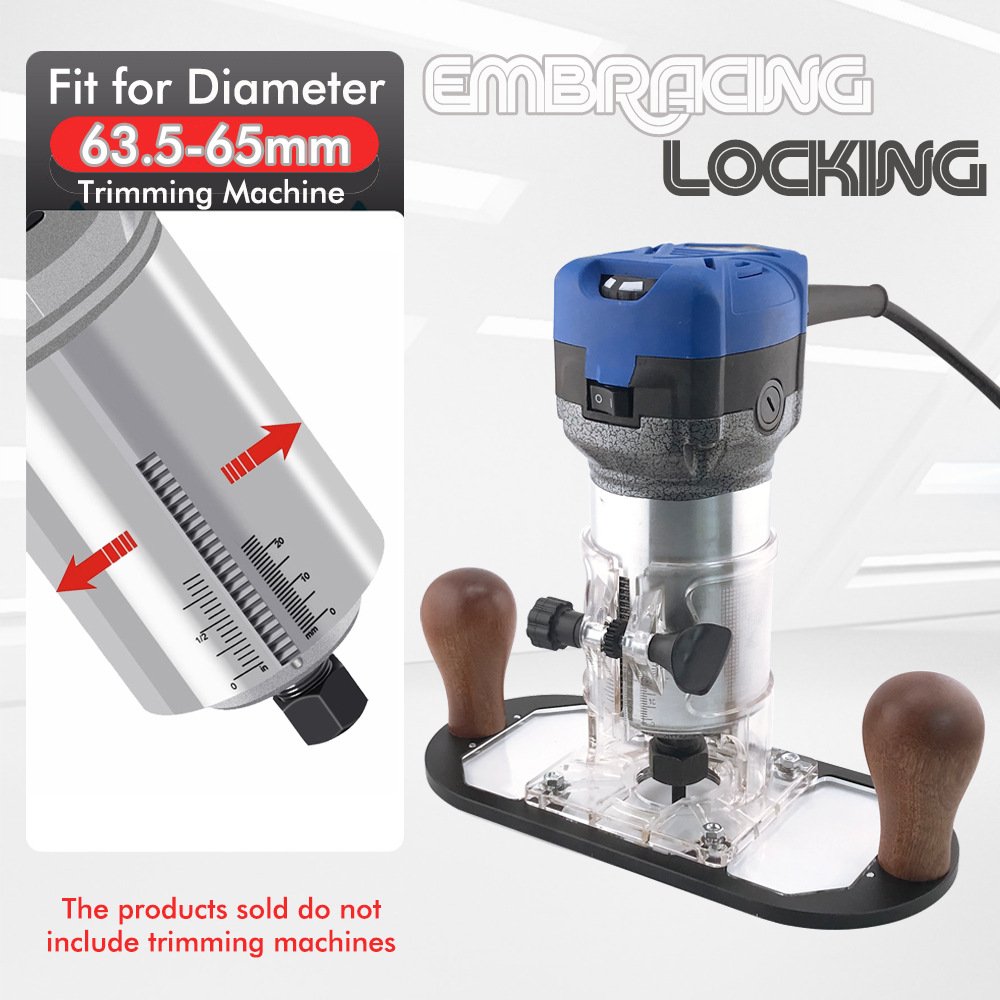

- Universal 65mm Compatibility: The internal cam-lock mechanism securely grips the 65mm (approx. 2.56″) cylindrical motor housing of the world’s most popular compact routers with zero slip.
- High-Visibility Clear Shield: Features an integrated, shatter-resistant transparent sub-base cover. This deflects high-speed wood chips away from your face while providing an unobstructed line of sight to your pencil marks and the cutting edge.

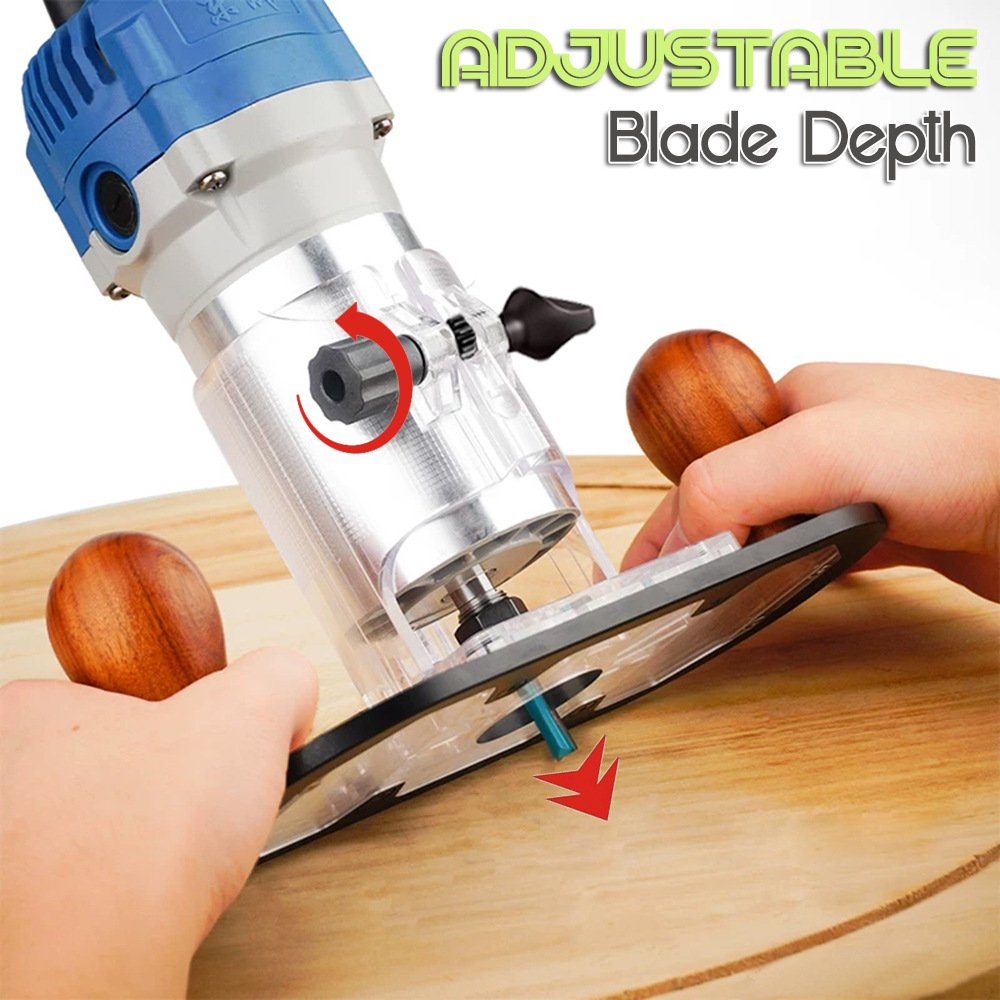

- Micro-Adjustable Depth Stop: Equipped with a multi-position turret stop and a micro-adjustment wand, allowing you to set highly repeatable, exact cutting depths for complex stepped mortises.
How to Execute a Perfect Plunge Cut
- Mount the Motor: Slip your 65mm router motor into the base ring and engage the heavy-duty locking lever.
- Set the Depth: Plunge the router until the bit touches the wood. Lock the plunge lever, then zero out your depth rod against the lowest step of the turret stop. Adjust the rod upward to your exact desired cutting depth.

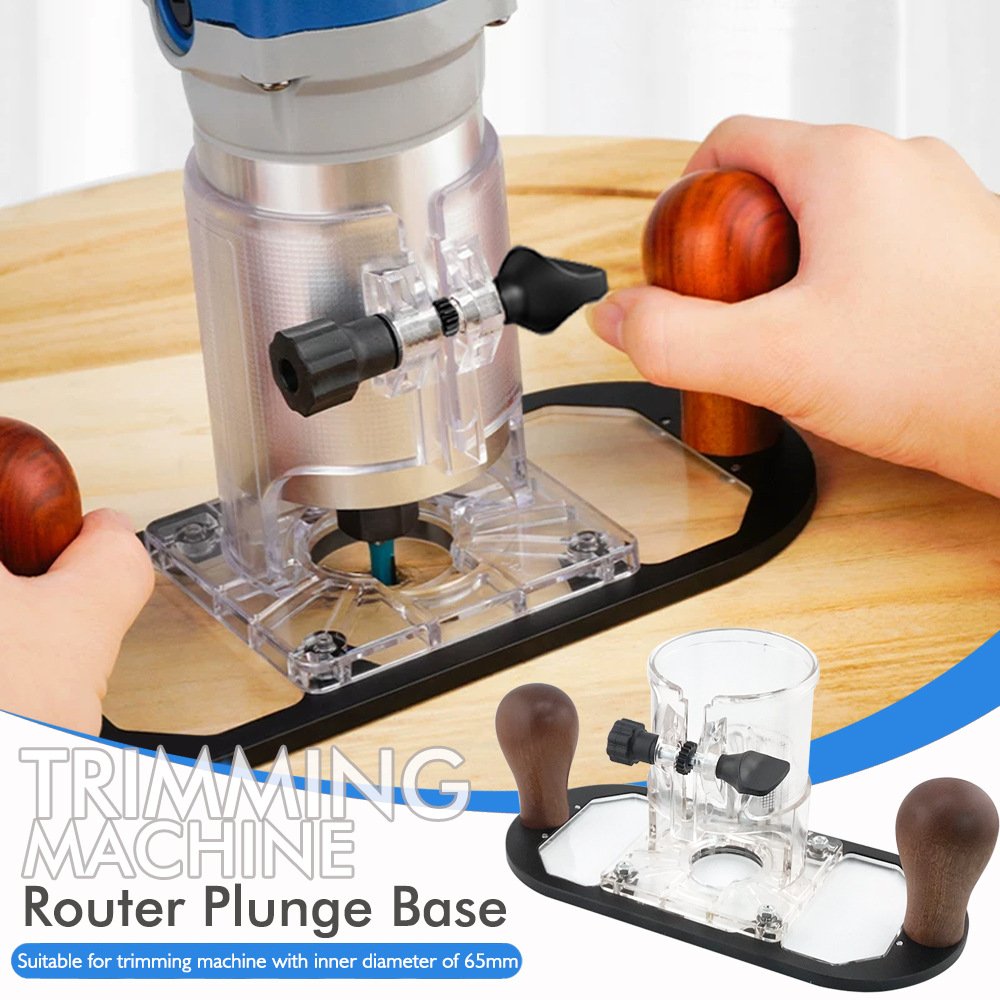

- Plunge and Route: Release the plunge lock, turn on the power, and firmly press the ergonomic side handles downward. Once you reach your pre-set depth, lock the lever again and begin routing your slot.
Tech Q&A: Tool Setup & Performance
Q: Will this replace the fixed base that came with my router?
A: Yes. You simply unlock your motor housing from its factory fixed base and slide it directly into this plunge base. It takes less than 10 seconds to switch between setups.
Q: Is the transparent cover durable enough to stop flying debris?
A: Absolutely. It is manufactured from impact-resistant polycarbonate. It provides a crucial physical barrier against flying chips and broken bits without sacrificing your line of sight.

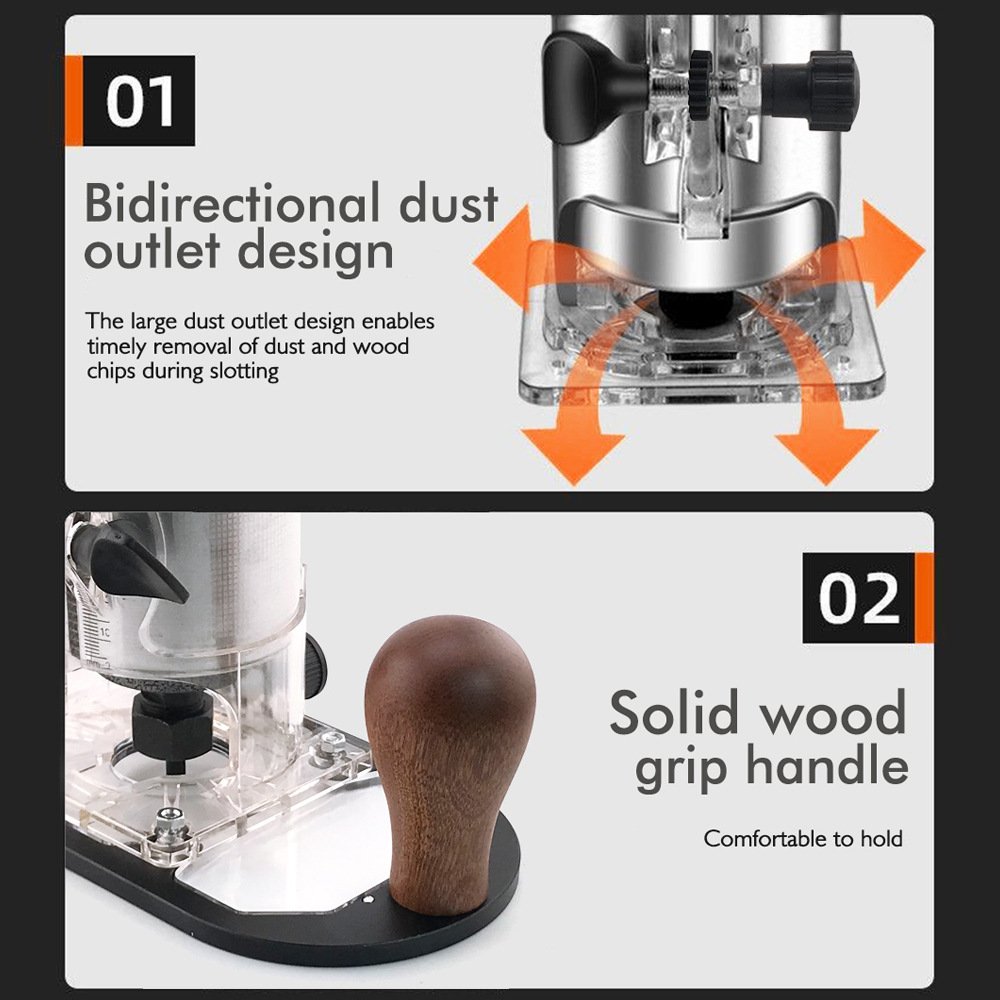

Q: Are the handle grips comfortable for long routing sessions?
A: The oversized, ergonomic rubberized grips are designed to absorb high-frequency motor vibrations, significantly reducing hand fatigue during extensive mortising or dadoing operations.

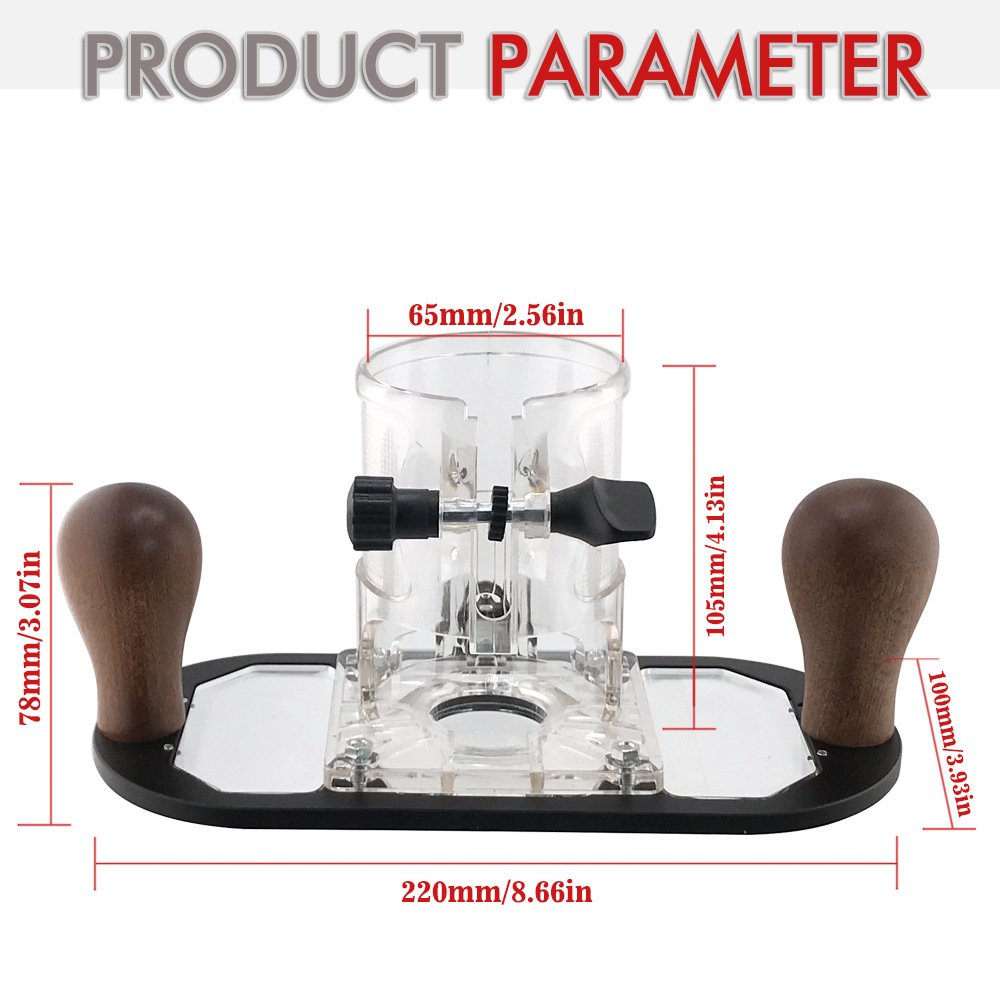

The mounting collar is precision-machined to accept any compact palm router motor with an outer diameter of exactly 65mm (approximately 2.56 inches).
Yes. It features a professional-grade depth stop rod paired with a multi-step rotating turret, allowing you to make precise, incremental depth adjustments for deep mortises.
The clear polycarbonate shield allows you to visually track your layout lines and watch the router bit’s progress in real time, while safely deflecting sawdust and wood chips away from you.
Yes, the sub-base is designed with a standard center opening to accommodate most universal brass template guide bushings, making it perfect for sign making and inlay work.
